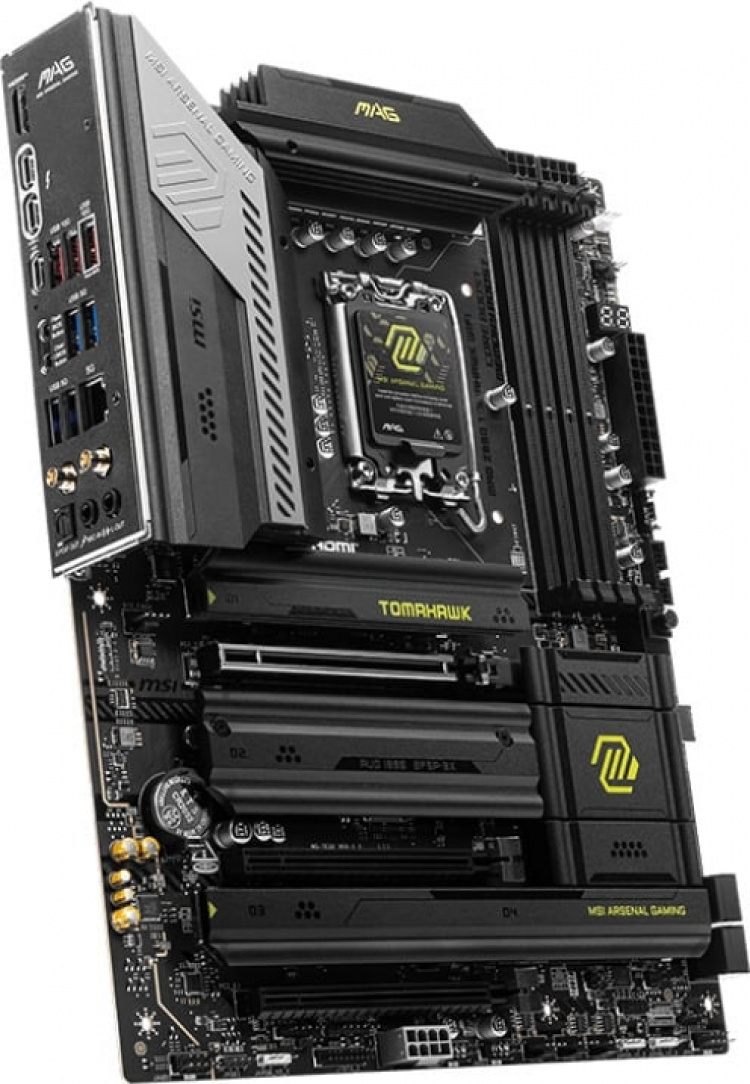

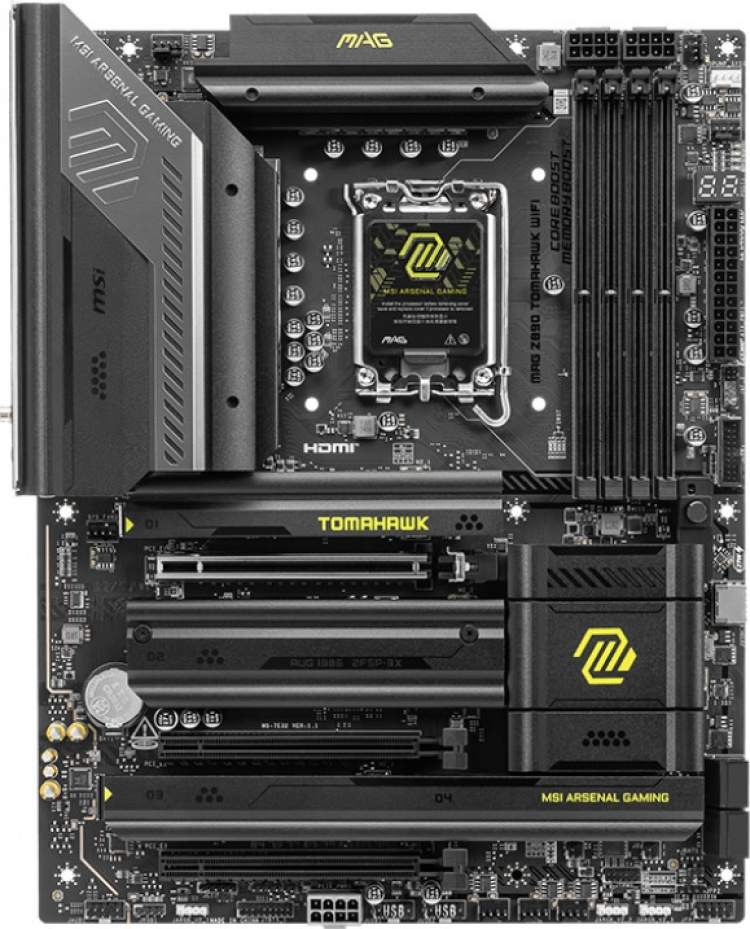

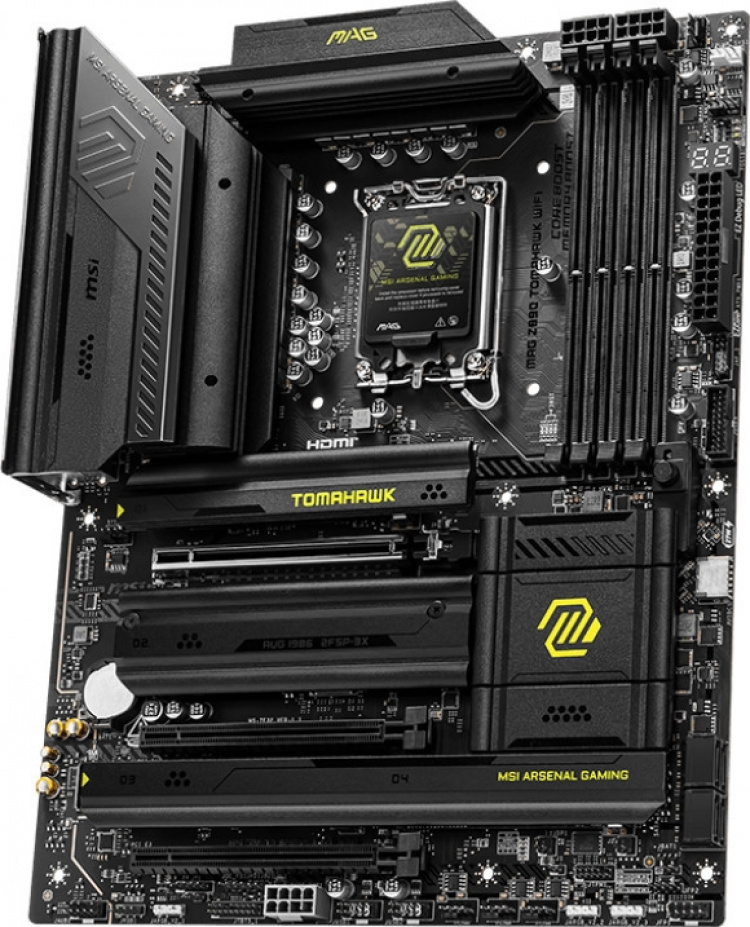

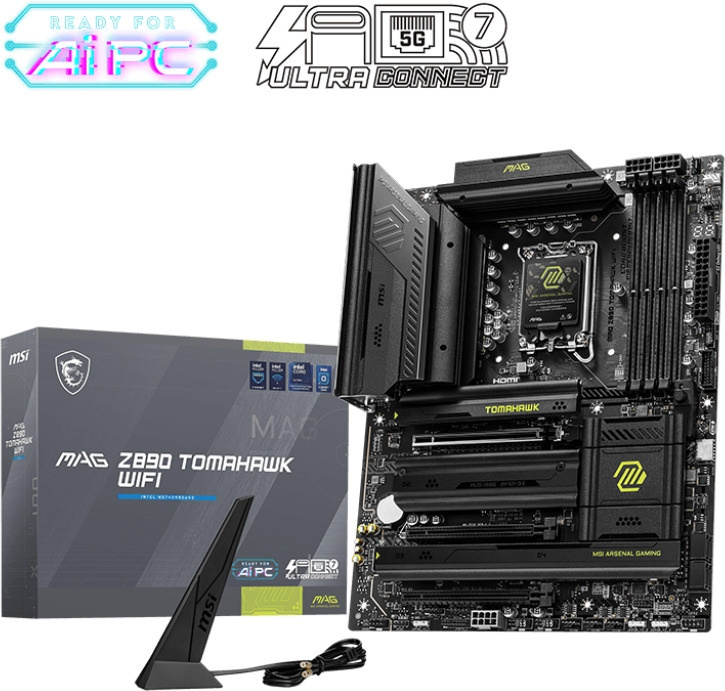

The MAG Z890 TOMAHAWK WIFI is designed for gamers who need a stable, durable, and DIY-friendly foundation for their PC builds. It includes Wi-Fi 7, 5G LAN, a 40 Gbps USB port, PCIe 5.0 support, additional PCIe power delivery, and exclusive EZ DIY features, making it ready for Intel Core Ultra (Series 2) processors.
MSI The MAG series is designed to give gamers a head start on virtual battlefields. The series draws inspiration from the durability and reliability of military-grade equipment, ensuring robust protection in all gaming scenarios.
- Supports Intel Core Ultra (Series 2) processors.
- Supports DDR5 memory, dual-channel DDR5 9200+ MT/s (OC).
- Ultra performance: 16+1+1+1 Duet Rail power delivery system, Core Boost, and a 6-layer PCB made of thick copper using server-grade materials.
- Frozr Guard: An enlarged heatsink with heat pipes, MOSFET heat pads, additional component heat pads, and M.2 Shield Frozr ensure high performance and an uninterrupted gaming experience
- Lightning-fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
- Ultra-connectivity: Thunderbolt 4, 5G LAN, and Wi-Fi 7 provide secure, stable, and fast network and data transfer connections.
- Audio Boost 4: Studio-grade audio quality that ensures the most immersive gaming experience.
Features:
- Chipset: Intel Z890
- Processor socket: LGA 1851
- Processor support: Intel Core Ultra (Series 2)
- Motherboard size: ATX (243.84 x 304.8 mm)
- Memory slots (number): 4
- Memory type: DDR5 (9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Unbuffered
- Maximum memory capacity (GB): 256
- Network connections: Intel Killer E5000 5Gbps LAN, WiFi 7 (802.11 a/ b/ g/ n/ ac/ ax/ be), Bluetooth 5.4
- Sound card: Realtek ALC1220P Codec, 7.1-Channel USB High-Definition Audio
Expansion slots
- 3 x PCI-E x16 slots
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Hard Drive Connectors
- 4 x SATA 6G
- 4 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

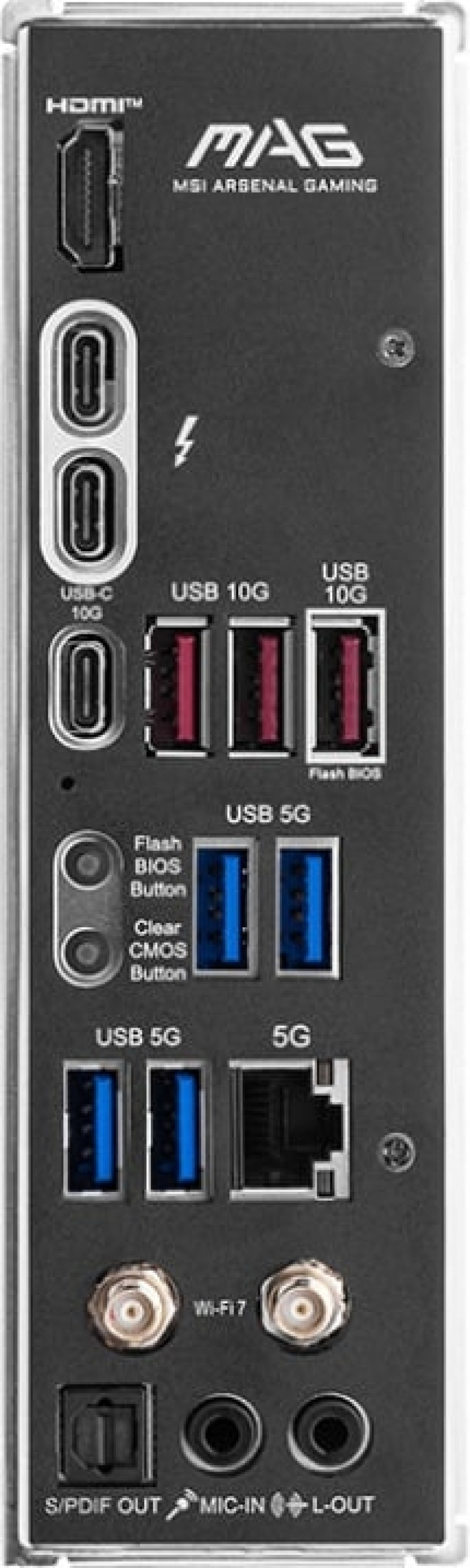

Rear Panel Connectors
- Clear CMOS Button
- USB 10Gbps Type-A
- 3 x USB 5Gbps Type-A
- 4 x USB 2.0
- 5G LAN
- Wi-Fi / Bluetooth
- 2 x Audio connectors
- Flash BIOS Button
- HDMI
- 2 x USB 40Gbps Type-C
- USB 10Gbps Type-C
- USB 10Gbps Type-A
Internal Connectors
- 1 x Thunderbolt 5 card connector (JTBT5, supports RTD3)
- 1 x Power Connector (ATX_PWR)
- 2 x Power Connector (CPU_PWR)
- 1 x Power Connector (PCIE_PWR 8-pin)
- 1 x CPU Fan
- 1 x Combo Fan (Pump_Sys Fan)
- 6 x System Fan
- 1 x EZ Conn header (JAF_2)
- 2 x Front Panel (JFP)
- 1 x Chassis Intrusion (JCI)
- 1 x Front Audio (JAUD)
- 3 x Addressable V2 RGB LED connector (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- 1 x TPM pin header (Supports TPM 2.0)
- 4 x USB 2.0 ports
- 2 x USB 5Gbps Type A ports
- 1 x USB 20Gbps Type-C port
- LGA 1851 ATX motherboard
- Intel Z890 chipset
- 5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots, 4 x DDR5
- Supports Intel Core Ultra 2 series
