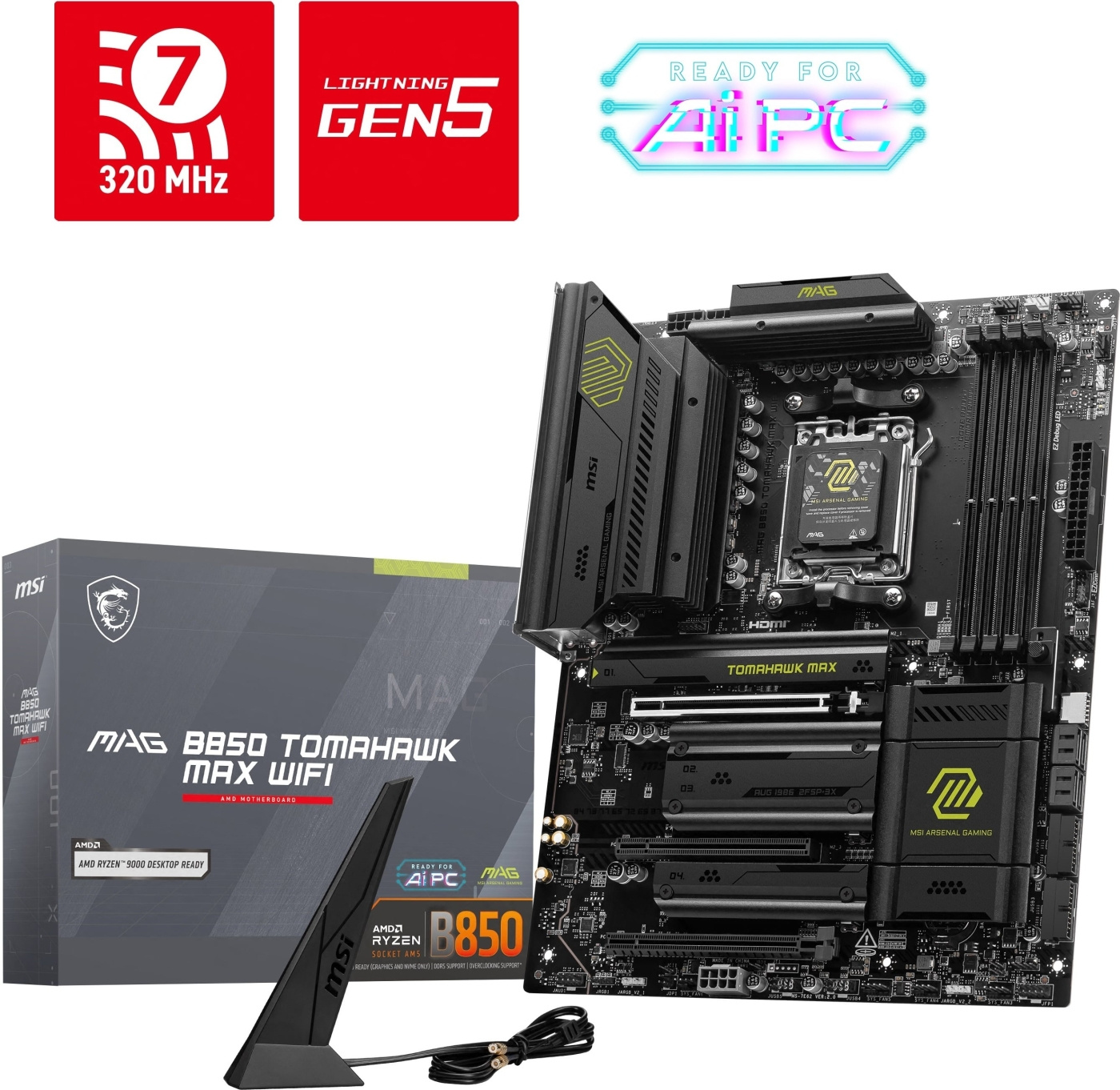

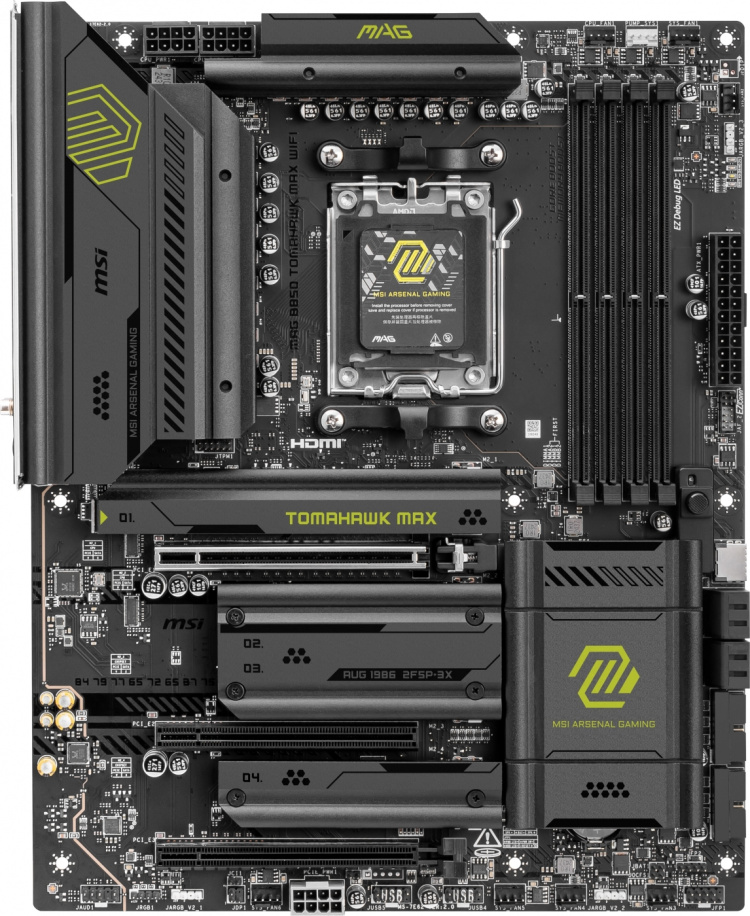

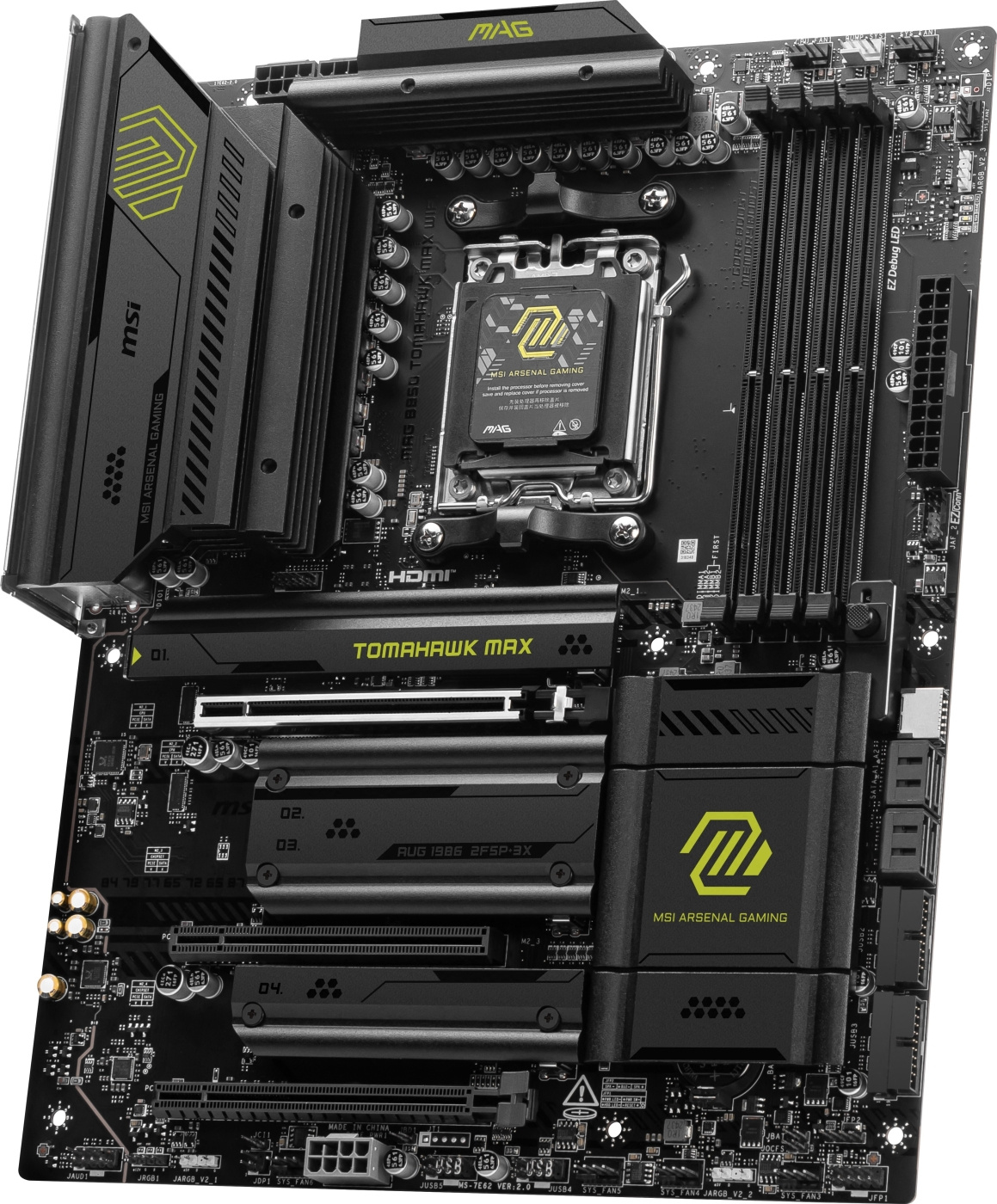

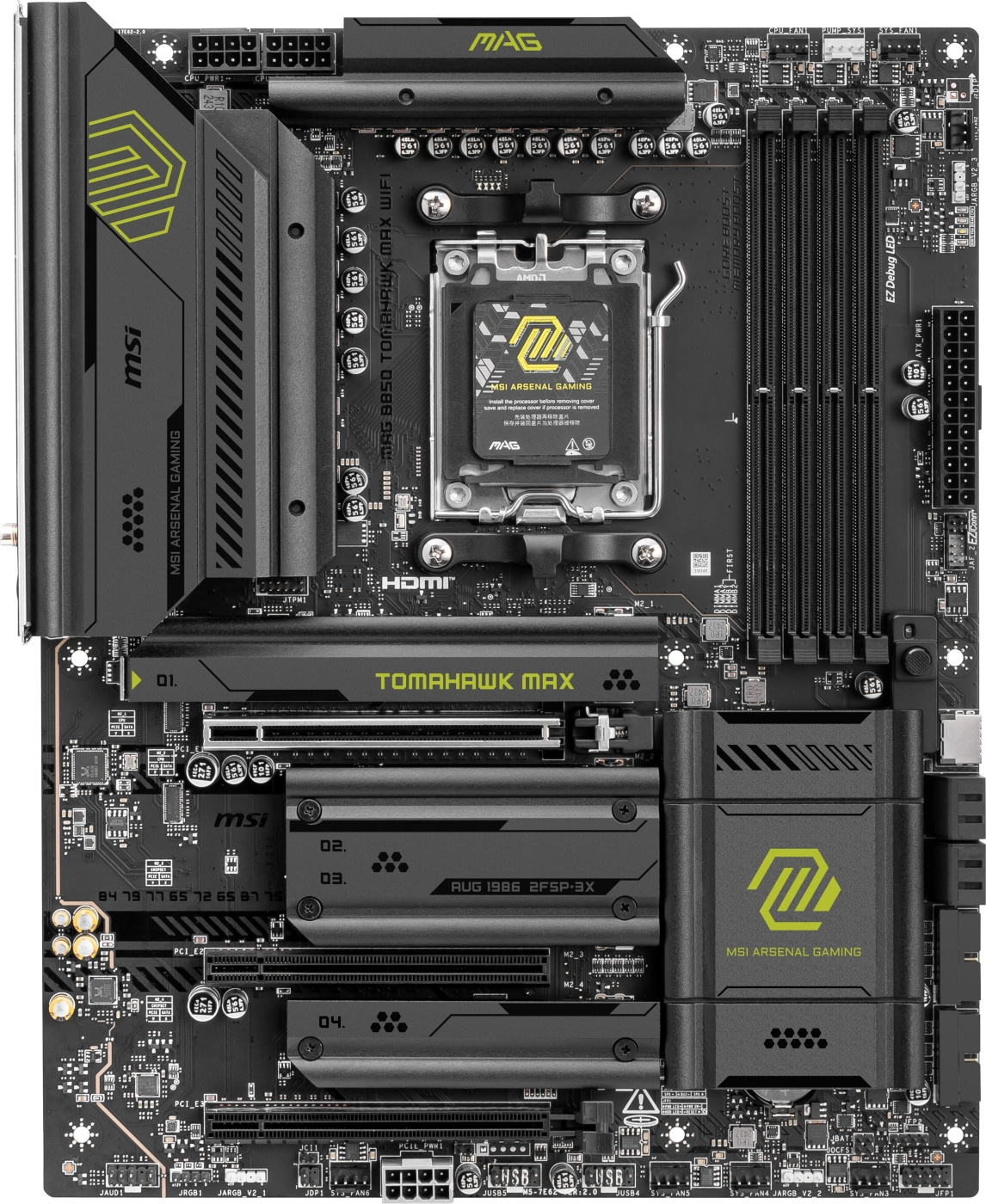

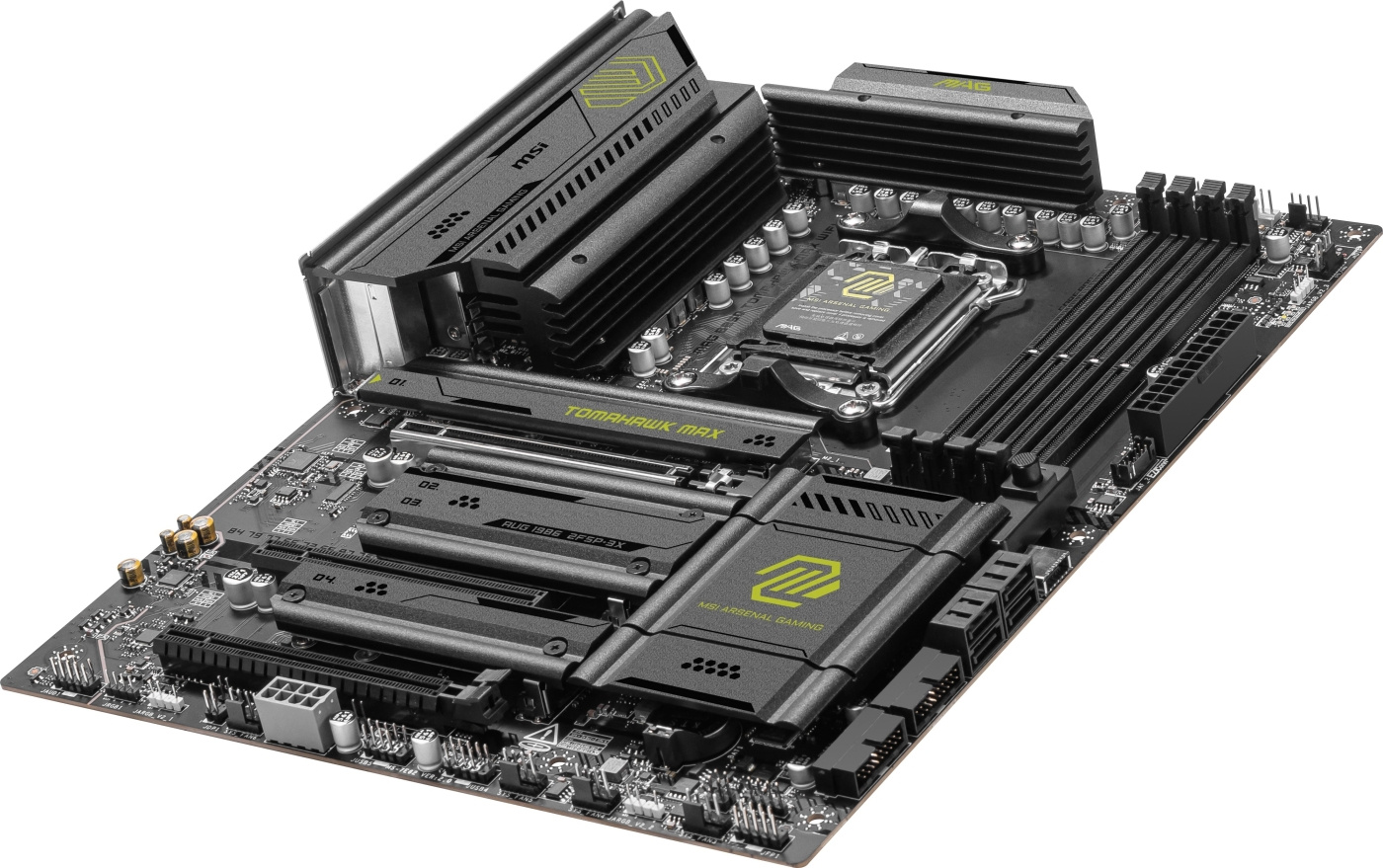

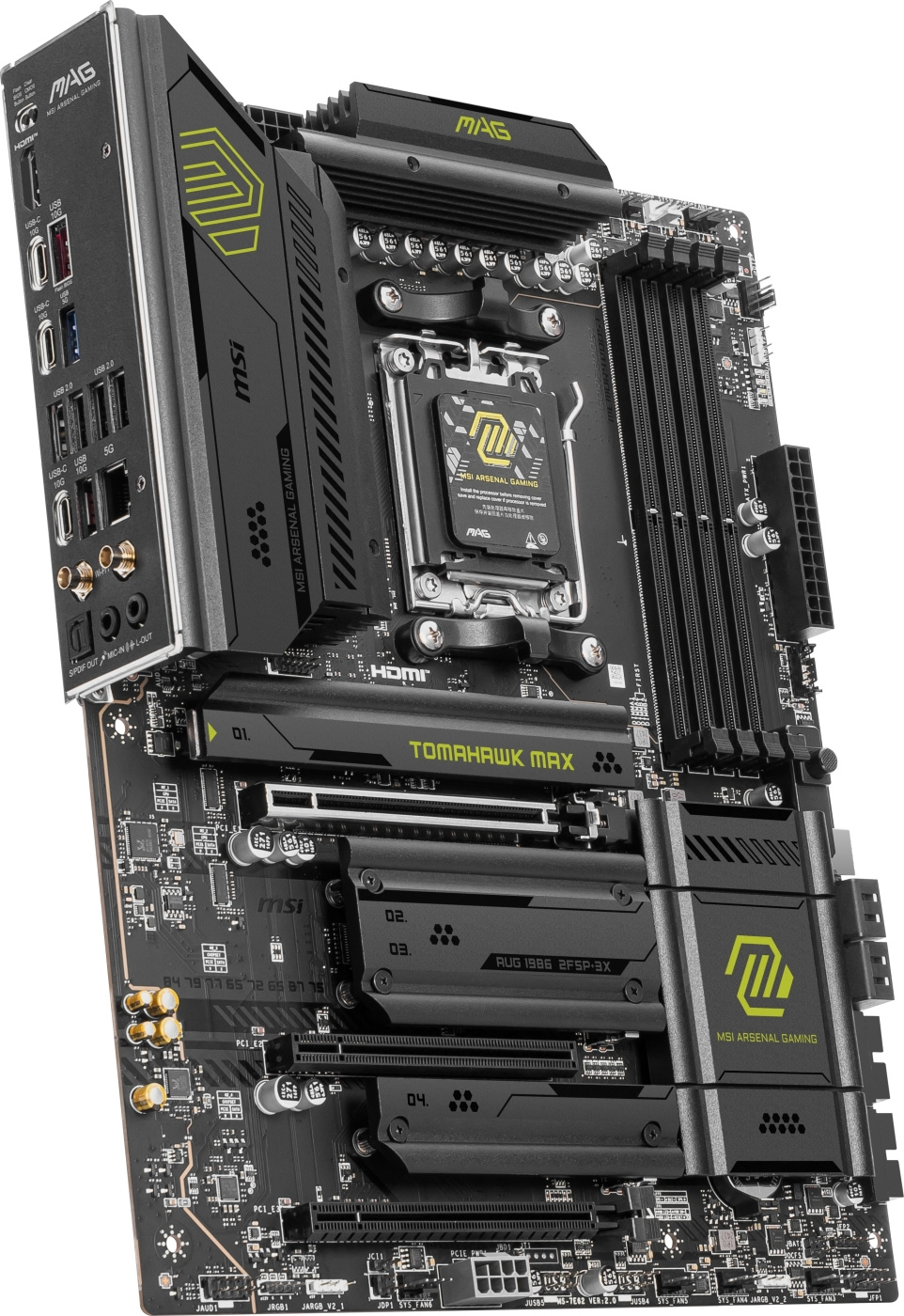

MSI The MAG B850 TOMAHAWK MAX WIFI is an excellent choice as the heart of a powerful and reliable gaming PC. This motherboard provides everything you need to harness the performance of AMD Ryzen 7000 / 8000 / 9000 series processors. Its durable components and powerful power delivery ensure smooth and reliable operation even under demanding conditions. Enjoy lightning-fast loading times and data transfers thanks to the latest-generation PCIe 5.0 interface and four M.2 slots. One of the slots supports transfer speeds of up to 128 GB/s. Wireless connectivity is fast and reliable with Wi-Fi 7, which is up to 2.4 times faster than its predecessor.
MSI The MAG B850 TOMAHAWK MAX WIFI is designed for ease of use and offers many features that make building and using a computer easier. With the EZ M.2 Shield Frozr II, you can install and remove M.2 SSDs without tools. The EZ PCIe Release button, on the other hand, allows you to remove and install the graphics card effortlessly.
Features:
- EZ PCIe Release: A simple press of a button locks or unlocks the PCIe slot effortlessly, making it easier to install and remove the graphics card.
- EZ M.2 Shield Frozr II: The new tool-free design makes installing or removing the M.2 SSD and Shield Frozr much easier.
- Lightning Gen 5: The latest PCIe 5.0 solution with a bandwidth of up to 128 Gb/s for maximum transfer speeds.
- 4 x M.2 slots: The motherboard features 4 M.2 slots, one of which is a Lightning Gen 5 solution for maximum storage performance.
- Enhanced cooling: MSI:n's expanded PWM heatsink and improved circuit layout ensure that even top-tier processors run at full speed.
- Latest DDR memory: A major leap in DDR performance with the latest DDR5 memory and MSI Memory Boost technology.
- 5G network solution: Premium 5G LAN delivers a better network experience.
- Wi-Fi 7: The latest wireless solution featuring a new 320 MHz channel, achieving a maximum transfer speed of 5.8 Gbps—2.4 times faster than Wi-Fi 6/6E.
- Core Boost: A premium architecture and fully digital power design support more cores and deliver better performance.
- Audio Boost 5: Isolated audio with a high-quality audio processor delivers the most immersive gaming experience.
Technical Specifications:
- Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 series processors
- Processor socket: AMD Socket AM5
- Chipset: AMD B850
- Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- Display outputs: Supports 8K@60Hz HDMI™ 2.1 FRL (requires integrated graphics)
- Memory: 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
- Storage: 2 x M.2 Gen5 x4 128Gbps, 1 x M.2 Gen4 x4 64Gbps, 1 x M.2 Gen4 x2 32Gbps, 4x SATA 6Gbps

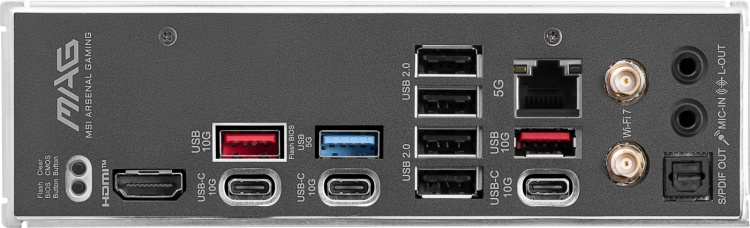

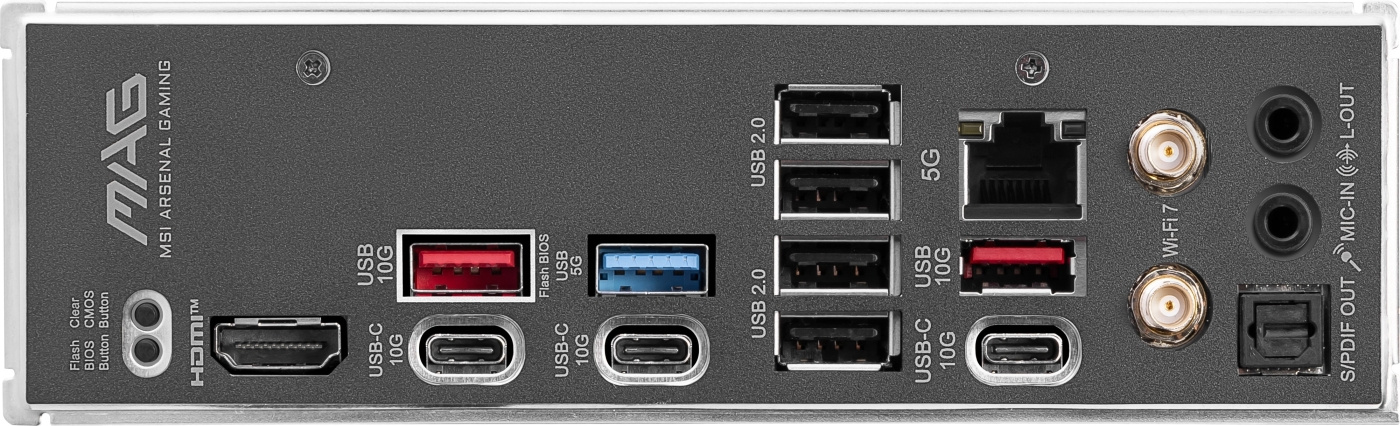

- USB ports: 1 x USB 20Gbps (1 Type-C), 5 x USB 10Gbps (2 Type-A + 3 Type-C), 5 x USB 5Gbps (Type-A), 8 x USB 2.0 Type-A
- Network: Realtek 5G LAN, Wi-Fi 7, Bluetooth 5.4
- Audio: 8-channel (7.1) HD Audio Boost 5
- AM5 motherboard
- AMD B850 chipset
- 5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2
- 4 x DDR5
