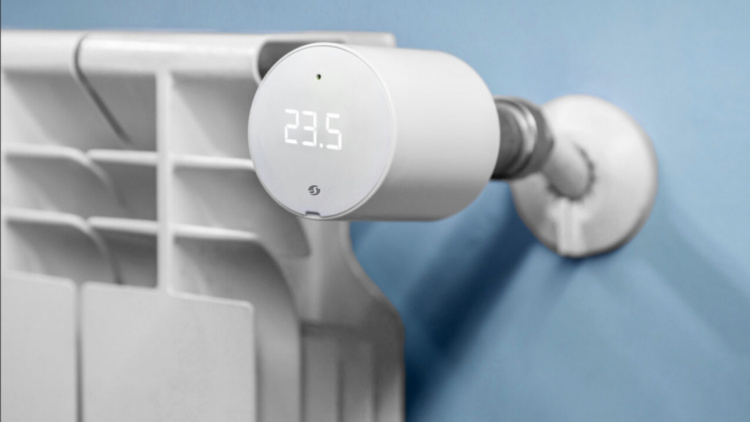

Shelly BLU TRV brings a new level of comfort and energy efficiency to your home heating. This smart thermostatic valve enables precise temperature control and fits perfectly into your home's smart ecosystem. Integrated Bluetooth connectivity and the included BLU Gateway Gen3 offer easy remote control and versatile features, such as smart schedules and Boost mode for rapid heating. In addition, precise temperature control with ±0.1 °C accuracy ensures a comfortable environment from room to room.
Precision and flexibility in heating
ShellyWith the BLU TRV, you can program your heating according to your daily schedule, optimizing both comfort and energy efficiency. Support for external sensors, such as the Shelly BLU H&T temperature and humidity sensor or the Shelly BLU Door/Window sensor, makes it even more precise. For example, you can automatically turn off the heating when a window or door is opened, or use Boost mode to quickly raise the room temperature to the desired level.
Easy to install and connect to
ShellyThe BLU TRV is designed to be compatible with most radiator valves, and adapters for the most common brands are included. You can install the thermostatic valve yourself, and it integrates seamlessly with popular smart home systems such as Google Home, Amazon Alexa, Home Assistant, and Samsung SmartThings.
Features:

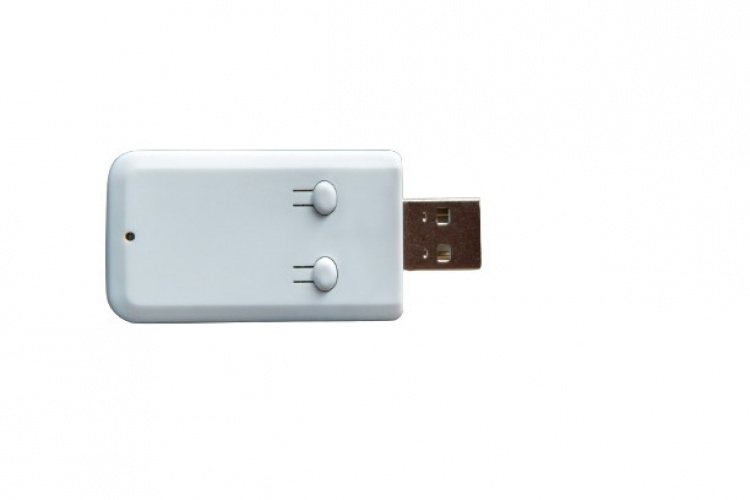

- Bluetooth connectivity: Quick and easy pairing with the BLU Gateway Gen3.
- Precise temperature control: Temperature control with ±0.1 °C accuracy.
- Boost mode: Quickly heat the room by fully opening the valve.
- Smart schedules: Customize heating according to your daily schedule to save energy.
- External sensor support: Compatible with Shelly BLU H&T and Door/Window sensors for more accurate measurement.
- Long battery life: Up to 2 years of operation on two 1.5V AA batteries (included).
- Compatibility: Connects to over 200 smart home systems, including Google Home, Amazon Alexa, and Home Assistant.
- Rotatable display: Clear 3-digit LED display for manual temperature control.
Compatible valves
Without adapter:
- M30 x 1.5

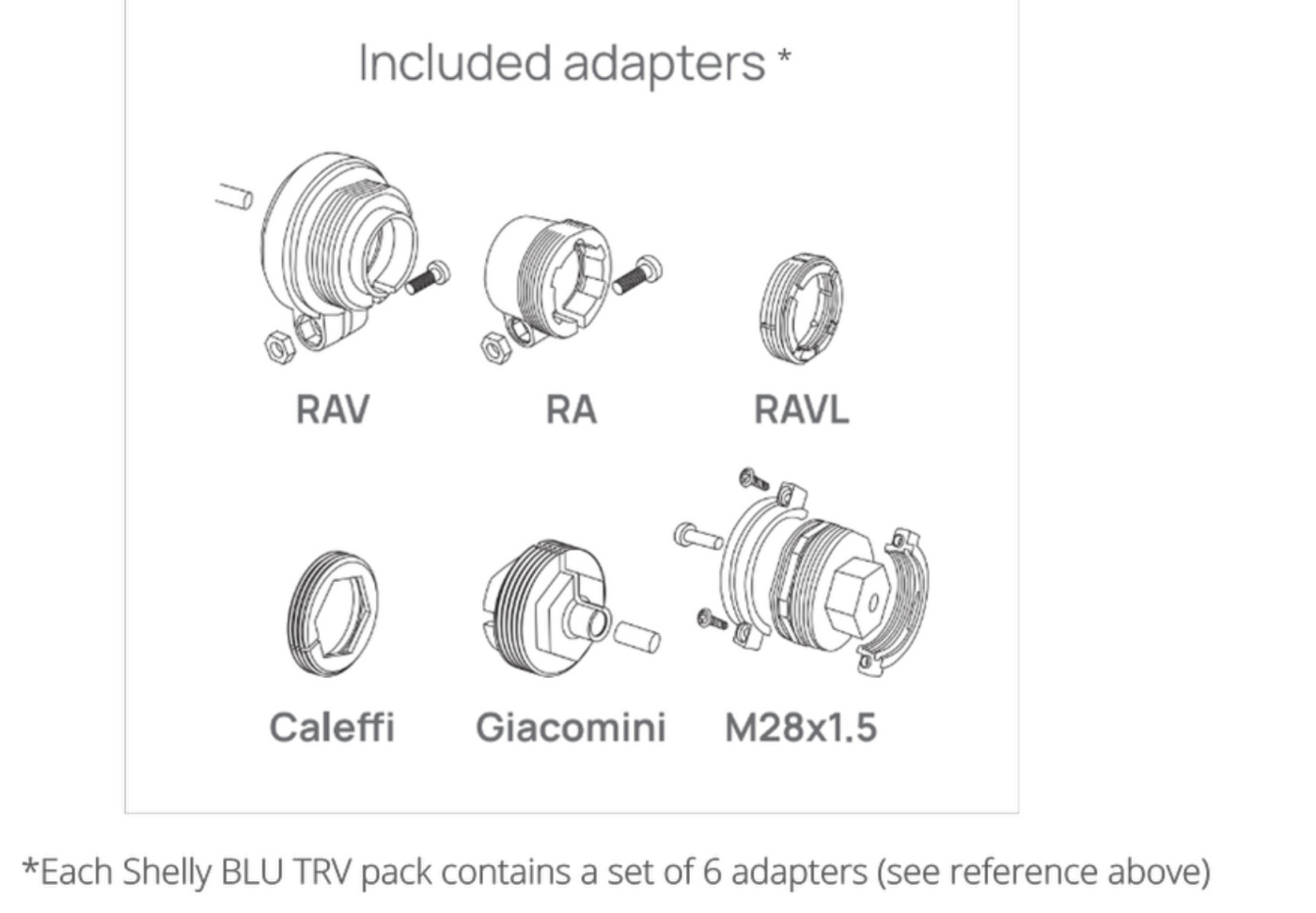

With adapters included in the delivery:
- Danfos: RA, RAV, RAVL
- Caleffi
- Giacomini
- M28 x 1.5
- Sam
- Slovarm
- Comap
- Markardys
- TA
- Herz
- MMA
- Remagg
- Pont-à-Mousson
With third-party adapters:
- Gampper (27 mm thread adapter and M22 internal thread)
- Glacomini
- Ista
- Meges (M38 x 1.5)
- Ondal (M38 x 1.5)
- Oventrop (M30 x 1.0, four prongs)
- Rossweiner (M33 x 2.0)
- Vallant (30.5 mm)
Complete list of compatible valves:
Shelly-TRV-Valves-compatibility-list-new.pdf
Technical specifications:
Physical characteristics
- Dimensions (L x H): 78 x Ø54 mm
- Weight: 107 g
- Mounting: M30 x 1.5
- Housing material: Plastic
- Color: White
Operating environment
- Operating temperature: -20 °C ... +60 °C
- Humidity: 25% - 80% RH
Electrical specifications
- Power source: 2 x AA, 1.5 V (included)
- Estimated battery life: Up to 2 years
Sensors and gauges
- Temperature sensor: Yes
Radio
- Bluetooth: Version 4.2
- Frequency range: 2400–2483.5 MHz
- Maximum RF power: ≪ 5 dBm
- Range: Outdoors: Up to 30 m, Indoors: Up to 10 m
Software features
- Schedules: Yes
- Encryption: AES (CCM mode)
- For smart heating
- Precise temperature control
- Smart schedules
- External sensor support

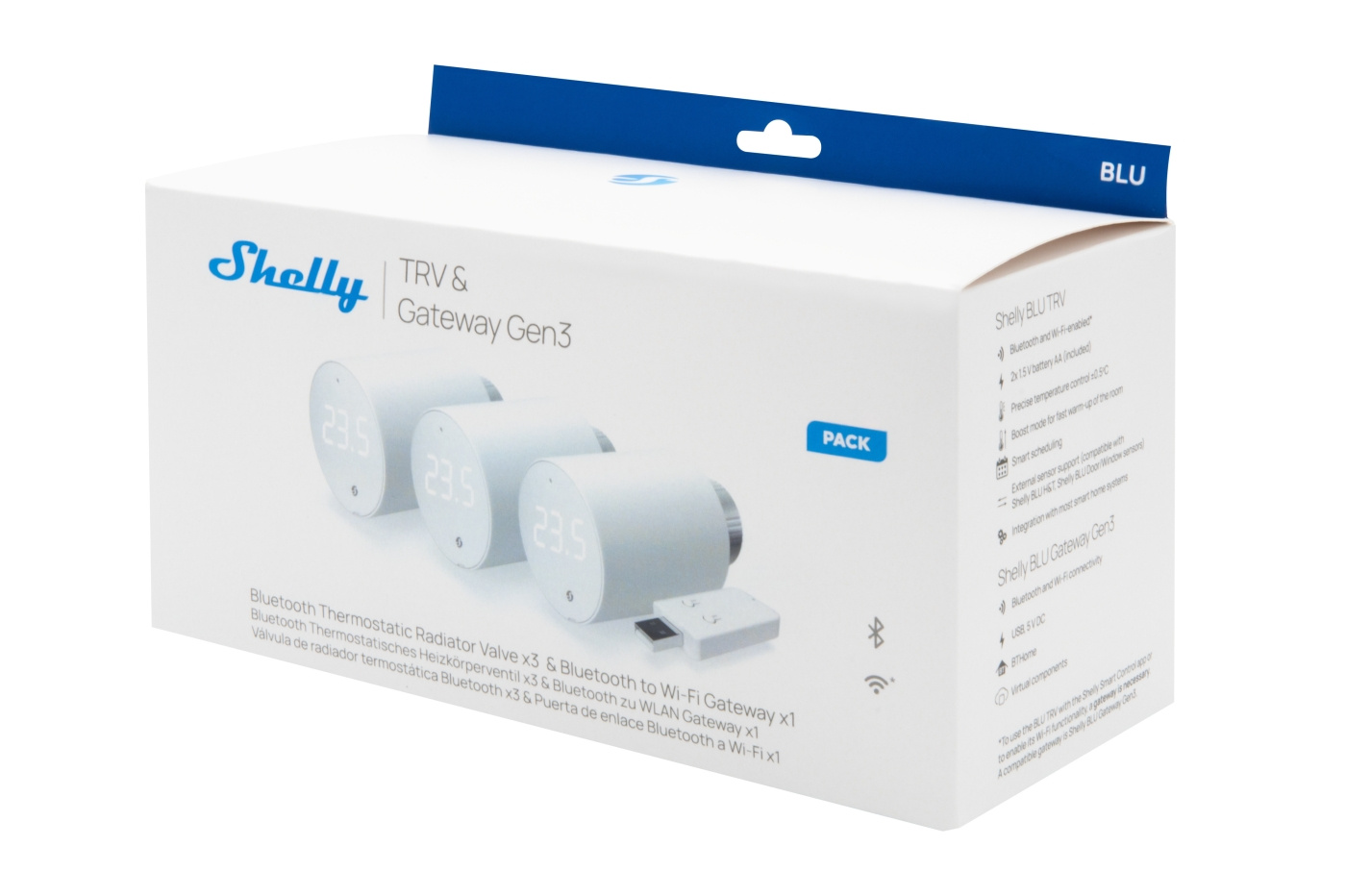

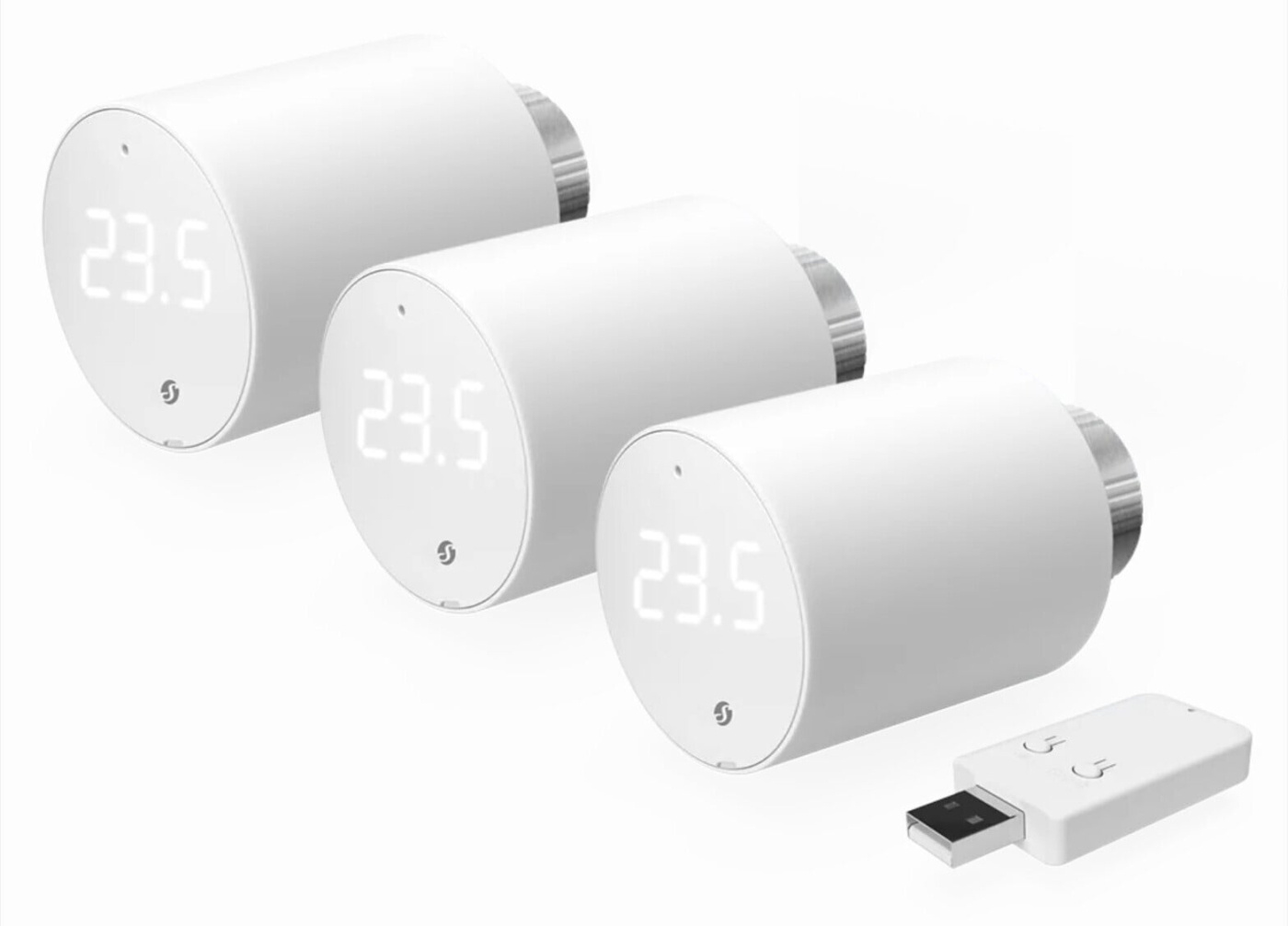

- Included: 3 smart thermostats + Gateway
