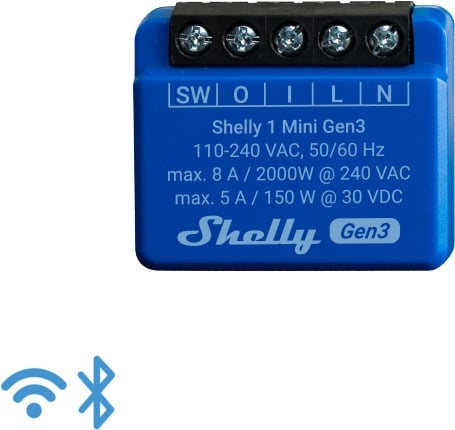

Shelly 1 Mini Gen3 is an ultra-compact Wi-Fi-controlled smart switch for smart control. Shelly With the 1 Mini Gen3 controller, you can automatically control lights, garage doors, irrigation systems, or other small electrical devices both at home and when you're away. Shelly The 1 Mini Gen3 is small enough to fit into almost any wall switch or outlet and can also be retrofitted.
Shelly Our smart home products support Amazon Alexa and Google Assistant virtual assistants. In addition to the ones mentioned above, several other smart home systems/platforms are supported (check compatibility for each product). Shelly products connect to a wireless Wi-Fi network and do not require a separate home automation controller to function.
Note: Installation must be performed by a licensed electrician.
Features:
- No hub required—connects to your existing Wi-Fi network
- Supports up to an 8 A load at 240 V AC and a 5 A load at 30 V DC
- Potential-free connection
- Wi-Fi range extender and Bluetooth gateway
- Easy control via the Shelly Smart Control app, major platforms and protocols, and voice control assistants
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
- Smart schedules
- Smart scenes

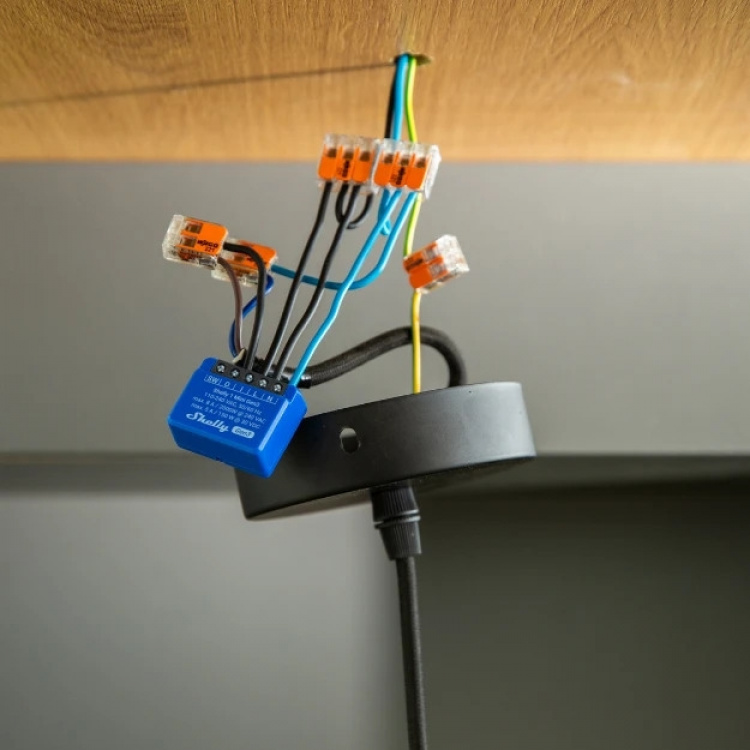

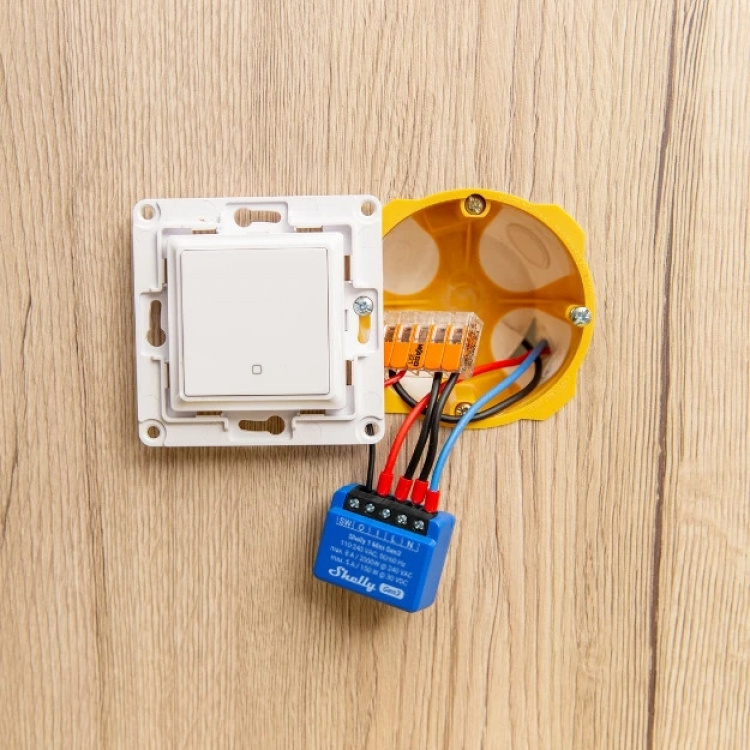

- Compact design allows for installation in tight spaces and junction boxes
- Ultra-fast processor for instant response
- Compatible with Alexa, Google Home, and Home Assistant
Technical specifications:
- Processor (CPU): ESP-Shelly-C38F
- Memory: 8 MB
- Operating voltage: 110–240 V AC
- External protection: 10 A, trip class B or C, 6 kA breaking capacity, energy limitation class 3
- Power consumption: ≪ 1.2 W
- Maximum AC switching voltage: 240 V
- Maximum switching voltage DC: 30 V
- Maximum switching current AC: 8 A
- Maximum switching current DC: 5 A
- Maximum switching power AC: 2000 W
- Maximum switching power DC: 150 W
- Power consumption measurement: no
- Overvoltage protection: no
- Overcurrent protection: no
- Overload protection: no
- Internal temperature sensor: yes
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi operating frequency: 2401 - 2495 MHz
- Maximum Wi-Fi signal strength: ≪ 20 dBm
- Wi-Fi range: up to 30 m indoors, up to 50 m outdoors
- Bluetooth protocol: 4.2
- Bluetooth operating frequency: 2400–2483.5 MHz
- Maximum Bluetooth signal strength: ≪ 4 dBm
- Bluetooth range: up to 10 m indoors, up to 30 m outdoors
- Schedules: 20
- Webhooks: 20, 5 URLs per hook
- MQTT: yes
- UDP: yes
- Script support: yes
- KVS (key-value store): yes
- Mounting: wall mount
- Screw connections at maximum torque: 0.4 Nm
- Conductor cross-sectional area: 0.2–2.5 mm² / 24–14 AWG
- Stripping length: 6–7 mm
- Sheath material: plastic
- Operating temperature: -20 °C ... +40 °C
- Operating humidity: 30% - 70% RH
- Maximum altitude above sea level: 2000 m
- Dimensions (H x W x D): 29 x 35 x 16 mm
- Weight: 19 g
- Connects to a Wi-Fi network

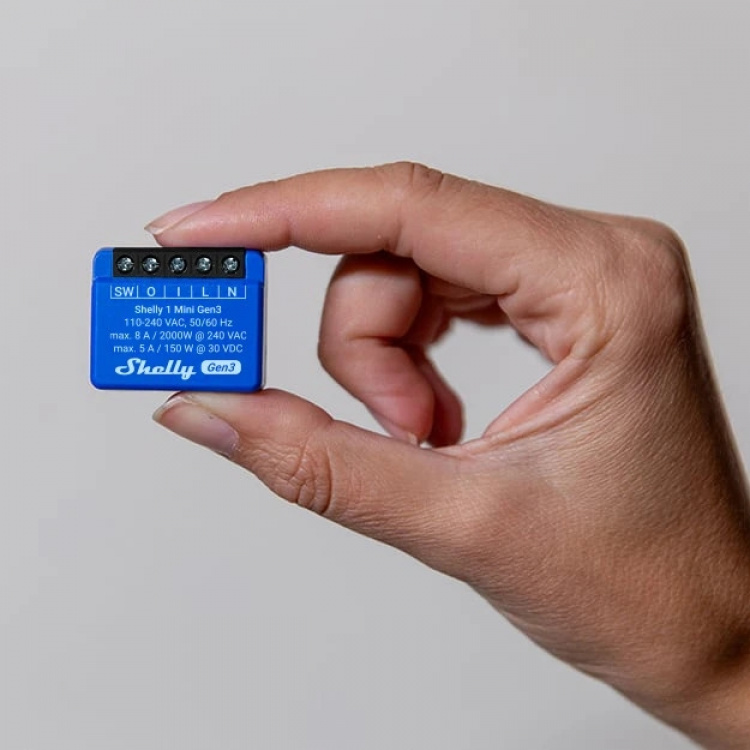

- Ultra-compact
- Supports up to 8 A load at 240 V AC
- Supports a 5 A load at 30 V DC
- Compatible with Alexa and Home Assistant
