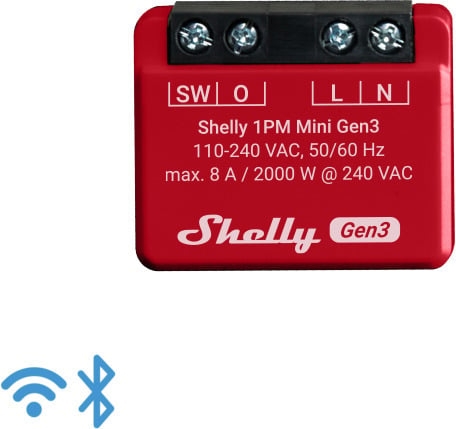

Shelly The 1PM Mini Gen3 is an ultra-compact Wi-Fi-controlled smart switch for smart control. Shelly With the 1PM Mini Gen3 controller, you can automatically control lights, garage doors, irrigation systems, or other small electrical devices both at home and when you're away. Shelly The 1PM Mini Gen3 is small enough to fit into almost any wall switch or outlet and can also be retrofitted.
Shelly Our smart home products support Amazon Alexa and Google Assistant virtual assistants. In addition to the ones mentioned above, several other smart home systems/platforms are supported (check compatibility for each product). Shelly's products connect to a wireless Wi-Fi network and do not require a separate home automation controller to function.
Note: Installation must be performed by a licensed electrician.
Features:
- No hub required – connects to your existing Wi-Fi network
- Electricity consumption measurement
- Easy control via the Shelly Smart Control app, major platforms and protocols, and voice control assistants
- Smart schedules
- Smart scenes

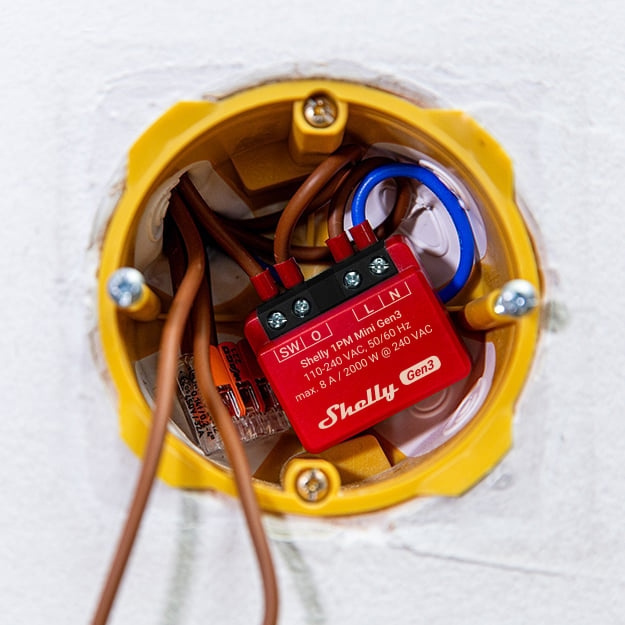

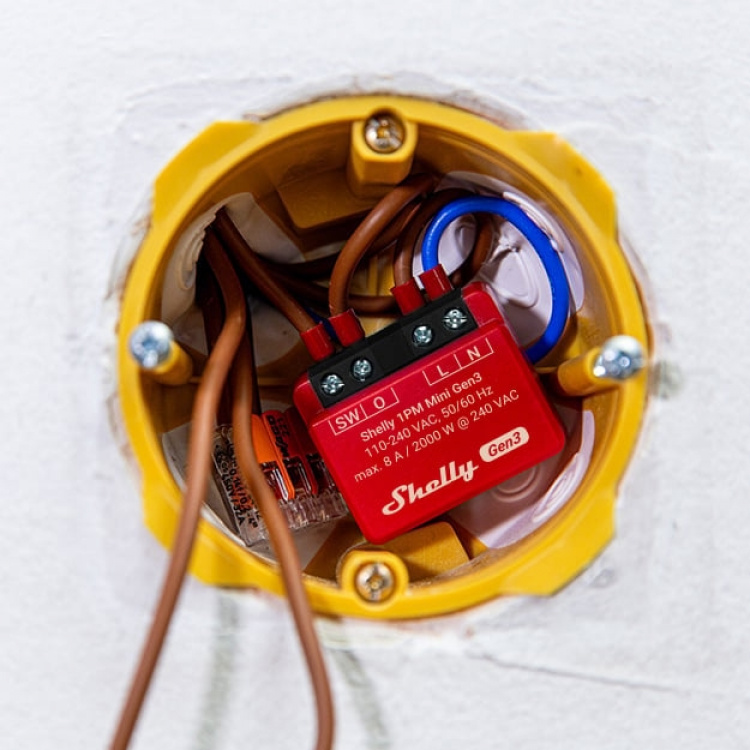

- Compact design allows for installation in tight spaces and junction boxes
- Supports loads up to 8 A at 240 V AC
- Wi-Fi range extender and Bluetooth gateway
- Ultra-fast processor for instant response
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
- Compatible with Alexa, Google Home, and Home Assistant
Technical specifications:
- Processor (CPU): ESP-Shelly-C38F
- Memory: 8 MB
- Operating voltage: 110–240 V AC
- External protection: 10 A, trip class B or C, 6 kA breaking capacity, energy limitation class 3
- Power consumption: ≪ 1.2 W
- Maximum switching voltage AC: 240 V
- Maximum AC switching current: 8 A
- Maximum switching power AC: 2000 W
- Power consumption measurement: yes
- Overvoltage protection: yes
- Overcurrent protection: yes
- Overload protection: yes
- Internal temperature sensor: yes
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi operating frequency: 2401–2495 MHz
- Maximum Wi-Fi signal strength: ≪ 20 dBm
- Wi-Fi range: up to 30 m indoors, up to 50 m outdoors
- Bluetooth protocol: 4.2
- Bluetooth operating frequency: 2400–2483.5 MHz
- Maximum Bluetooth signal strength: ≪ 4 dBm
- Bluetooth range: up to 10 m indoors, up to 30 m outdoors
- Schedules: 20
- Webhooks: 20, 5 URLs per hook
- MQTT: yes
- UDP: yes
- Script support: yes
- KVS (key-value store): yes
- Mounting: wall mount
- Screw connections at maximum torque: 0.4 Nm
- Conductor cross-sectional area: 0.2–2.5 mm² / 24–14 AWG
- Stripping length: 6–7 mm
- Sheath material: plastic
- Operating temperature: -20 °C ... +40 °C
- Operating humidity: 30% - 70% RH
- Maximum altitude above sea level: 2000 m
- Dimensions (H x W x D): 29 x 35 x 16 mm
- Weight: 18 g
- Connects to a Wi-Fi network

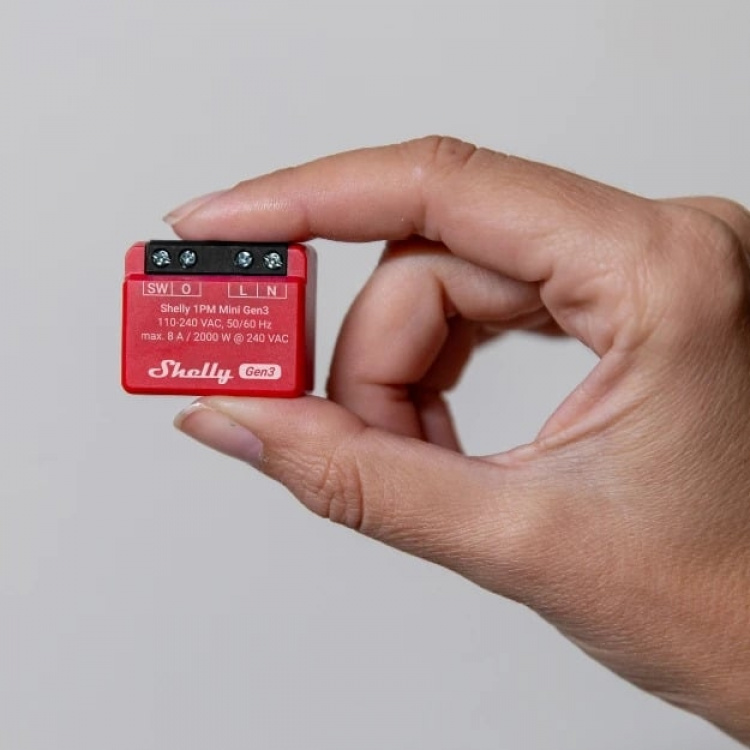

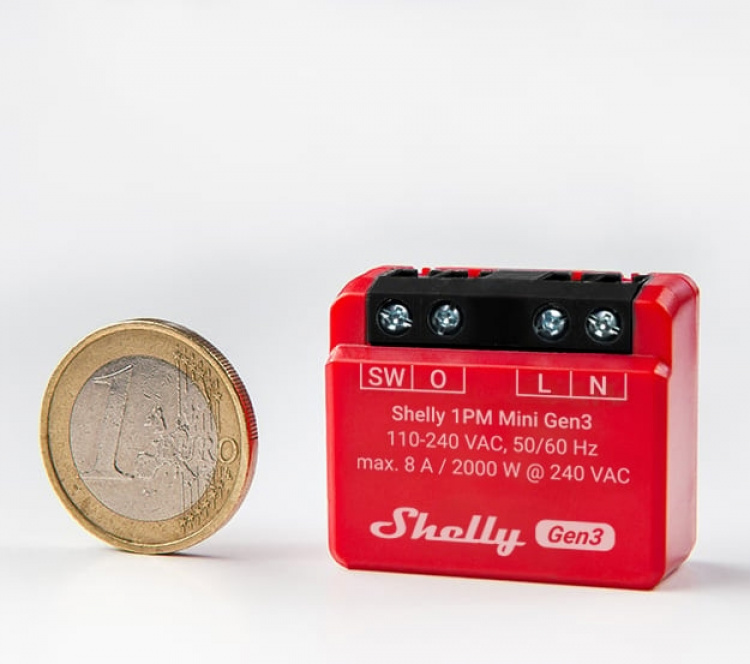

- Ultra-compact
- Supports up to 8 A load at 240 V AC
- Compatible with Alexa and Home Assistant
- Monitors electricity consumption
