Seasonic The PRIME series has always demonstrated excellent performance and, over the years, has become the embodiment of technological excellence and quality.
This third generation of the PRIME series was introduced with a unified naming scheme, along with updated general design and connection cables.
SeasonicThe latest design of these power supplies maintains the output voltage within an extremely narrow range, achieving a load variation of less than 0.5%. This impressive performance and stability make this power supply an ideal choice for high-performance PC systems.
In the PRIME series, each new model has its own unique features and specifications, ensuring that as many different users as possible can find the power supply best suited to their needs.
ATX 3.0 and 16-pin PCIe Gen 5 cable (12VHPWR)
Seasonic's latest PRIME ATX 3.0 series is designed and manufactured to power PC components that require the new ATX 3.0 and PCIe 5.0 standards.
Premium Hybrid Fan Control
Seasonic's extensive experience in designing the market's quietest and most efficient power supplies has now also been applied to the development of hybrid mode. A state-of-the-art fan control feature that allows users to keep overall fan noise as low as possible.
Fluid Dynamic Bearing fan bearing
High-quality Fluid Dynamic Bearing fans are designed to utilize the shock-absorbing properties of oil. They are extremely reliable and produce significantly less noise and heat than ball-bearing fans. Lubrication of the bearing surface reduces friction and vibration, lowering overall power consumption. Thanks to the fan's quiet operation and robust construction, this reliable technology also significantly extends the fan's service life.
- 80 PLUS Titanium certification, 94% efficiency at 50% load
- ATX 3.0 and PCIe 5.0 model
- Fully modular
- MTLR (Micro Tolerance Load Regulation) load control at 0.5%
- Premium Hybrid fan control — fanless operation up to 40% load
- Multi-GPU support
- Gold-plated connectors
- 12-year warranty
Features:
- Power: 1600 W (+3.3V: 25A, +5V: 25A, +12V: 133.3A, -12V: 0.5A, +5Vsb: 3A)
- 80 Plus Titanium certification
- Modularity: Fully modular
- Temperature range: 0 - 50°C
- Fan size: 135 mm
- Protections: OPP, OVP, UVP, OCP, OTP, SCP
- Dimensions: 210 x 150 x 86 mm
- Warranty: 12-year manufacturer's warranty, 3 years from us

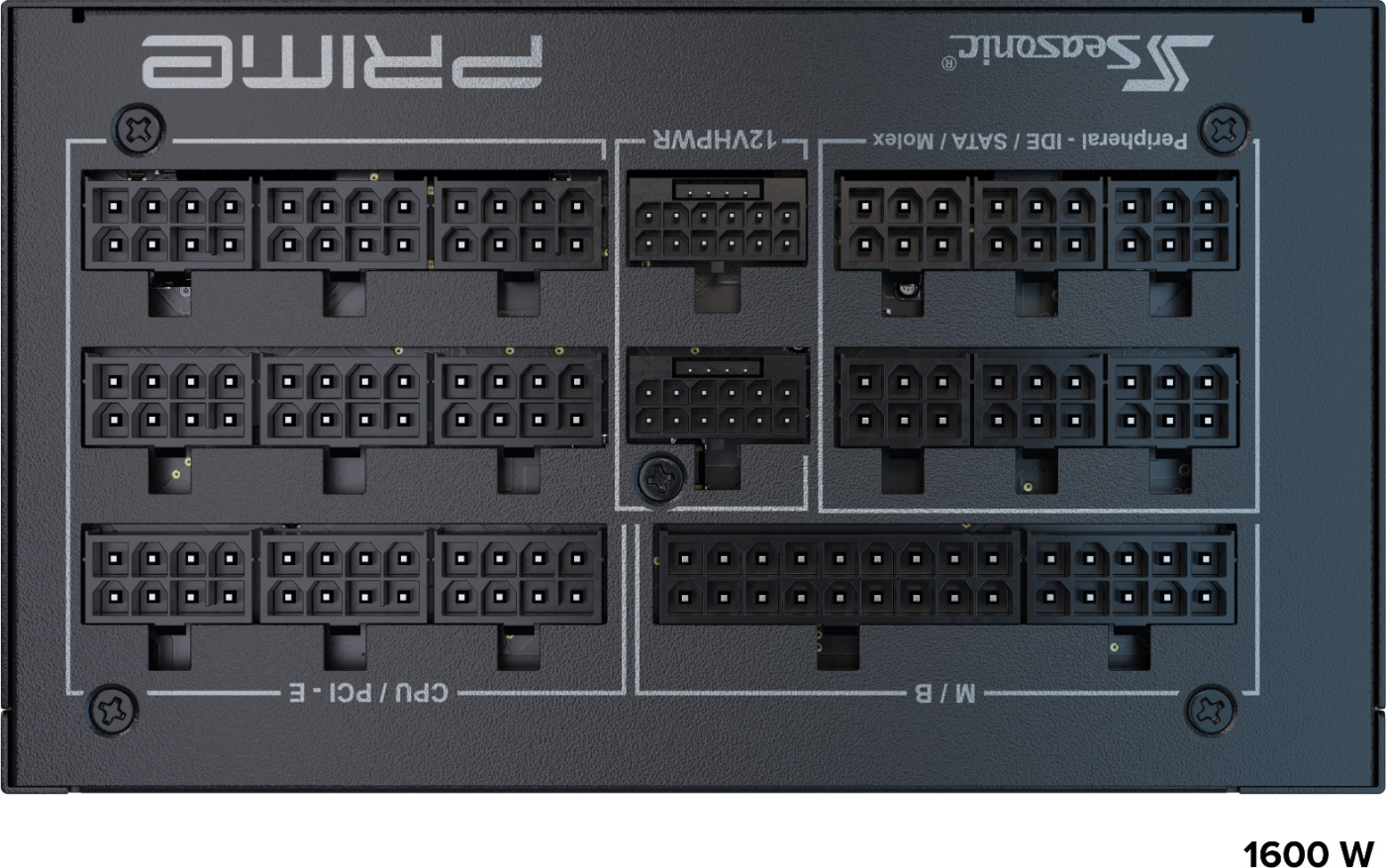

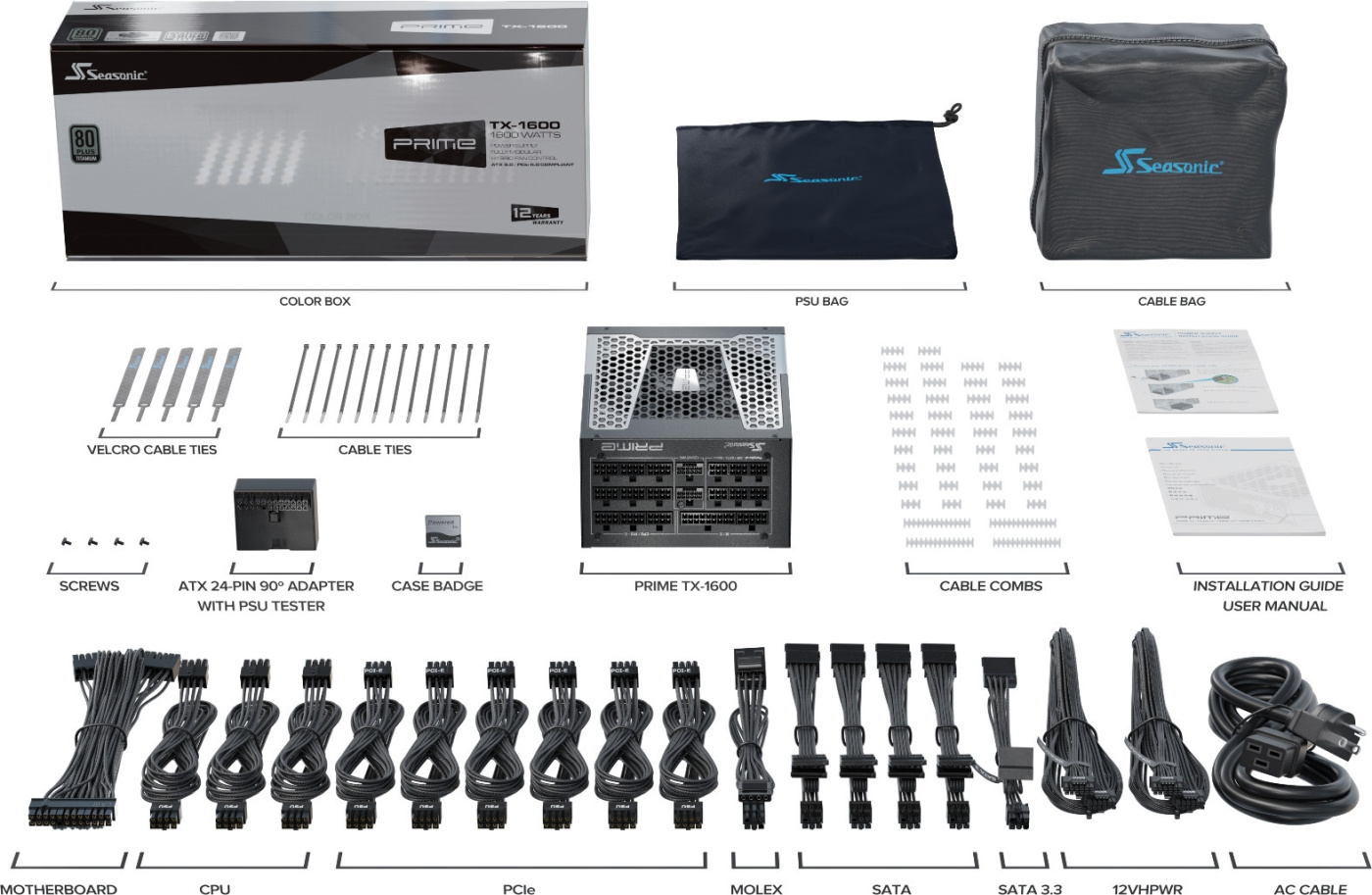

Connections:
- 1 x Power 24-pin / 20-pin
- 3 x ATX/EPS 8-pin / 4-pin
- 6 x PCIe 8-pin / 6-pin
- 4 x SATA
- 1 x Peripheral 4-pin
- 2 x 12V HPWR 12+4-pin
- 1600 W ATX power supply
- 80 Plus Titanium certified
- 135 mm fan
- Modular, ATX 3.0 & PCIe 5.0 support
- 12-year manufacturer's warranty
