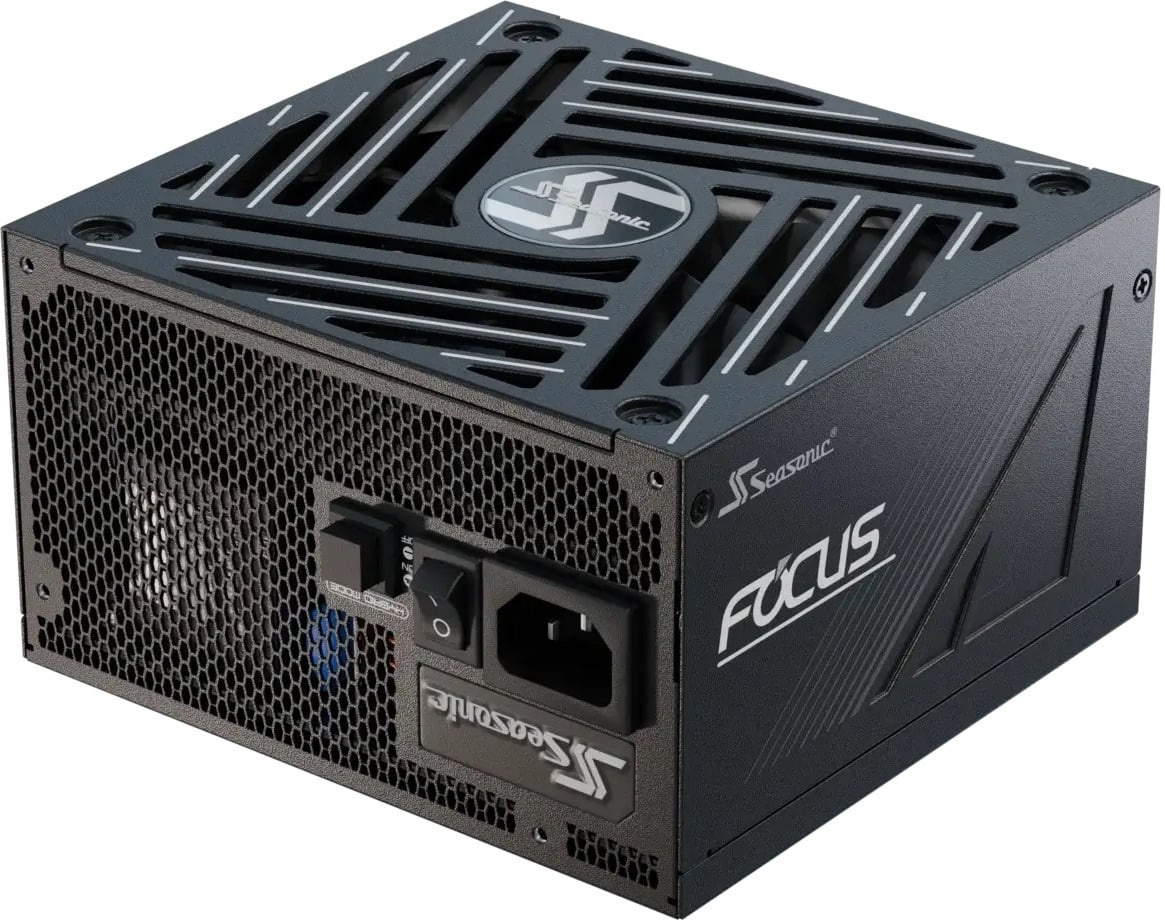

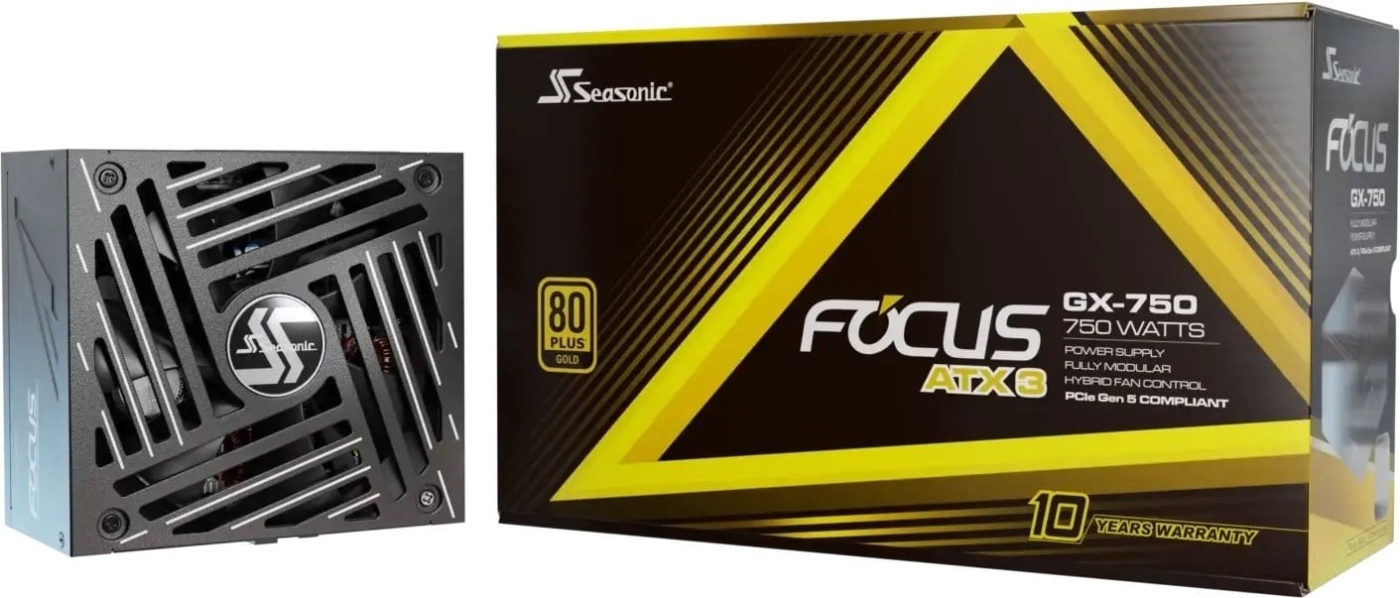

Seasonic The FOCUS GX ATX 3.1 is a reliable and high-performance power supply that combines the latest technology with a compact design. This power supply series has been updated to meet the ATX 3.1 and PCIe 5.1 standards, making it the perfect choice for demanding modern computers.
Features:
• ATX 3.1 and PCIe 5.1 compatibility: Designed to support the latest graphics cards, including the NVIDIA RTX 40 series, and to deliver stable performance even under significant power fluctuations.
• Fully modular design: Cables can be removed as needed, simplifying cable management and improving airflow.
• 80 PLUS Gold certification: Excellent energy efficiency ensures lower heat generation and reduced operating costs.

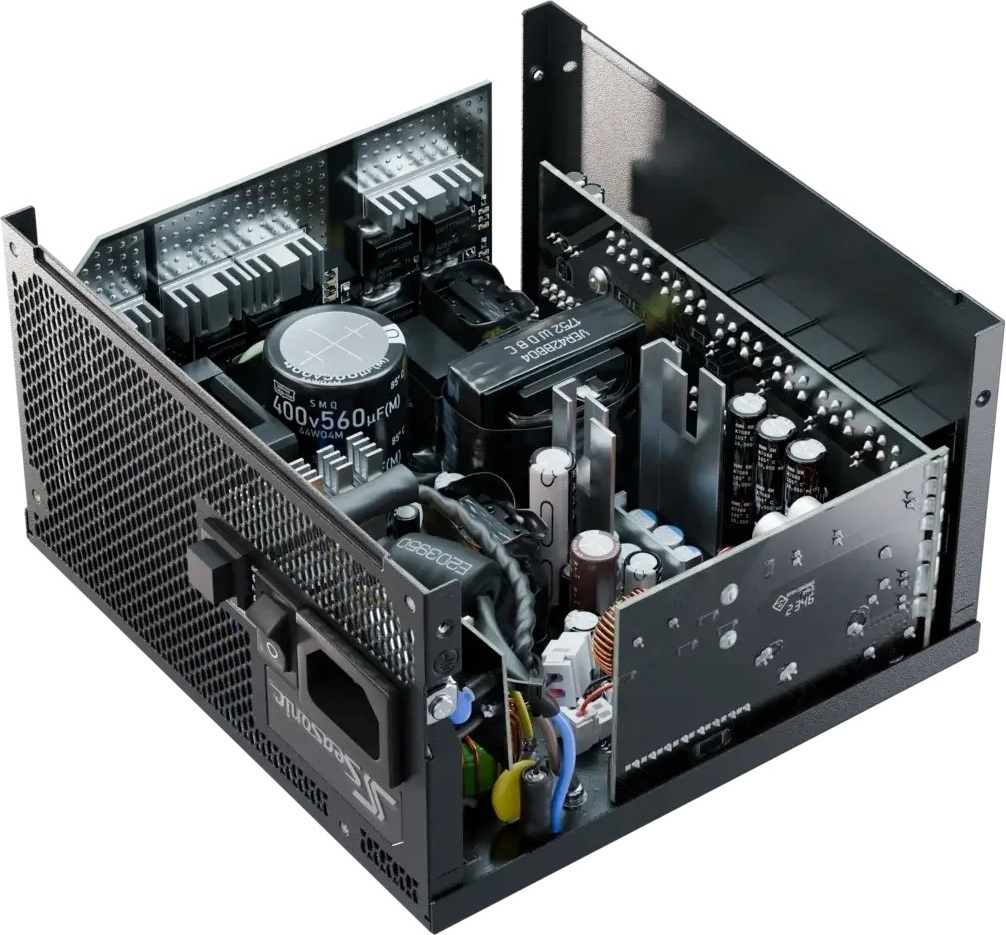

• OptiSink technology: An innovative thermal management solution that improves cooling performance and extends component lifespan.
• 12V-2×6 cable: Ready for high-performance devices compliant with the PCIe 5.0 standard.
•Compact size: Only 140 mm deep, making it compatible with a wide range of PC cases.
Technical Specifications:
- Power: 750 W (+5V: 20 A, +3.3V: 20 A, +12V: 62 A, -12V: 0.3 A, +5Vsb: 3 A)
- 80 Plus Gold certification
- ATX/EPS, PCIe 5.1
- Modularity: Fully modular
- Fan size: 135 mm
- Fan: Fluid Dynamic Bearing
- MTBF: 100,000 hours
- Protections: OPP, OVP, UVP, OCP, OTP, SCP
- Dimensions: 140 x 150 x 86 mm
- Warranty: 10-year manufacturer's warranty

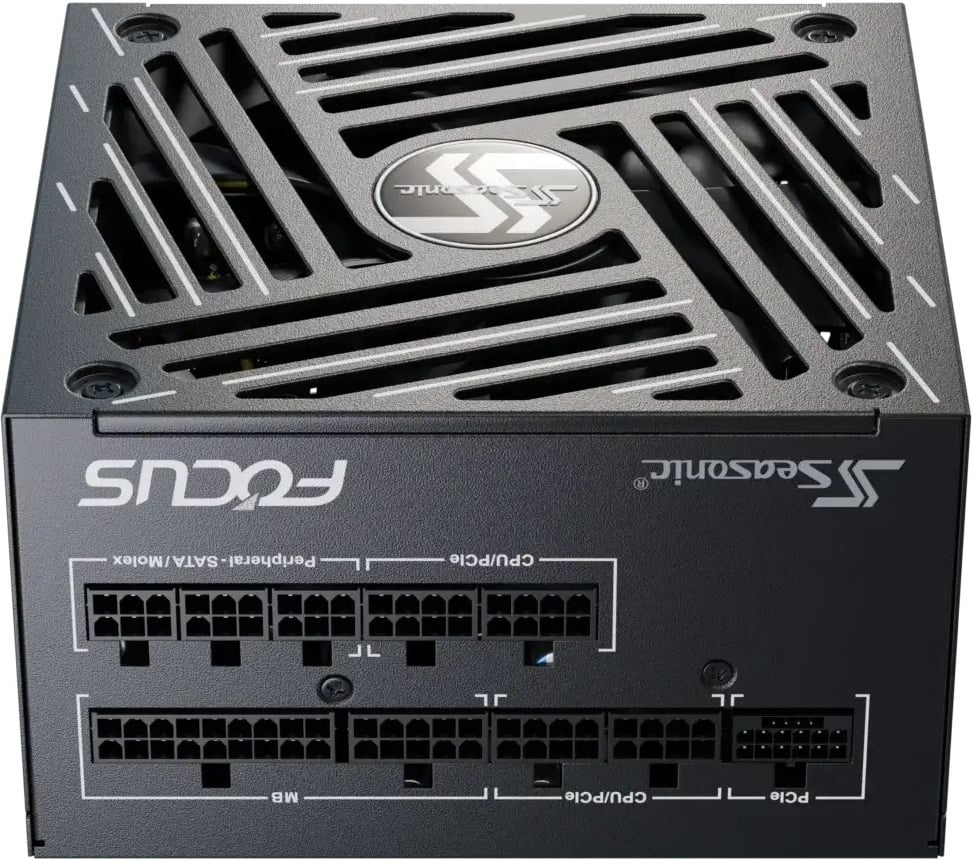

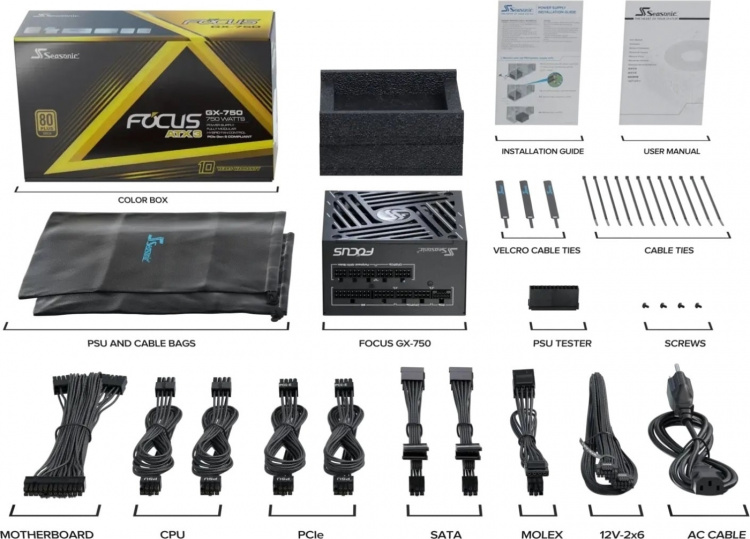

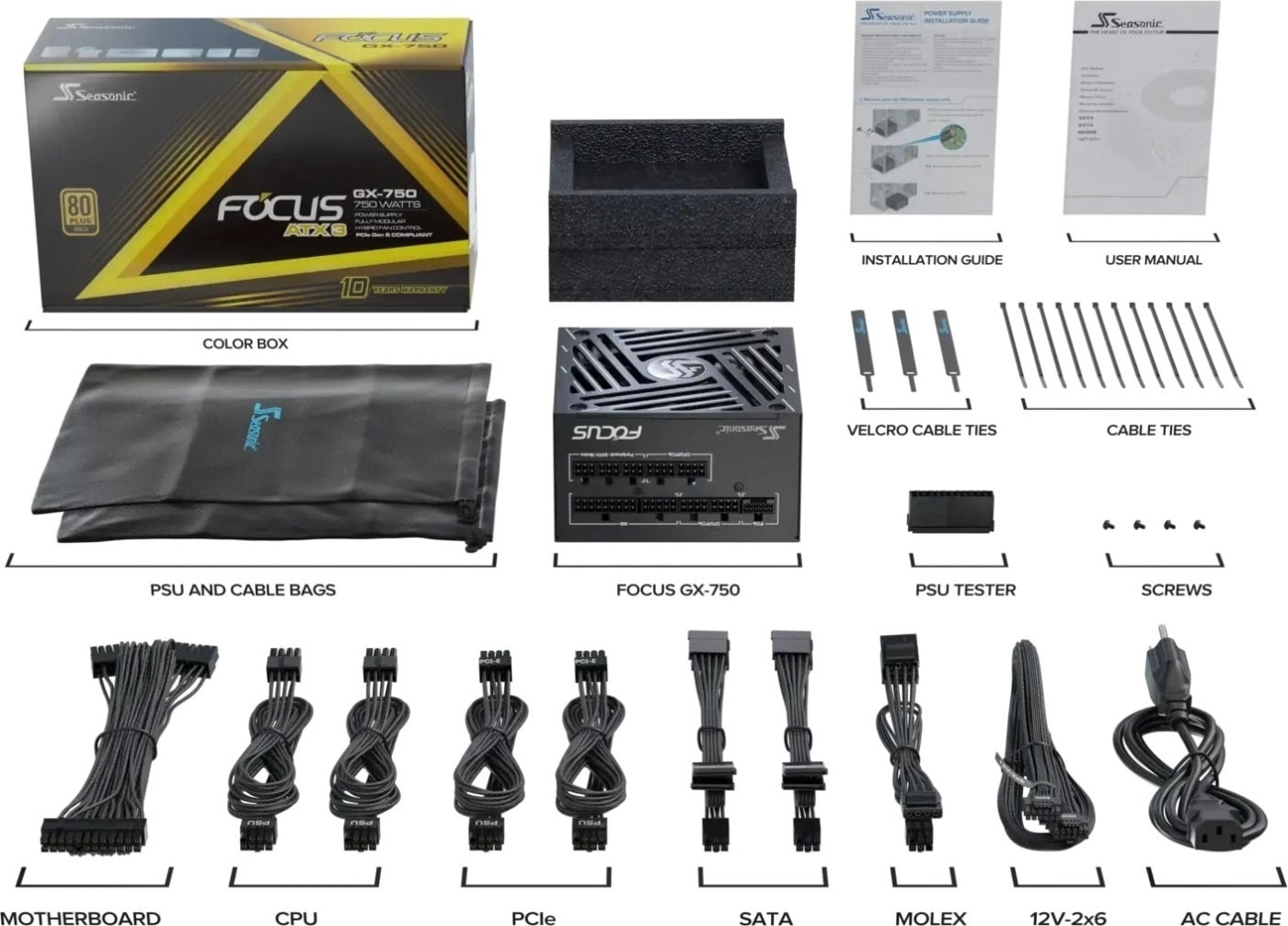

Connections:
- 1 x MB (24/20-pin)
- 1 x CPU (8/4-pin)
- 1 x PCIe (8/6-pin)
- 4 x SATA
- 3 x Molex
- 1 x 12V-2x6 (12+4-pin to 12+4-pin)
- 750 W ATX power supply
- 80 Plus Gold certified
- Modular cabling
- 135 mm fan
- 10-year manufacturer's warranty
