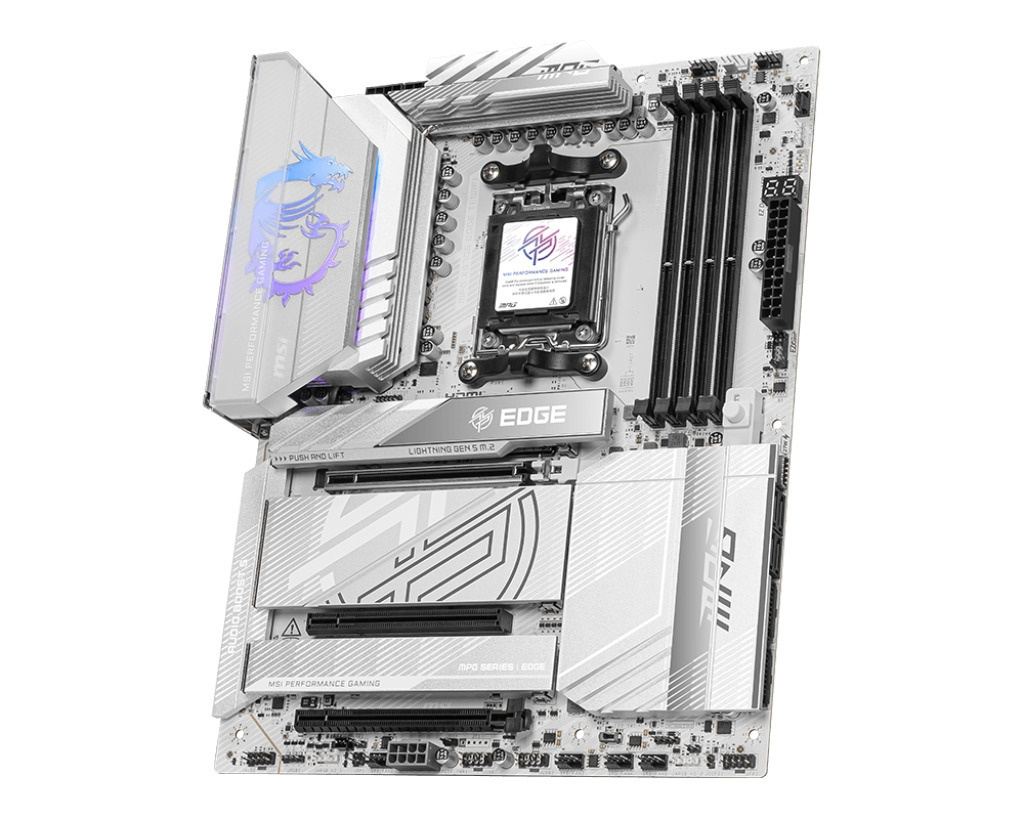

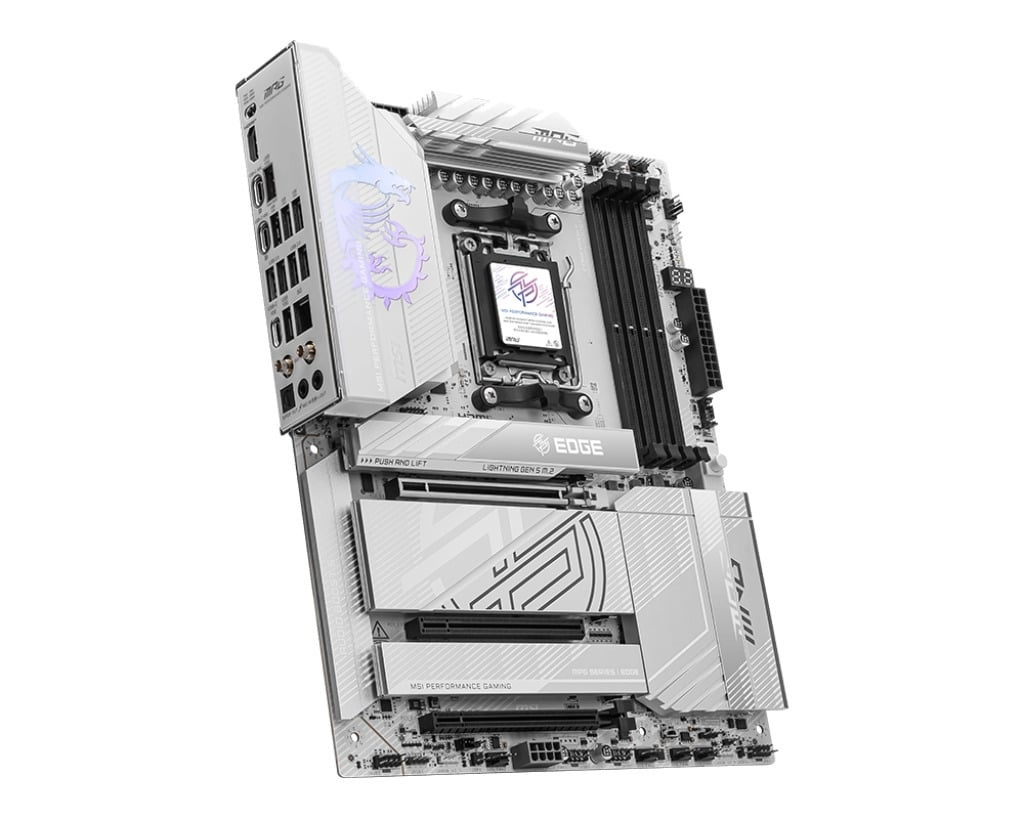

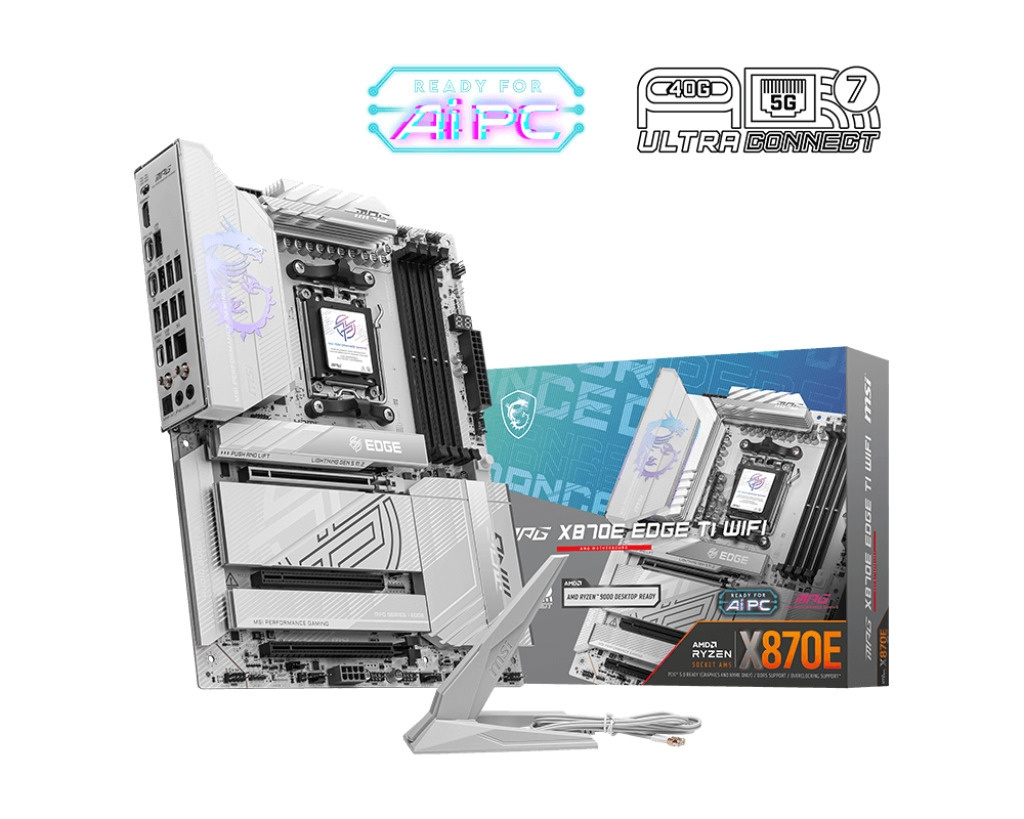

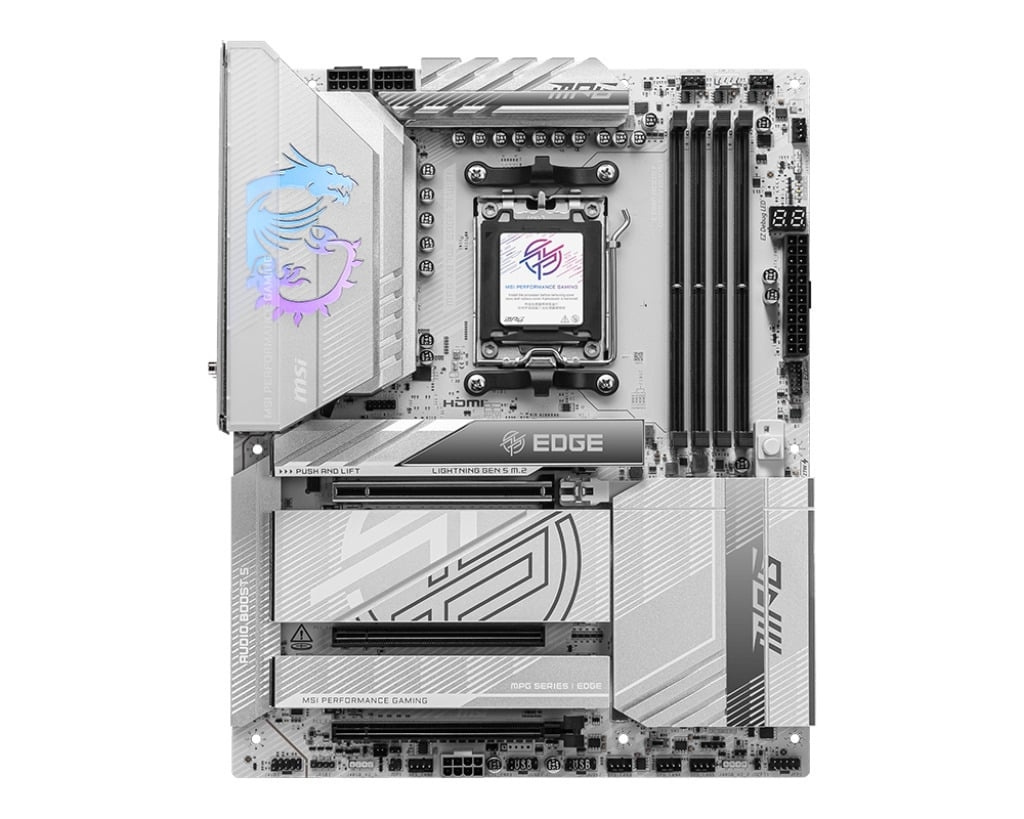

The MPG X870E EDGE TI WIFI is a stunning motherboard that combines performance and aesthetics. It is designed for AMD's latest Ryzen processors and offers everything you need for a top-tier gaming experience. Enjoy fast data transfer, the latest connectivity options, and a stylish white design that stands out from the crowd.
This motherboard won't leave you cold. It offers a powerful power delivery system, supports blazing-fast DDR5 memory, and multiple PCIe 5.0 expansion slots. It also features a wealth of connectivity options, including USB4 at 40 Gbps and ultra-fast 5G LAN. The MPG X870E EDGE TI WIFI is an excellent choice for gamers, content creators, and anyone who demands the best possible performance from their computer.
Features:
- Premium Thermal Design: MOSFET heatsink with heat pipes and high-quality 7W/mK MOSFET thermal pads.
- EZ PCIe Release: A simple button for locking and unlocking the PCIe slot.
- EZ M.2 Shield Frozr II: Tool-free design makes it easy to install and remove M.2 SSDs and the Shield Frozr.
- Lightning Gen 5: PCIe 5.0 solution with up to 128Gb/s bandwidth.
- Latest DDR5 memory: Improvements to DDR5 memory and "MSI" Memory Boost technology.
- Four M.2 slots: Maximum storage capacity.
- High-Speed USB 4.0: Built-in USB 4.0 port with 40Gbps transfer speeds.
- 5G network solution: Premium 5G LAN for a better network experience.
- Wi-Fi 7: The latest wireless solution, achieving transfer speeds of up to 5.8Gbps.
- Audio Boost 5: Isolated audio with a high-quality audio processor to ensure the best gaming experience.
Technical Specifications:
- Processor support: AMD Ryzen™ 9000 / 8000 / 7000 series processors
- Processor socket: AMD Socket AM5
- Chipset: AMD X870E
- Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- Display outputs: Supports 8K@60Hz HDMI™ 2.1 FRL, 2x USB4 Type-C display ports (requires integrated graphics)
- Memory: 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
- Storage: 2x M.2 Gen5 x4 128Gbps, 2x M.2 Gen4 x4 64Gbps, 4x SATA 6Gbps

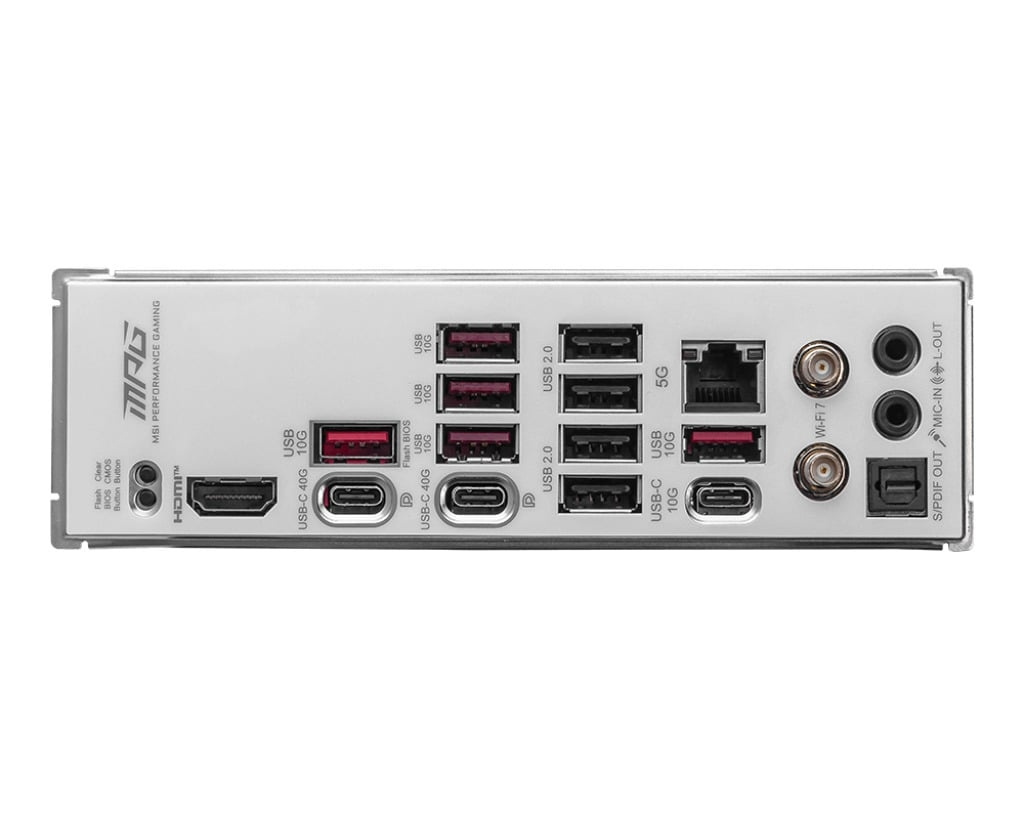

- USB Ports: 2x USB 40Gbps (2 Type-C), 1x USB 20Gbps (1 Type-C), 6x USB 10Gbps (1 Type-C + 5 Type-A), 4x USB 5Gbps (4 Type-A), 8x USB 2.0 Type-A
- Network: Realtek® 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
- Audio: 8-channel (7.1) HD Audio with Audio Boost 5
- AM5 motherboard
- AMD X870E chipset
- 5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots
- 4 x DDR5
