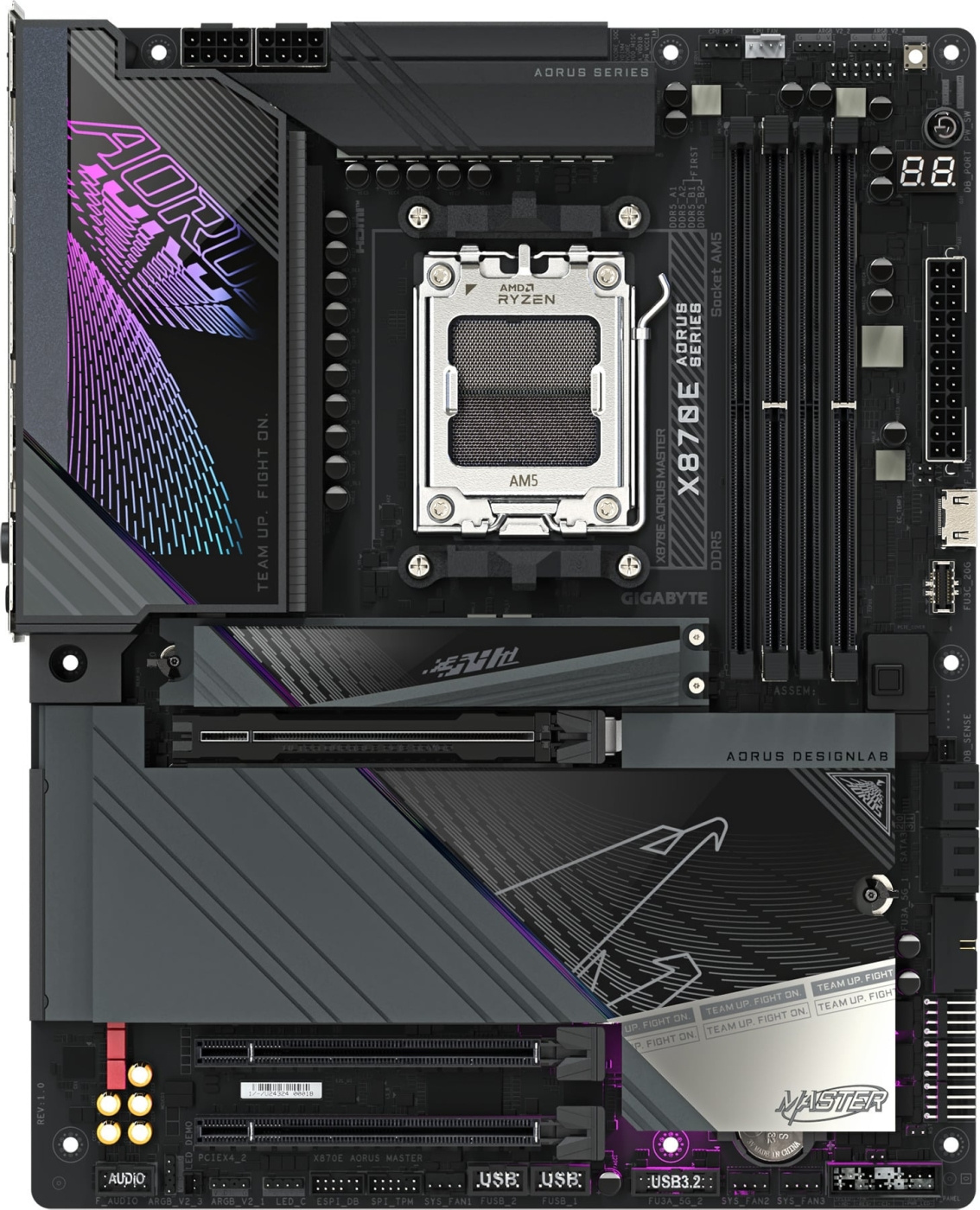

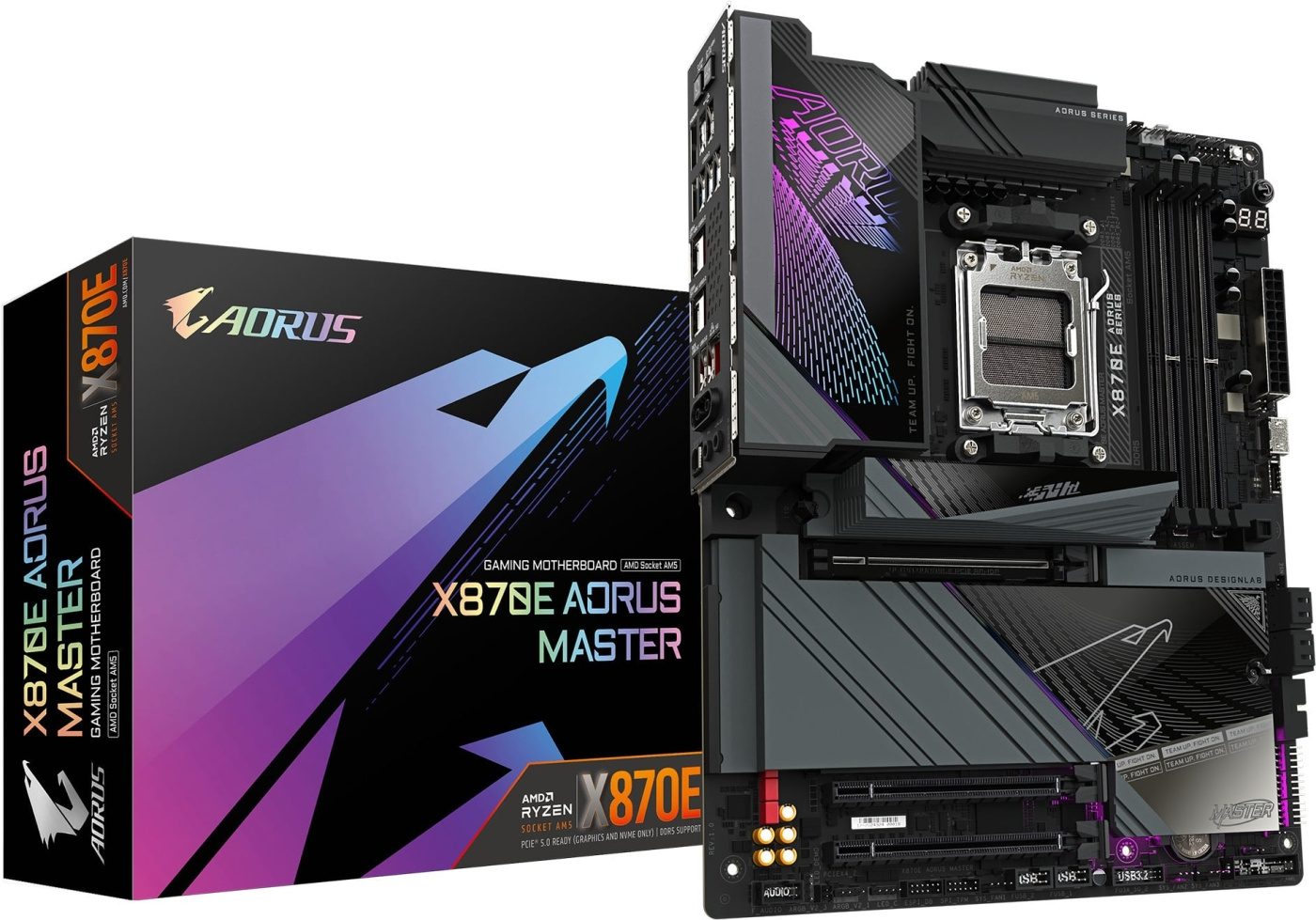

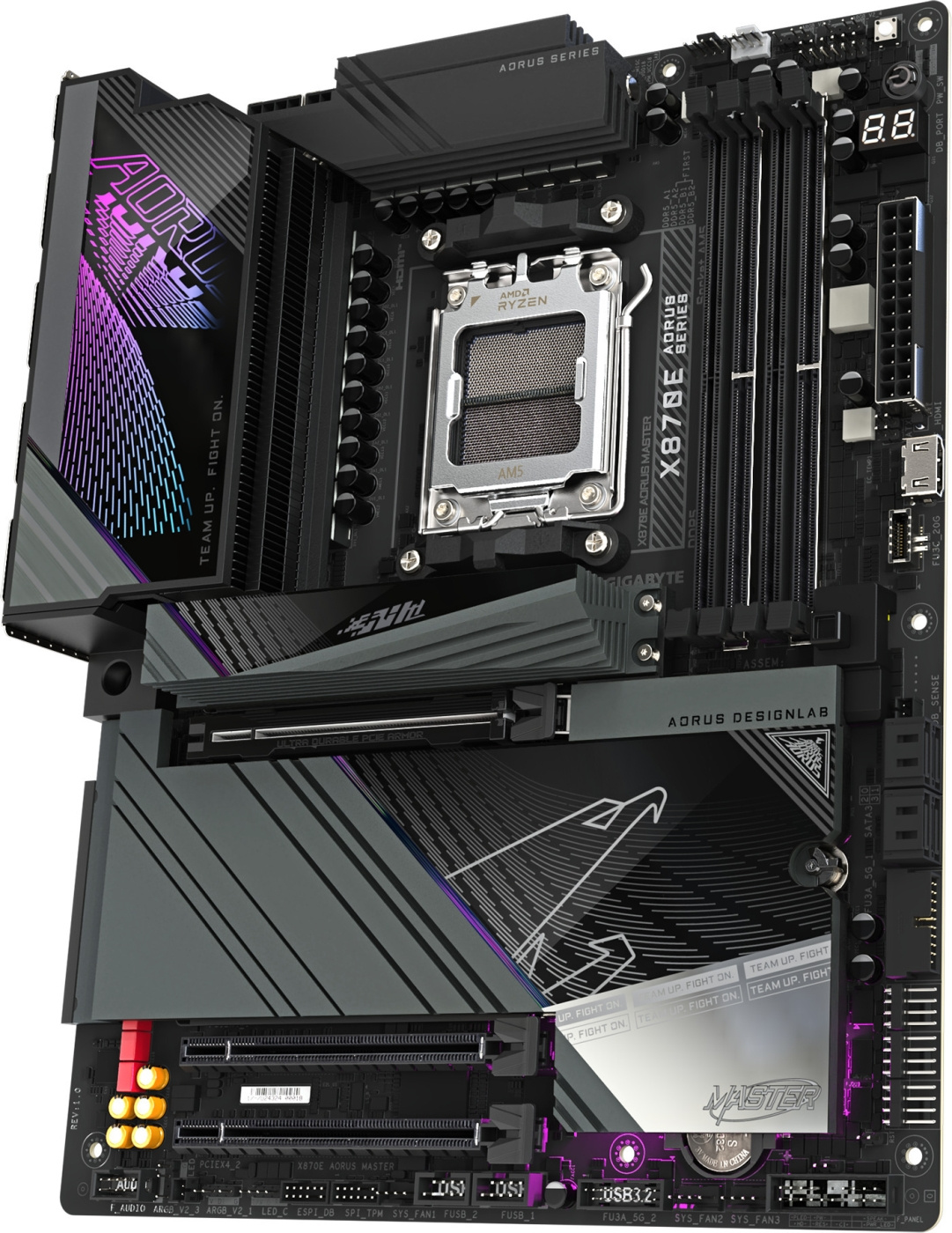

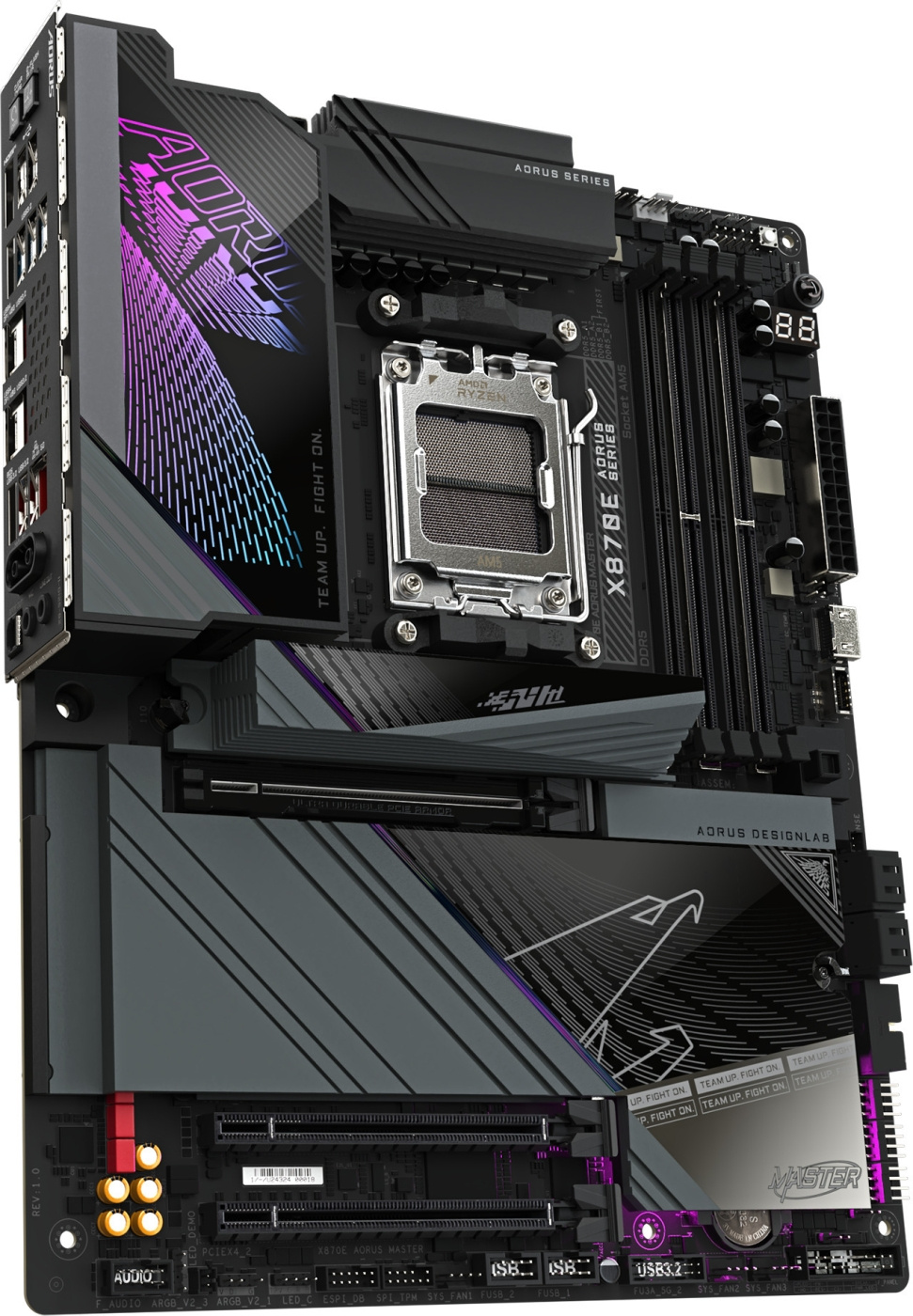

Gigabyte The X870E AORUS MASTER is a high-quality and durable AM5-socket ATX motherboard for Ryzen 7000/8000/9000 series processors.
X870 motherboards offer AI-PC features, an updated power delivery solution, the latest storage standards, and excellent connectivity options that ensure optimal performance for gaming.
- AMD AM5 socket: Supports AMD Ryzen 9000/8000/7000 series processors.
- 16+2+2-phase power delivery.
- Dual-channel DDR5: 4 x DIMM slots with AMD EXPO memory module support, 8600 (OC) MB/s.
- Ultra-fast storage: 4 x M.2 slots, 3 x PCIe 5.0 x4.
- Fast networking: 5GbE LAN and Wi-Fi 7 with a directional Ultra-high gain antenna.
- Expanded connectivity: Two USB4 Type-C ports with DP-Alt Mode support, HDMI.
- User-friendly BIOS interface: Multiple themes, AIO fan control, and Q-Flash auto-scan in BIOS and software.
Features:
- Chipset: AMD X870E
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: ATX (30.5 x 24.4 cm)
- Memory slots (qty): 4
- Memory type: DDR5 (8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s), Dual Channel, ECC/non-ECC, unbuffered
- Maximum memory (GB): 256
- Network connections: Realtek 5 Gigabit LAN, Wi-Fi 7, Bluetooth 5.3
- Sound card: Realtek ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel
Expansion slots:
- AMD Ryzen 9000 & 7000 series processors
1 x PCIe 5.0 x16 mode - AMD Ryzen 8000 Phoenix 1 series processors
1 x PCIe 4.0 x8 mode - AMD Ryzen 8000 Phoenix 2 series processors
1 x PCIe 4.0 x4 mode - AMD X870 Chipset
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX2)
Hard drive interfaces:
- 4 x SATA 6Gb/s ports
- 4 x M.2
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated into the CPU, supporting Socket 3, M key, type 22110/2280
1 x M.2 connector (M2D_SB), integrated into the chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2

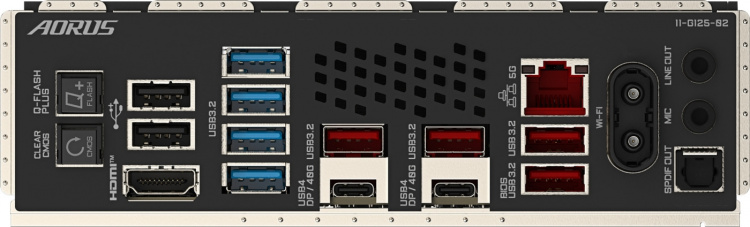

Rear panel connectors
- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 1 x HDMI port (Note)
- 2 x USB4 USB Type-C ports (DisplayPorts (Note))
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
Internal connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 4 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x HDMI port (Note)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
- AMD AM5 ATX motherboard
- AMD X870E chipset
- 5G LAN, Wi-Fi 7, Bluetooth 5.3
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
