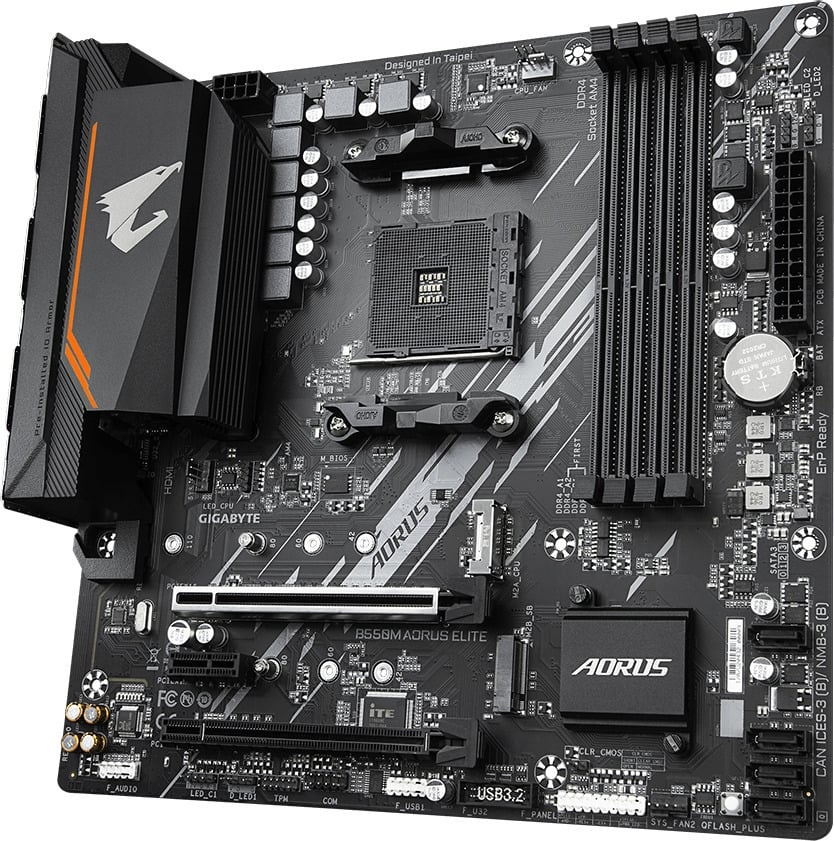

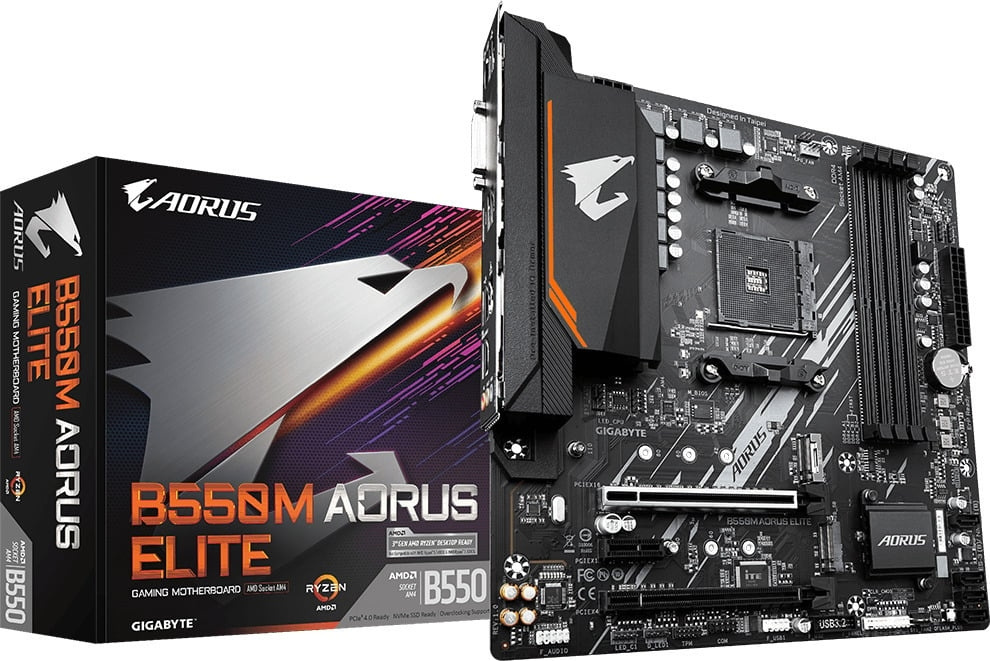

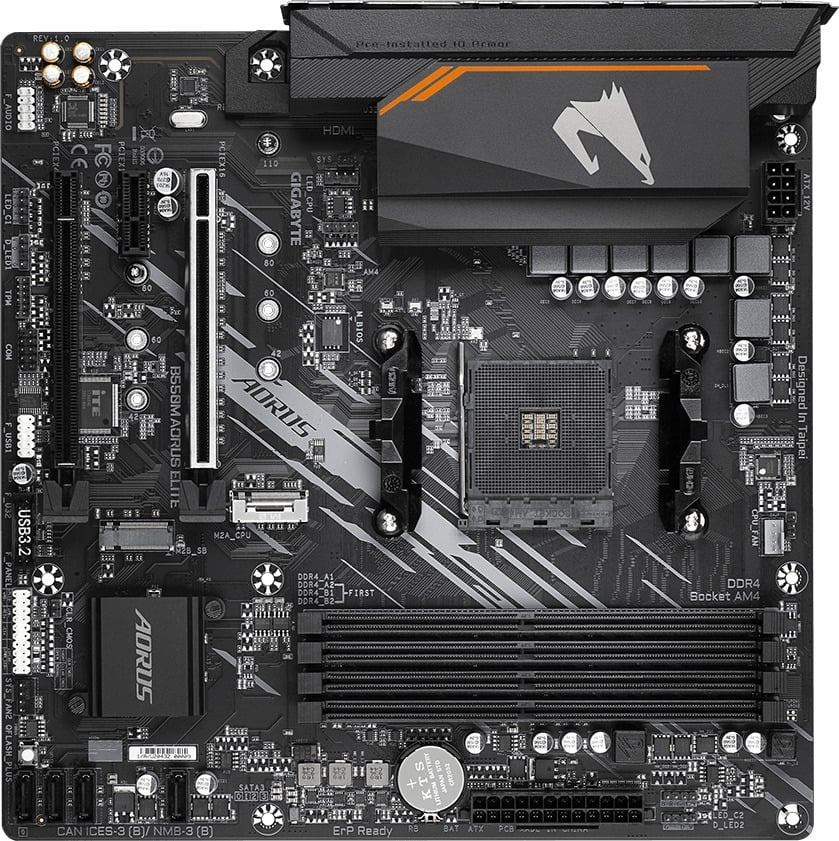

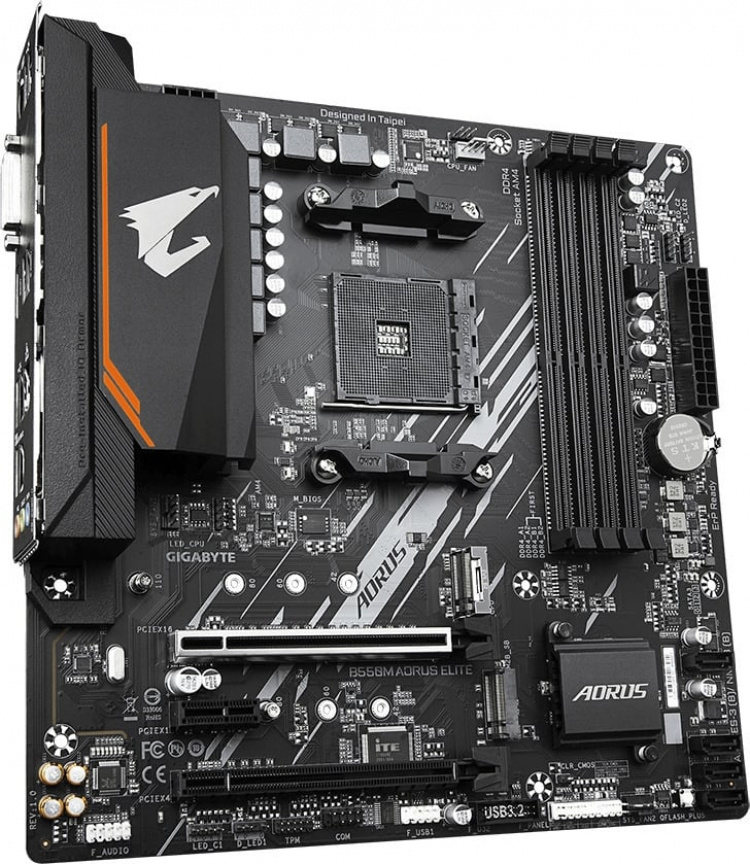

Gigabyte The B550M AORUS ELITE AM4 mATX motherboard

Gigabyte These motherboards support AMD's latest Ryzen 5000 series processors and are backward compatible with Ryzen 4000 and 3000 series processors. Gigabyte 500-series motherboards maximize your computer's potential with AMD StoreMI technology, which accelerates traditional storage solutions by reducing boot times and improving the user experience. This easy-to-use utility combines the speed of SSDs with the large capacity of hard drives into a single drive, improving the device's read/write speeds to match those of SSDs.

Features:

• Chipset: AMD B550
• Processor socket: AMD Socket AM4
• Processor support: Ryzen 5000, 4000, 3000
• Motherboard size: Micro-ATX
• Memory slots (number): 4
• Memory type: DDR4, dual channel
• Maximum memory (GB): 128
• Network card: Realtek® GbE LAN chip
• Sound card: Realtek® Audio codec
• RGB Fusion
• Smart Fan 5
• Operating system support: Win 10 64-bit

Expansion slots

• 1 x PCI Express x16 slot (PCIEX16)
• 1 x PCI Express x16 slot (PCIEX4)
• 1 x PCI Express x1 slot (PCIEX1)

Hard drive connections

• 4 x SATA 6Gb/s ports
• 2 x M.2 Socket 3

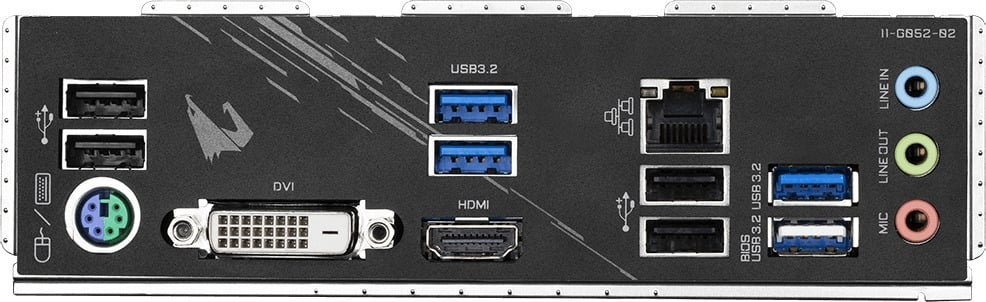

Rear panel ports

• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse
• 1 x HDMI
• 1 x DVI-D
• 1 x RJ-45
• 3 x Audio jacks

Internal connectors

• 1 x 24-pin ATX Main Power connector
• 1 x 8-pin ATX +12V power connector
• 2 x M.2 socket 3
• 4 x SATA 6Gb/s ports
• 1 x CPU fan header
• 2 x system fan headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash button
• 1 x TPM header

• AMD AM4 Socket
• AMD B550 chipset
• Two M.2 slots
• RGB Fusion
