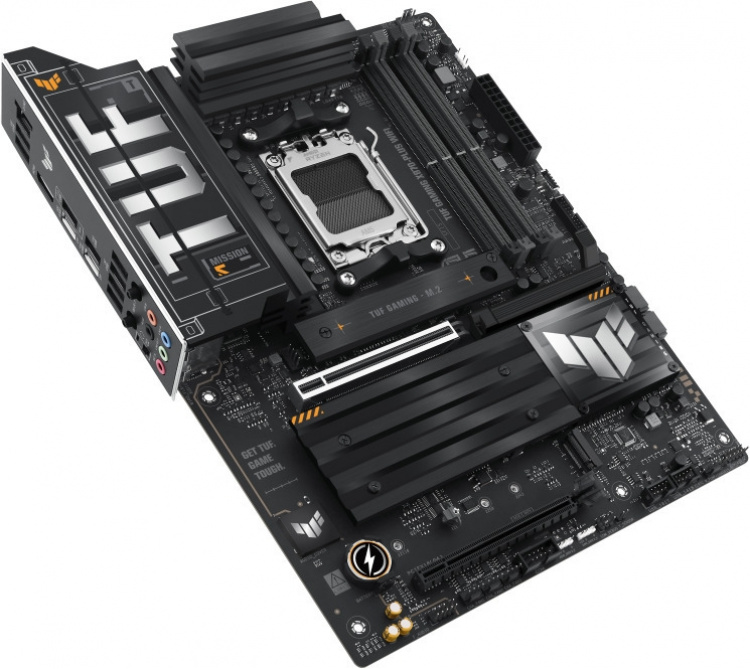

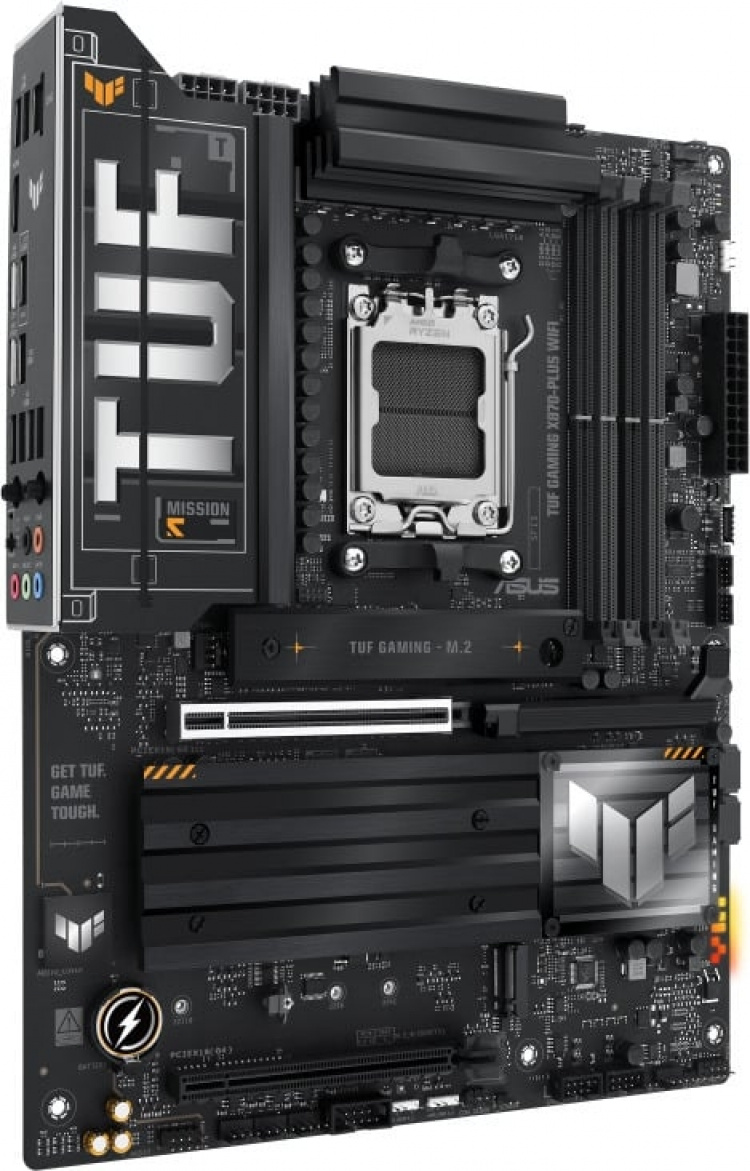

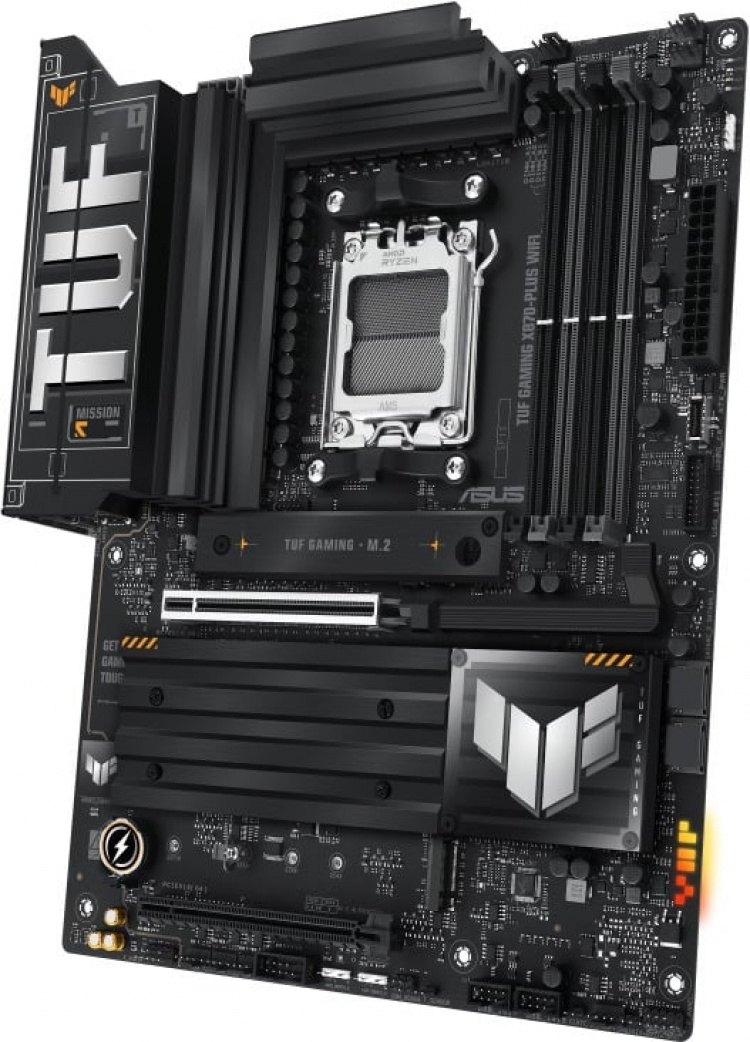

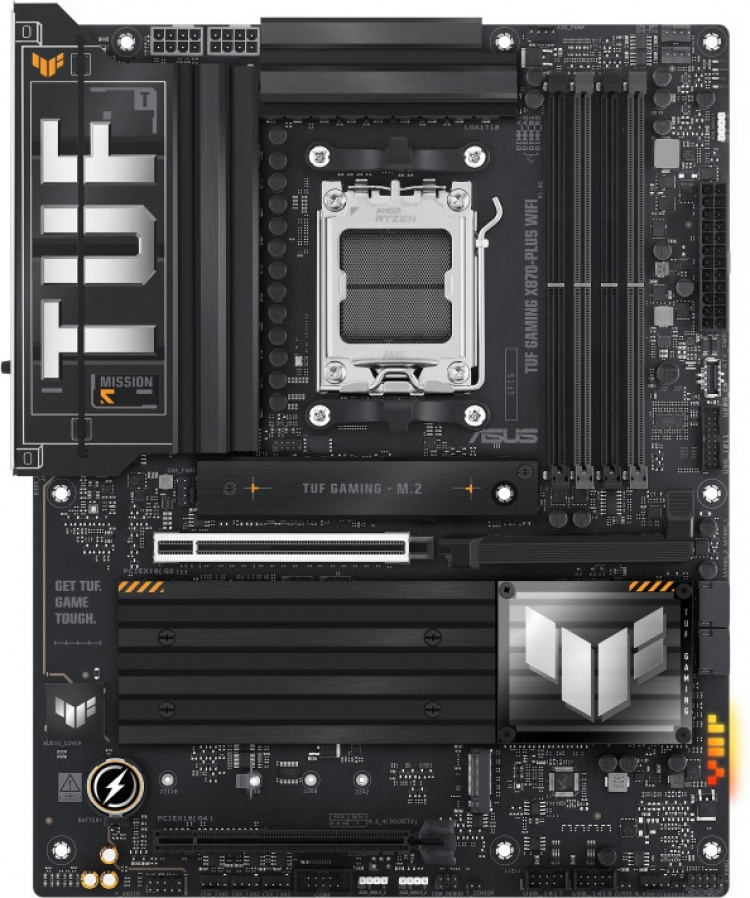

ASUS The TUF GAMING X870-PLUS WIFI combines the key features of the latest AMD Ryzen processors with gaming-ready capabilities and proven durability. Equipped with military-grade components, enhanced power management, and a comprehensive cooling system, the motherboard delivers stable and reliable performance for long gaming sessions.
TUF GAMING motherboards undergo rigorous durability testing to ensure they perform reliably even under the most demanding conditions. This platform delivers the power and connectivity needed to meet the demands of advanced AI applications.
16+2+1 power delivery phases ensure smooth and efficient power distribution, especially for overclocking.
AI Networking II and AI Overclocking make performance optimization easy, offering automatic enhancements and real-time performance fine-tuning.
AI Cooling II and one-click fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy load.
Thanks to DDR5 memory support, the motherboard can accommodate up to 192 GB of memory, and AEMP profiles help unlock the full potential of the memory.
PCIe Gen 5 support offers maximum storage speeds and hardware expansion capabilities.
Wi-Fi 7 ensures lightning-fast wireless connections.
USB4 ports offer the latest generation of data transfer speeds.
Features:
- Chipset: AMD X870
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (number): 4
- Memory type: DDR5 (8000+ MT/s (overclocked) with Ryzen 9000, 8000, and 7000 series processors), ECC, Non-ECC, Unbuffered, Dual Channel
- Maximum memory (GB): 192
- Network connections: 1 x Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4
- Sound card: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Expansion slots:
- AMD Ryzen 9000 & 7000 series processors
1 x PCIe 5.0 x16 slot (supports x16 mode) - AMD Ryzen 8000 series processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Hard drive connections:
- 2 x SATA 6Gb/s ports
- AMD Ryzen 9000 & 7000 series processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) - AMD Ryzen 8000 series processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not supported - AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

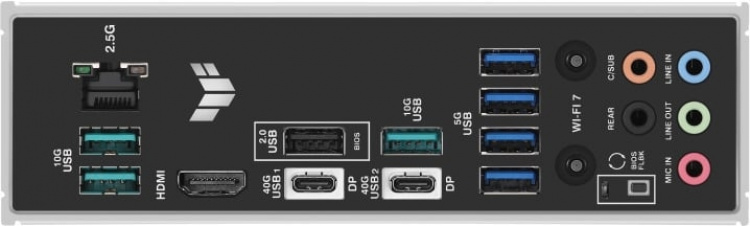

Rear panel ports:
- 2 x USB4 (40Gbps) (2 x USB Type-C) ports
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5 Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack button
Internal Connectors:
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header - Power-related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors - Storage-related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports - USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
- AMD AM5 ATX motherboard
- AMD X870 chipset
- 2.5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
