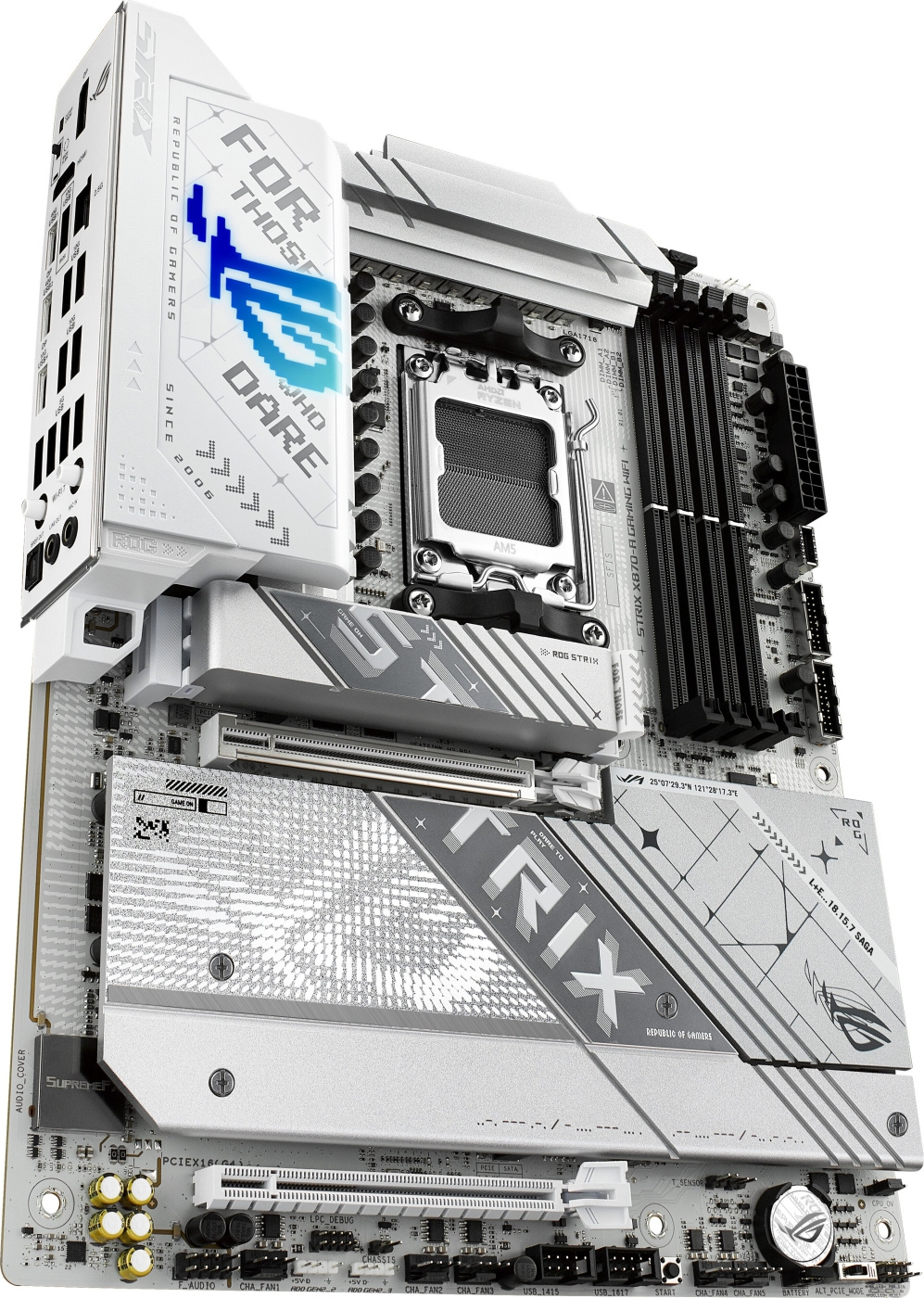

The ROG Strix X870-A Gaming WiFi is designed to maximize the performance of AMD Ryzen 9000 series processors. Advanced circuit design and AI solutions ensure top-tier efficiency. Additionally, two USB4 ports, Wi-Fi 7, and fast DDR5 memory slots provide excellent connectivity. This motherboard combines the power and speed essential for both high-end gaming and demanding AI PC applications.
16+2+2 power delivery phases ensure smooth and efficient power distribution, especially for overclocking.
AI Networking II and AI Overclocking make performance optimization easy, offering automatic enhancements and real-time performance fine-tuning.
AI Cooling II and one-click fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy load.
Thanks to DDR5 memory support, the motherboard can accommodate up to 192 GB of memory, and AEMP profiles help unlock the full potential of the memory.
PCIe Gen 5 support offers maximum storage speeds and hardware expansion capabilities.
Wi-Fi 7 ensures lightning-fast wireless connections.
USB4 ports offer the latest generation of data transfer speeds.
Features:
- Chipset: AMD X870
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (number): 4
- Memory type: DDR5 (8000+ MT/s (overclocked) with Ryzen 9000, 8000, and 7000 series processors), ECC, Non-ECC, Unbuffered, Dual Channel
- Maximum memory (GB): 192
- Network connections: 1 x Intel 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Expansion slots:
- AMD Ryzen 9000 & 7000 series processors
1 x PCIe 5.0 x16 slot (supports x16 mode) - AMD Ryzen 8000 series processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Hard drive connections:
- 2 x SATA 6Gb/s ports
- AMD Ryzen 9000 & 7000 series processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - AMD Ryzen 8000 series processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported) - AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

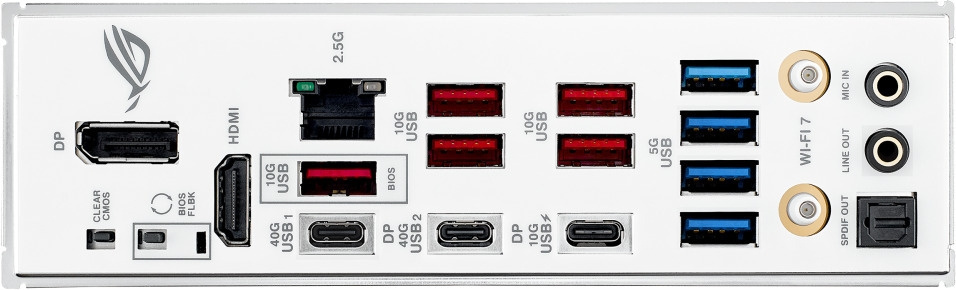

Rear panel ports:
- 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
- 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel 2.5Gb Ethernet
- 2 x Audio jacks
- 1 x Optical S/PDIF output port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal Connectors:
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers - Power-related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors - Storage-related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports - USB
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Overvoltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-pin System Panel header
1 x Thermal Sensor header
- AMD AM5 ATX motherboard
- AMD X870 chipset
- 2.5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
