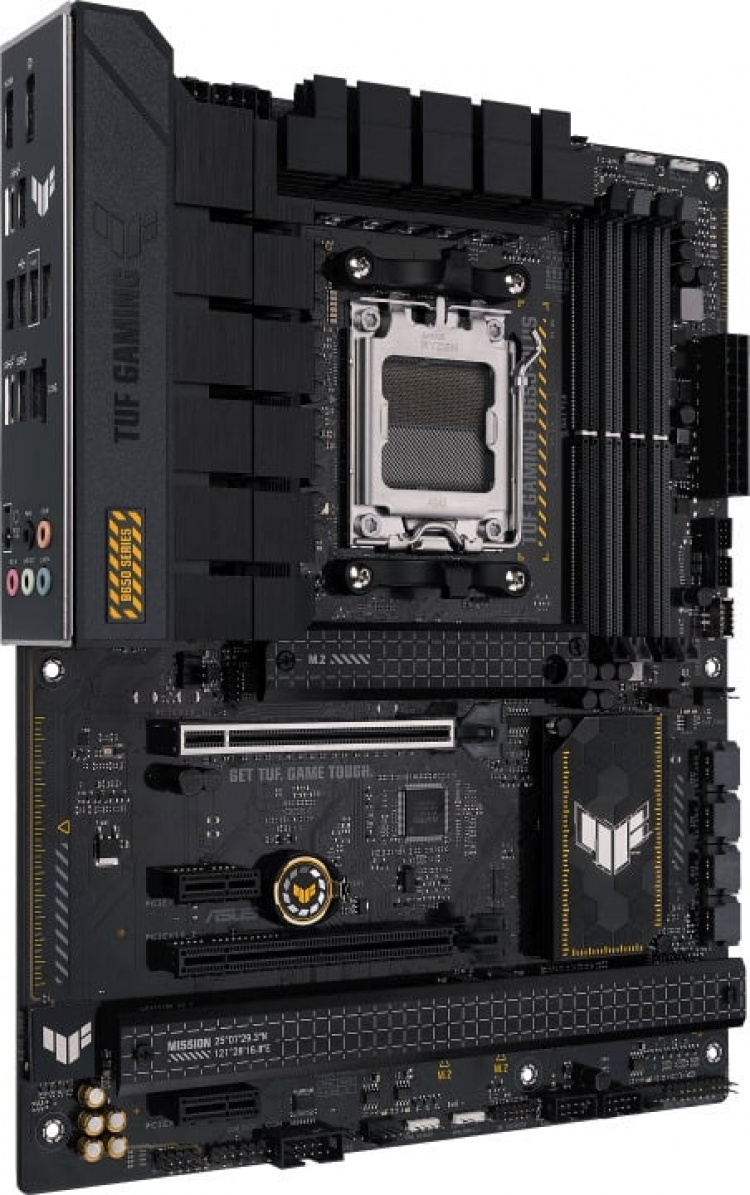

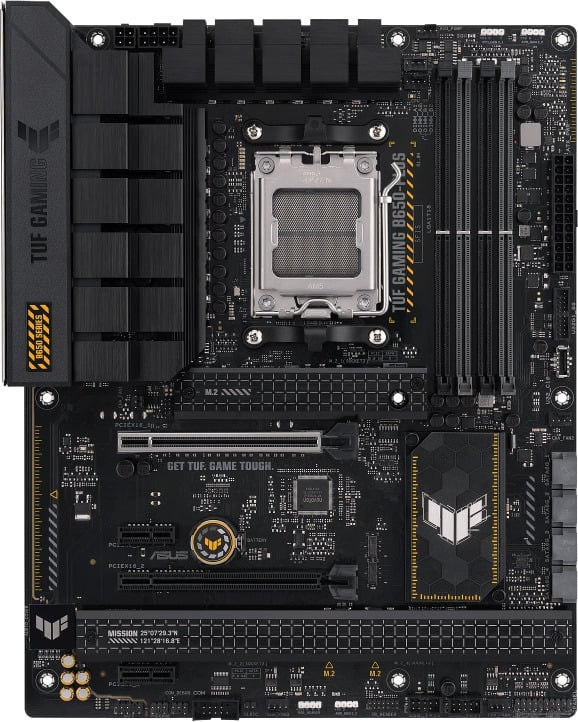

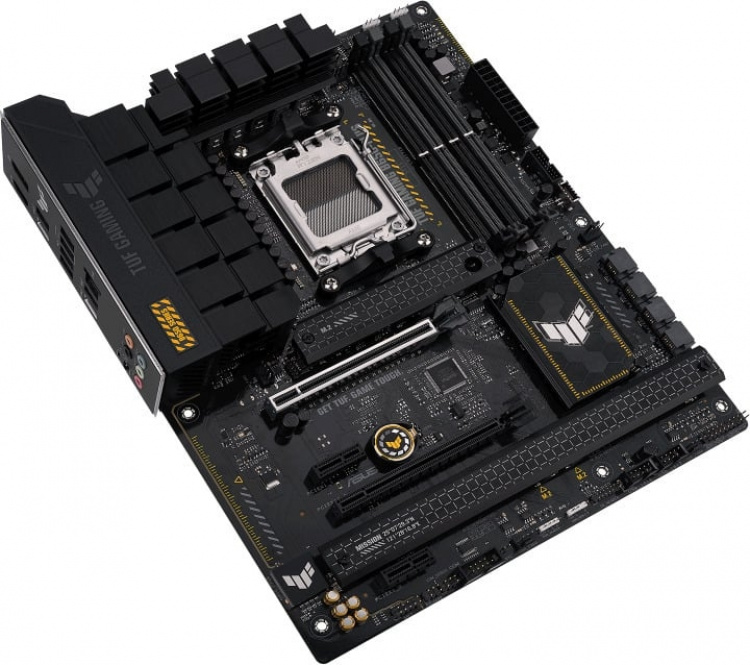

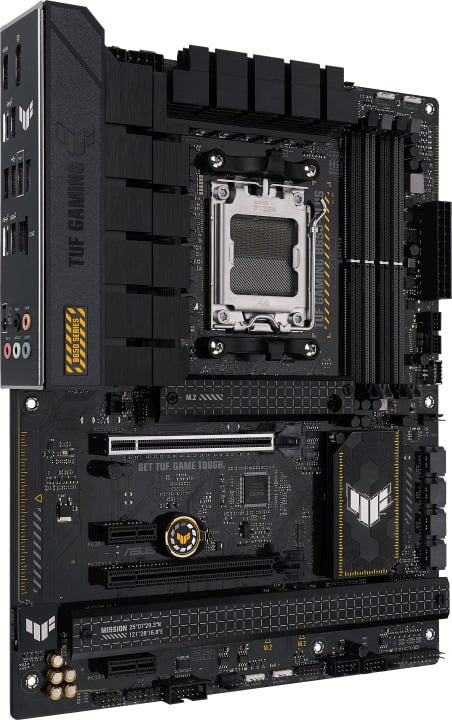

ASUS The TUF GAMING B650-PLUS is an AM5-socket ATX gaming motherboard for Ryzen 7000-series processors, featuring PCIe 5.0 M.2 support, three M.2 slots, 2.5 Gb LAN, DDR5 memory support, 12+2 power phases, and plenty of ports for various needs, not to mention ASUS Aura Sync RGB support.
ASUS The TUF GAMING B650-PLUS incorporates all the essential elements of the latest AMD Ryzen 7000 series processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an upgraded power delivery system, and a comprehensive cooling solution, this motherboard exceeds expectations in marathon gaming sessions with rock-solid and stable performance. TUF GAMING motherboards also undergo rigorous durability testing to ensure they can withstand conditions where others might fail. Aesthetically, this model features black and geometric design elements that reflect the reliability and stability characteristic of the TUF GAMING series.
Features:
- Chipset: AMD B650
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: ATX
- Memory slots (number): 4
- Memory type: DDR5
- Maximum memory (GB): 128
- Network interfaces: Realtek 2.5 Gb Ethernet
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 30.5 cm x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 4.0/3.0 x16 slot
- AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots
Graphics:
- 1 x DisplayPort, max 8K 60Hz
- 1 x HDMI, max 4K 60Hz
Hard Drive Connections:
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD B650 Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

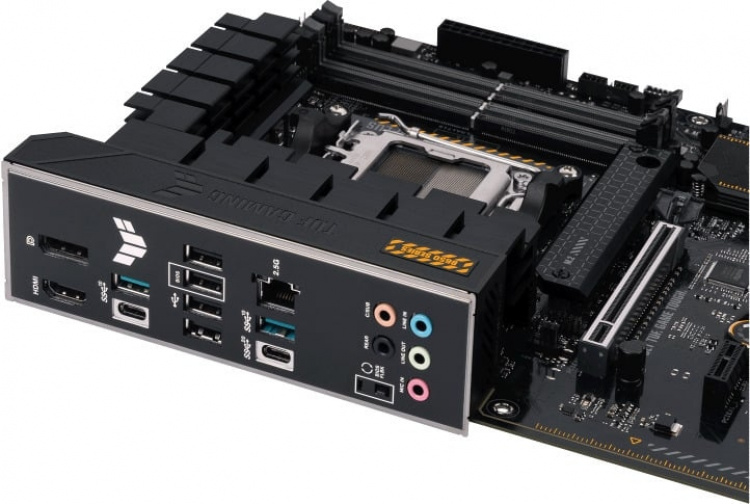

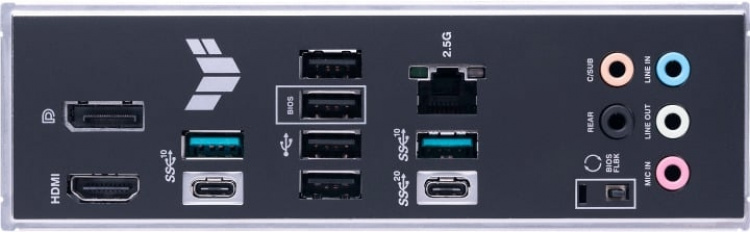

Rear panel ports:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
- 4 x USB 2.0 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Realtek 2.5 Gb Ethernet port
- 5 x audio jacks
- 1 x BIOS FlashBack button
Internal connections:
- Fan and Cooling Related
- 1 x 4-pin CPU fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO pump header
- 4 x 4-pin Chassis Fan headers
- Power-related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V power connector
- 1 x 4-pin +12V power connector
- Storage
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (Type-C)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 header
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-pin to 3-pin System Panel header with chassis intrusion detection
- 1 x Thunderbolt (USB4) header
- AMD AM5 ATX motherboard
- AMD B650 chipset
- Three M.2 slots
- DDR5 support
- Supports Ryzen 7000 series processors
