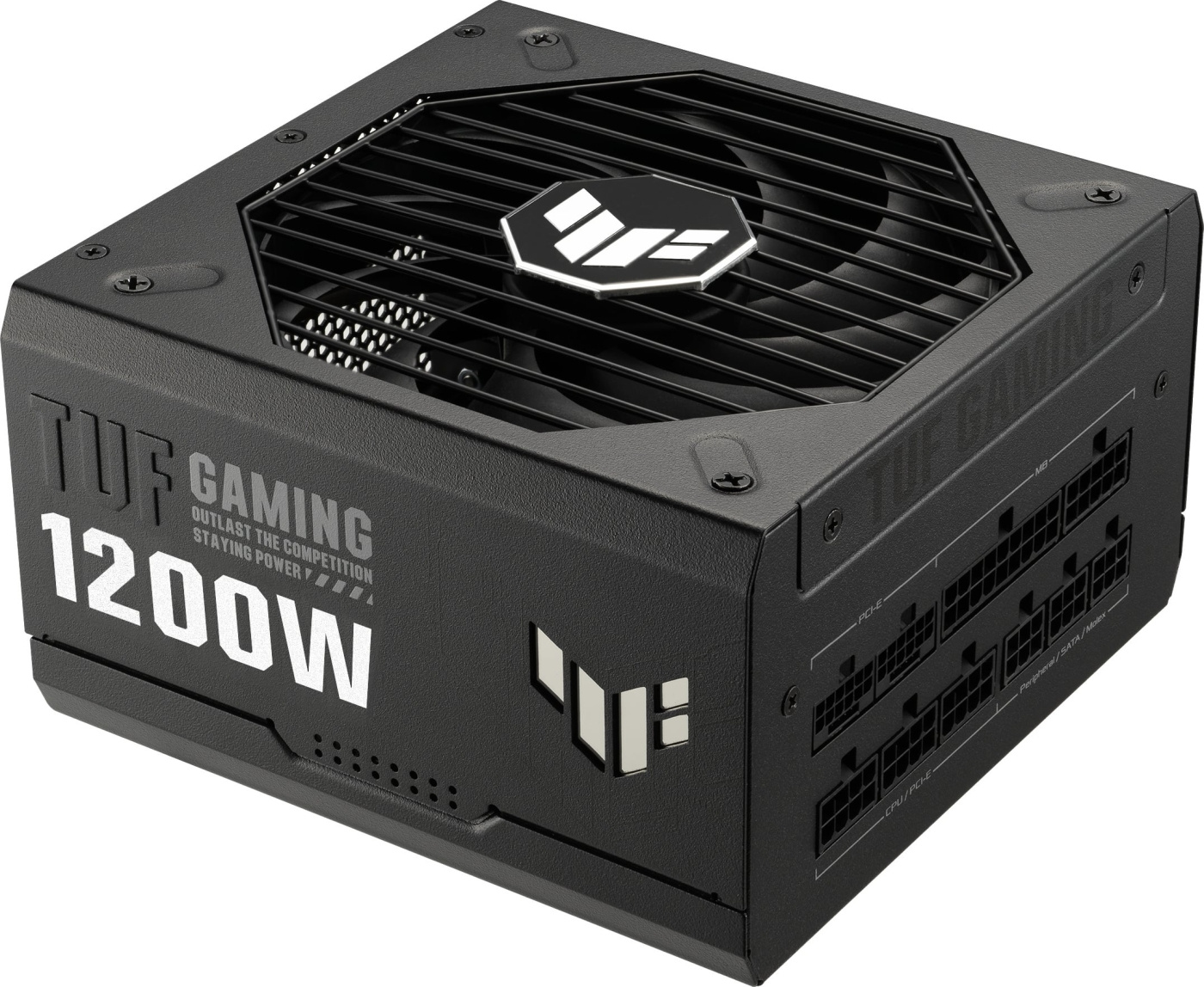

ASUS The TUF Gaming 1200W ATX power supply delivers efficient and reliable power to your PC system. It is designed for long-term durability and supports modern standards such as ATX 3.1 and PCIe Gen 5.0. The power supply is fully modular, which simplifies cable management and installation. 80 PLUS Gold certification ensures high efficiency, which reduces heat load and noise.
Powerful power delivery and protection
The 1200-watt total power output is sufficient for demanding setups, with the highest currents on the +12V rail (99 A). The power supply includes several protection features, such as overvoltage, overheating, and short-circuit protection, which safeguard your hardware against various electrical disturbances and damage.
High-quality components and cooling
Low-ESR Japanese capacitors ensure efficient and stable operation. An Axial-tech fan with dual ball bearings provides cooling while keeping noise levels low. A protective PCB coating increases durability and protects the power supply from external damage.
Modular design and connections

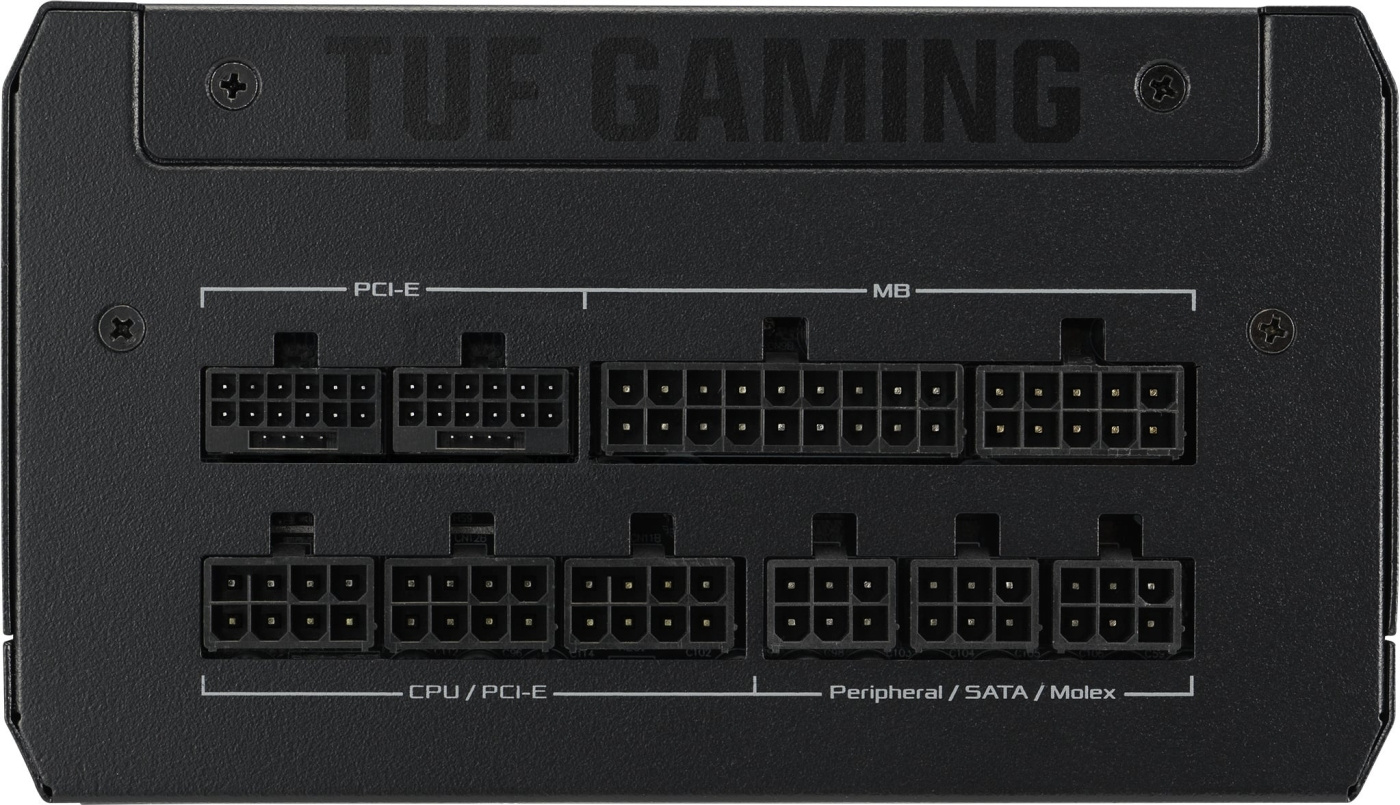

Fully modular cabling allows you to use only the cables you need, reducing unnecessary clutter inside the case. The power supply features a wide range of connectors, including a 24/20-pin motherboard connector, two 4+4-pin CPU power connectors, multiple PCIe connectors, as well as SATA and Molex connectors, suitable for a variety of configurations.
Durable and Long-Lasting
The power supply is designed with military-grade durability in mind and is backed by a 10-year warranty. This makes it a long-term solution you can rely on for many years to come.
Physical dimensions and weight
The unit is ATX-sized (150 x 150 x 86 mm) and weighs 2.66 kg, making it compatible with most standard-sized cases.
Features
- Total power: 1200 W
- +12V rail: 99 A, +5V and +3.3V rails: 25 A
- 80 PLUS Gold certified, up to 92% efficiency
- ATX 3.1 standard and PCIe Gen 5.0 ready
- Fully modular cabling
- Axial-tech fan, 135 mm, dual ball bearings
- Protection features: overvoltage, overheating, short circuit, overcurrent, undervoltage, underload
- Motherboard connector: 20+4-pin ATX
- CPU power connectors: 2 x 4+4-pin
- PCIe connectors: 2 x 16-pin, 3 x 8-pin
- SATA connectors: 5
- Molex (Peripheral) connectors: 4
- Cooling: 135 mm active fan
- Dimensions: 150 x 150 x 86 mm
- Weight: 2.66 kg
- 10-year warranty
- RoHS-compliant and sustainable
Package contents
- ASUS TUF Gaming 1200W ATX power supply
- AC power cord
- CPU power cable
- PCIe power cables
- Peripheral (Molex) power cables
- SATA power cables
- Cable ties
- 1200 W ATX power supply
- 80 PLUS Gold
- Modular, ATX 3.1 & PCIe 5.0 support
- 135 mm fan
- Military-grade durability
