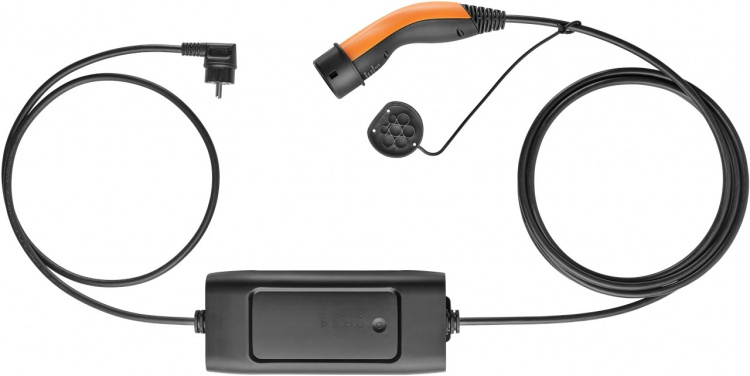

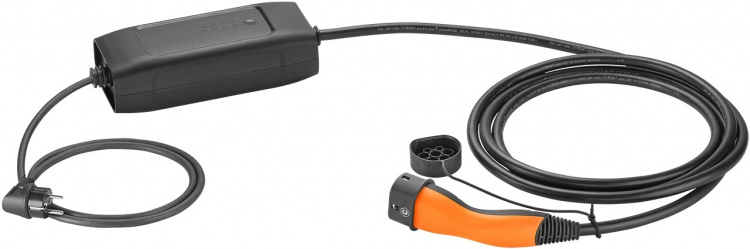

(5555921001) 10 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box
- The LAPP Mode 2 charger provides simple, mobile charging via standard mains sockets (safety socket CEE 7/3, plug type E/F) and is ideal in the garage at home or as an emergency charging cable on the road
- Ideal solution for safe, stable charging up to 2.3 kW and a nominal voltage of 240 V (AC) with intermediate control box

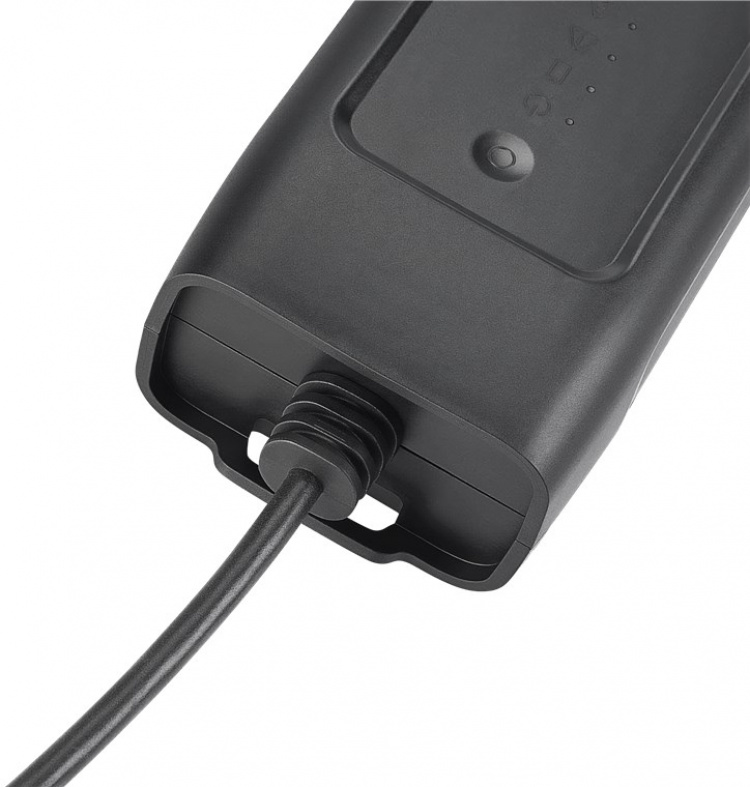

- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges
- EV charging cable with high moisture protection according to IP55, operating temperature -25 °C to 45 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Inner conductor cross-section: 2.5 mm²
max current capacity: 10 A
Number of phases: 1
Markings: WEEE, CE
Manufacturer designation: 5555921001
Model designation: 5555921001
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
Loading capacity up to: 2.3 kW
Charging mode: Mode 2
Rated voltage: 230 V (AC)
Cable type: smooth cable

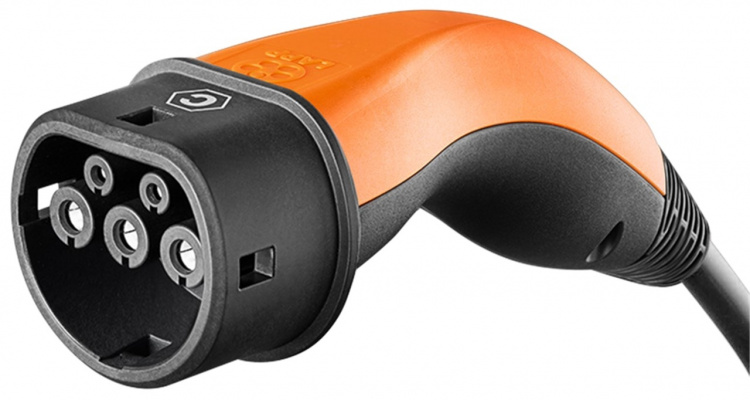

Connection, type: type 2 female plug
Connection 2, type: safety plug hybrid (type E/F, CEE 7/7)
4056158850888EAN:
