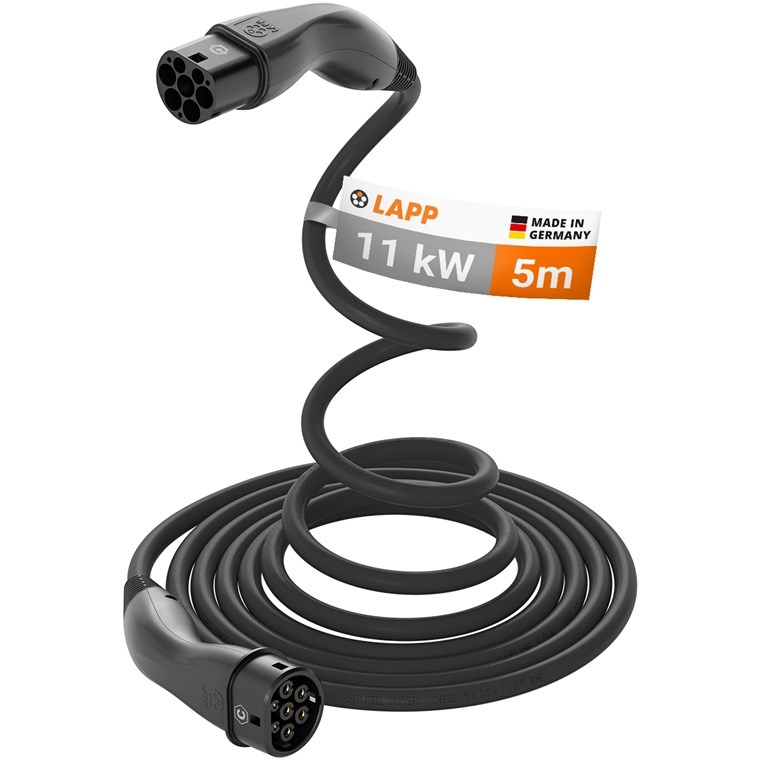

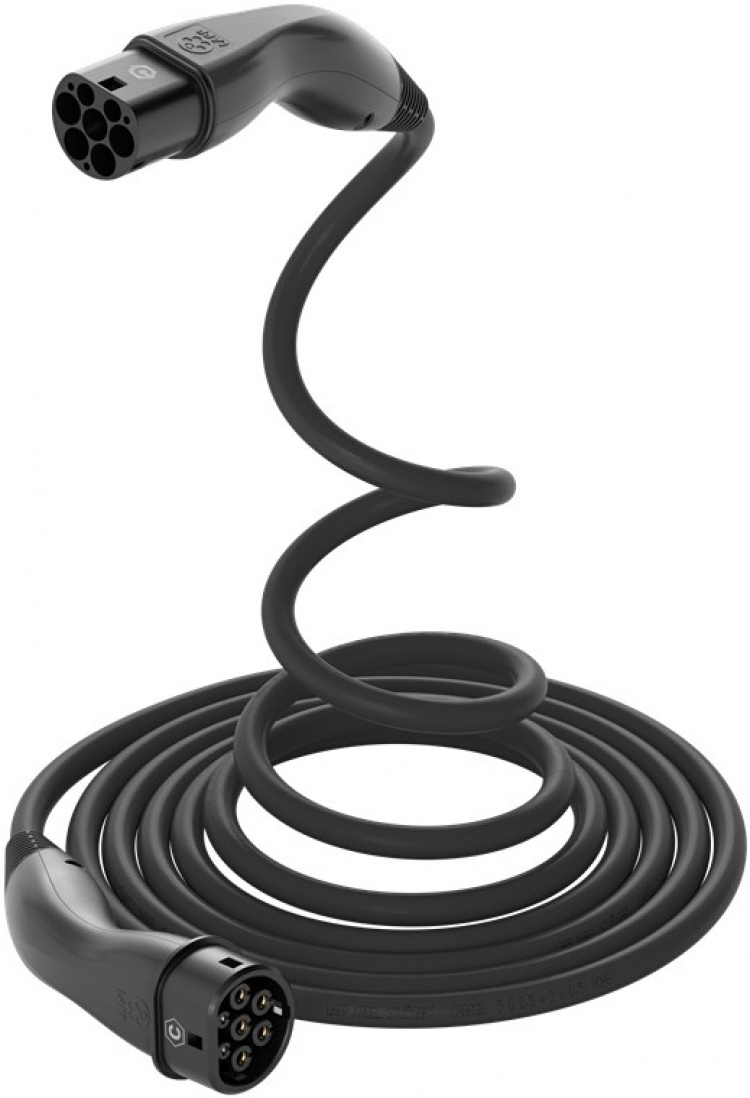

(5555935001) 20 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

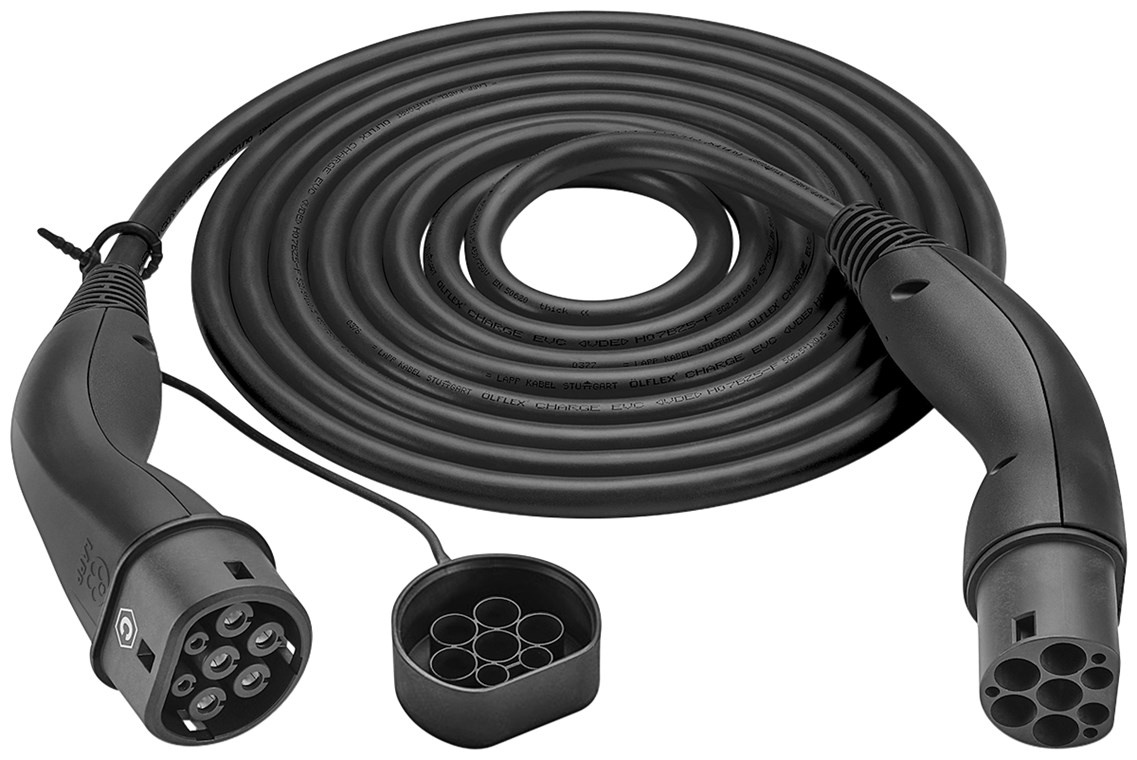

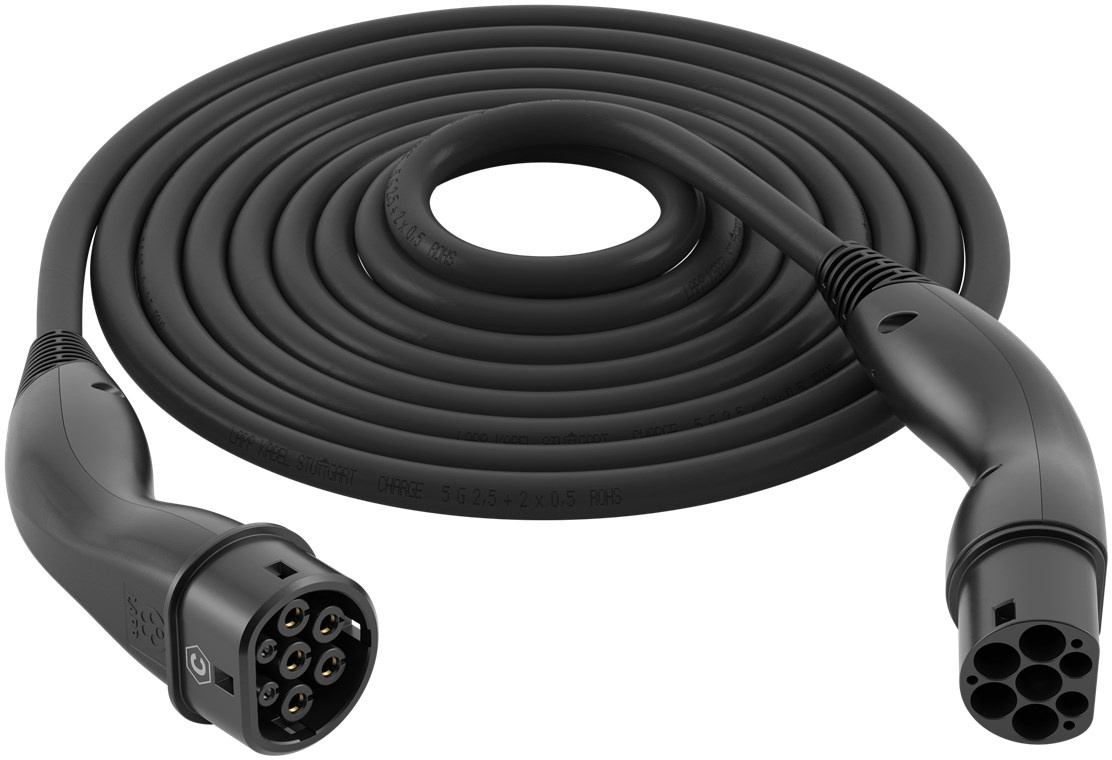

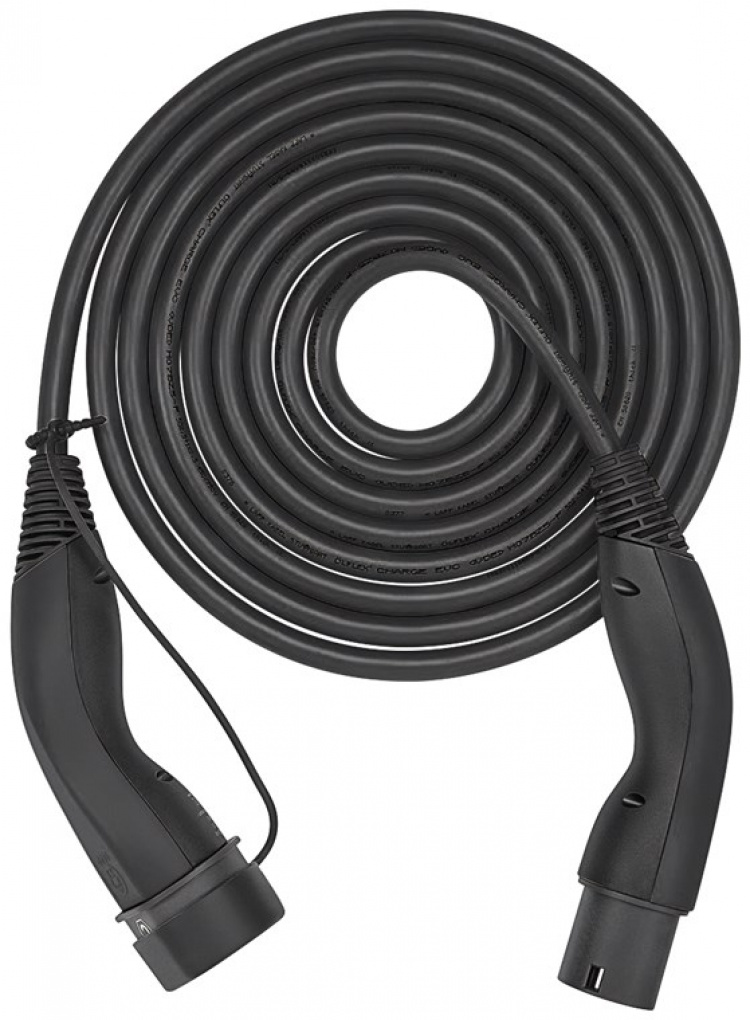

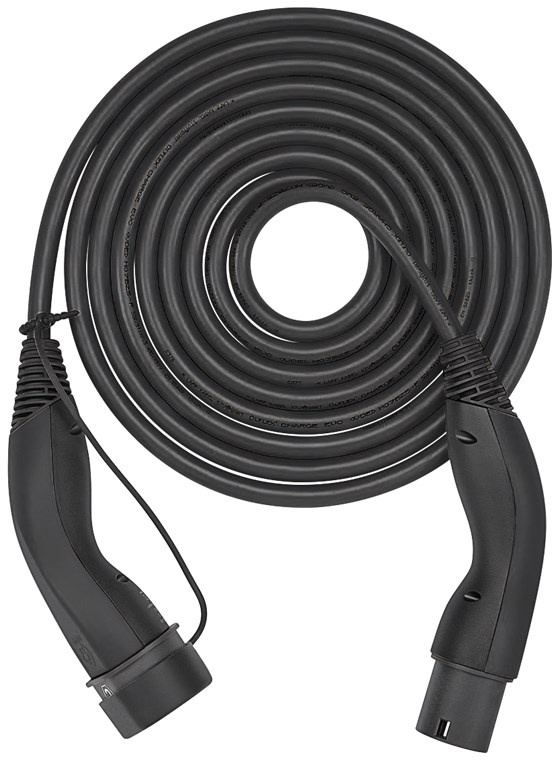

- The Type 2 charging cable from LAPP allows easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
- Thanks to the 3-phase cable design, the cable charges particularly quickly and also supports 1-phase charging with 3.7 kW

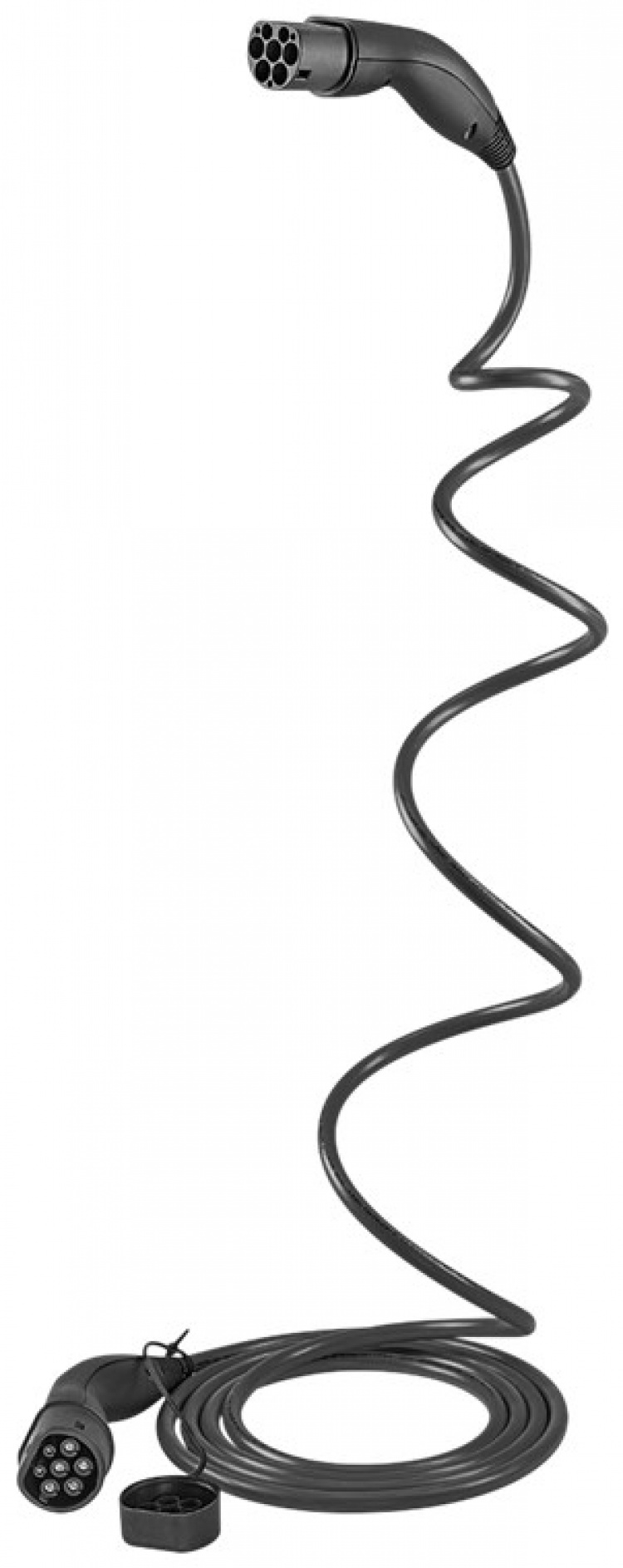

- Patented, self-retracting cable with shape memory that rolls up in a helical shape after use and is quickly stored away - without tangling
- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
Inner conductor cross-section: 2.5 mm²
max current capacity: 20 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555935001
Model designation: 5555935001
Operating temperature up to: 50 °C
Operating temperature from: -40 °C
protection class: IP55
Weight: 2111 g
Loading capacity up to: 11 kW
Charging mode: Mode 3
Rated voltage: 440 V (AC)
Cable type: HELIX cable
4064727469782EAN:
