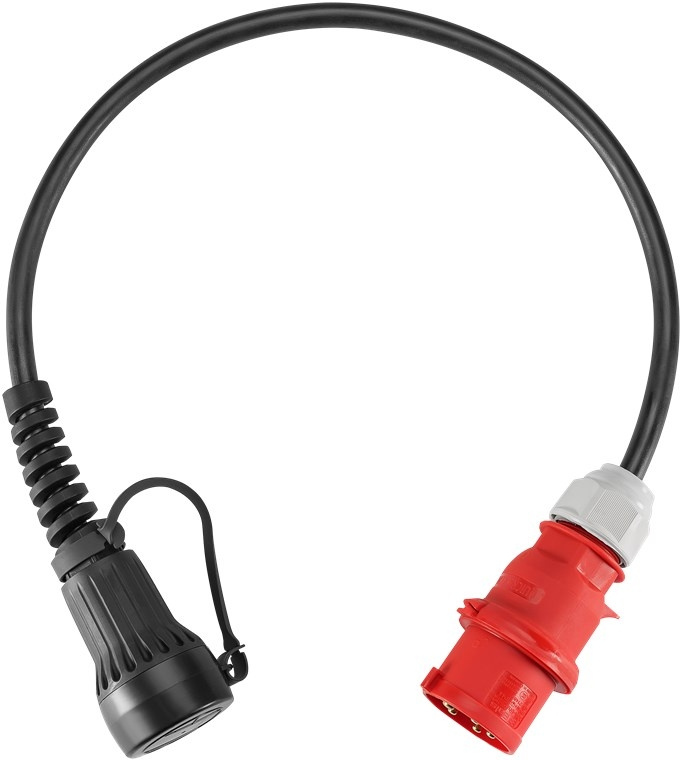

The mains adapter directly connects the LAPP Universal charging station for EVs to a CEE socket - for easy charging at home or on the road. Simply connect the Type 2 coupling of the cable to the car and the CEE plug to the socket. The on-board electronics automatically starts and finishes the charging process. The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

(5555923001) 32 A, Adapter cable for the LAPP charging station Universal

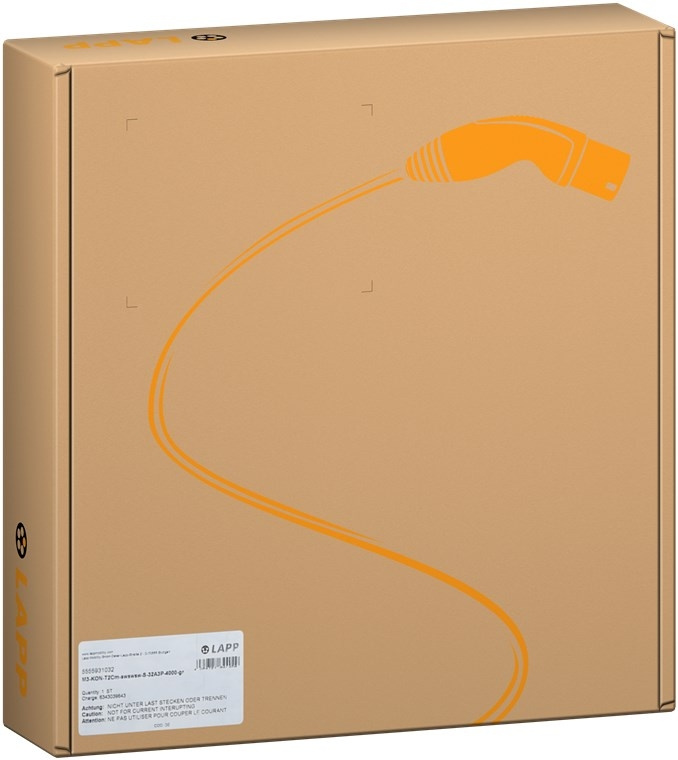

Förpackning: Retail Box

Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
Ideal for charging hybrid and electric vehicles with up to 22 kW from CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector
As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
Charging cable for safe, stable charging at a nominal voltage of 400 V (AC), operating temperature -25 °C to 45 °C
Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability

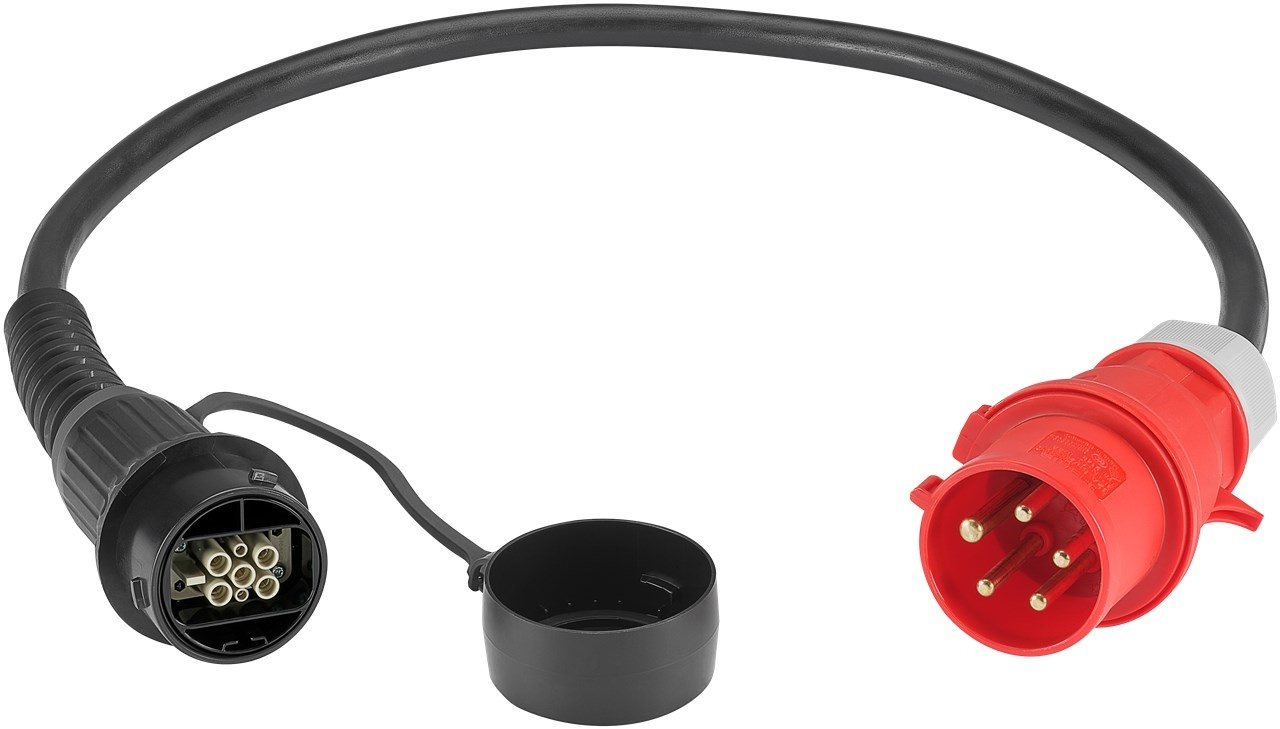

The cover cap on the female plug protects against the ingress of dust, dirt and water during storage

Cable length: 0.96 m
Inner conductor cross-section: 6 mm²
max current capacity: 32 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555923001
Model designation: 5555923001
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
protection class: IP44
Loading capacity up to: 22 kW
Rated voltage: 440 V (AC)
Cable type: smooth cable
Connection, type: CEE plug red, 5-pole 3ph/32 A
Connection 2, type: LAPP Separation point

4056158850932EAN:

LAPP MOBILITY CEE Charging Adapter Universal, up to 22 kW, 3-phase (5555923001) 32 A, Adapter cable for the LAPP charging station Universal
