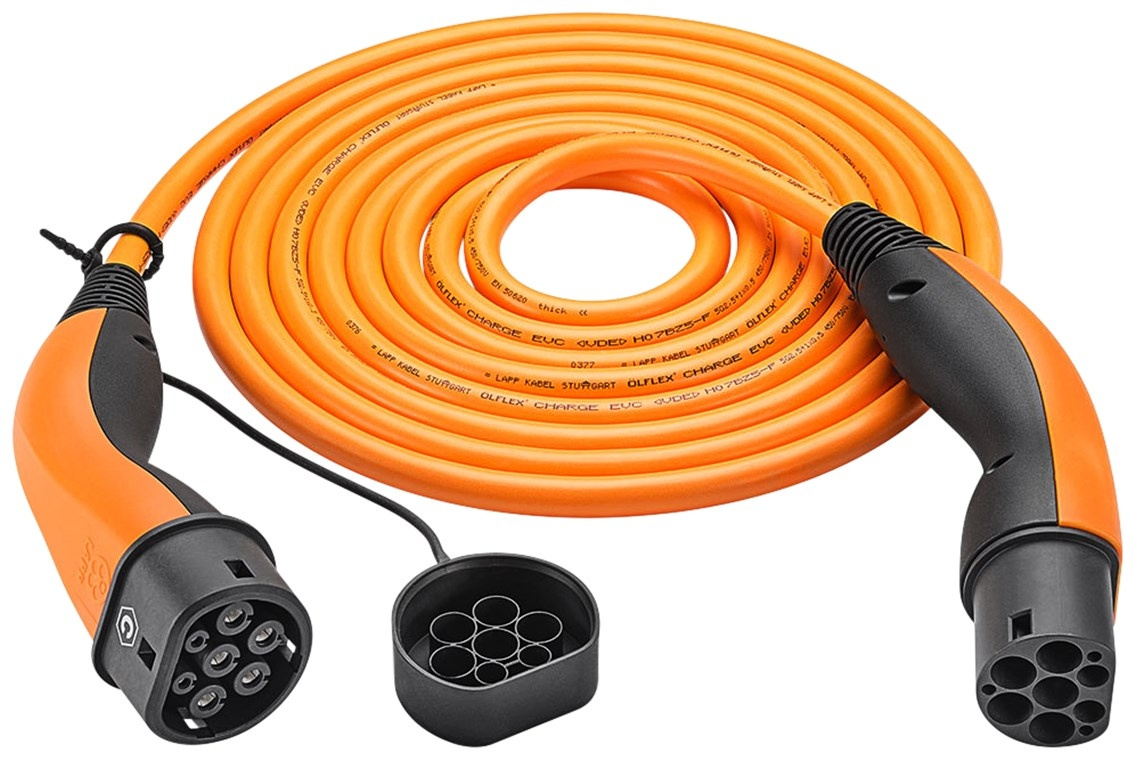

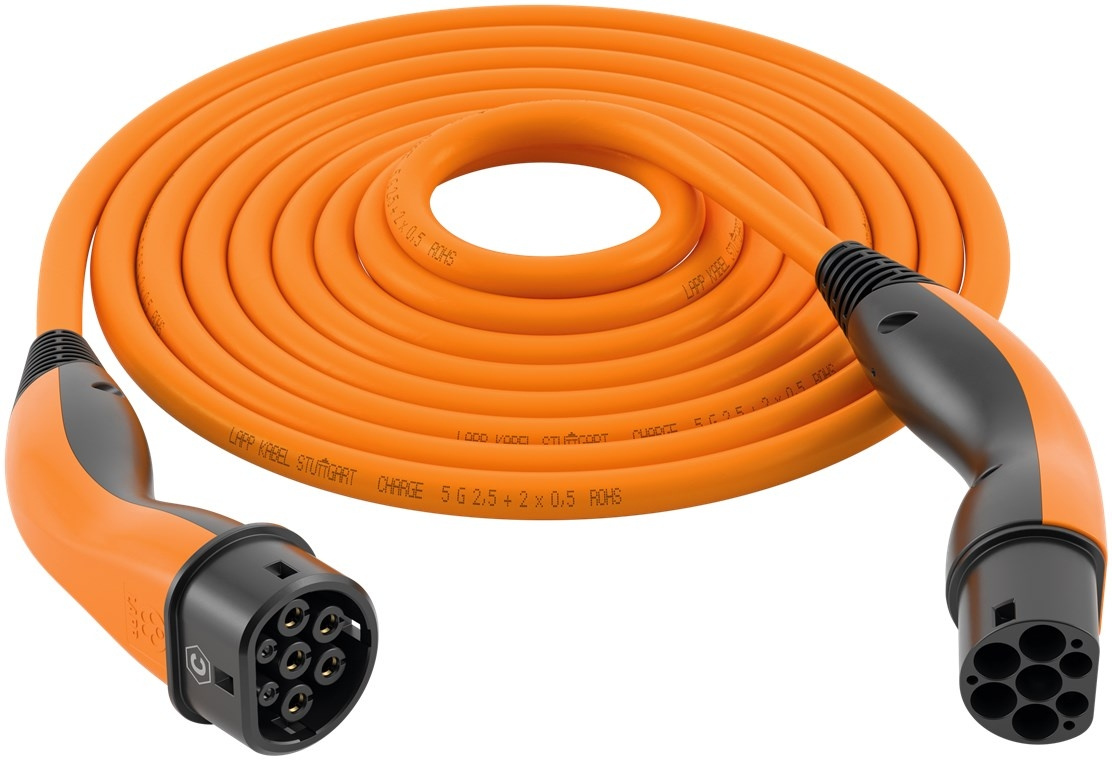

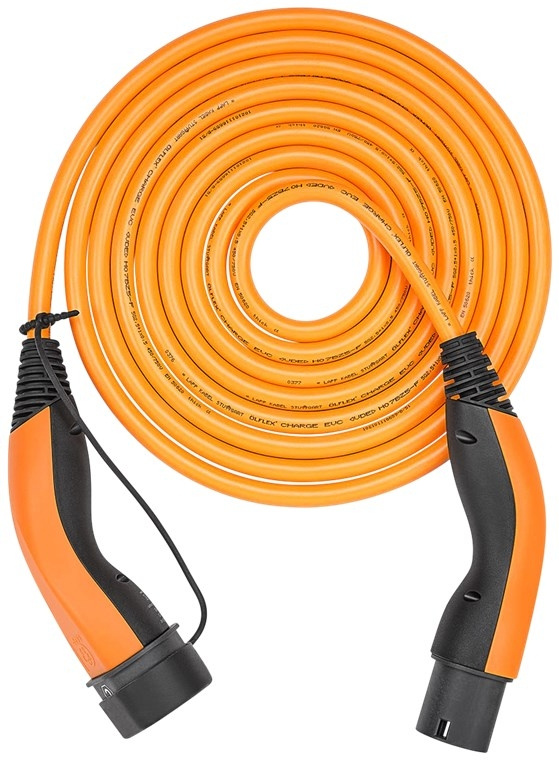

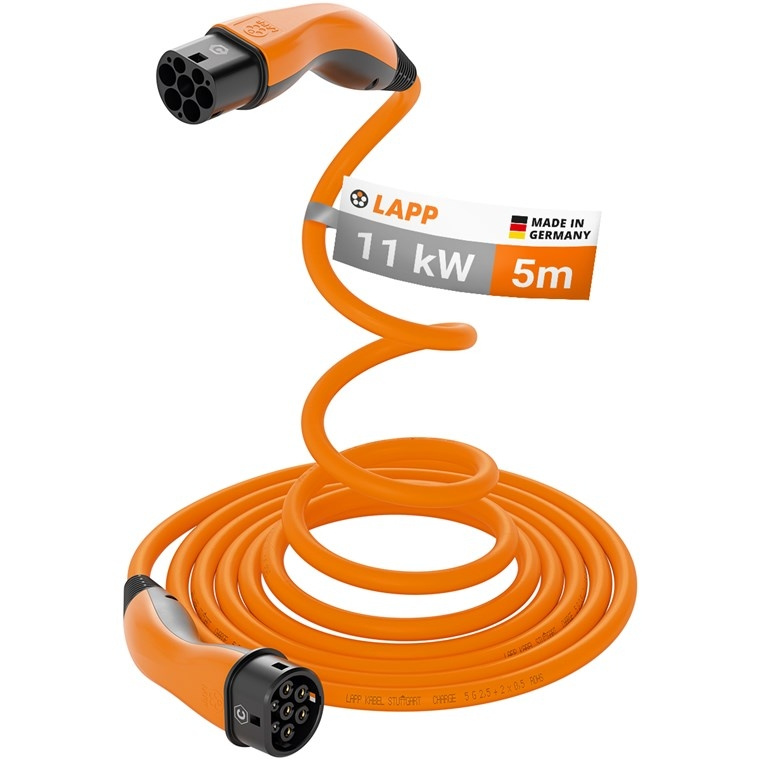

(5555935013) 20 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

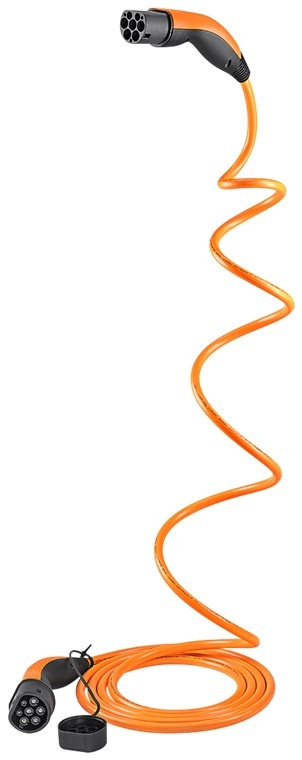

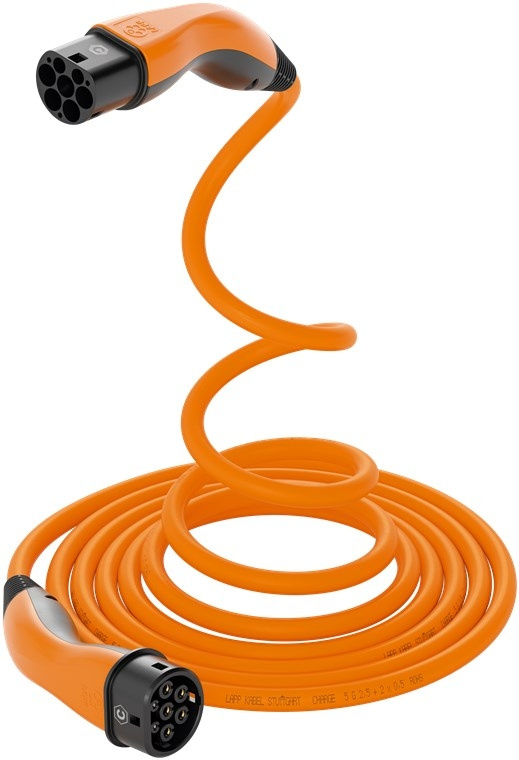

- Patented, self-retracting cable with shape memory that rolls up in a helical shape after use and is quickly stored away - without tangling
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
- High compatibility: In addition to 3-phase charging, the cable also supports 1-phase charging with 3.7 kW
- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
Connection 2, type: type 2 male plug
Material cable sheath: ÖLFLEX®CHARGE
Cable type: HELIX cable
Color version: orange
Color: orange
Special feature: Shape memory thanks to HELIX cables, Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified
Packaging type: Retail Box
Cable length: 5 m
Loading capacity up to: 11 kW
Charging mode: Mode 3
Rated voltage: 440 V (AC)
max current capacity: 20 A
Number of phases: 3
protection class: IP55
4064727469904EAN:
