A sleek hydraulic pump housing design gives the Optima pump an extra large flow capacity, which is ideal when many litres need to flow through the filter system every day. At the same time the transparent filter cover makes it easy to inspect the large internal pre-filter basket during maintenance. And because none of the parts of the motor are in contact with the water, the pump has a high level of electrical safety. The pump can work with both chlorinated and salt water The pump is suitable for working with both chlorinated and salt water (AISI-316 stainless steel) so there is a freedom of choice when it comes to choosing what type of disinfectant you want to use for your bathing water. Technical specifications The pump housing, lid and diffuser are made from polypropylene, which is resistant to chemical care products in pool water, and it is reinforced with glass fibre, which guarantees excellent durability. Standard asynchronous motor, sealed against external ventilation. The motor bearings are lifetime lubricated and selected to ensure long durability and a silent working environment. Qmax litres/hour; 18,500 Flow at 0.4 bar litres/hour; 18,000 Maximum pool volume litres; 87,500 Hmax (m); 16 Power supply V/Hz; 230V/50/60 Hz Maximum priming metres; 2.5 Power; kW; 0.75 ; HP; 1.00 Amps; 5.5 Fitting size; 50 mm Maximum temperature of pumped liquid; up to 40°C Ambient air temperature; up to 40°C Maximum operating pressure; 2.5 BAR Weight Net/Gross; 7.9/9.5 kg Insulation class; F Safety; IPx5 Net size LxWxH; 470 x 180 x 265 mm Gross size LxWxH; 630 x 230 x 360 mm

5704841016521EAN:

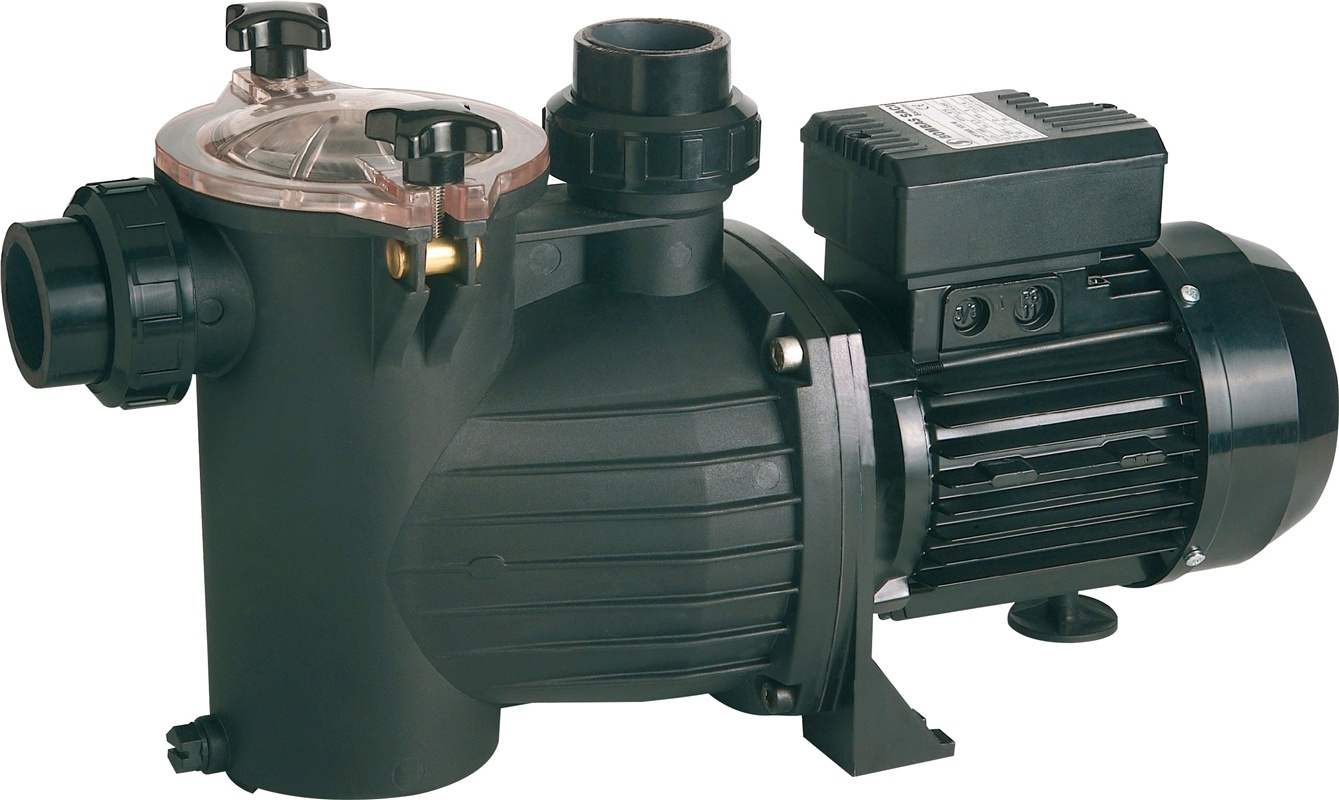

Pump OPTIMA 100 - 0,75KW 1,00 HP
