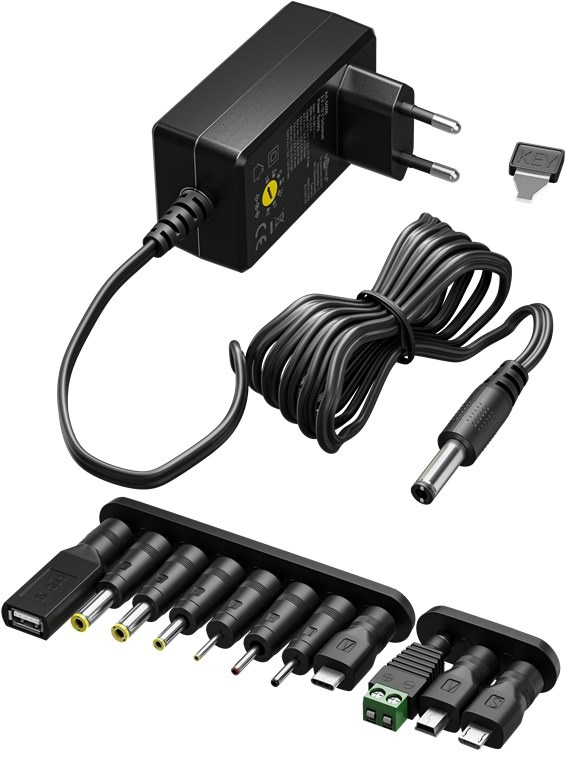

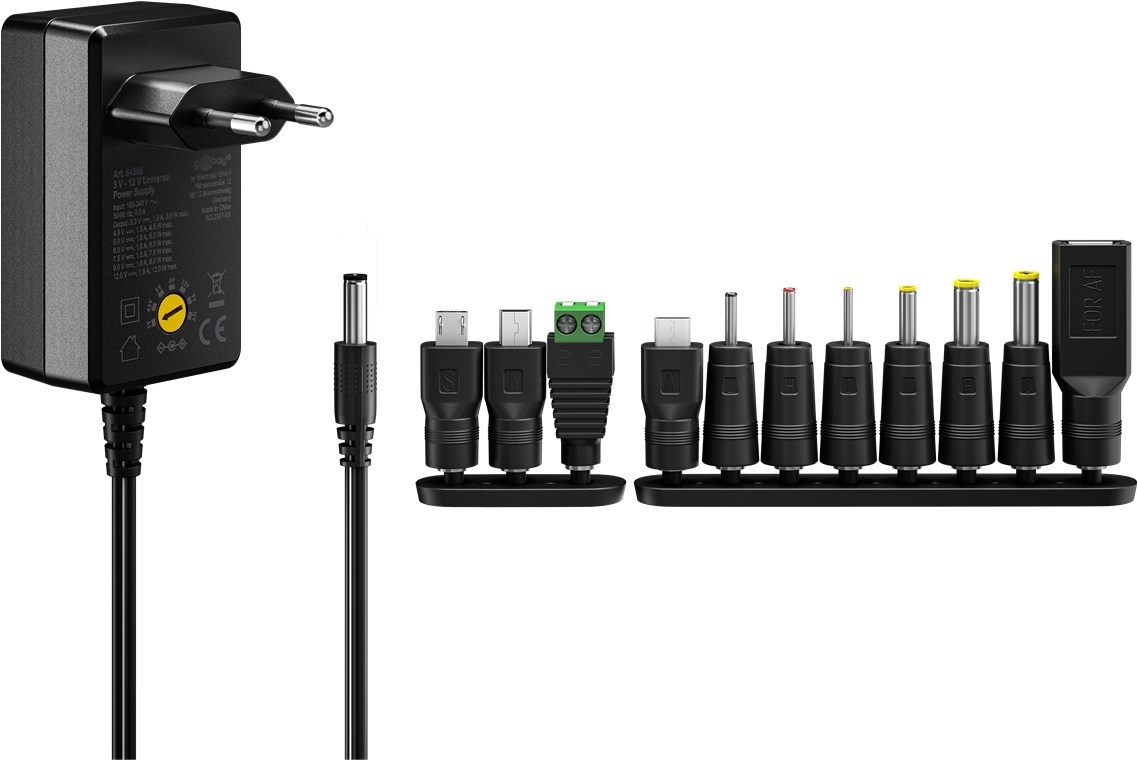

incl. 11 adapters: 7 DC adapters plus USB-C™, USB-A, USB Mini-B, Micro-USB and a screw terminal connection
Förpackning: Brown Box with Label

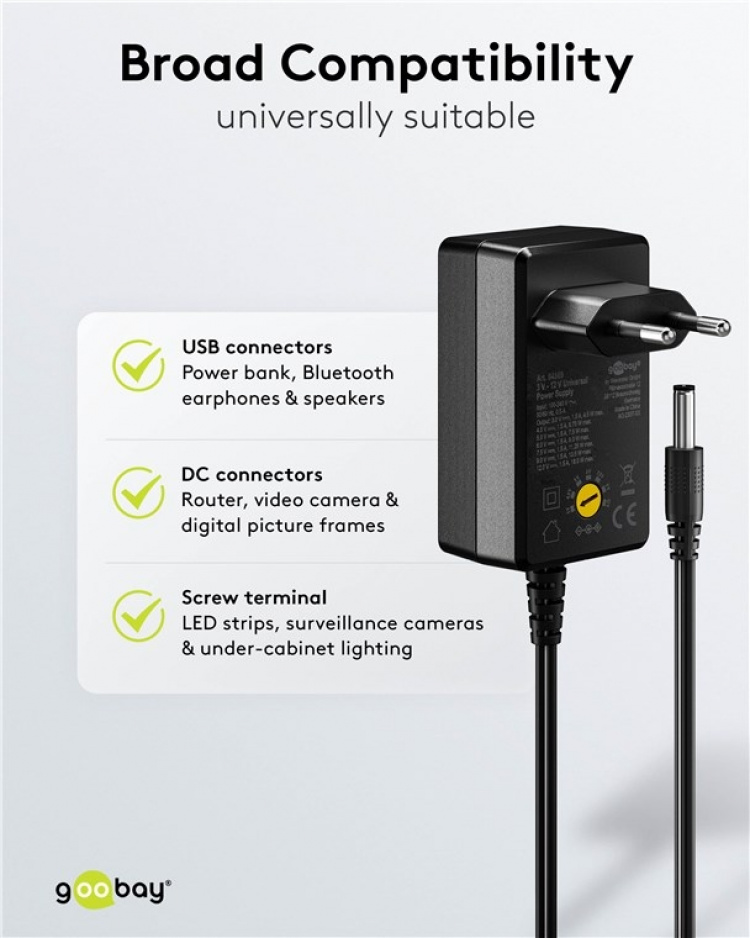

- Power supply with variable voltage, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital picture frame, dartboard, baby monitor or toy

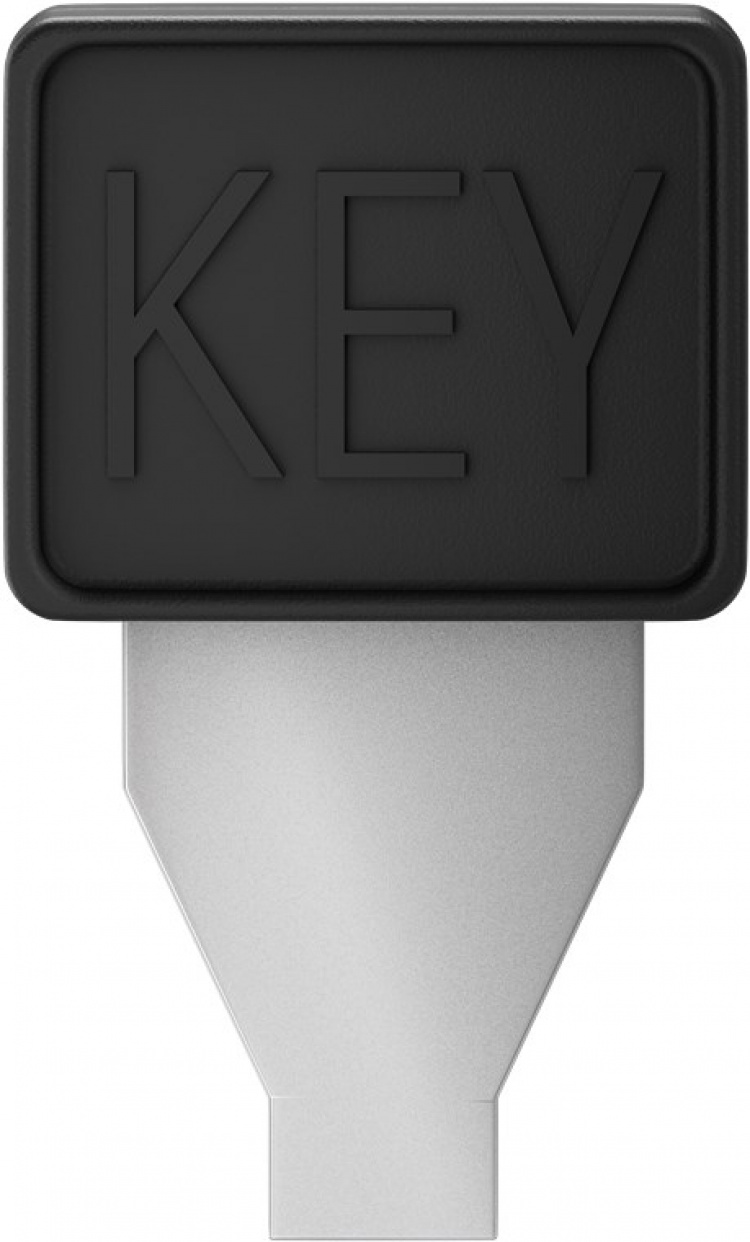

- The output voltage can be regulated via the enclosed rotary key for selecting 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 1.5 A
- The USB-C™ adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply a viable, long-term option
- Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones

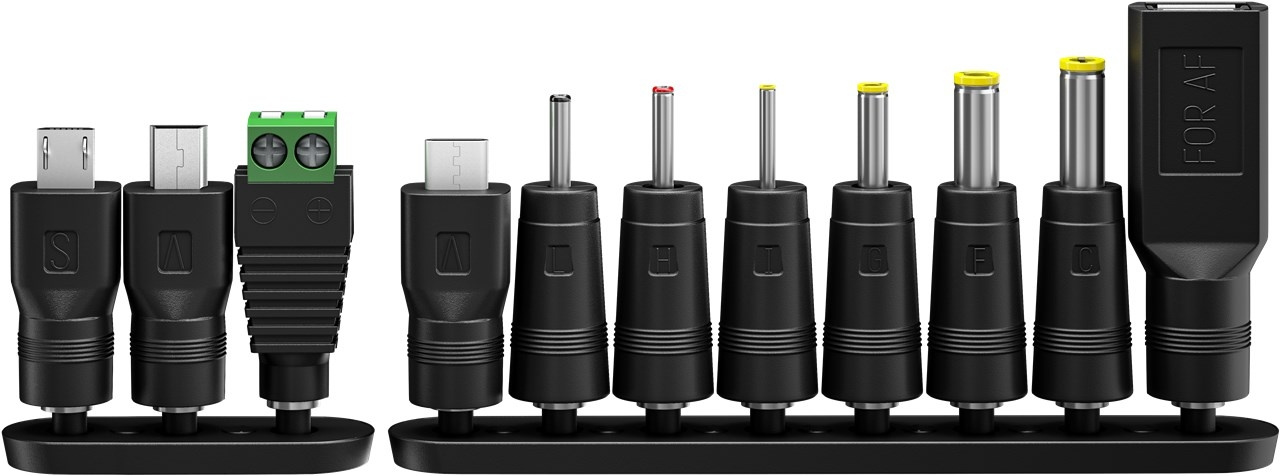

- Incl. permanently attached DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm
- With the interchangeable DC adapters, the 12 V power supply unit with Europlug (CEE 7/16) eliminates the need to purchase additional chargers
- Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent
Input, Voltage Range: 100 - 240 (AC) V
Output, max. amperage: 1.5 A
Markings: CE, WEEE, Haus, Quader
Height: 69.2 mm
Length: 76.45 mm
Weight: 105 g
Width: 44 mm
max. performance: 18 W
max. performance: 18.0 W
Average active efficiency: 75.3 %
Efficiency at low load (10 %): 60 %
No-load power consumption: 0.09 W
Input current: 0.5 A

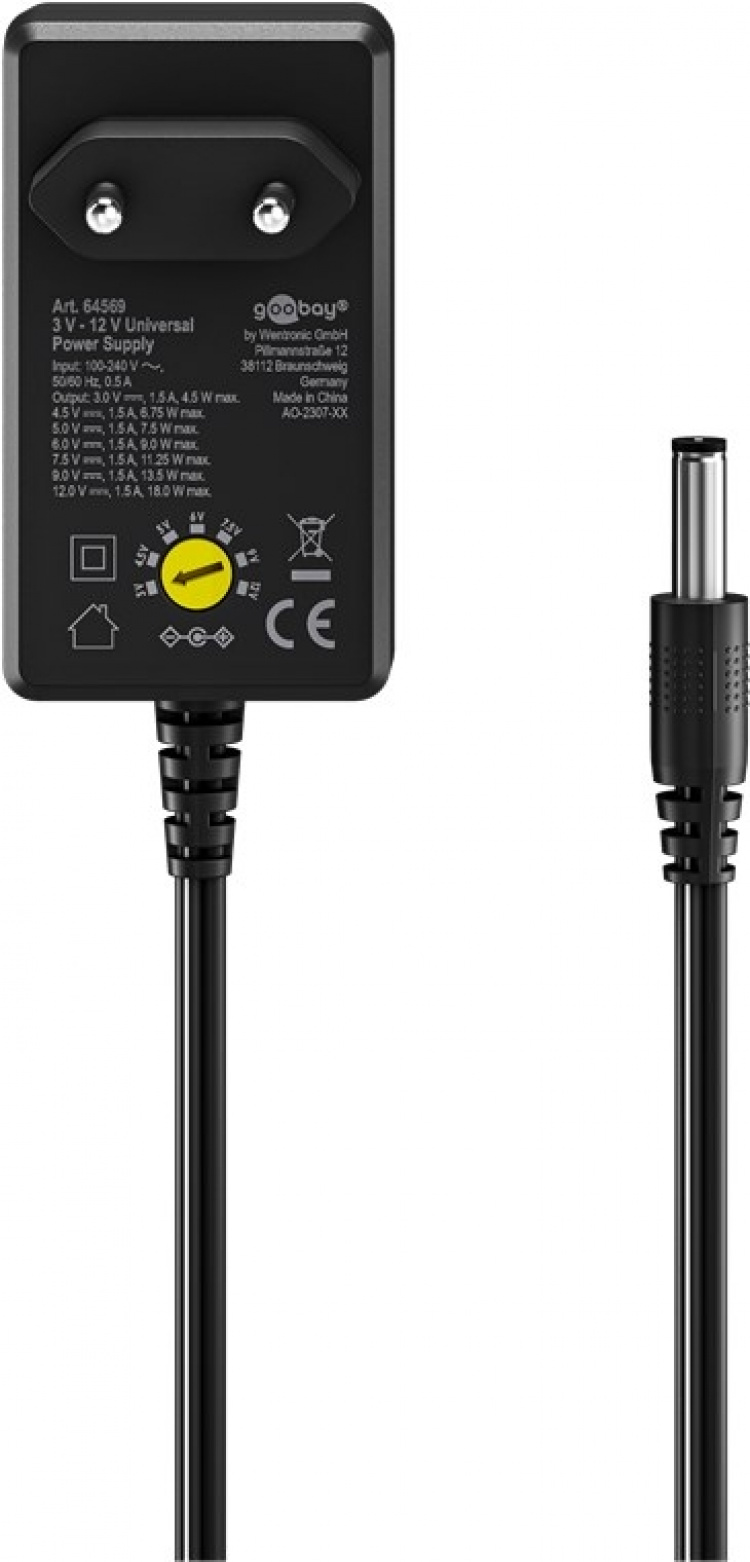

Output: 3.0 V max. 1.5 A (4.5 W) DC 4.5 V max. 1.5 A (6.75 W) DC 5.0 V max. 1.5 A (7.5 W) DC 6.0 V max. 1.5 A (9.0 W) DC 7.5 V max. 1.5 A (11.25 W) DC 9.0 V max. 1.5 A (13.5 W) DC12.0 V max. 1.5 A (18.0 W) DC
4040849645693EAN:
