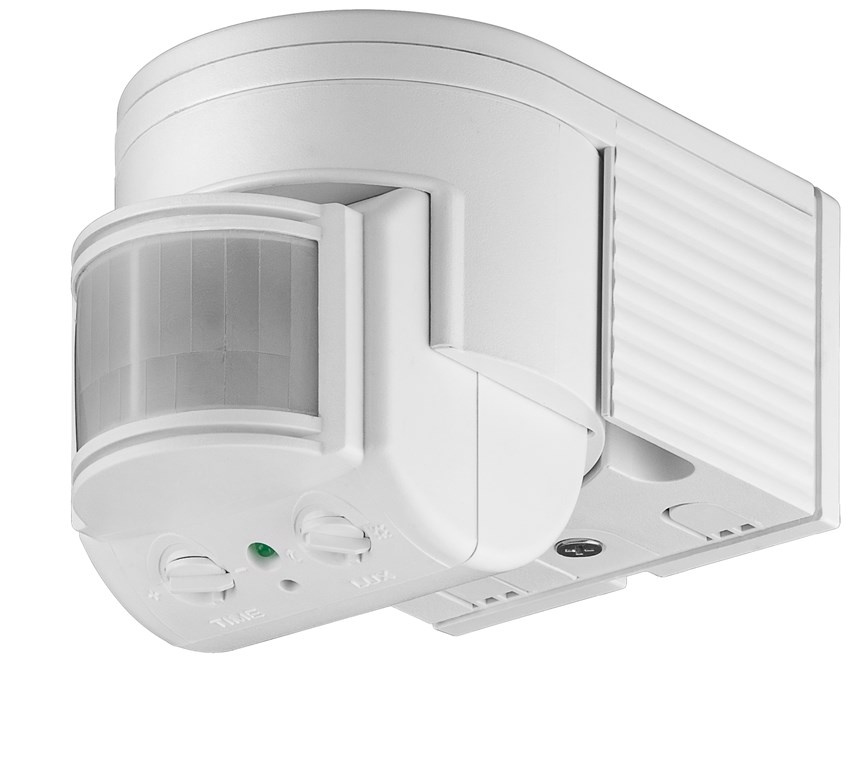

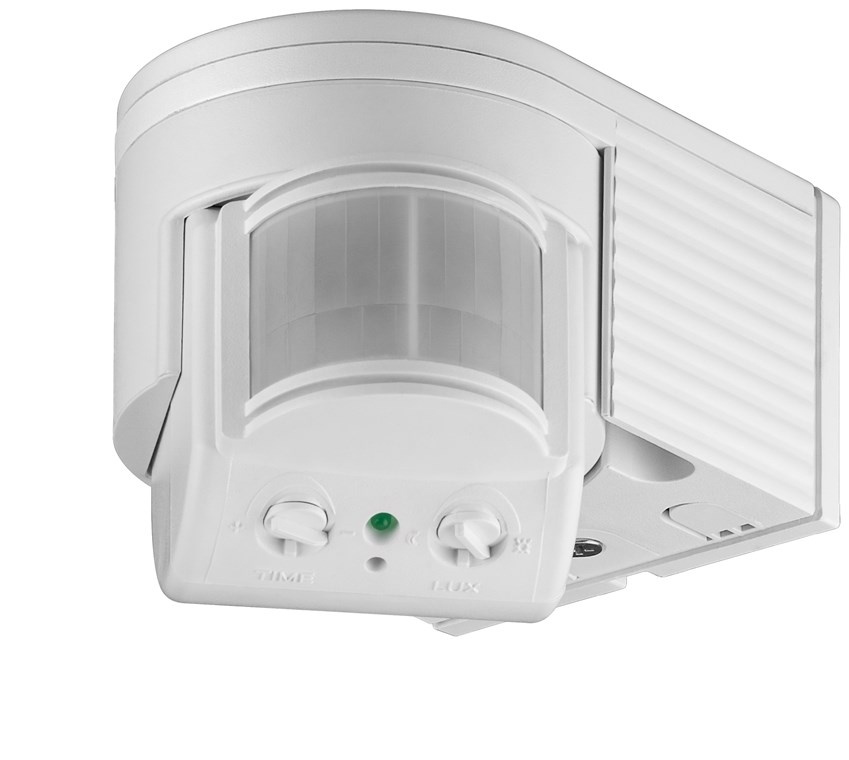

for surface wall mounting, 180° detection, 12 m range, for outdoor use (IP44), suitable for LEDs Color version white
Förpackning: Retail Box
- The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Practical for monitoring outdoor areas such as carports, house entrances, driveways or gardens

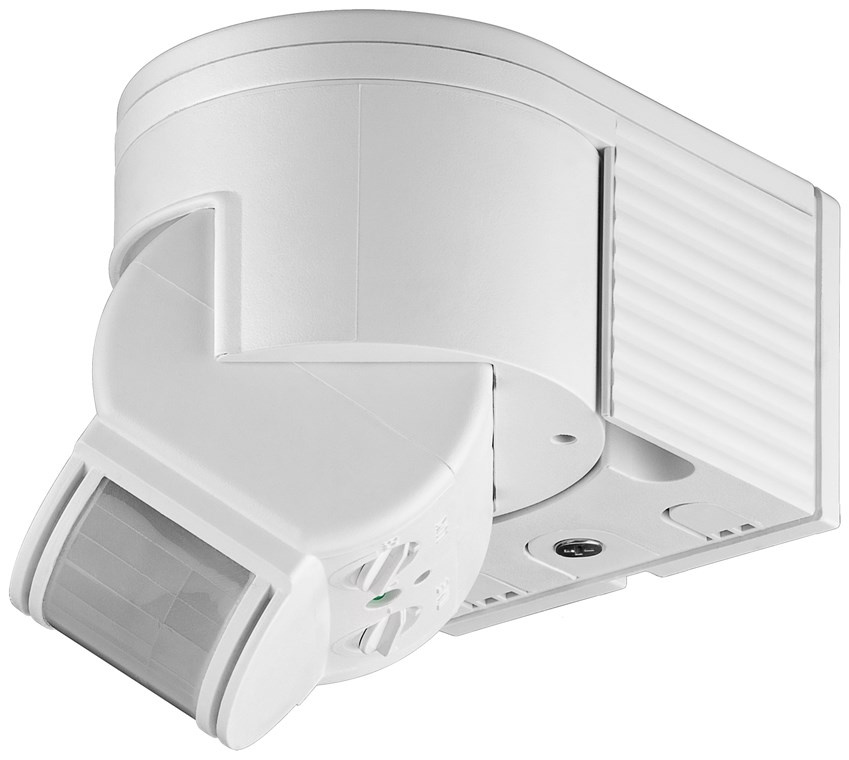

- Flexible adjustment: The infrared sensor rotates and tilts for an optimised alignment

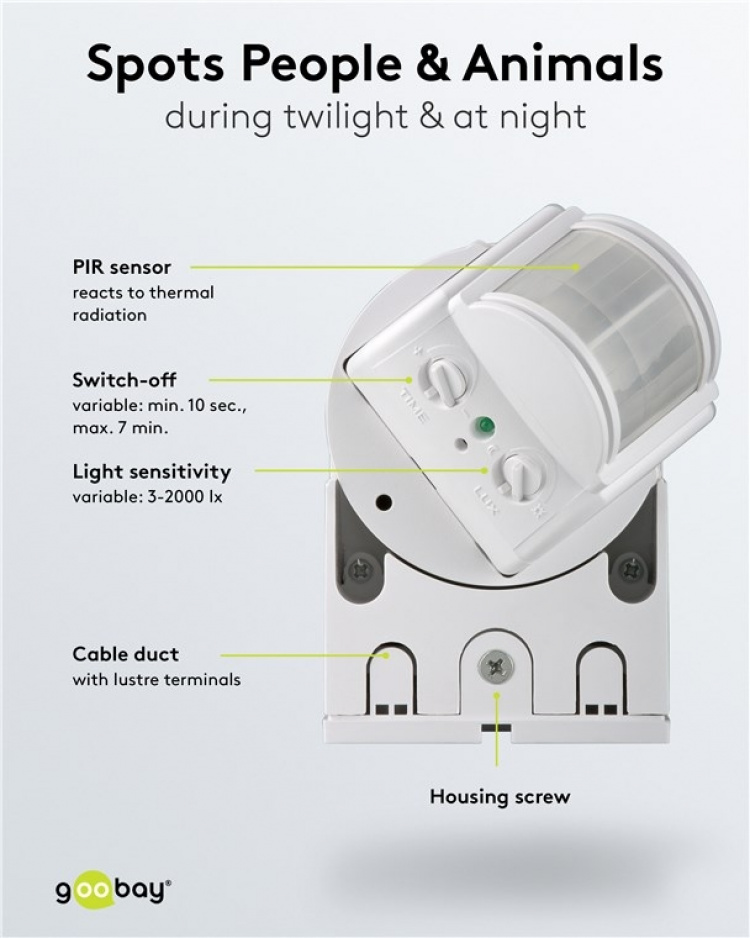

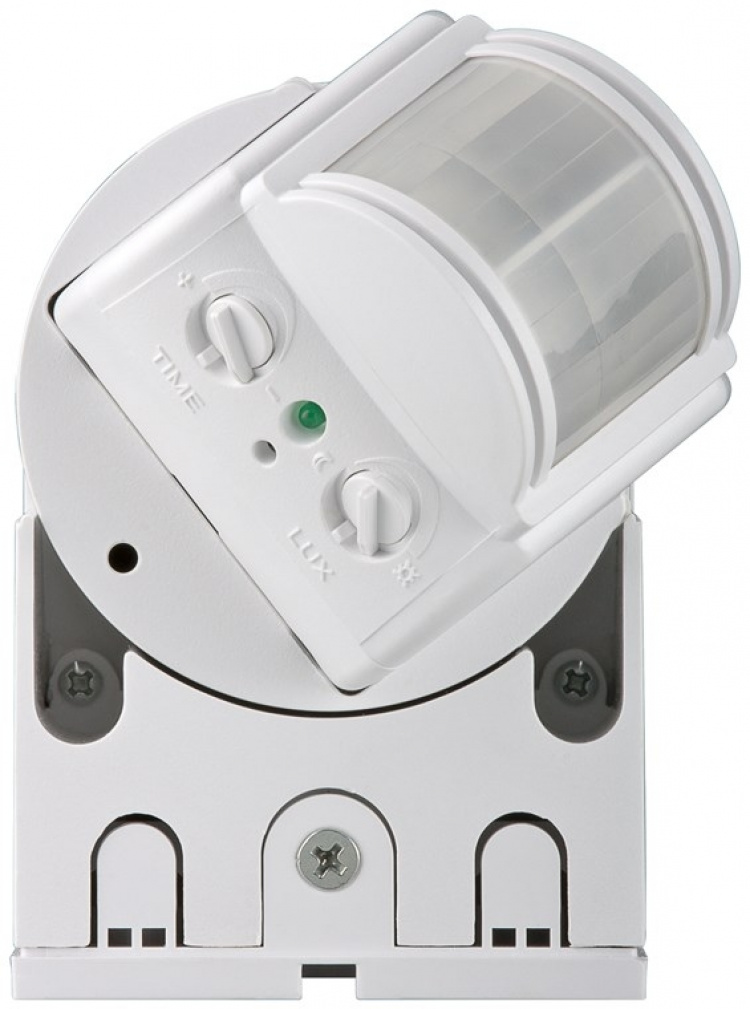

- Light sensitivity in 4 stages (3 lx to 2000 lx) and switch-off delay in 6 stages (10 s to 15 min) are easily adjustable using a rotary control on the underside

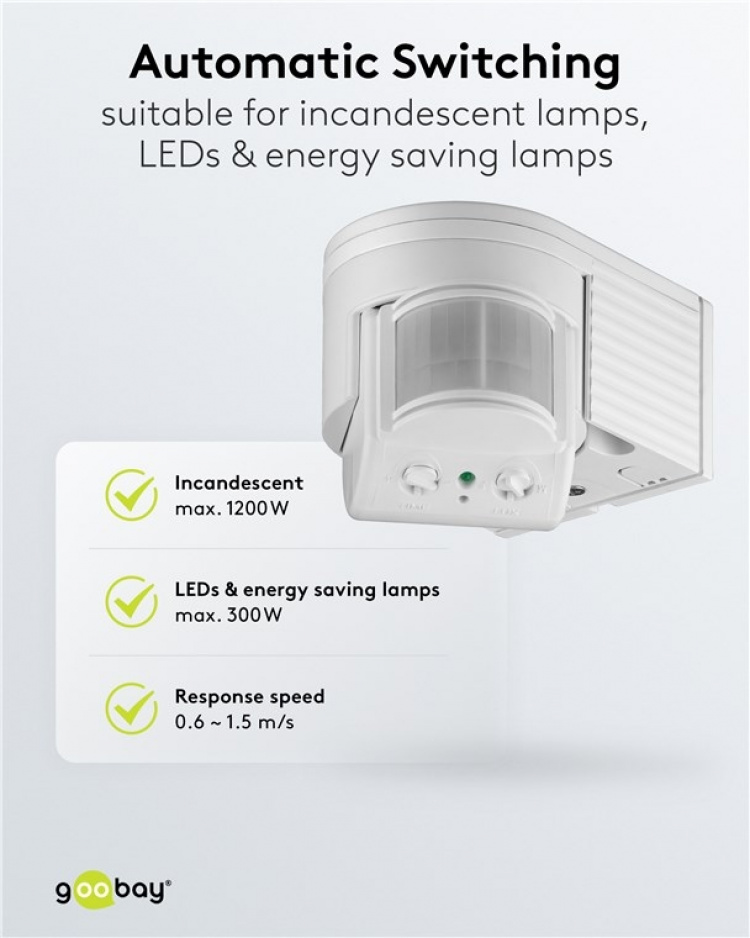

- Suitable for connecting LED lighting and energy-saving lamps up to 600 W and incandescent lamps up to 1200 W
- Ideal for surface-mounted wall installation (mounting material included), installation height: 1.80 m to 2.5 m
- Splash-proof according to protection class IP44 and therefore also suitable for outdoor use and in damp rooms
depth: 121 mm
Height: 81.8 mm
protection class: IP44
Weight: 215 g
Width: 72.7 mm
max view angle: 180 °
recommended installation height: 1.8 - 2.5 m
Installation height from: 1.8 m
Installation Height up to: 2.5 m
Light sensitivity from: 3 lx
light sensitivity up to: 2000 lx
max. detection range: 12 m
operating voltage: 240 V (AC)
switch-off delay from: 10 s
4040849951756EAN:
