This makes the extender suitable for applications such as digital signage, presentations, product demonstrations and AV distribution. It can be used in locations such as schools, hotels, hospitals, shops, shopping centres and business premises where HDMI signals need to be transmitted over a greater distance than standard HDMI cables allow.
Reliable 4K HDMI signal extension
The HDMI over Ethernet Extender transfers video signals via a CAT6, CAT6a or CAT7 Ethernet cable while maintaining a stable image quality. It supports multiple video formats, including 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K@60Hz, 4K@30Hz and 4K@60Hz. With HDMI 2.0 and HDCP 1.4/2.2 compatibility, the extender is suitable for modern AV setups that require high-resolution signal transmission.

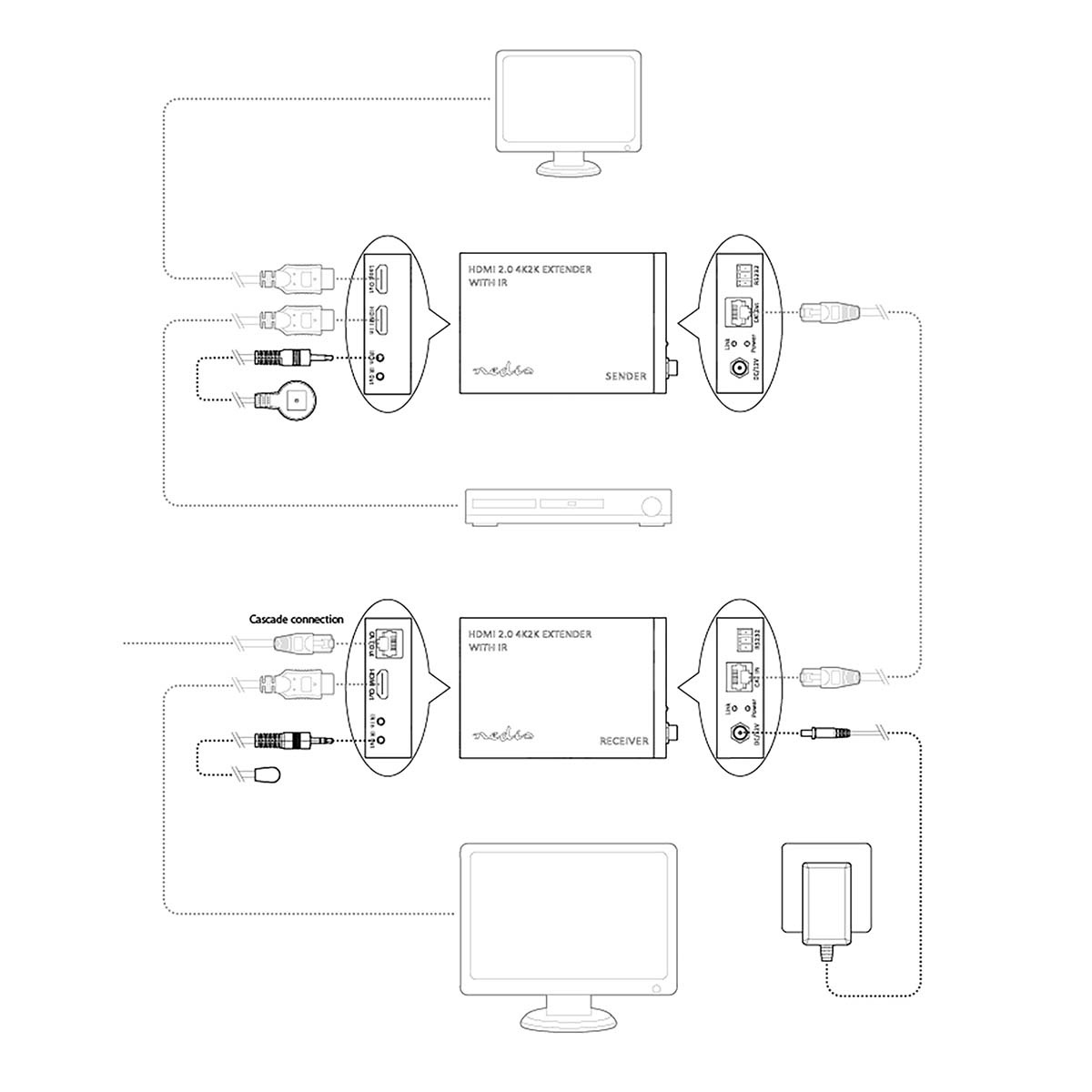

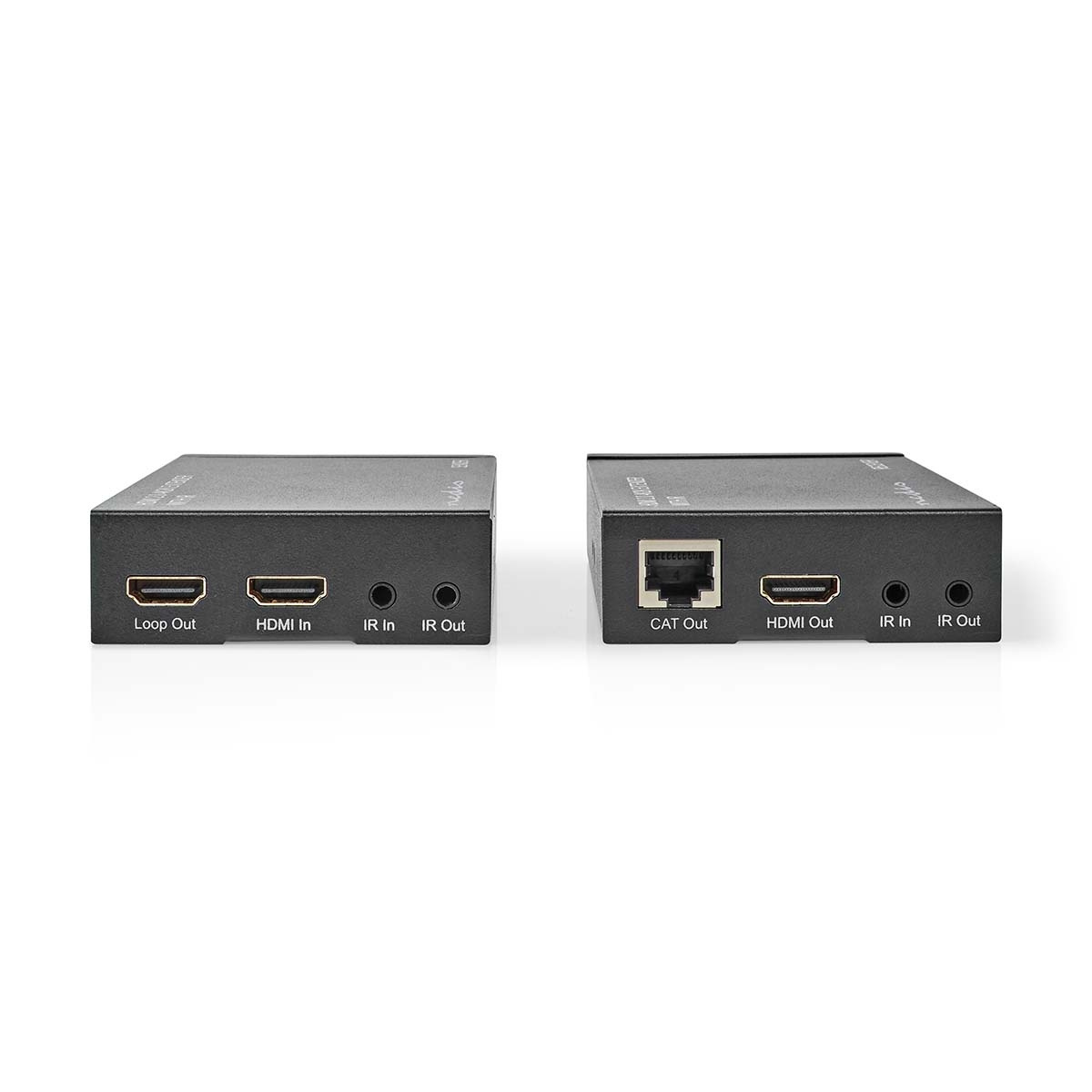

Local monitoring and cascade connection

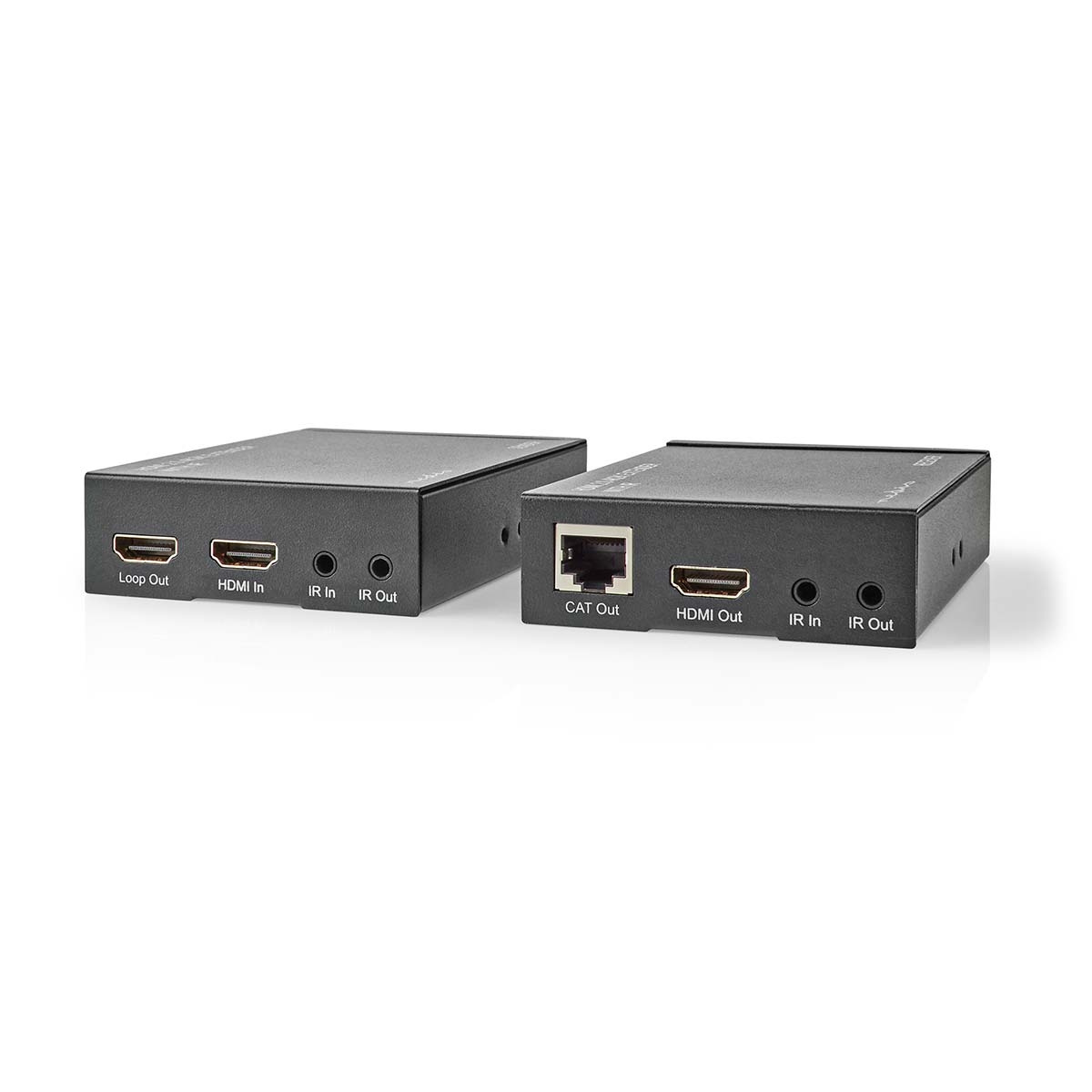

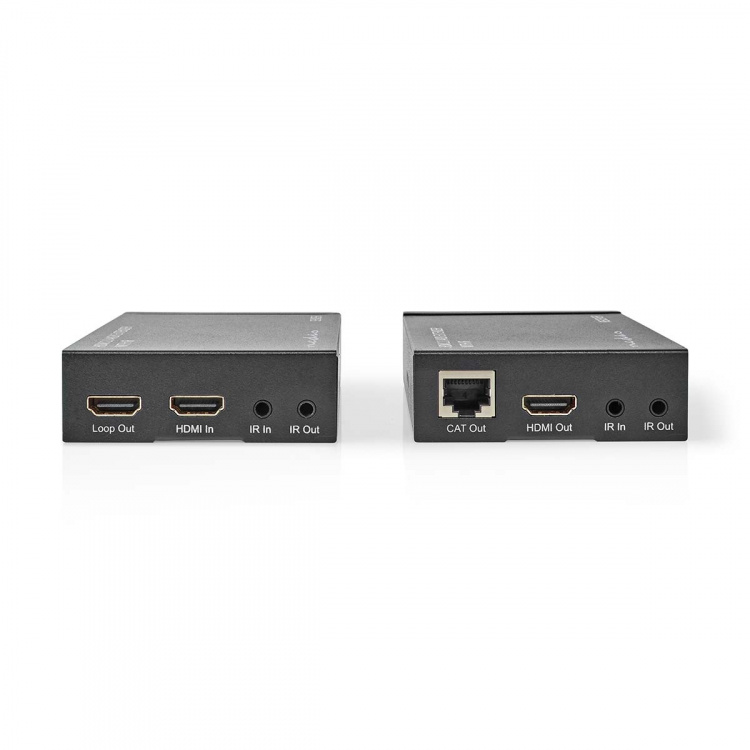

The transmitter is equipped with a Local Loop Output, allowing the playback status to be monitored locally on an additional screen. The receiver also features an RJ45 Loop Output, making it possible to connect multiple receivers in-line and extend the distribution setup. This provides extra flexibility for installations where video content needs to be shown across several screens or over a longer distance.
Bi-directional infrared control
Both the transmitter and receiver include infrared connections. This enables bi-directional IR control, so the input source can be controlled remotely from either side of the setup. This is useful in installations where the media player, decoder or other HDMI source is placed in a different room or technical area.

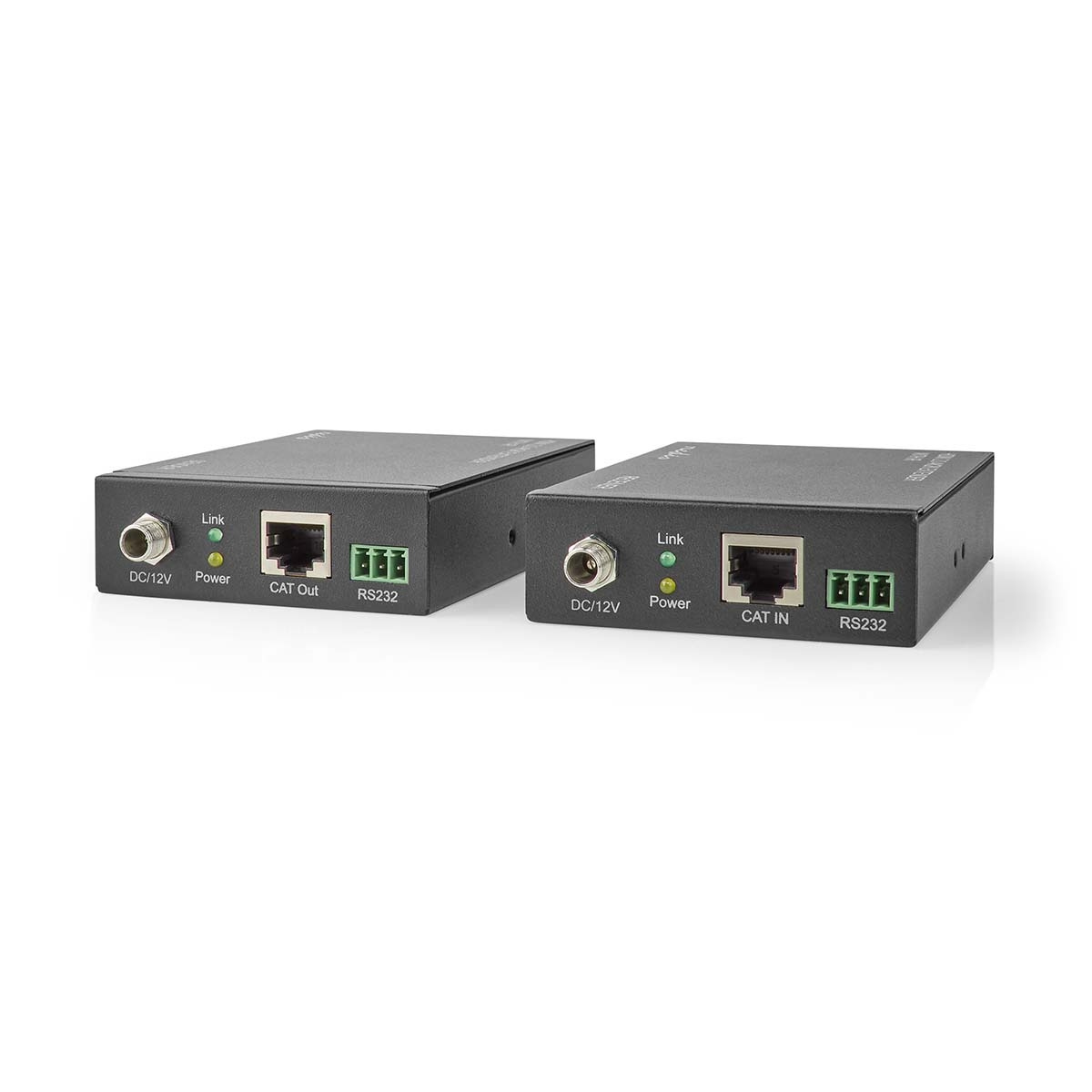

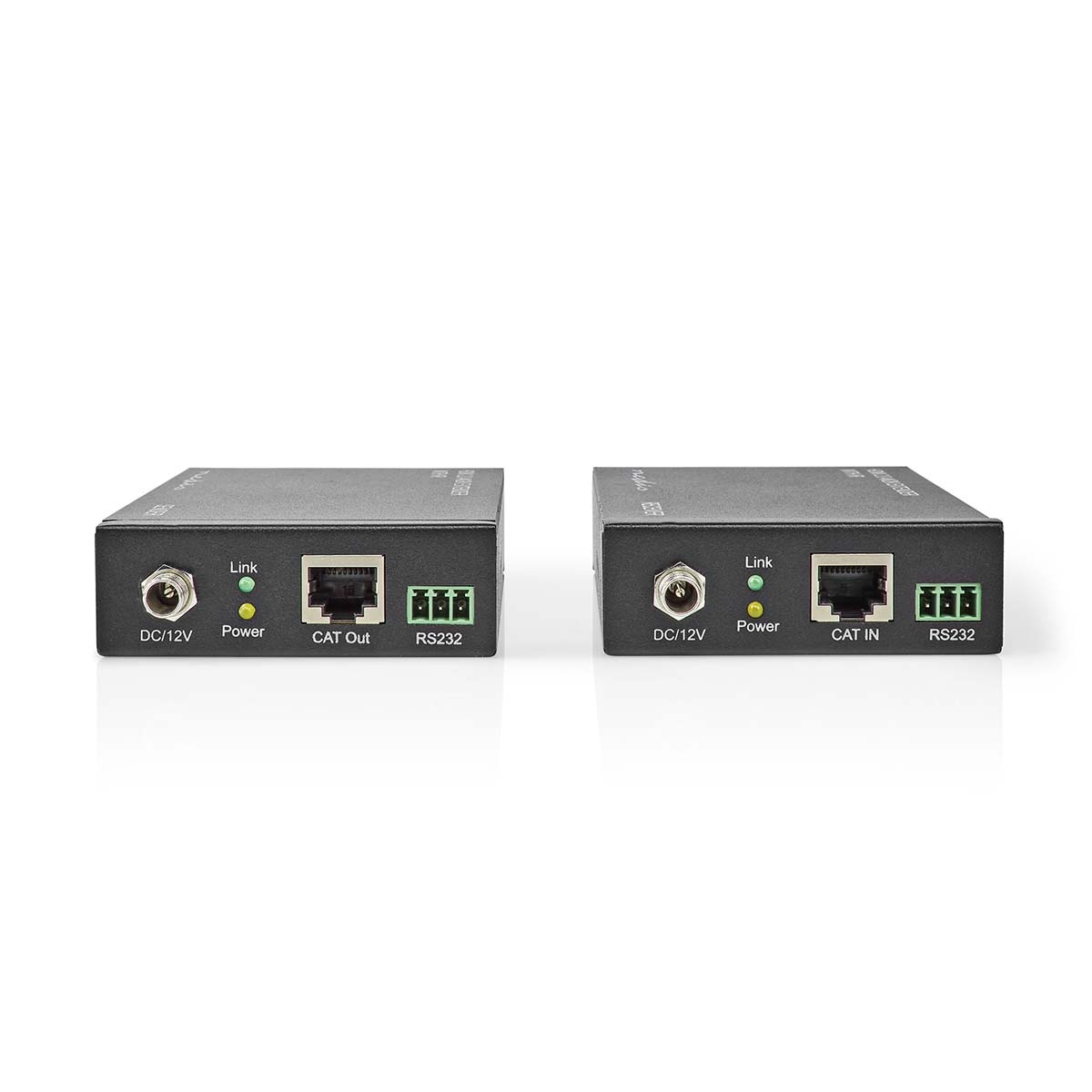

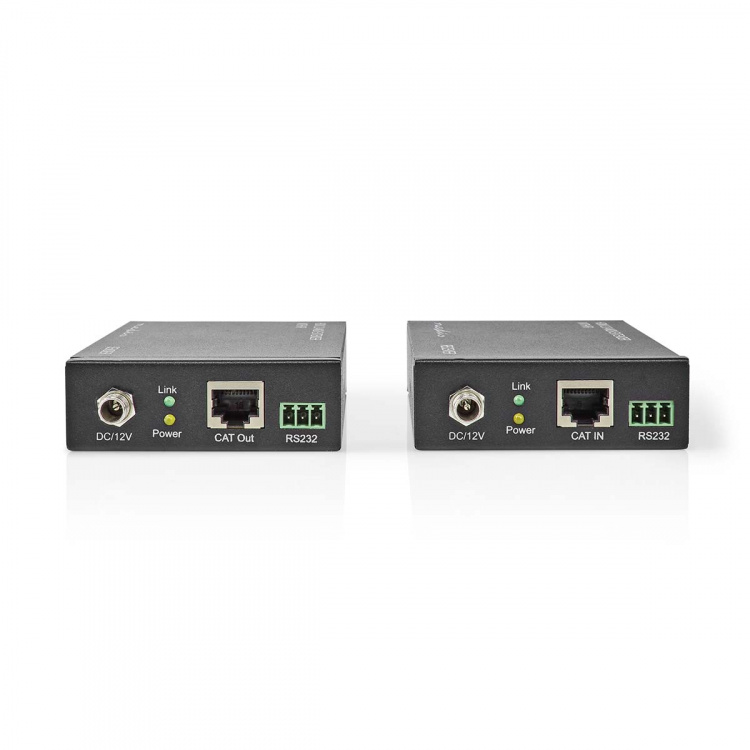

Durable design for indoor AV installations
The high-quality aluminium casing gives the extender a robust and professional appearance. Its compact design makes it easy to integrate into AV cabinets, behind displays or other indoor installation environments.
5412810397822EAN:
