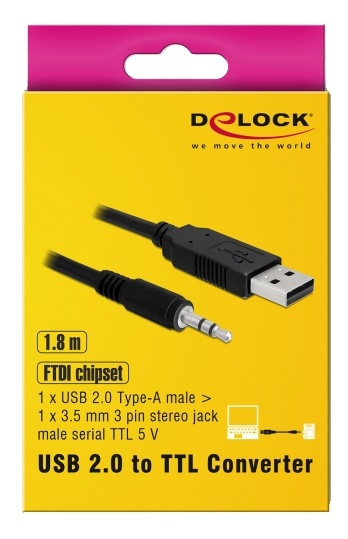

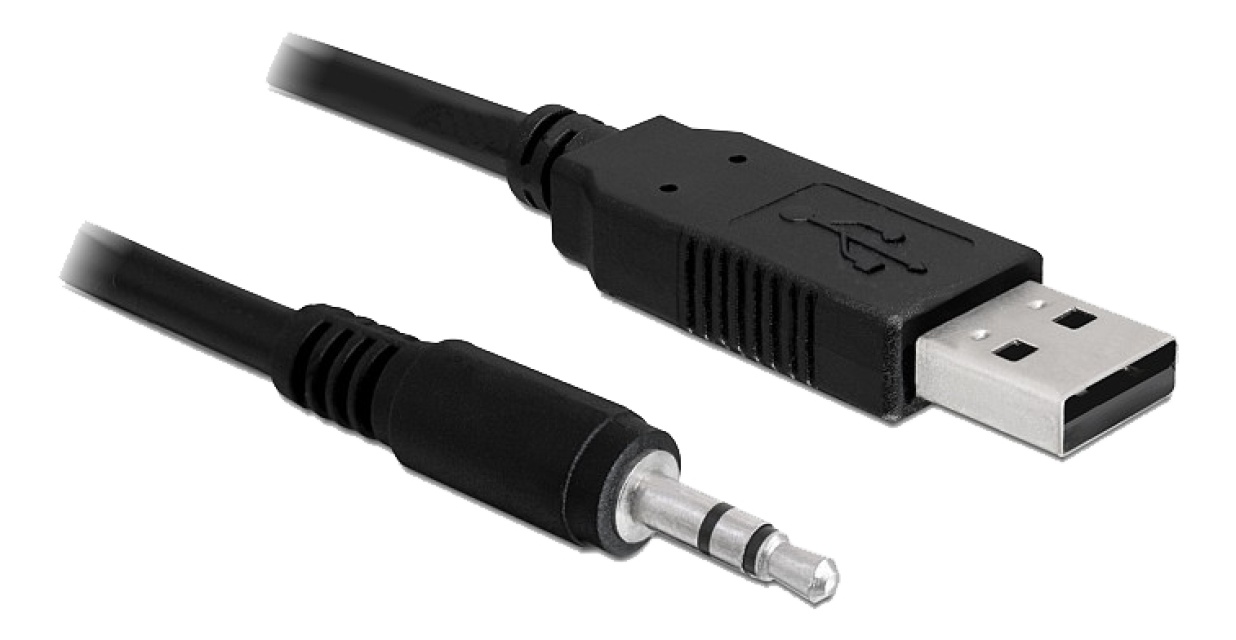

DeLock Converter USB 2.0 Type-A male to Serial TTL 3.5 mm 3 pin stereo jack 1.8 m (5 V)
This USB 2.0 to TTL converter by Delock can be connected directly to GPIO (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.
• Chipset: FTDI FT232RL
• Cable gauge: 26 AWG
• Databits: 7 or 8
• Stop bits: 1 or 2
• Data transfer rate up to 3 Mbps
• Parity: none, space, even, odd, mark
• FIFO: 128 Byte - RX, 256 Byte - TX
• Pin assignment: 1. TXD, 2. RXD, 3. GND
• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C
• Compatible to UHCI / OHCI / EHCI controller
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Connectors: 1 x USB 2.0 Type-A male > 1 x TTL 5 V 3.5 mm stereo jack male
Package contents: Converter USB 2.0 serial TTL, driver CD, user manual
