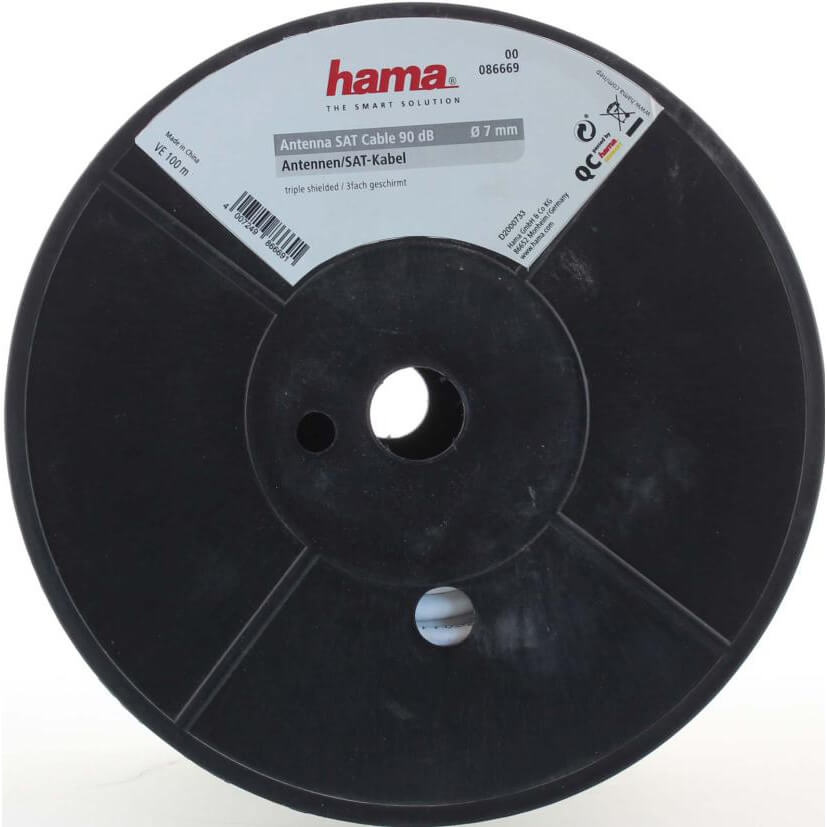

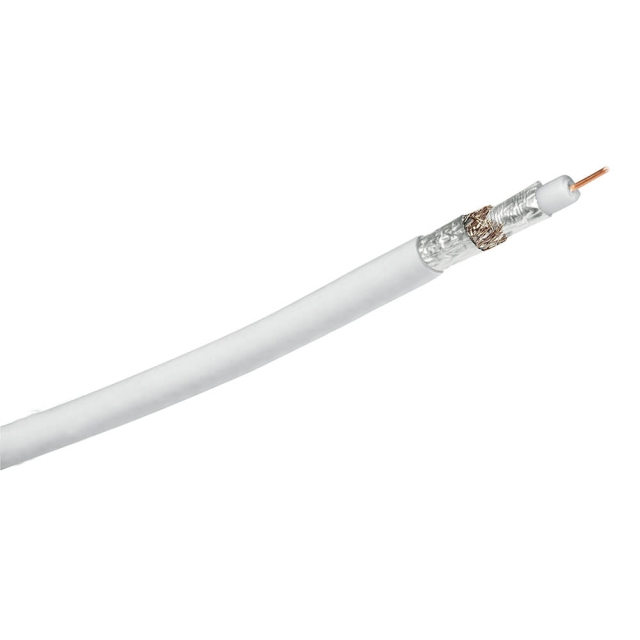

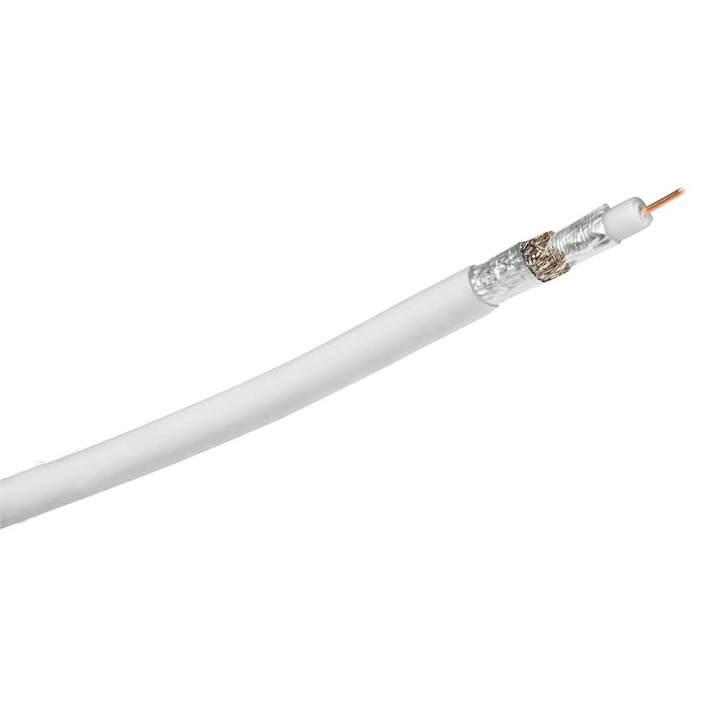

100m white coaxial cable 75 Ohm with outside diameter 7 mm on plastic reel, for connecting the satellite receiver and antenna.
- High-quality BK/SAT cable
- Inner conductor: 1x 1.0 mm
- Braiding: 64 x 0.12 mm
- Insulator diameter: approx. 4.57 mm, foam-PE
- Consecutive meter imprint
Suitable for digital use, triple shielded (2x aluminium foil and 1x braiding).
Attenuation dB/100 m:
100 MHz/6.89 dB
300 MHz/11.64 dB
500 MHz/15.09 dB
862 MHz/20.00 dB
1000 MHz/21.49 dB
1750 MHz/29.13 dB
2150 MHz/32.49 dB
2550 MHz/35.33 dB
Screening rate:
30-100 MHz = >95 dB
100-1000 MHz = >90 dB
1000-2300 MHz = >85 dB
4007249866691EAN:
