Förpackning: Bulk
- Double shielded satellite cable for interference-free transmission

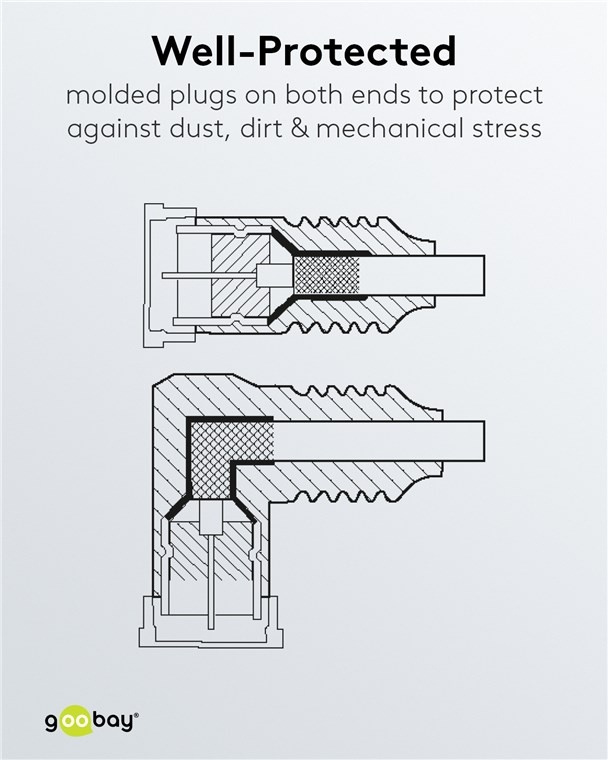

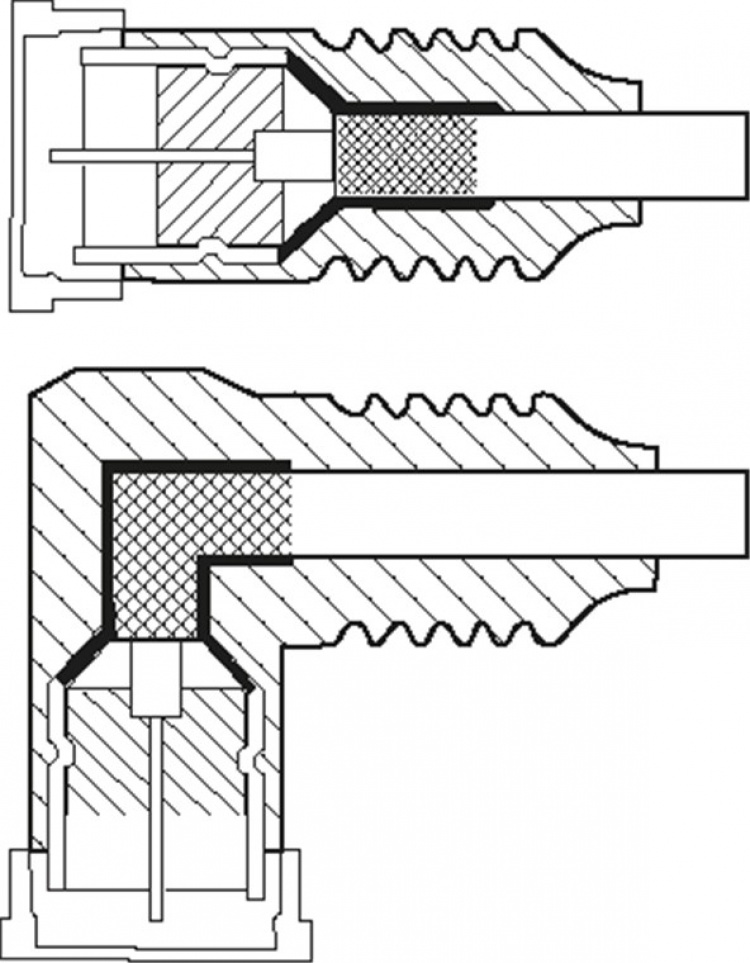

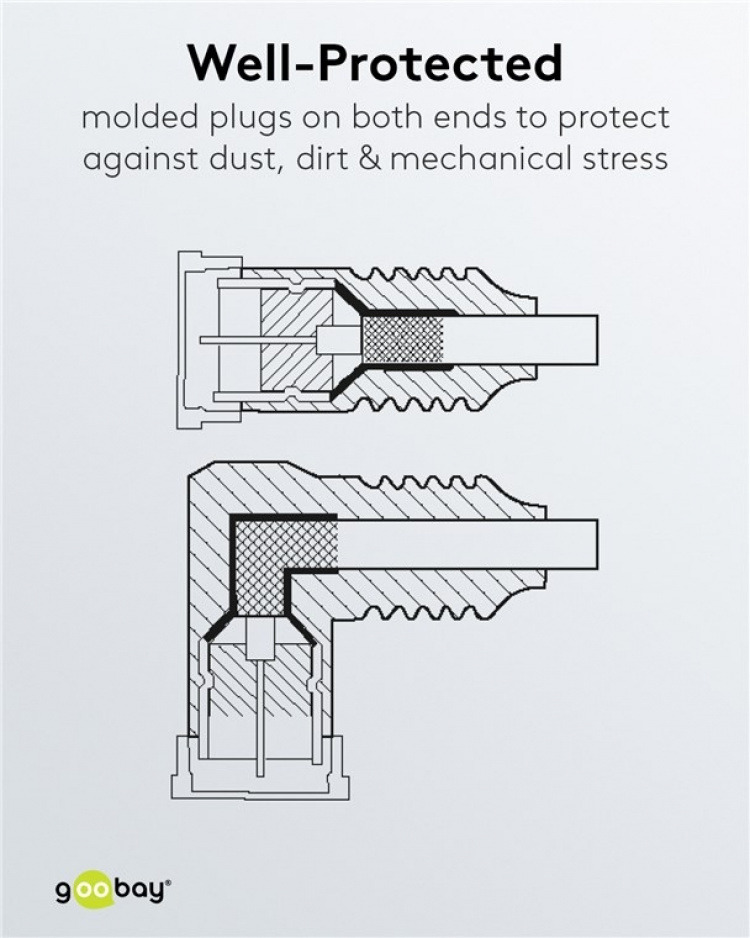

- Molded plug on both sides to protect against dust, dirt and mechanical stresses
- Coaxial cable with nickel-plated, precision-fit contacts

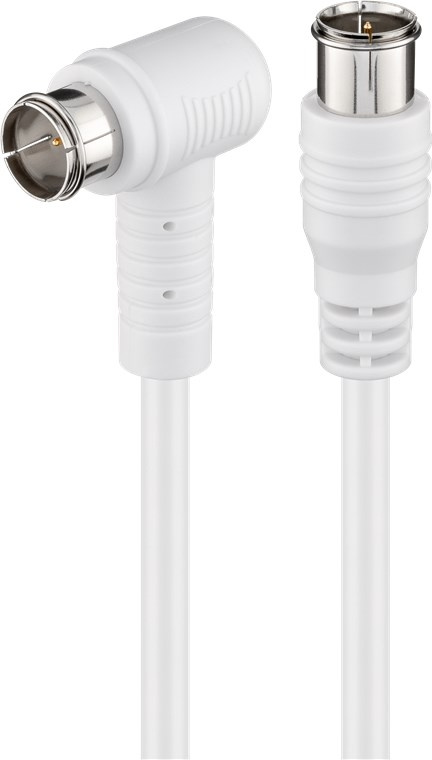

- Angled plugs simplify laying the coax cable even in tight spaces.
- TV aerial cable for transmitting digital SD/HDTV signals, e. g. from SAT systems to TV sets or receivers

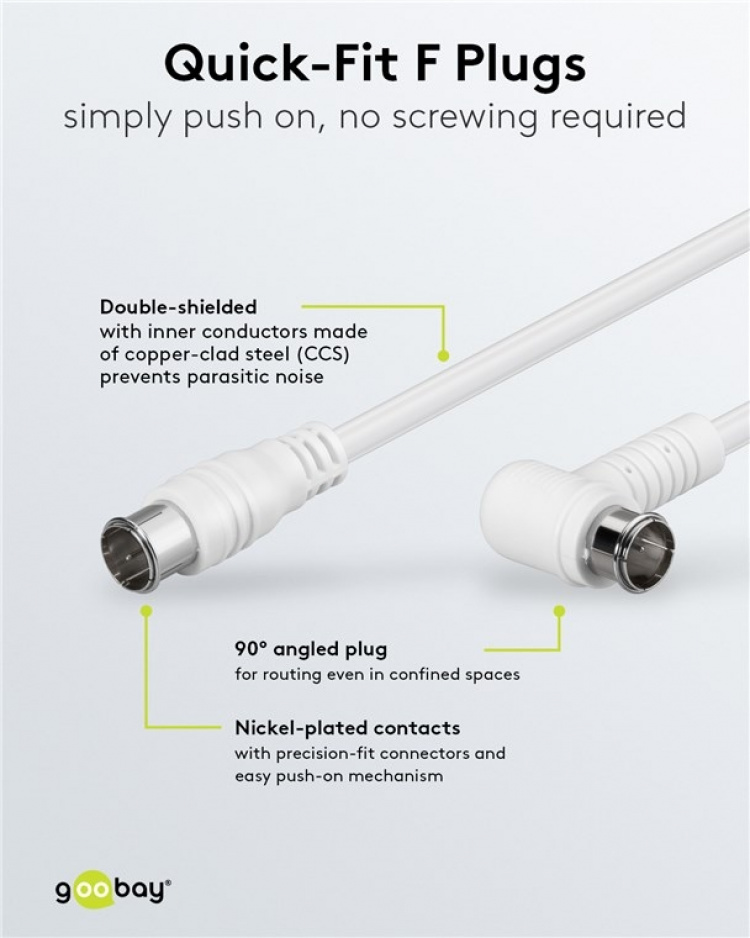

- The quick plug allows for connecting the cable with a push-on mechanism instead of screwing it on.
inner conductor, core diameter: 0.5 mm
Number of shieldings: 2 x
Markings: WEEE, CE
CAS no.: 7439-92-1
SCIP no.: 7ca014ef-0625-46cc-aed8-35f8c4ec6cc6
Impedance: 75 Ω
Shielding efficiency: 80 dB
Cable type: coaxial cable
Inner conductor material: CCS
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 112x
Connection, contact material: nickel-plated
Connection, shielding: yes
Connection, type: F male (Quick)
4040849673504EAN:
