ideal for high-resolution transmissions (HDTV, Full HD, Ultra HD (UHD/4K and higher)) for digital signals such as DVB-T and DVB-T2, radio (UKW/DAB/DAB+) and cable television, DVB-C and DVB-C2 (analogue/digital SD/digital HD). Reliable connection between the wall outlet and the receiving device, such as a TV/receiver (Sky receiver) and radio.

gold-plated, coaxial socket 90° > coaxial plug 90° Cable length 3 m

Förpackning: Retail Polybag

4-fold shielded coax cable for interference-free transmission
Inner conductor made of pure OFC full copper for ideal conduction and transmission properties
Particularly conductive and durable coaxial cable due to full metal plug with gold-plated contacts
Optimised bend protection and flexible cable sheathing protect against exceeding the maximum bending radius of the TV aerial cable.
Angled plugs simplify laying the cable even in tight spaces
Satellite cable for connecting devices with a coaxial connection such as televisions, receivers and radios

Cable sheath diameter (approx.): 8 mm
inner conductor, core diameter: 1.02 mm
Dielectric diameter: 5
Number of shieldings: 4 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 135 dB
Kink protection: both sides
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: foil (aluminium)
Type 4, shielding: braid (aluminium) 128x

4040849704642EAN:

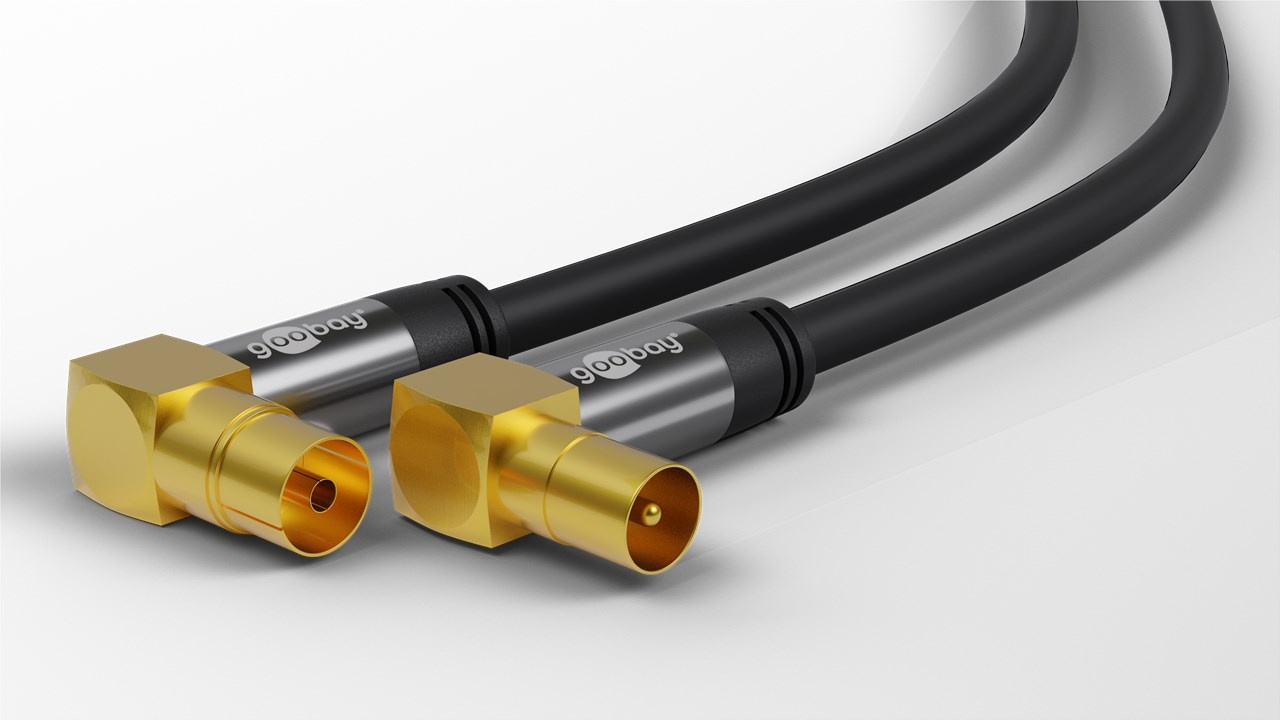

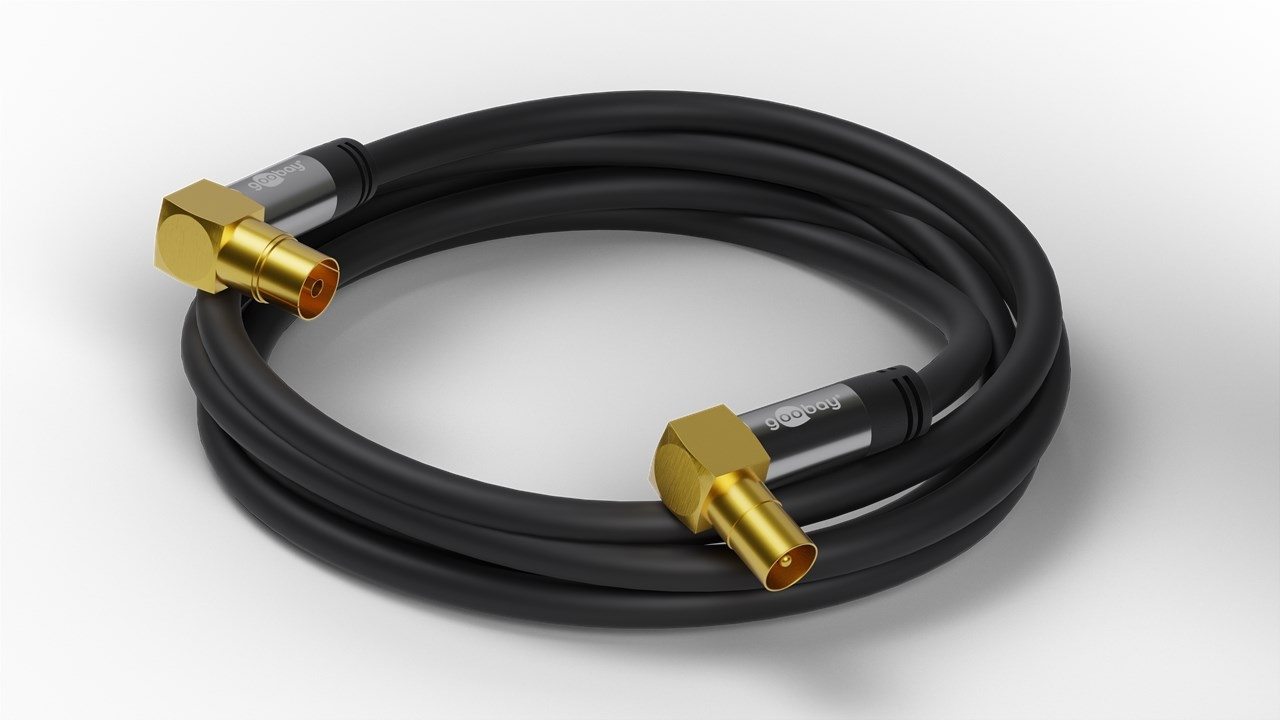

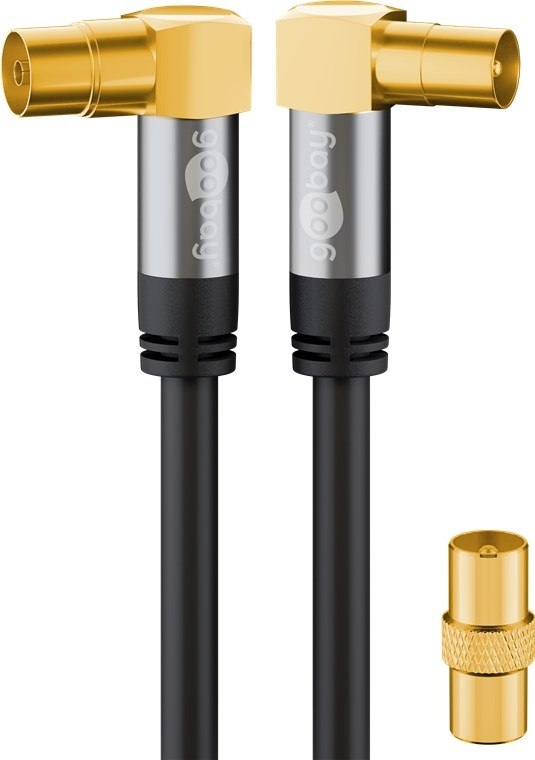

Goobay TV Antenna Cable (135 dB), 4x Shielded gold-plated, coaxial socket 90° > coaxial plug 90°, 3 m
