37 to 70 inch (94-178 cm)
Förpackning: Retail Box

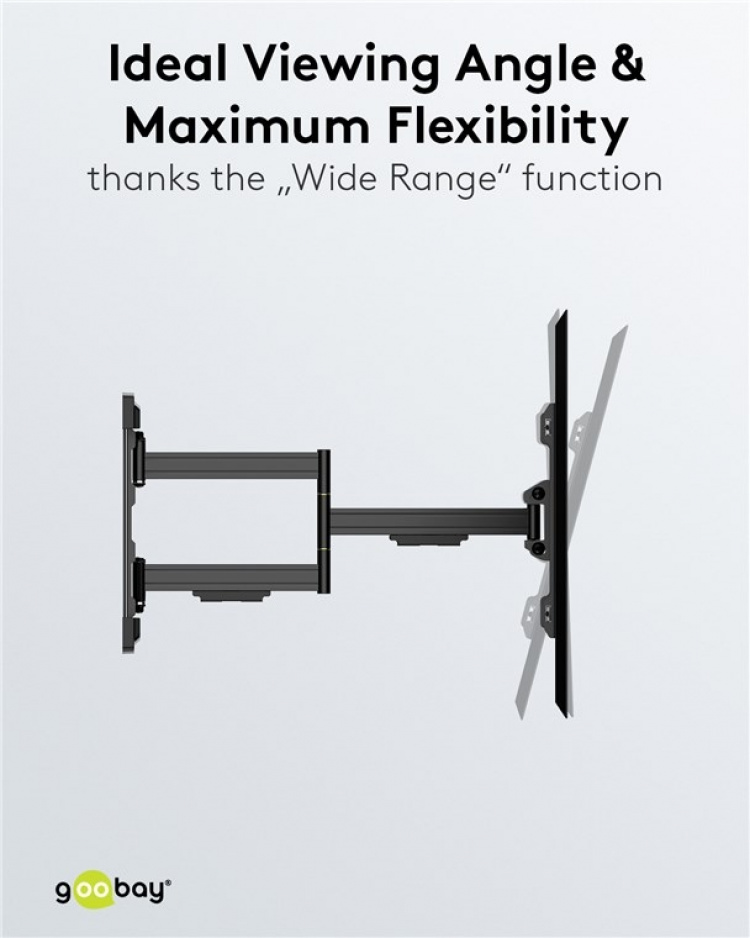

- The "Wide Range" function offers up to 800 mm wall distance in the extended state and allows a tilt angle of up to ±90° due to the extended arm, even with large screen sizes.
- Perfect viewing angle and maximum flexibility through full mobility in tilt (up/down from +3° to -15°) and swivel (left/right by ±90°)

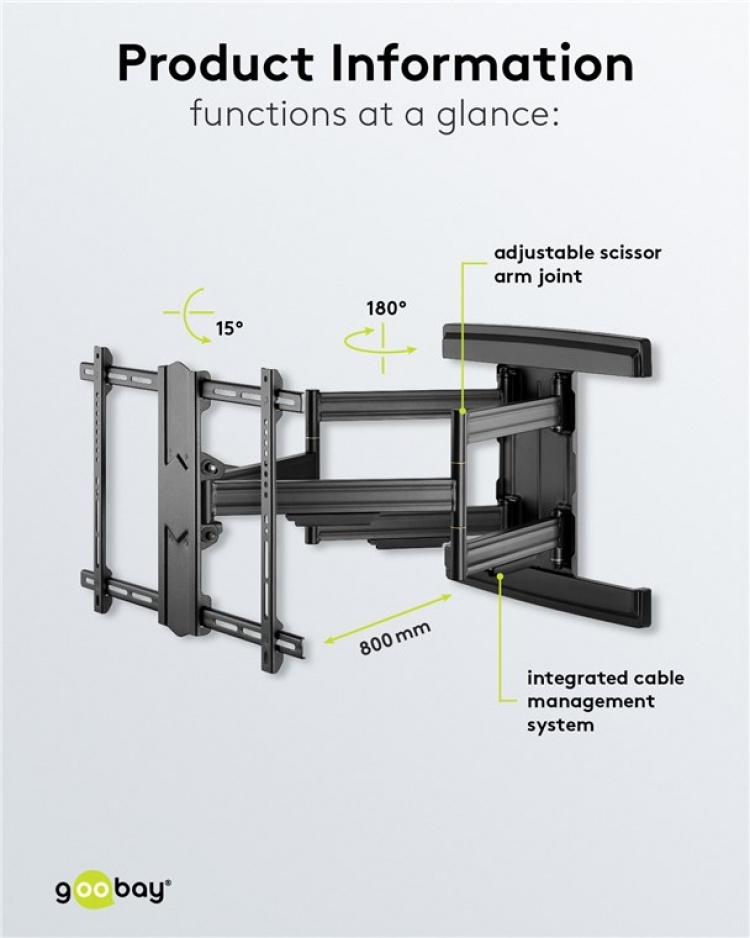

- Adjustable scissor arm joint supports the extension and stabilizes the movement sequence.

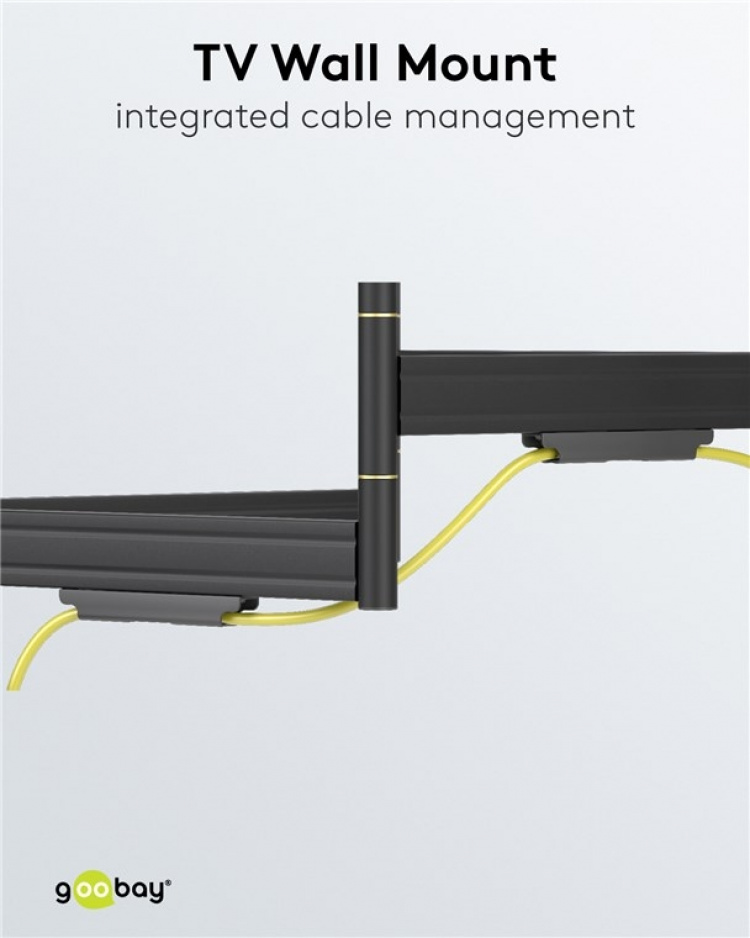

- Wall mount with management system ensures order and protection of the connection cables.
- The wall bracket is suitable for most curved and flat screen TVs of popular brands, e.g. Samsung (QLED and LED), Sony, Philips and LG, as well as for many sizes (e.g. 40 inch, 43 inch, 49 inch, 50 inch, 55 inch, 58 inch, 65 inch).
- Easy mounting and compatible with VESA standards 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 .

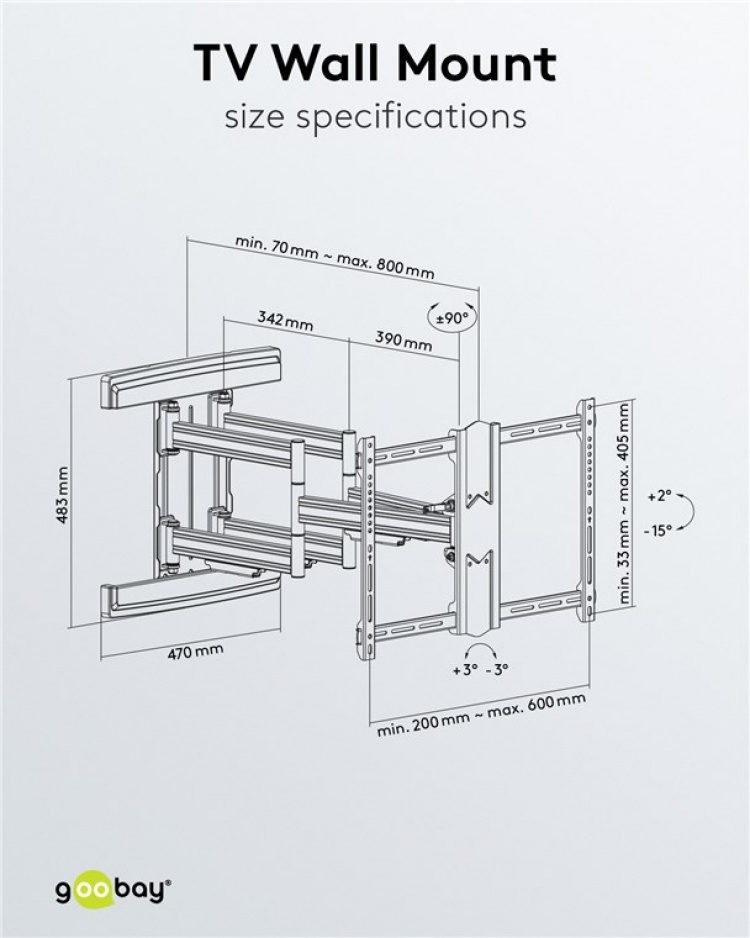

Height: 650 mm
Width: 800 mm
min. Wall distance: 70
max. Wall distance: 800
maximum load: 70 kg
screen size: L (94-178 cm / 37-70")
VESA (FDMI): 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm
max. Mouting Hole (VESA): 600x400
Rotation: +3° ~ -3°
Swivel Range: +90° ~ -90°
inclination and tilting ranges: +2° ~ -15°
Color: black
Consumption Unit: 1 pc. in cardboard box
Material: steel (powder-coated)
4040849499357EAN:
