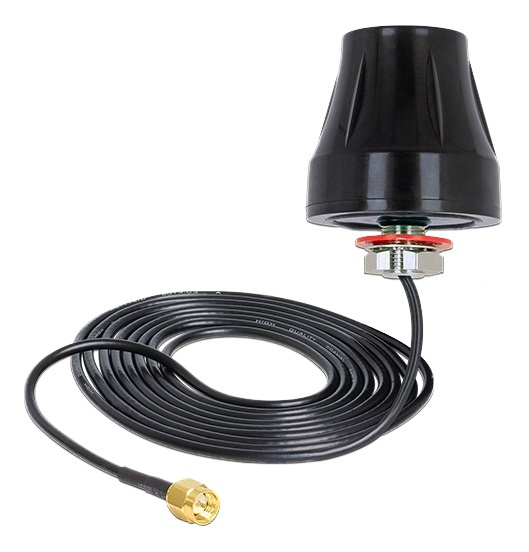

Delock LTE Antenna SMA 2 dBi 3 m RG-174 omnidirectional black outdoor

Article nr: A16555
€48.99

Add to cart
Delivery time:  3-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information

DeLock LTE Antenna SMA 2 dBi 3 m RG-174 omnidirectional black outdoor, black

This LTE antenna can be installed indoors or outdoors and is suitable for all listed bands of LTE. The antenna is fully compatible with GSM, UMTS, WLAN 2.4 GHz, ZigBee, Z-Wave and Bluetooth.

Specification
• LTE Band: 1-10, 12-20, 23, 25-30, 33-41, 44
• Frequenzy range: 694 - 960 MHz, 1710 - 2700 Mhz
• GSM: 710/750/810/850/1800/1900
• P-GSM: 900
• R-GSM: 900
• T-GSM: 810/900
• UMTS: Band I-X/XII-XIV/XIX
• WLAN 2,4 GHz
• ZigBee
• Z-Wave
• Bluetooth
• Gain: 2 dBi
• Polarisation: linear vertical
• Impedanz: 50 Ohm
• VSWR:
    2.0 max. at 694~960 MHz/ 1710~2170 MHz
    3.0 max. at 2400~2700 MHz
• Dimension:
    height: 48 mm
    diameter: 50 mm
• Screw mounting 12 mm central hole
• Cable length: 3 m
• Cable type: RG-174
• Cable attenuation: ca. 1 dB/m at 1 GHz
• Connector: SMA plug
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• IP 67

Package content
• LTE antenna
• Nut, washer

Package
• Retail Boxv

4043619887491EAN:
