Where sound becomes an experience

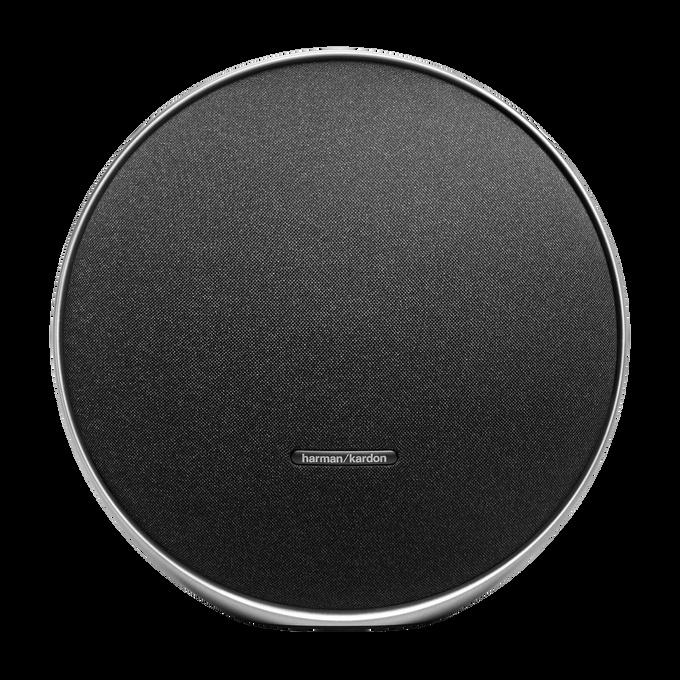

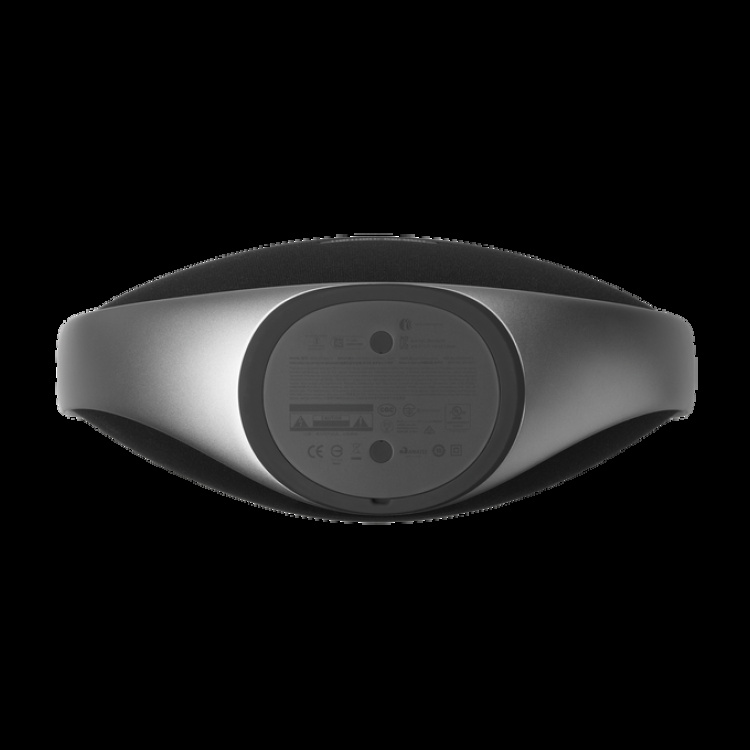

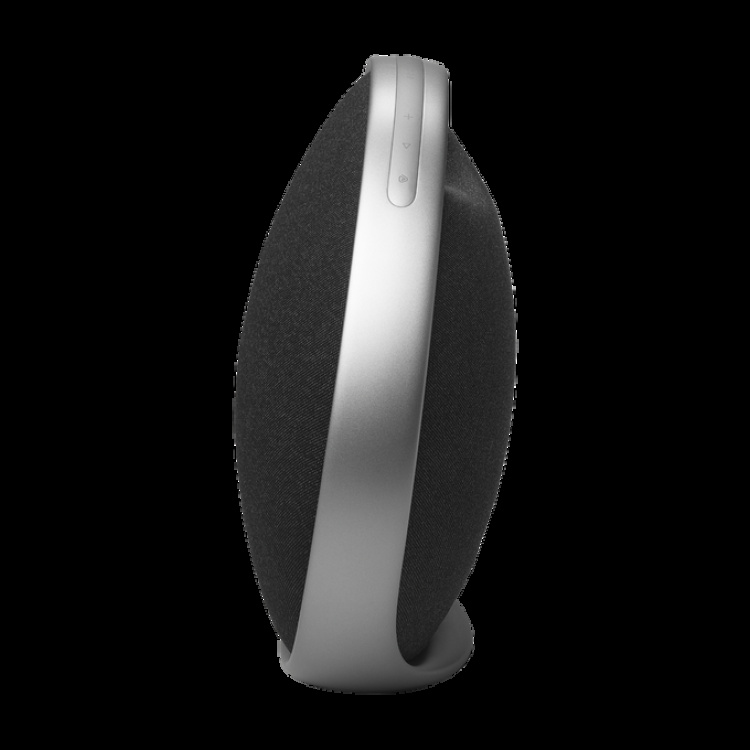

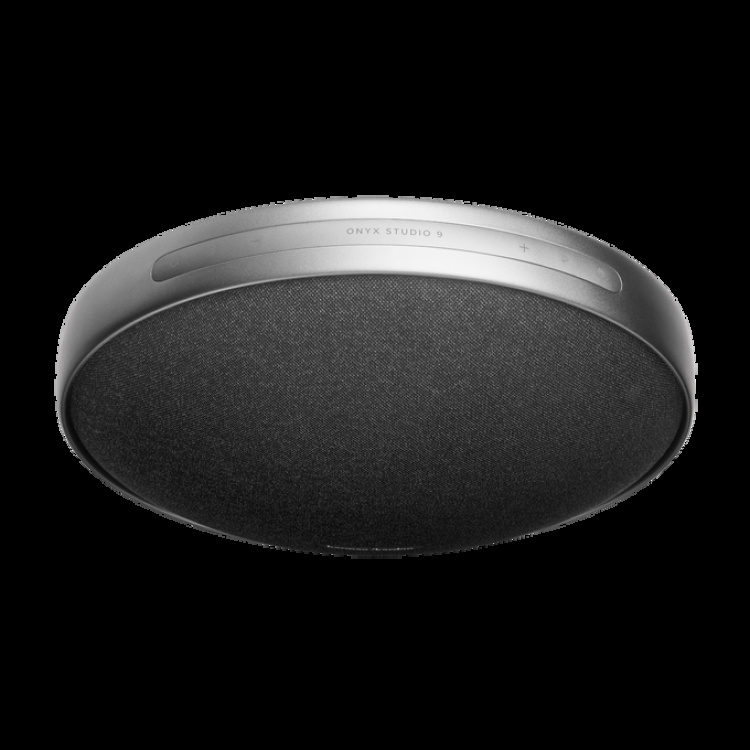

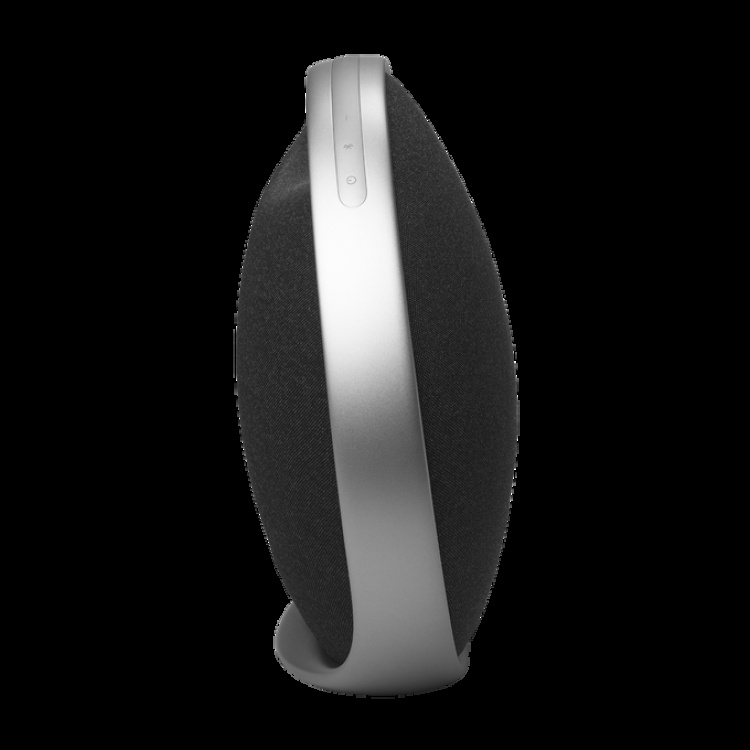

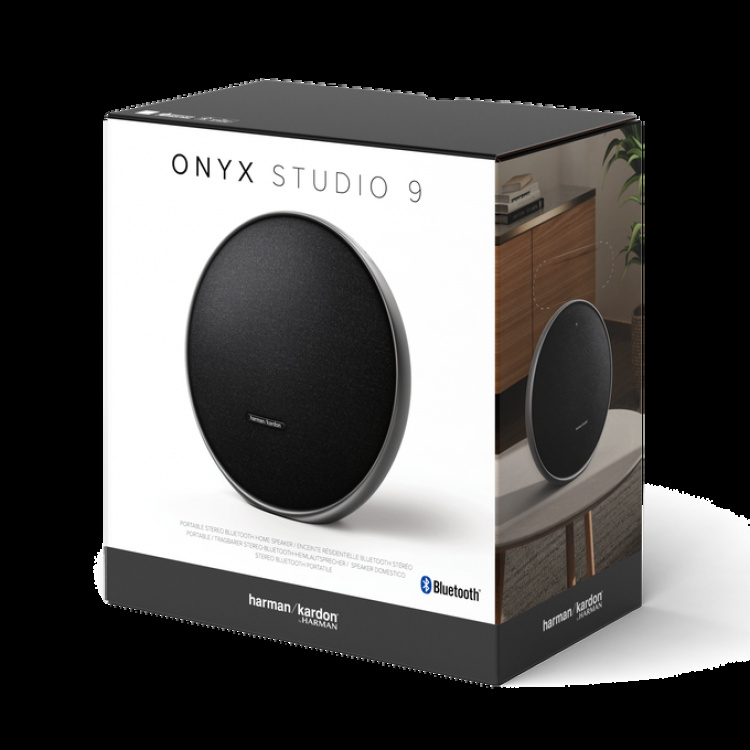

Elevate your everyday listening to an extraordinary audio experience with the Harman Kardon Onyx Studio 9. This elegant wireless portable Bluetooth home speaker delivers unmatched sound quality with crystal-clear vocals, crisp highs, and deep bass that make your favorite music exciting and immersive. Constant Sound Field technology broadens the soundstage and enhances clarity and detail. A sturdy integrated handle (made of 90% recycled aluminum) and built-in battery offering up to eight hours of playtime make it easy to take the Onyx Studio 9 anywhere in your home, and the USB port allows you to charge your phone while enjoying your music. Thanks to automatic tuning, you always get the best possible audio quality no matter where the speaker is placed.
Technical data
General specifications
Rated output
50 W RMS
Power supply
100–240 V AC, 50/60 Hz
Audio specifications
Drivers
1 × 120 mm woofer, 2 × 20 mm tweeters
Frequency response
50 Hz–20 kHz (-6 dB)
Signal-to-noise ratio
>80 dB
Dimensions
Product dimensions (W × H × D)
289.2 × 287.5 × 130 mm

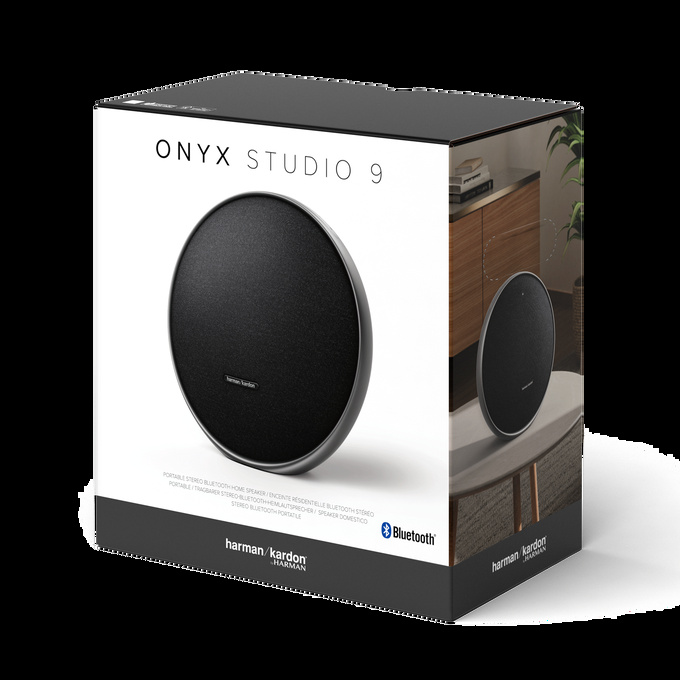

Package dimensions (W × H × D)
312 × 322 × 172 mm
Net weight
3.33 kg
Gross weight
4.2 kg
Controls and connectivity
Bluetooth version
5.3
Bluetooth profiles
A2DP 1.4, AVRCP 1.6
Bluetooth transmitter frequency range
2 400–2 483.5 MHz
Bluetooth transmitter power
≤12 dBm (EIRP)
Bluetooth modulation
GFSK, π/4 DQPSK, 8DPSK

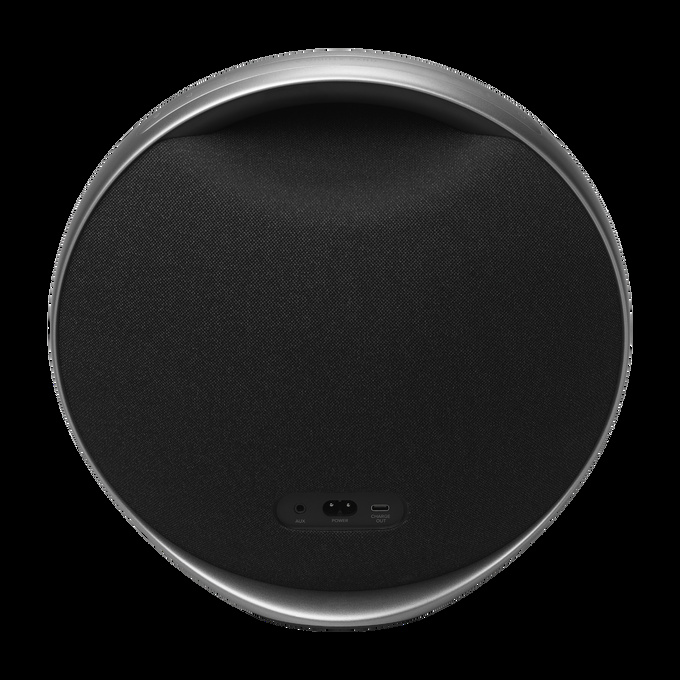

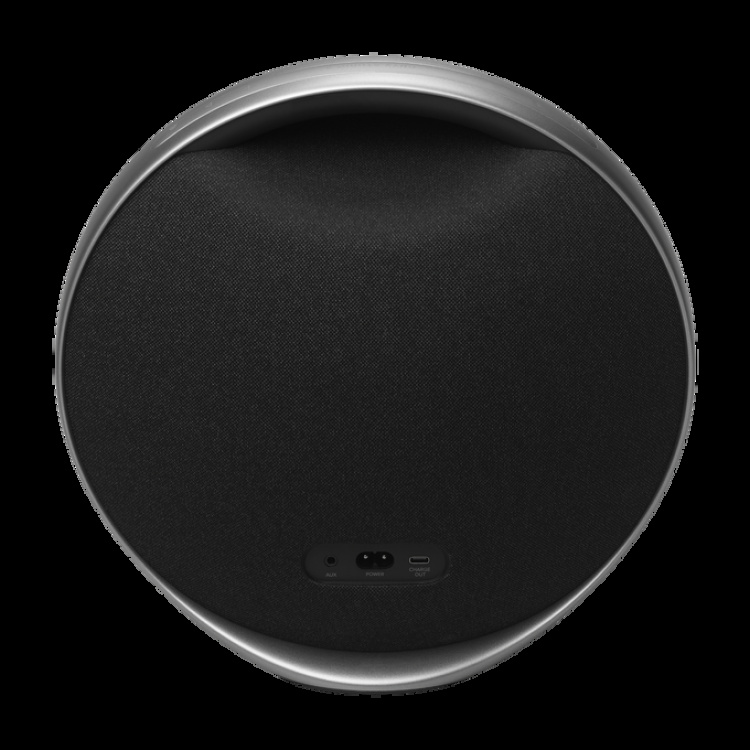

USB port
Type C
USB power output
5 V/2.1 A (max)
Supported file formats
mp3
Battery
Battery type
Lithium-ion polymer 17.14 Wh (3.63 V / 4 722 mAh)
Charging time
4 hours
Playtime
up to 8 hours (depending on volume and content)
Cable type
Power cable (varies by region)
Cable length
2.0 m
USB charging output
5 V / 2.1 A (max)
1200130014116EAN:
