BY-WM4 Pro K5 Lavalier Wireless USB-C
- Ideal for Youtubes, vloggings, facebooks, podcasts, journalisms and more
- Digital 2.4 GHz frequency band
- Dual-Channel wireless receiver
- Ultracompact and miniature-size for receiver
- Super-clear recording sound
- Up to 60m operation range (without obstacle)
- Monitoring sound by 3.5mm headphone output
- Master volume control
- Selectable stereo and mono mode
- Omnidirectional lavalier microphone
- Hard case included
- Compatible with smartphones,tablets, laptops
Designed for videographers on a limited budgetand video hobbyists, BY-WM4 PRO is a new generation 2.4GHz wireless microphone system, dual-Channel for capturing audio with dual subjects to your smartphones, tablets, DSLR cameras, consumer camcorders, PCs etc.
The BY-WM4 PRO system is suitable for a wide range of wireless applications such as interviews, mobile journalisms, reporting, vloggings, podcasts and more.
The BY-WM4 PRO system is a expandable evolution system that allows the user to mix and match different kinds of receivers while using with the TX4 Pro transmitter.

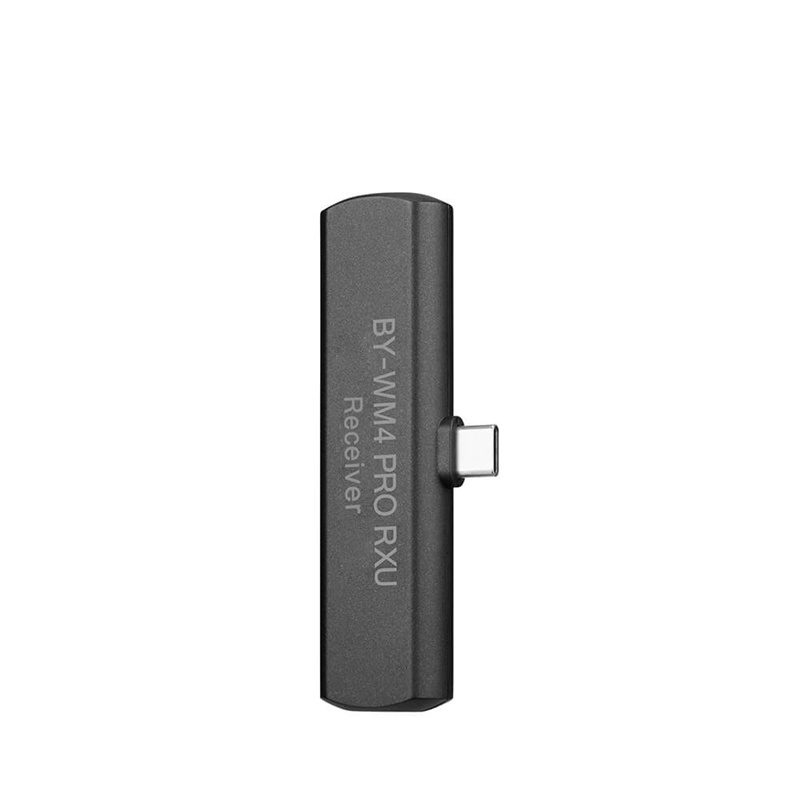

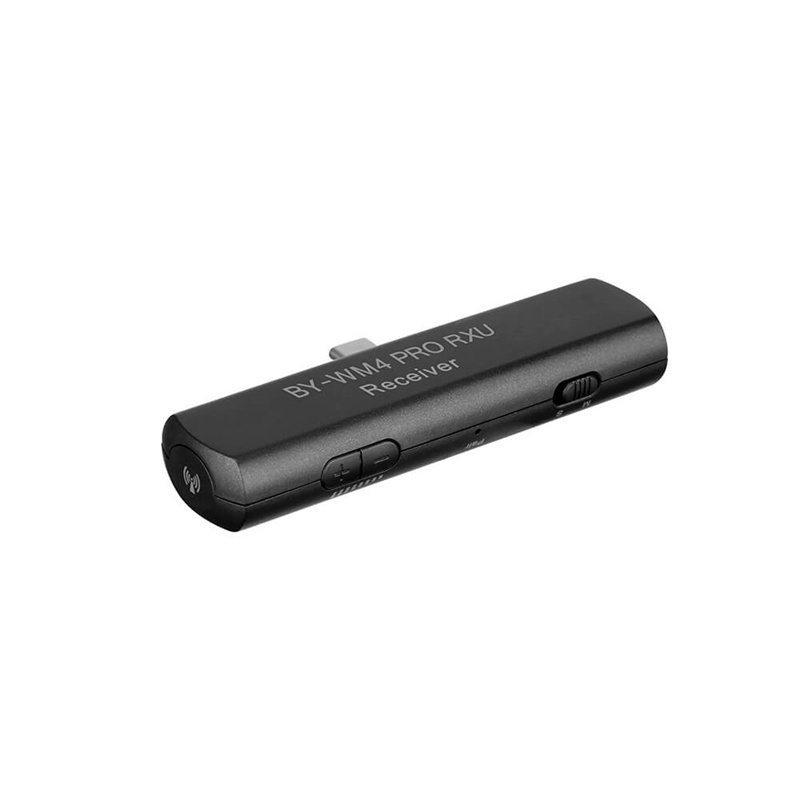

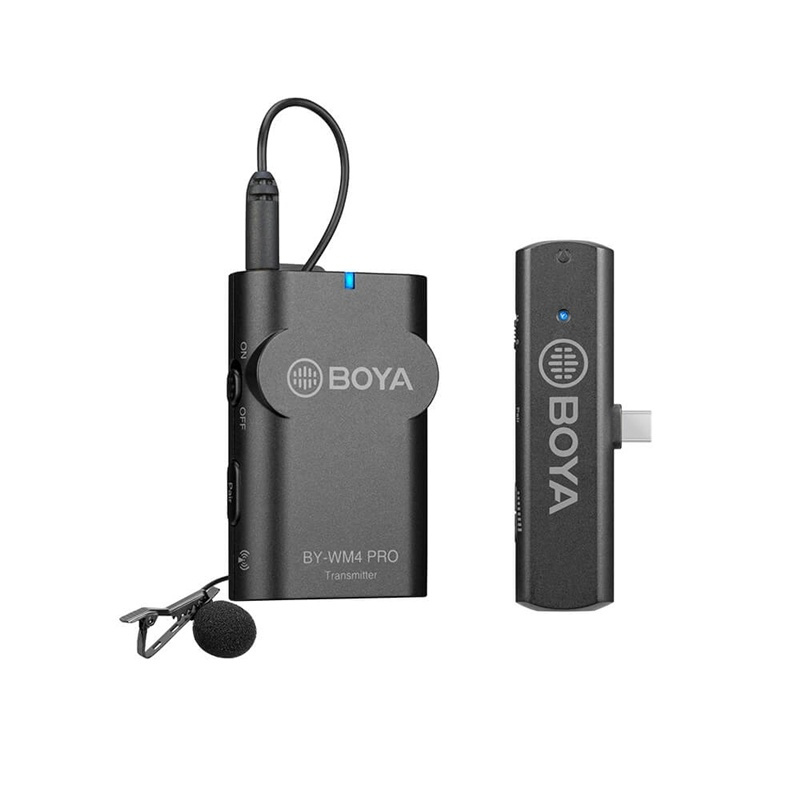

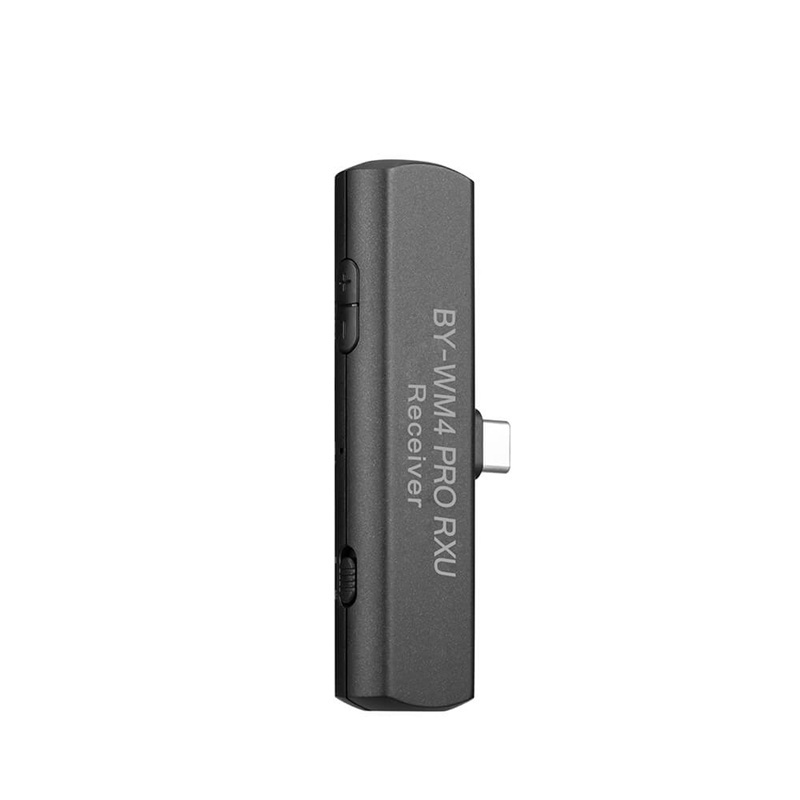

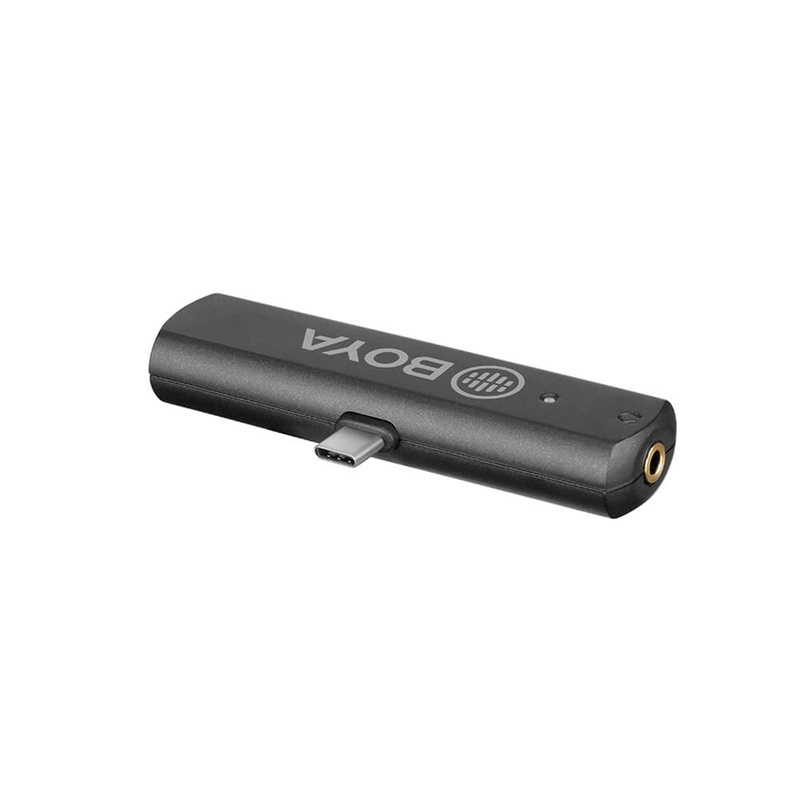

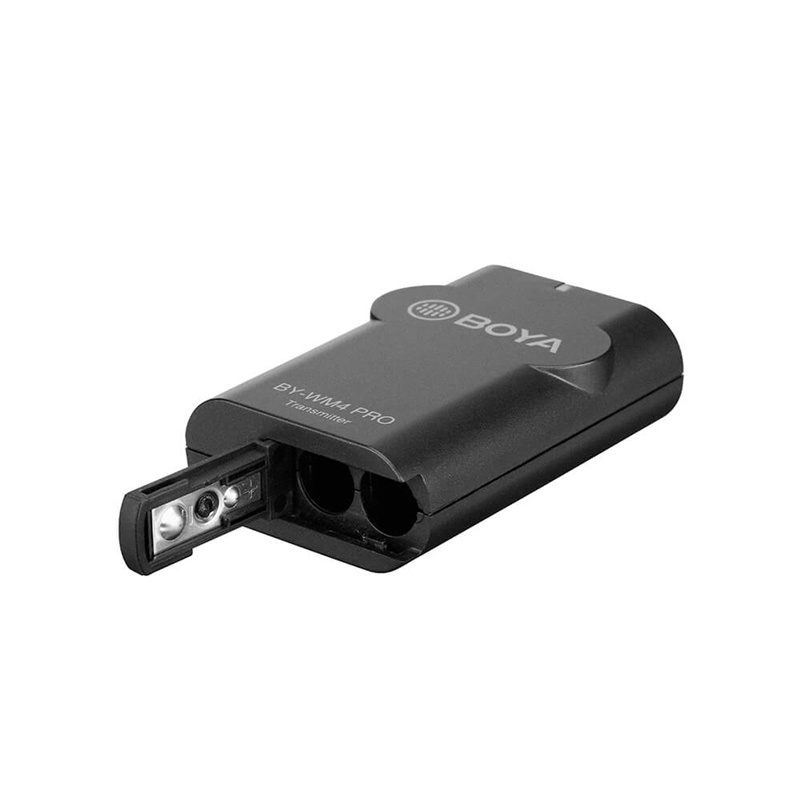

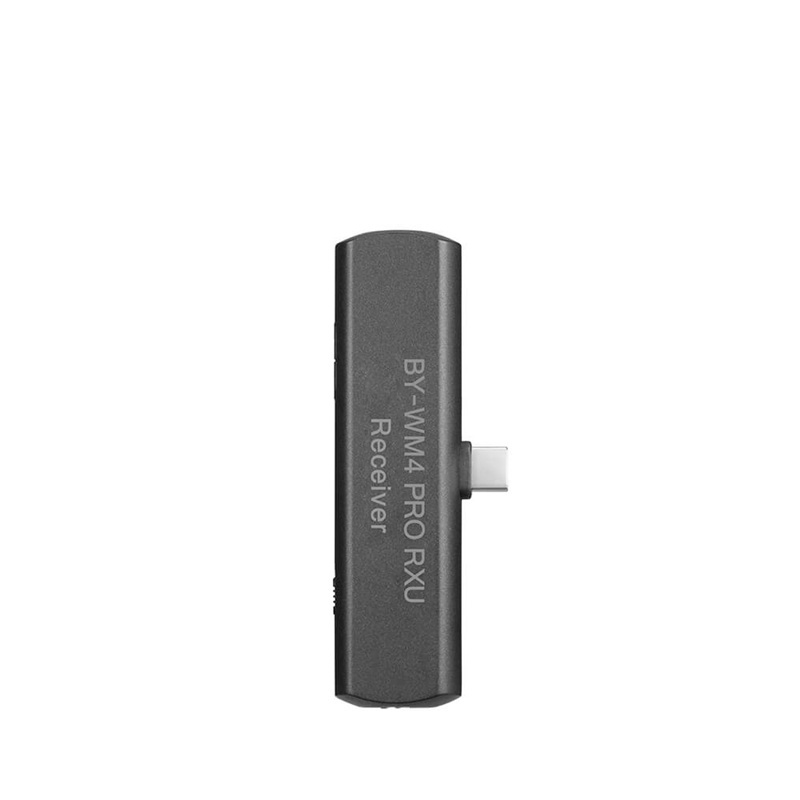

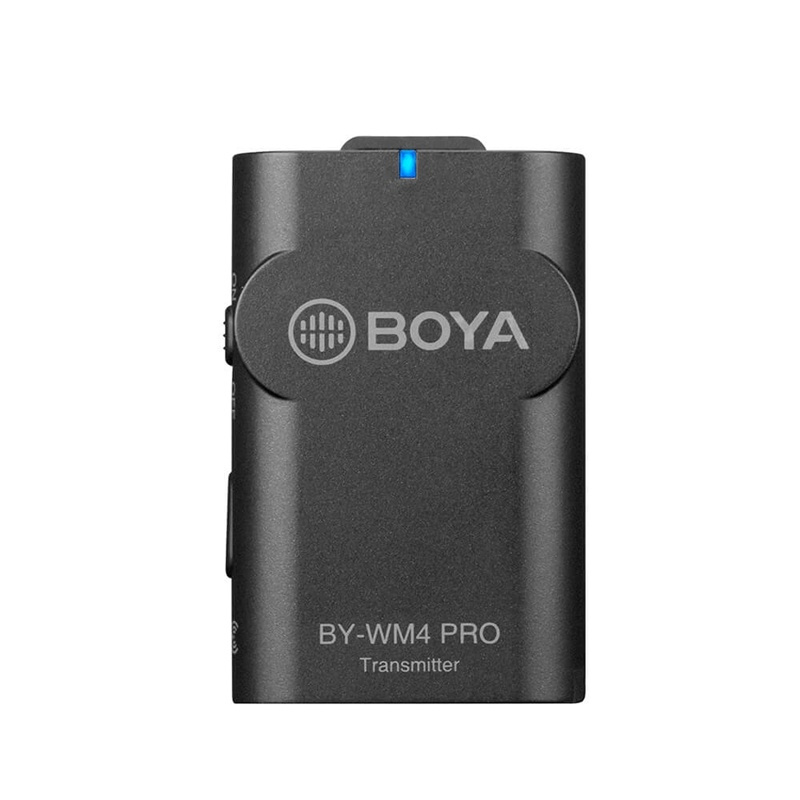

BY-WM4 Pro-K5 are specially designed for Andriod and other Type-C devices.It consists of one body-pack transmitter(TX4 Pro), wireless receiver with a USB Type-C connector (BY-WM4 PRO RXU).
Specifications
RF Modulation: GFSK (Gauss frequency Shift Keying)
Frequency band: 2.4GHz (2405-2478MHz)
Frequency response: 35Hz-14KHz±3dB
Signal/Noise: 84dB or more
Distortion: 0.05% or less (32Ω,1 KHz,65mW output)
RF output level: 3mW
Earphone output level: 32Ω,65mW
Reception sensitivity: -90dB +/- 3dB / 0dB=1V/Pa, 1kHz
Audio input connector: 3.5mm mini jack
Operation range: 60m without obstacle)
Power requirements: BY-WM4 PRO RXU: Supplied by USB Type-C device
Plug: BY-WM4 PRO RXU: USB Type-C Connector
Consumption power:
Transmitter: 3V/70mA
Receiver：3V/70mA
Dimensions:
Receiver: BY-WM4 PRO RXU: 82×30.7×12mm
Transmitter: 45x70x35mm
Weight:
Receiver:BY-WM4 PRO RXD: 12g
Transmitter: 47g
