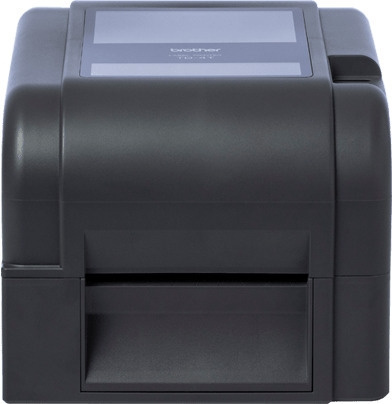

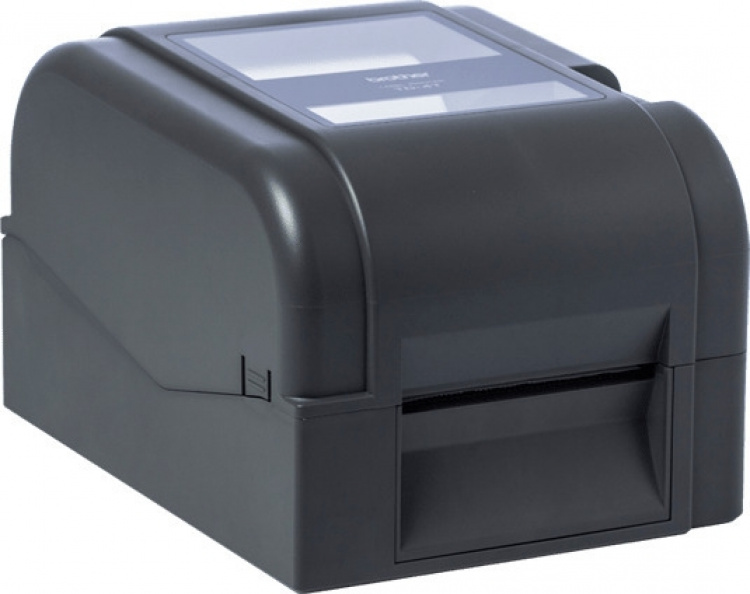

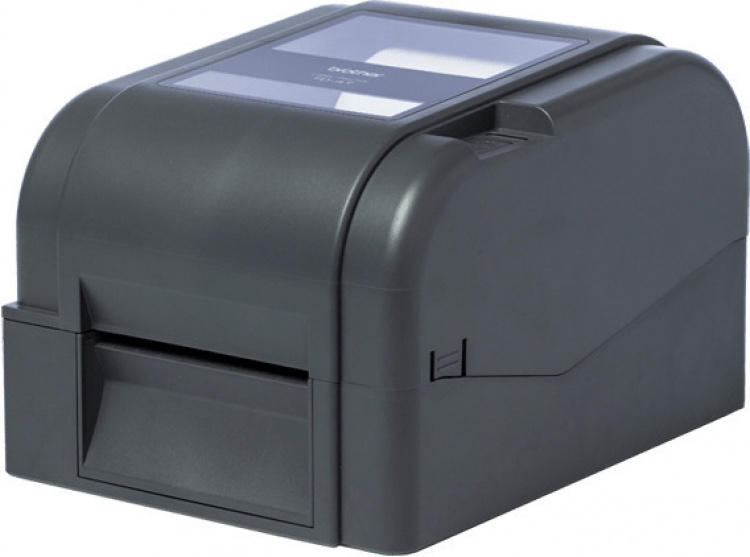

The versatile and accurate TD-4520TN label printer uses thermal transfer technology to print on ribbon. In addition, it also works with direct thermal technology (without ribbon). With this desktop printer, you can print durable barcode labels on ribbons that will last for a very long time. The printer is easy to integrate into existing systems thanks to built-in print commands. This printer prints labels up to 112 mm wide at 300 dpi. Brother The TD-4520TN uses high-capacity ribbons that do not need to be changed frequently, maximising printer uptime. Standard USB, wired network and serial interface for reliable data transfer. Print speeds up to 127 mm per second and support for popular printer languages as standard.
Technical specifications:
- Flash RAM memory: 128 MB
- LED: Power, Status, Error
- RAM: 64 MB
- Technology: Heat Transfer/Direct Heat
- Serial interface: RS-232C (DB9 female)
- USB interface: Type B: Version 2.0 High Speed | Type A: USB interface (mass storage device)
- Fixed network interface: 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP
- Dimensions (LxWxD): 204 x 280 x 177.5 mm
- Weight: 2.5 kg
- Operating systems and software: Linux,Mac OS X 10.10.x or later, Mac OS X 10.11.x or later, Mac OS X 10.12.x or later, Mac OS X 10.13.x or later, Mac OS X 10.14.x or later, Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 7, Windows 8, Windows 8.1, Windows 10. (For full list of compatible operating systems visit support Brother com)
- CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
- Label detection sensor
- Maximum label width: 112 mm
- Maximum print length: 11430 mm
- Maximum print width: 105.7 mm
- Accuracy (dpi): 300 x 300
- Standard print speed: 127 mm / s
- Commands supported: FBPL-EZD (EPL, ZPL, ZPL2, DPL)
- One-dimensional barcode symbol lists: Linear: Code128UCC, Code128 interpretations A、B、C, EAN128, Interleaved 2/5, Interleaved 2/5 and check, Code39, Code39 and check, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) suffix, Codabar, Postnet, MSI, MSI and revision, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
- Bitmap fonts: 8 alphanumeric bitmap fonts for FBPL
- Outline/vector fonts: Monotype Image® TrueType Font Engine with one scalable CG TriumvirateBold Condensed font
- Three-year warranty
- Compatible stickers: BUS1J074102121, BCS1J150102121, BUS1J150102121, BCS1J07410212
- Compatible transfer ribbons: BWS1D300110, BSS1D300110, BRS1D300110
The product package includes the TD-4520TN label printer, software, accessories, power supply, power cord for the power supply, USB cable, quick installation guide and label design software Bartender Ultra Lite Edition (free download) - Windows only.
- Fixed network interface as standard
- Professional 300 dpi printing
- Print speed of 127 mm/second
- Large ribbon capacity
- Label design software included
