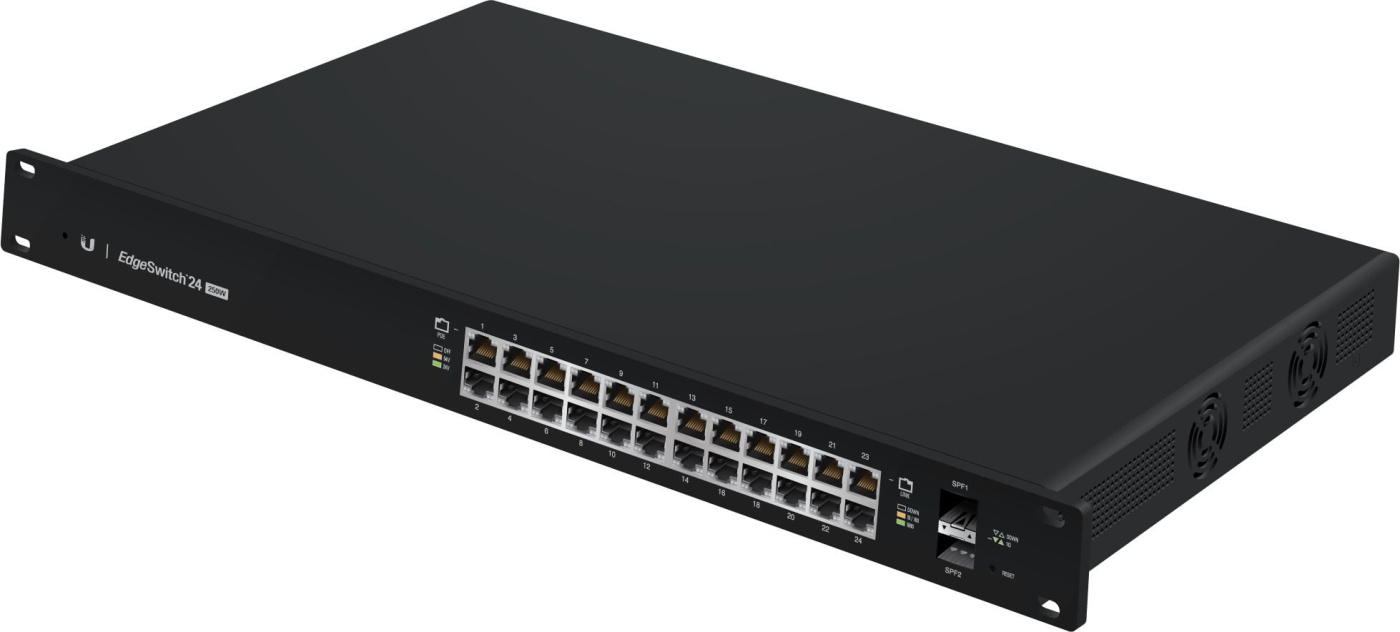

Ubiquiti EdgeSwitch 24 250 W - 24-port switch

Ubiquiti EdgeSwitch is a powerful, fully manageable PoE+ switch. Two Gigabit SFP ports further expand the possibilities. A very clear graphical user interface simplifies management and monitoring. For advanced users, a CLI interface is also available via SSH or Telnet.

Features:

• 24 x 10/100/1000 RJ-45 ports
• 2 x SFP
• 1 x 10/100 RJ-45 management port
• Switching capacity: 26 Gbps
• Switching capacity: 52 Gbps
• Supports PoE+ IEEE 802.3at/af (pins: 1, 2+; 3, 6-) and passive PoE (pins: 4, 5+; 7, 8-)
• PoE+ maximum power per port: 34.2 W
• PoE+ 802.3at voltage: 50–57 V
• Passive PoE maximum power per port: 17 W
• Passive PoE voltage: 20–27 V
• Electrostatic discharge withstand: 24 kV
• Certifications: CE, FCC, IC
• Dimensions: 485 x 43.7 x 285.4 mm
• Weight: 4.7 kg without rack brackets
• Power supply: 100–240 V AC
• Power consumption: 250 W incl. PoE and 30 W without PoE
• Operating temperature: -5 to 40°C
• Relative humidity: 90%
• Package contents: EdgeSwitch switch, rack brackets, rack mounting screws, power cable, quick start guide, wall mounting screws

• 24 Gigabit ports
• Two Gigabit SFP ports
• 250 W PoE capacity
• Switching capacity: 26 Gbps
• 52 Gbps switching capacity
