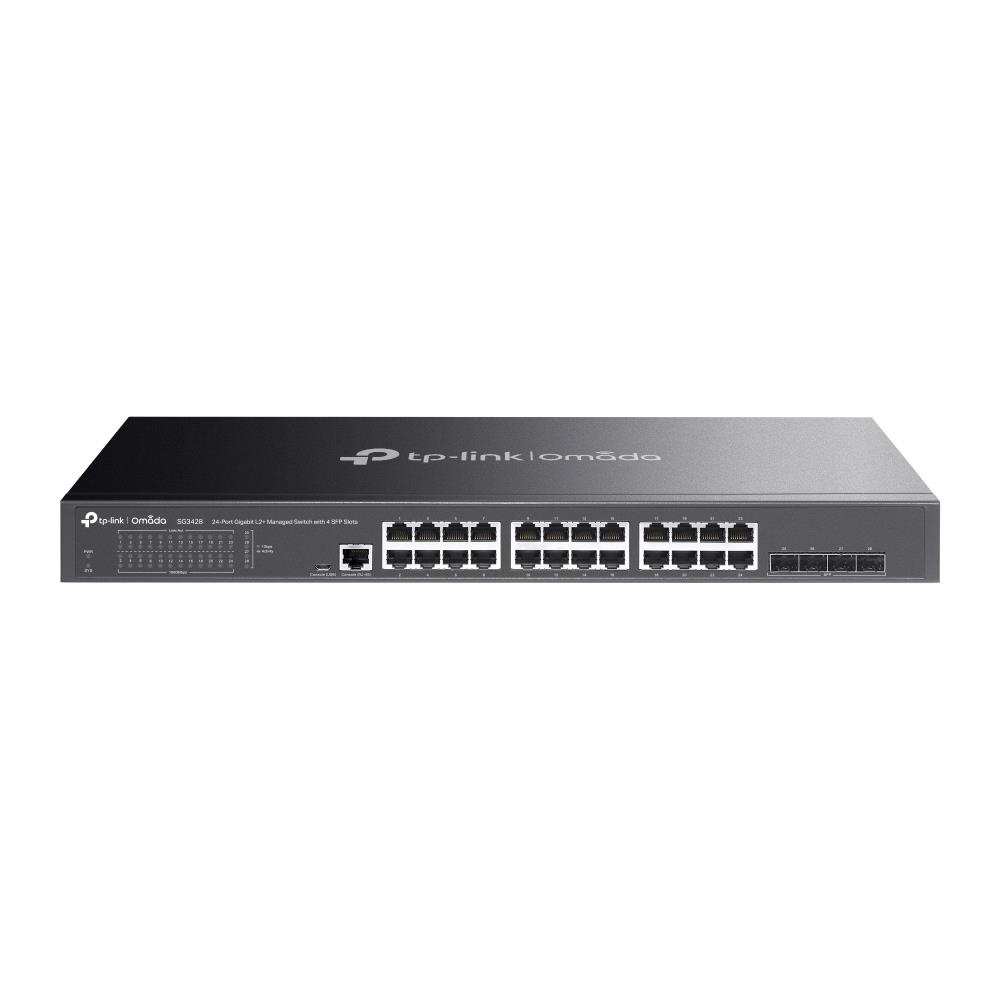

Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots SG3428
- 24× Gigabit RJ45 ports and 4× Gigabit SFP slots
- 56 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rack-mountable design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*ISP features can only be configured in standalone mode.
- Warranty Type
- Limited Lifetime Warranty
General
- Switch Class
- L2+
- Form factor
- 19" Rack, 1U
- Switching capacity
- 56 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 24 x 10/100/1000 Mbps RJ45 Ports
- SFP Ports
- 4 x
Features
- PoE
- No
- Manageable
- Cloud Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Manageable
- Standalone, Webmanaged
- IGMP Support
- Yes
Additional Information
- Power consumption
- 20.6 W (220 V/50 Hz)
- Included Accessories
- Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
Packaging info
- Packaging size
- 528 x 250 x 80 mm
- Packaging weight
- 2.77 kg
6935364010713EAN:
