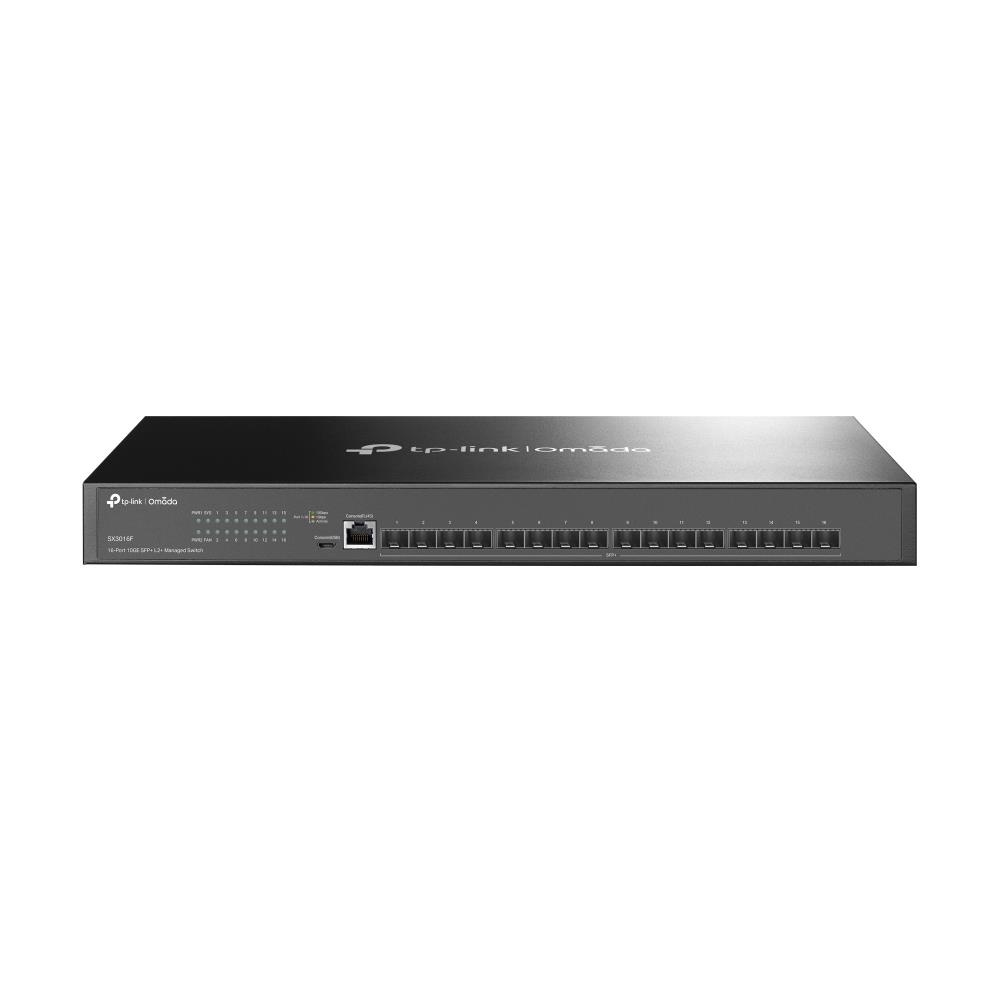

Omada 16-Port 10GE SFP+ L2+ Managed Switch SX3016F
- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity
- Two power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*ISP features can only be configured in standalone mode.
Attention: It is recommended to use four SM5310-T (TL-SM5310-T) modules for the SX3016F, one for each group of SFP+ ports.
- Warranty Type
- Limited Lifetime Warranty
General
- Switch Class
- L2+
- Form factor
- 19" Rack, 1U
- Switching capacity
- 320 Gbit/s
- Primary Port Speed
- 10 Gbit/s
- Primary Ports
- 16 x
- SFP Ports
- 16 x 10GE SFP+ Slots
Features
- PoE
- No
- Manageable
- Cloud Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Manageable
- Standalone, Webmanaged
Additional Information
- Power consumption
- 32.74 W
- Included Accessories
- 2× Power Cords, Quick Installation Guide, Rackmount Kit, Rubber Feet
Packaging info
- Packaging size
- 538 x 340 x 106 mm
- Packaging weight
- 4.01 kg
6935364006433EAN:
