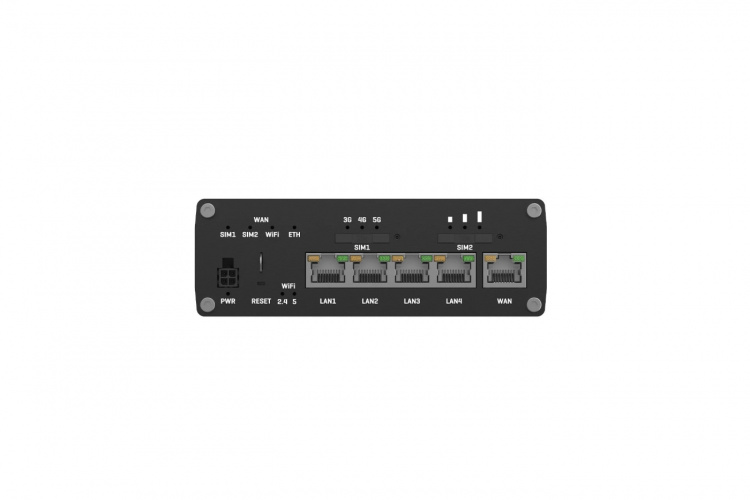

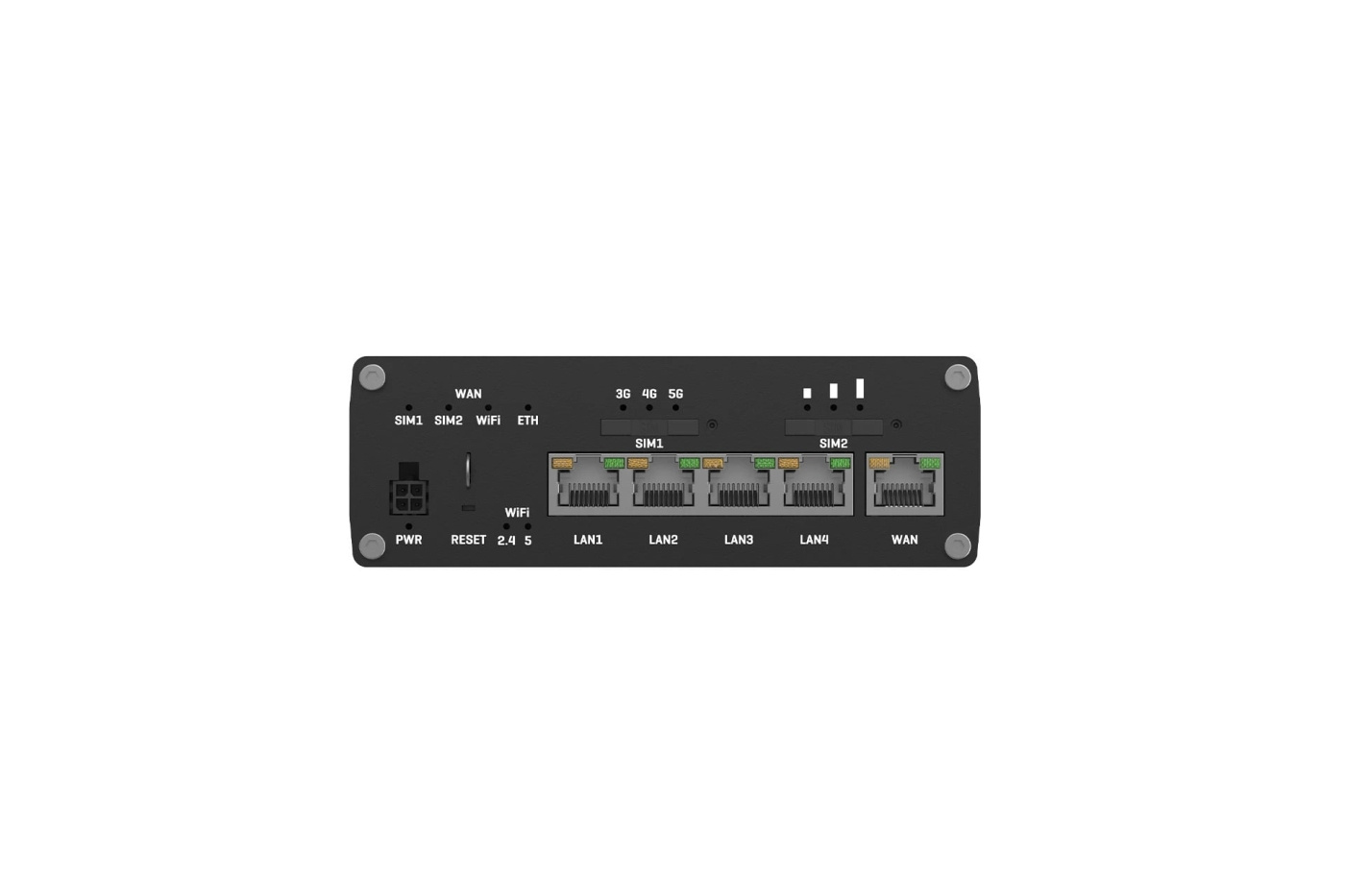

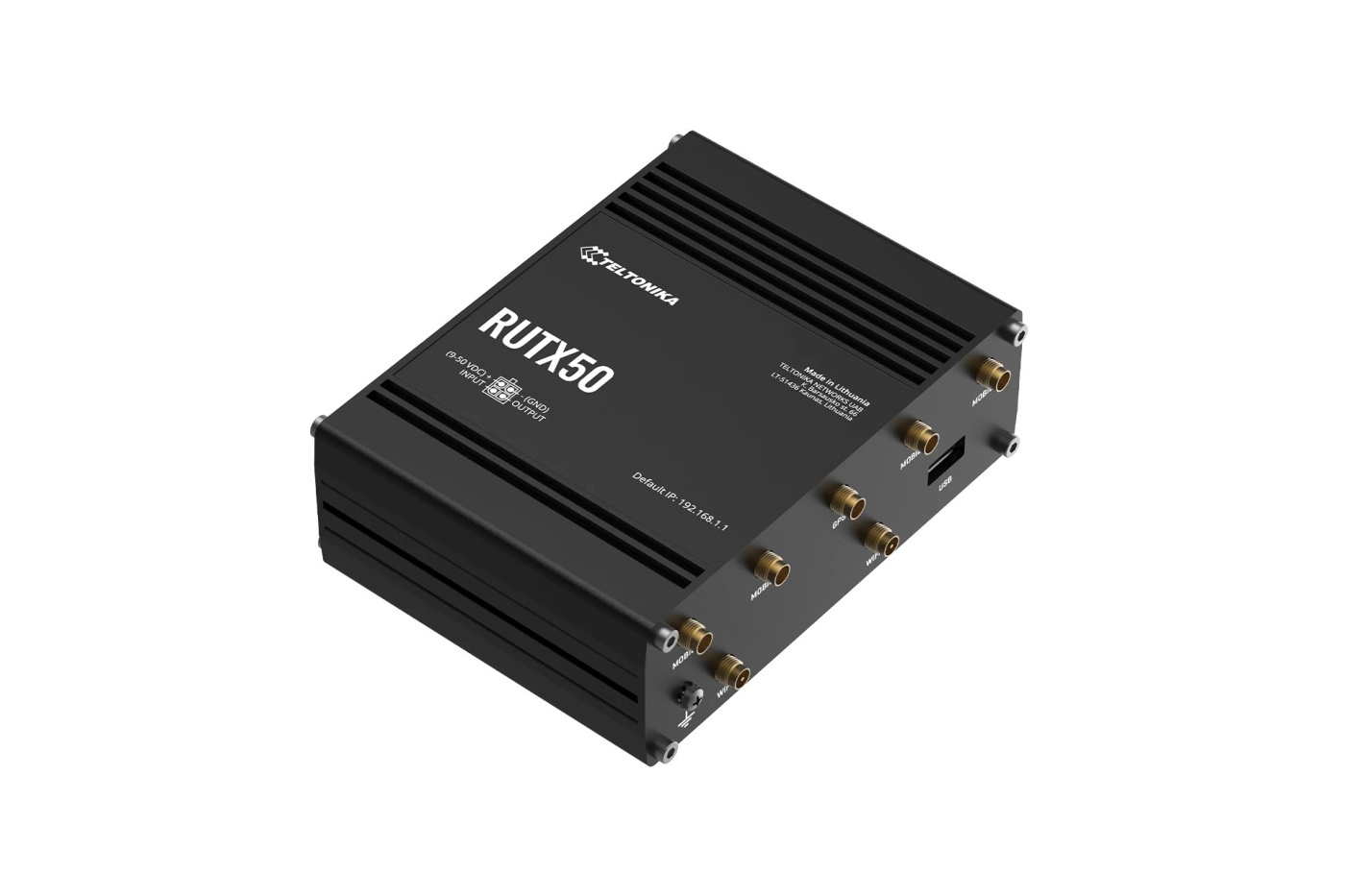

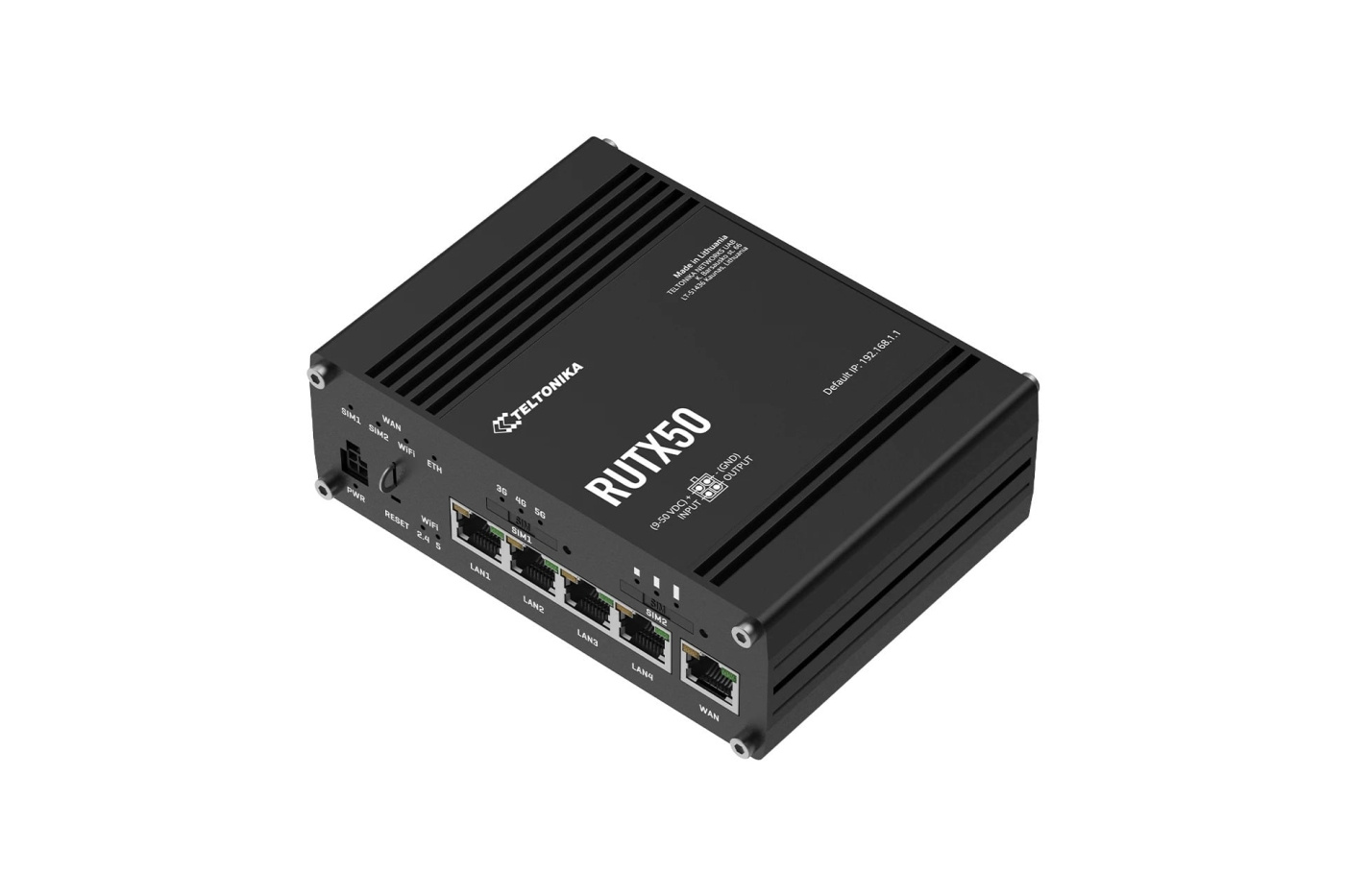

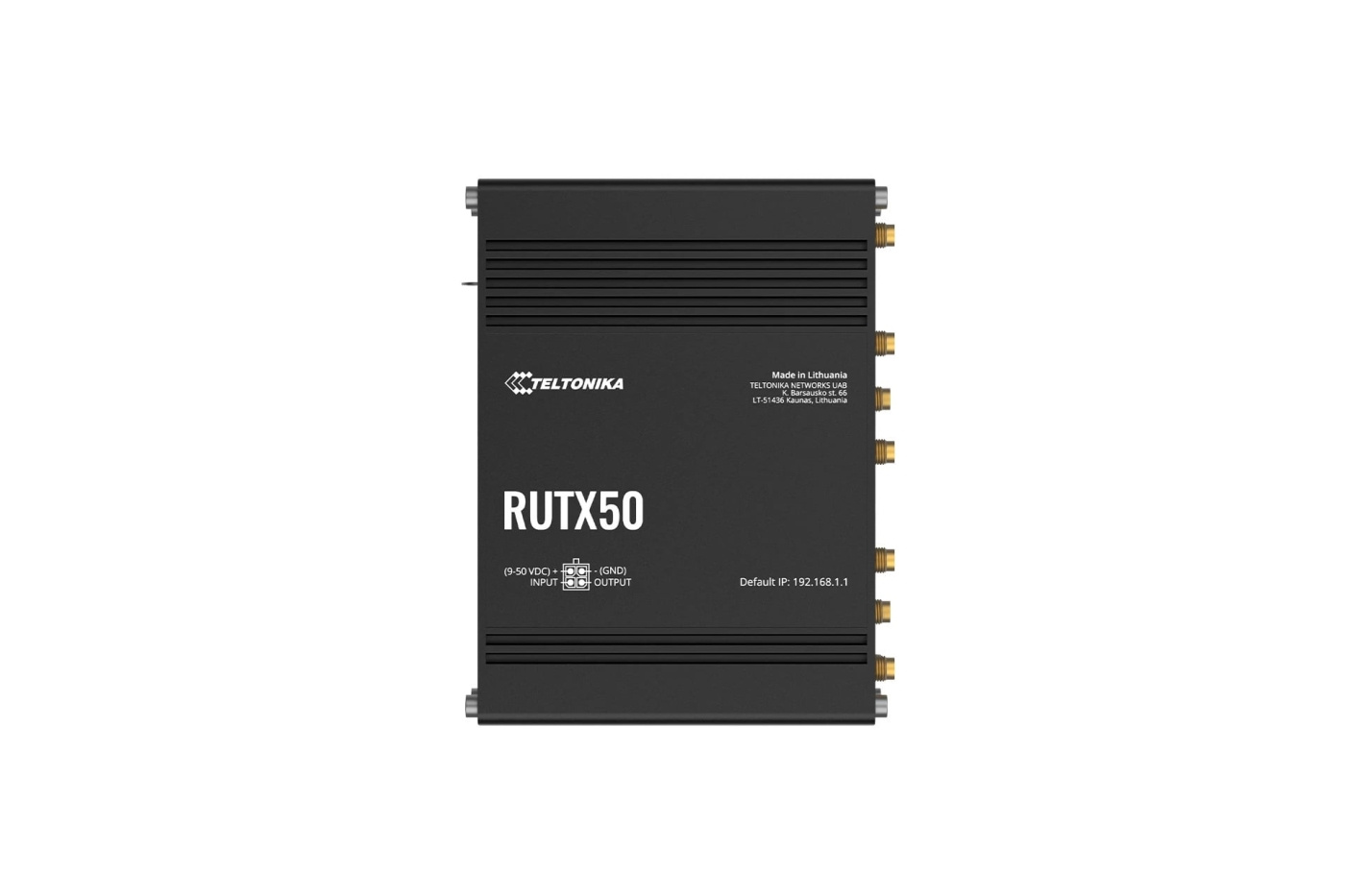

The RUTX50 is a high-speed 5G/4G/3G modem and Wi-Fi router for critical applications. It is a versatile and powerful dual-SIM 5G/LTE/3G router that also supports failover. The RUTX50 is equipped with high-speed Wi-Fi, a Gigabit Ethernet WAN port, four LAN ports, and GNSS positioning.
Technical Specifications
- Two SIM card slots
- 5G NSA DL 3.3 Gbps / SA DL 2.2 Gbps (4x4 MIMO)*
- 5G NSA UL 600 Mbps, 5G SA UL 900 Mbps (2x2 MIMO)*
- 4G LTE Cat20 DL 2.2 Gbps, UL 200 Mbps
- 5G bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
- 4G LTE bands FDD: B1/B3/B5/B7/B8/B20/B28
- 4G LTE bands TDD: B38/B40/B41/B42/B43
- 3G bands: B1/B5/B8
- Load balancing and failover support
- WiFi 802.11ac Wave 2 (WiFi5) MU-MIMO, up to 867 Mbps

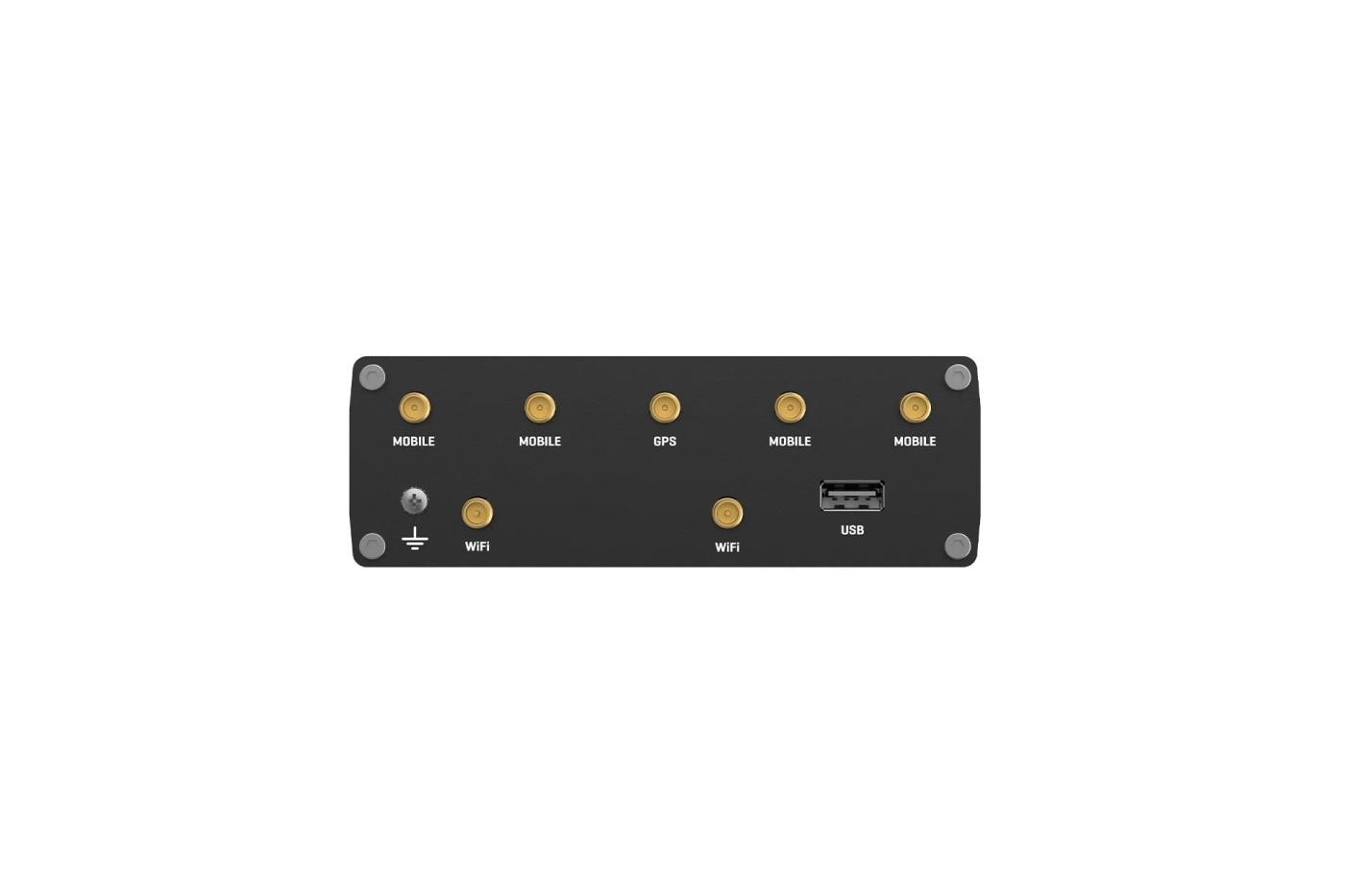

- Four 5G/4G/3G antennas. Interchangeable (SMA)
- Two WiFi antennas. Interchangeable (RP-SMA)
- One GNSS antenna. Removable (SMA)
- GNSS antenna (GPS, GLONASS, BeiDou, and Galileo positioning systems)
- 5 x Ethernet 10/100/1000 Mbps (WAN + 4 x LAN)
- One USB 2.0 port
- I/O connections: digital in; digital out
- Aluminum housing
- IP30 rating
- Dimensions: 132 x 44.2 x 95.1 mm
- Weight: 533 g
- Operating voltage: 7–50 VDC (power supply included)
- Operating temperature: -40°C to +75°C
- Package contents:TeltonikaRUTX50 5G/LTE/3G router, 18W power supply, 4 x antennas, 2 x WiFi antennas with 1.5 m cables, 1 x GNSS antenna with 3 m cable, Ethernet cable (1.5 m), SIM card adapters, quick start guide
- Two SIM card slots
- 5G speed up to 3.3 Gbps*
- WiFi speed up to 867 Mbps
- Five Gigabit Ethernet ports
- GNSS positioning
This text was automatically translated, errors may be present.
4779051840250EAN:
