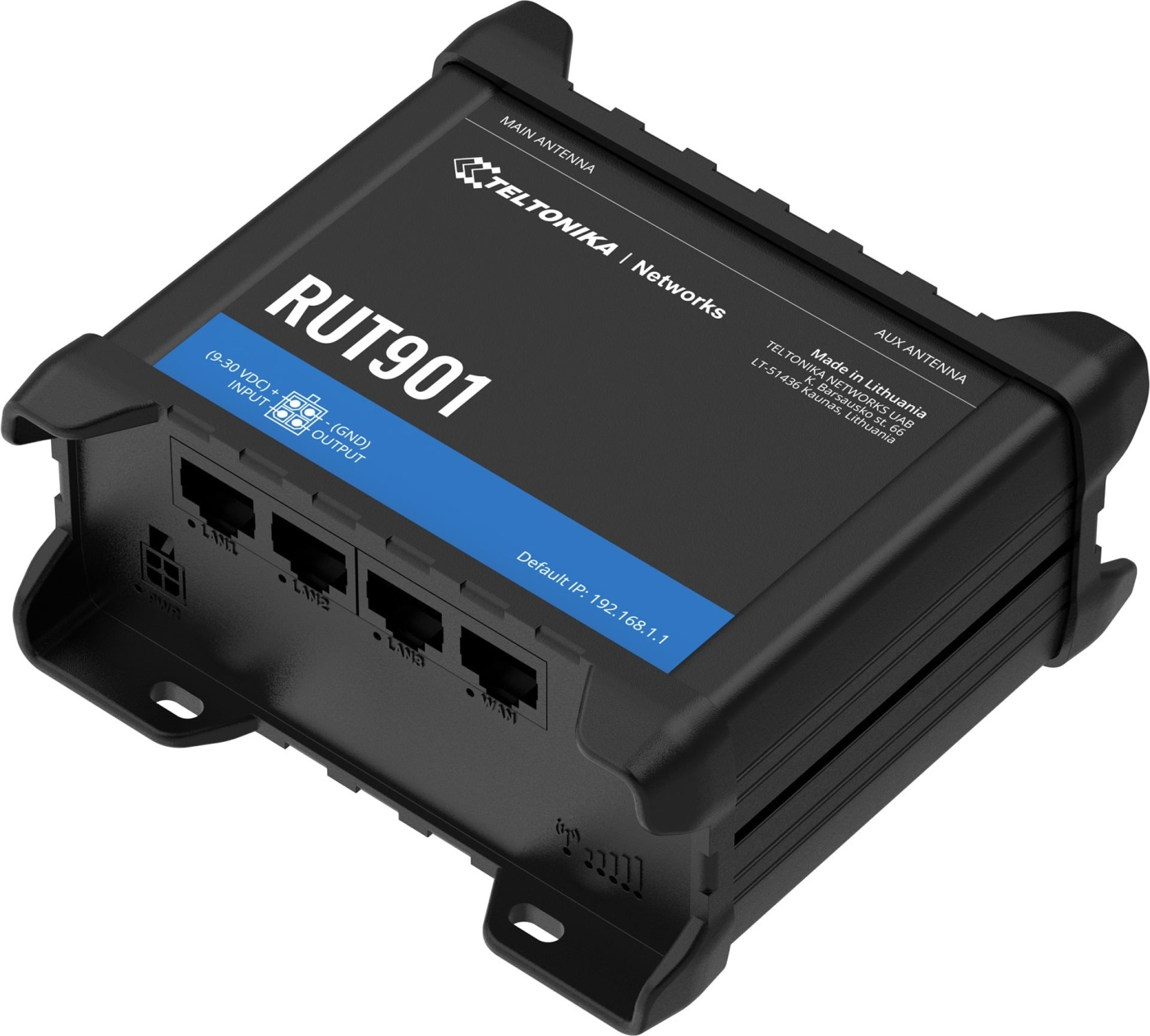

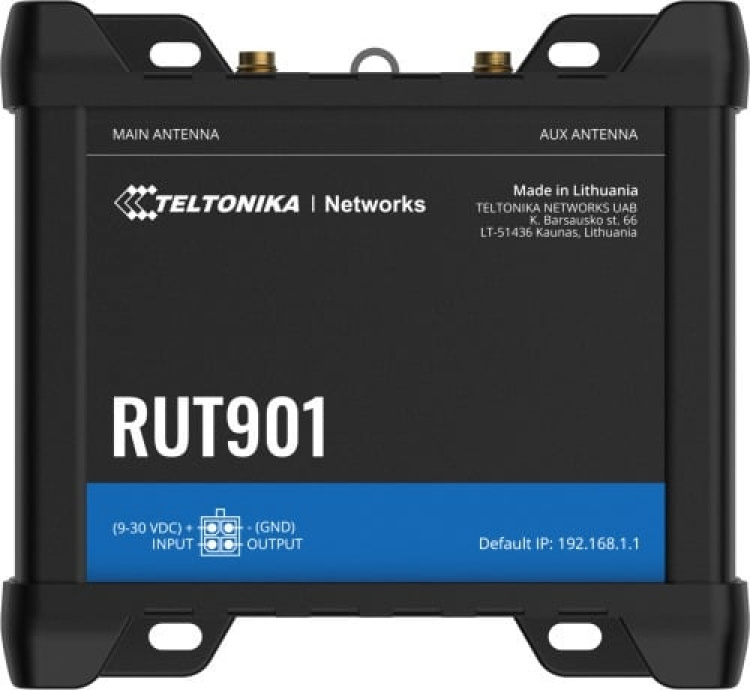

The RUT901 is designed and manufactured using newer components to perform exactly the same functions as the RUT951.
A versatile dual-SIM router with speeds of up to 150 Mbps. The device also features a wired Ethernet WAN port, three LAN ports, and Wi-Fi. The device automatically selects the fastest available connection. Since the router operates on 9–30 V DC, it is also well-suited for use in vehicles. It also supports the 700 MHz frequency band of the 4G network.
Technical Specifications

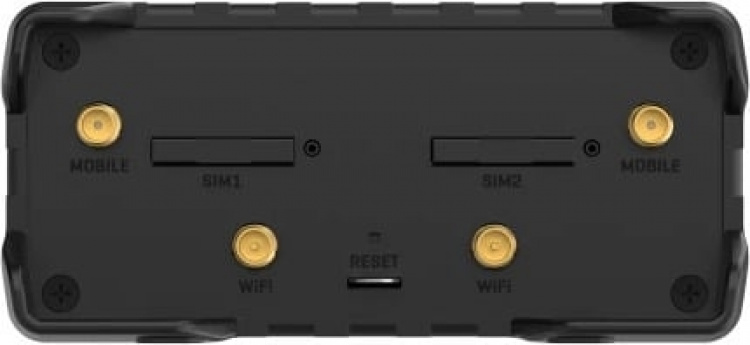

- Two mini SIM (2FFP) card slots inside the device
- LTE download speeds up to 150 Mbps and upload speeds up to 50 Mbps
- LTE bands: B1, B3, B5, B7, B8, B20, B28, B38, B40, B41
- Removable 4G antennas (SMA connector)
- WiFi: 802.11b/g/n 2x2 MIMO, up to 300 Mbps
- Removable WiFi antennas (RP-SMA connector)
- Up to 100 simultaneous WiFi connections

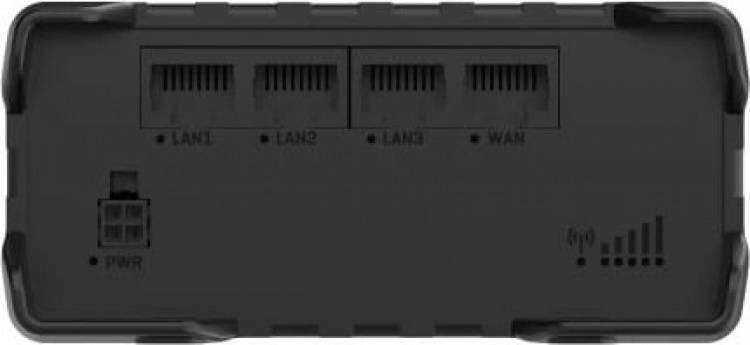

- 4 x Ethernet 10/100 Mbps (WAN + 3 x LAN)
- 4G-4G backup WAN function
- Digital I/O (relay connection, which requires the use of a separate terminal cable 50960s also as a power cable)
- OpenVPN and DynDNS support
- Ping connection monitoring
- SMS management
- RMS remote management capabilities
- Aluminum enclosure
- Operating voltage: 9–30 V DC (includes power supply)
- Power consumption: ≪7 W
- Operating temperature range: -40° to +75°C
- Protection rating: IP30
- Dimensions: 110 x 50 x 100 mm
- Weight: 297 g
Package contents:
- RUT901 modem
- 9 W power supply
- 2 x LTE antennas (flat, SMA male)
- 2 x Wi-Fi antennas (on the device, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM adapter kit
- Quick Start Guide
- Two SIM card slots
- 3G/4G connectivity
- Four Ethernet ports
- Operating temperature: -40°F to +75°F
- Also suitable for vehicle use
