ASUS ZenWiFi – a hassle-free smart home mesh system
ASUS The ZenWiFi BT8 delivers top-tier performance for whole-home mesh networks, leveraging WiFi 7 technology and advanced Smart AiMesh features. It delivers blazing-fast tri-band transfer speeds of up to 14 Gbps and unlocks the full potential of 6 GHz WiFi. Combined with two ultra-fast 2.5 Gigabit Ethernet ports and advanced networking and security technologies, this mesh WiFi system is ready for the smart home of the future today.
Tri-band WiFi 7 with speeds up to 14 Gbps, 6 GHz WiFi, MLO, and 4K-QAM
Tri-band WiFi 7 enables speeds of up to 14 Gbps by utilizing the 6 GHz WiFi band, Multi-Link Optimization (MLO), and 4K-QAM technology.
Powerful signal coverage
Seven internal antennas and eight powerful front-facing modules eliminate Wi-Fi dead zones.
24/7 protection with commercial-grade AiProtection Pro and advanced VPN services
Continuous 24/7 protection with AiProtection Pro and advanced VPN solutions.
IoT network, parental controls, and VPN made easy on multiple devices
Manage parental controls, VPN connections, and smart home solutions across multiple devices using separate SSID networks.
Two flexible 2.5 G Ethernet ports for super-fast wired connections
Enables extremely fast wired data transfer and cable connections.
4G LTE/5G mobile hotspot for always-on internet
Supports sharing 4G LTE and 5G connections from your phone, ensuring a continuous internet connection.
Technical specifications:
- Model: ASUS ZenWiFi BT8 - 1 pack
- Network standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
- Product segment: BE14000: top-of-the-line BE performance – 688+4323+8643 Mbps
- WiFi data transfer speeds: WiFi 7 (802.11be) (2.4 GHz): up to 688 Mbps, WiFi 7 (802.11be) (5 GHz): up to 4323 Mbps, WiFi 7 (802.11be) (6 GHz): up to 8643 Mbps
- Antennas: 7 internal antennas
- Transmit/Receive: 2.4 GHz: 2x2, 5 GHz: 3x3, 6 GHz: 3x3
- Memory: RAM: 1 GB, Flash: 128 MB
- Speed enhancement features: OFDMA, beamforming: standard-based and universal, 4096-QAM: high-data-rate modulation, 20/40/80/160/320 MHz bandwidth
- Operating frequencies: 2.4 GHz, 5 GHz, 6 GHz
- Operating modes: Wireless Router Mode, AiMesh Node Mode, Access Point Mode

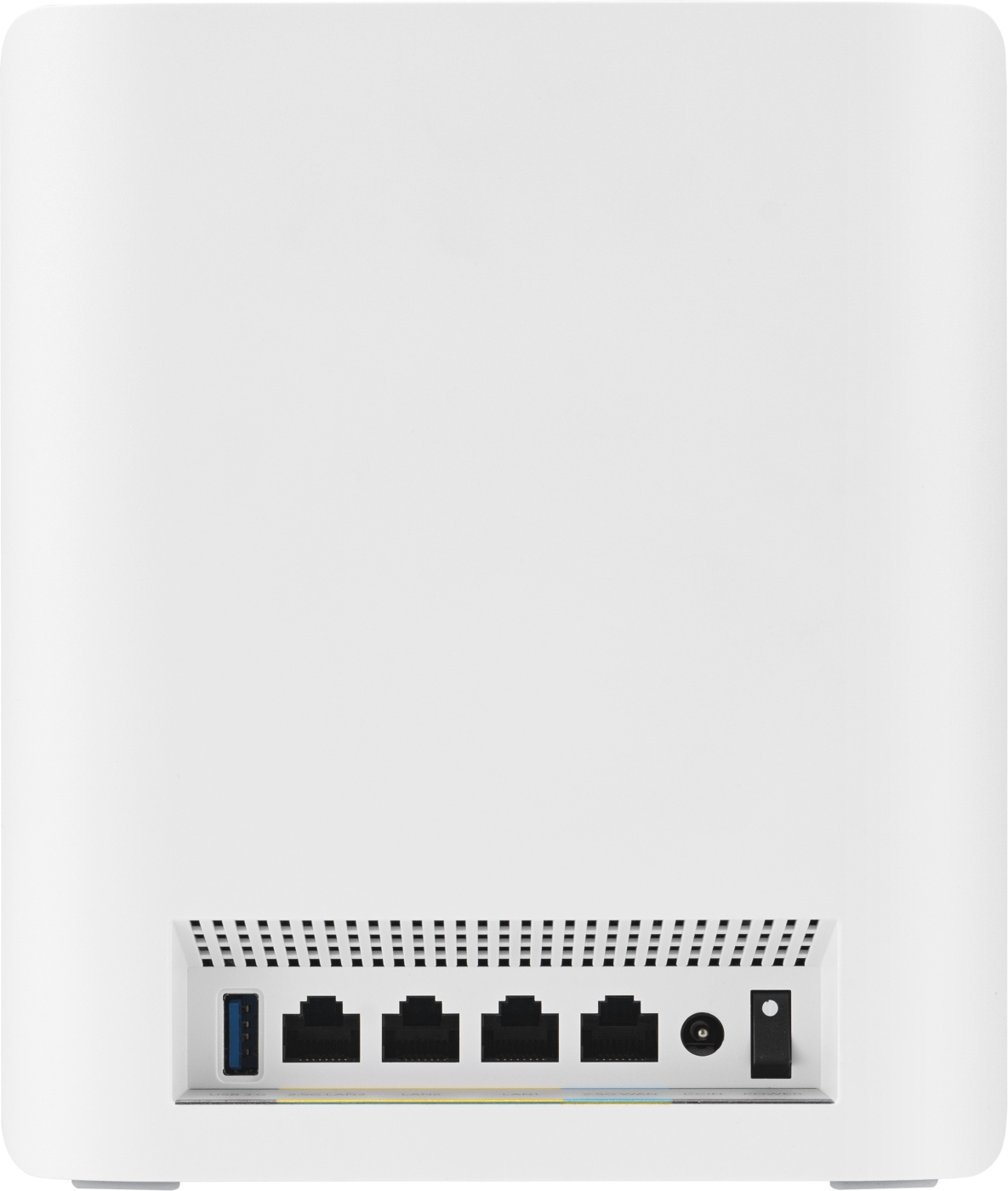

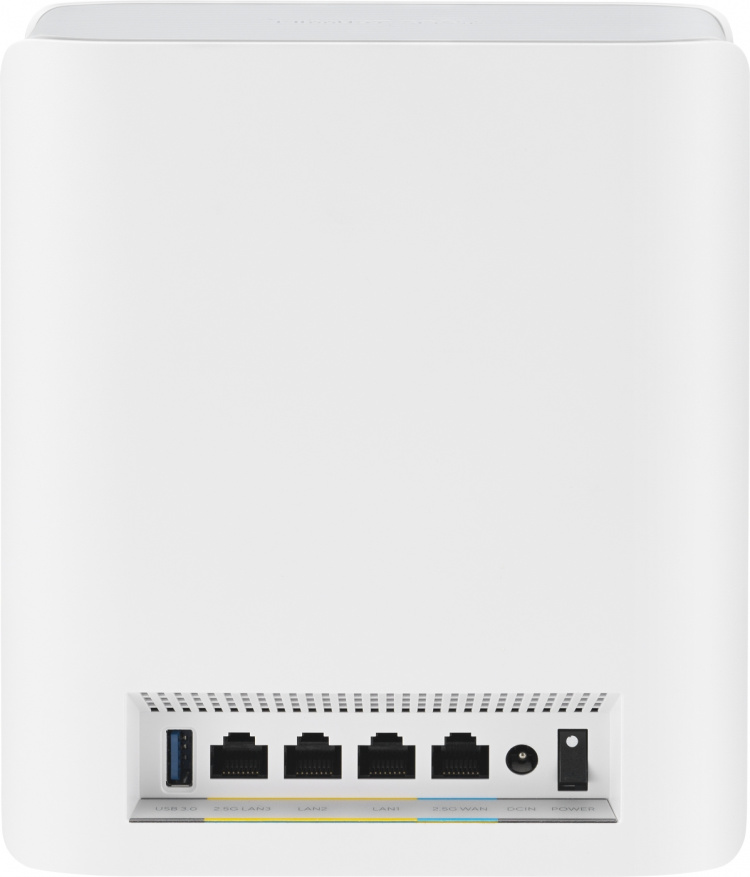

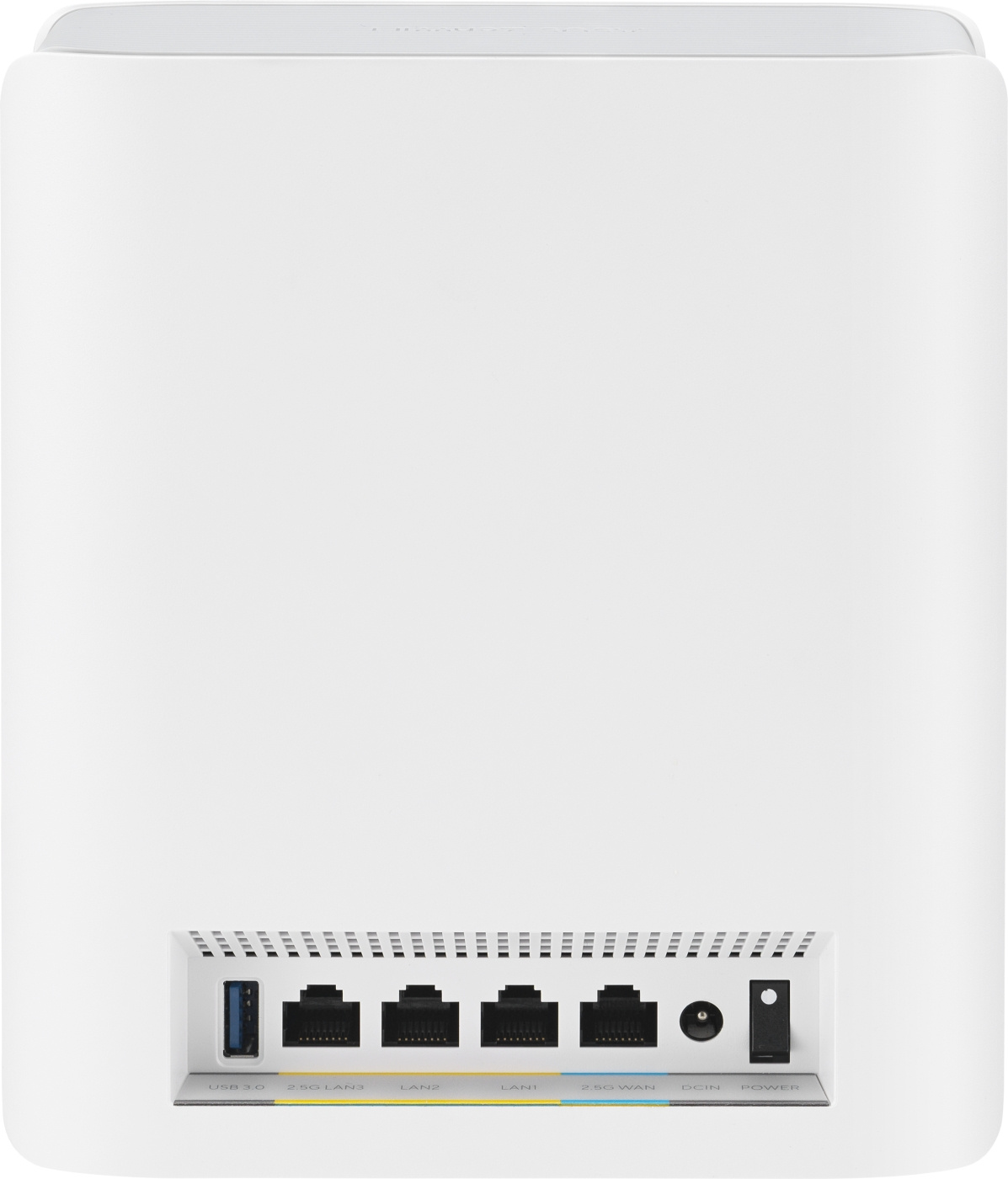

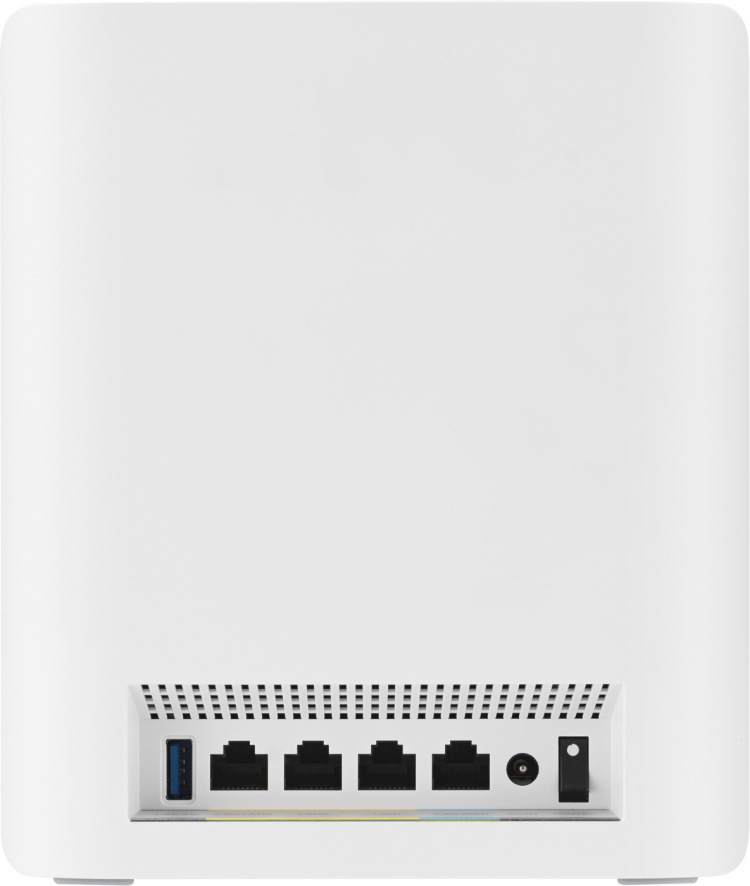

- Ports: 2.5G WAN x 1, 2.5G LAN x 1, 1G LAN x 2, USB 3.0 x 1
- Buttons: WPS button, reset button, power switch
- AiMesh: Primary AiMesh Router, AiMesh Node
- Router App: ASUS Router APP
- VPN Features: VPN Client: L2TP, OpenVPN, PPTP, WireGuard; VPN Server: IPSec, OpenVPN, PPTP, WireGuard; VPN Fusion
- Parental Control: Scheduling and management of network connections
- WAN features: 3G/4G LTE dongle, 4G/5G automatic sharing from phone, port forwarding and triggering, DMZ, DDNS, dual WAN
- LAN Features: DHCP server, IGMP snooping, IPTV, LAN link aggregation, manual IP address assignment, Wake on LAN (WOL)
- Smart home features: Supports Google Assistant
- Product dimensions: 159 x 72 x 186 mm
- Power supply: AC input: 110V–240V (50–60Hz), DC output: 12V, max. 3A
- Package contents: ZenWiFi BT8, RJ45 cable, power adapter, warranty card, and quick start guide
- Tri-band WiFi 7, up to 14 Gbps
- Flexible dual 2.5G Ethernet ports
- AI-enhanced Smart AiMesh
- AiProtection Pro security
