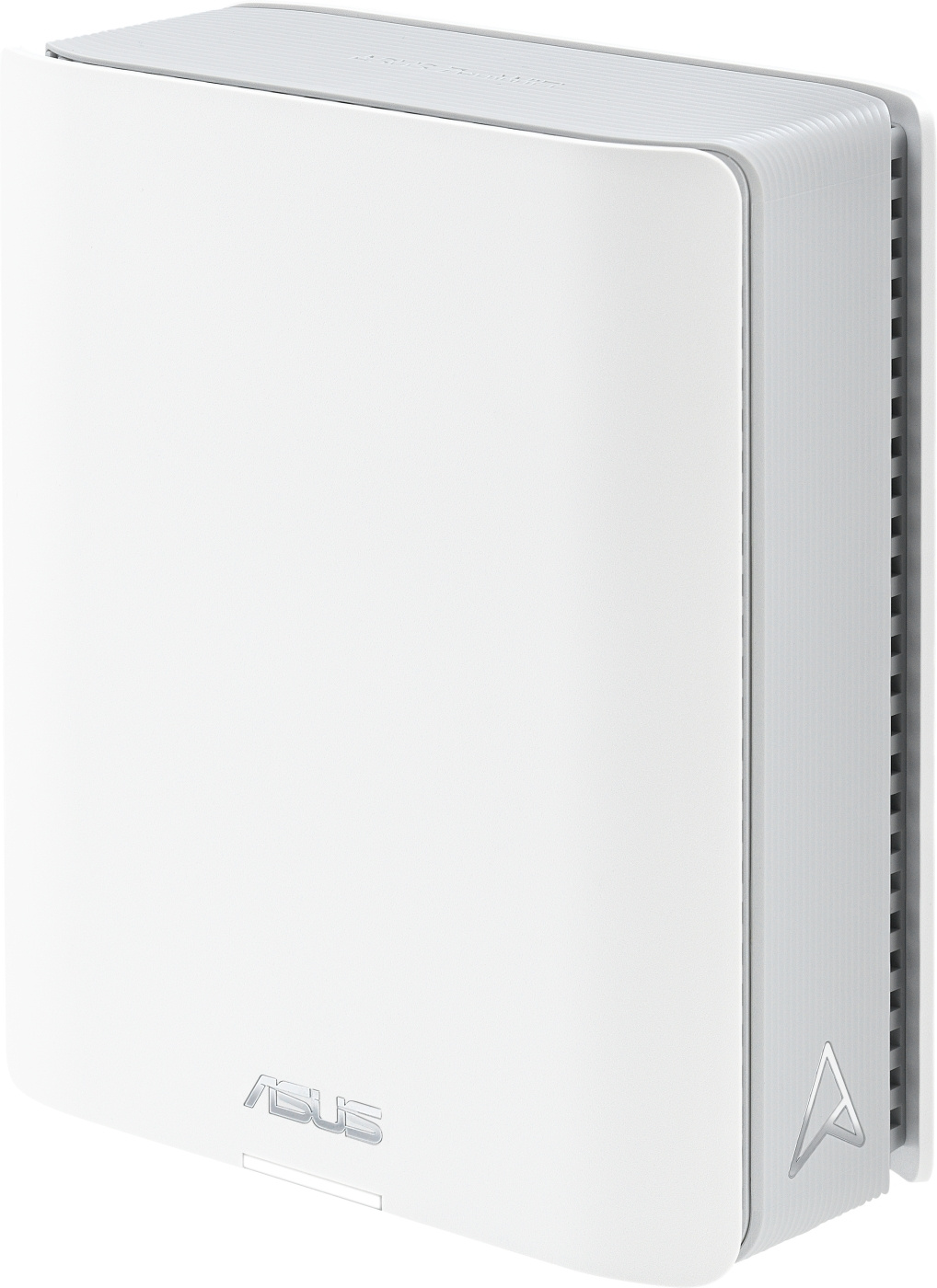

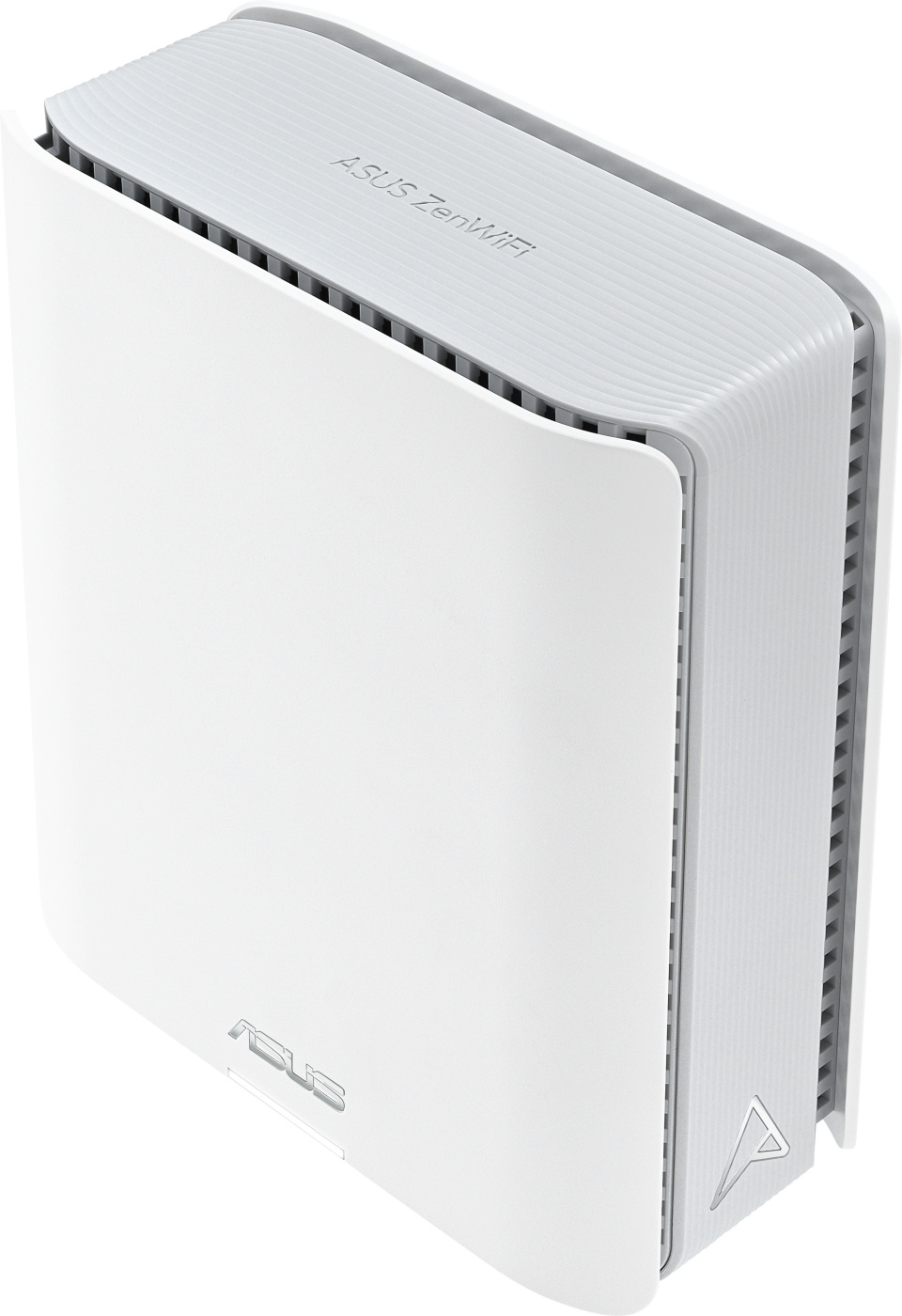

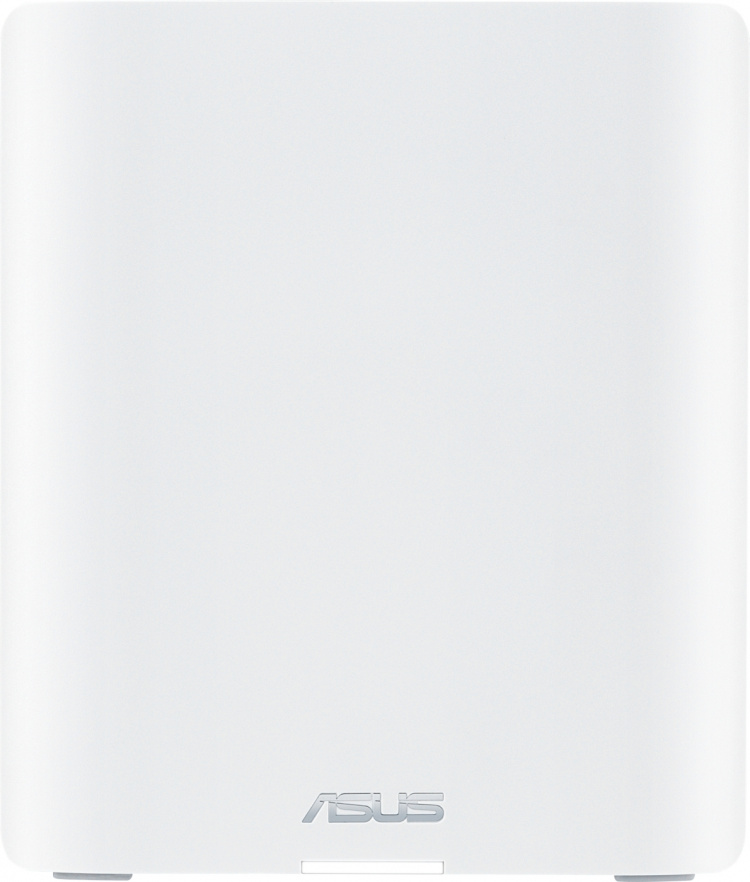

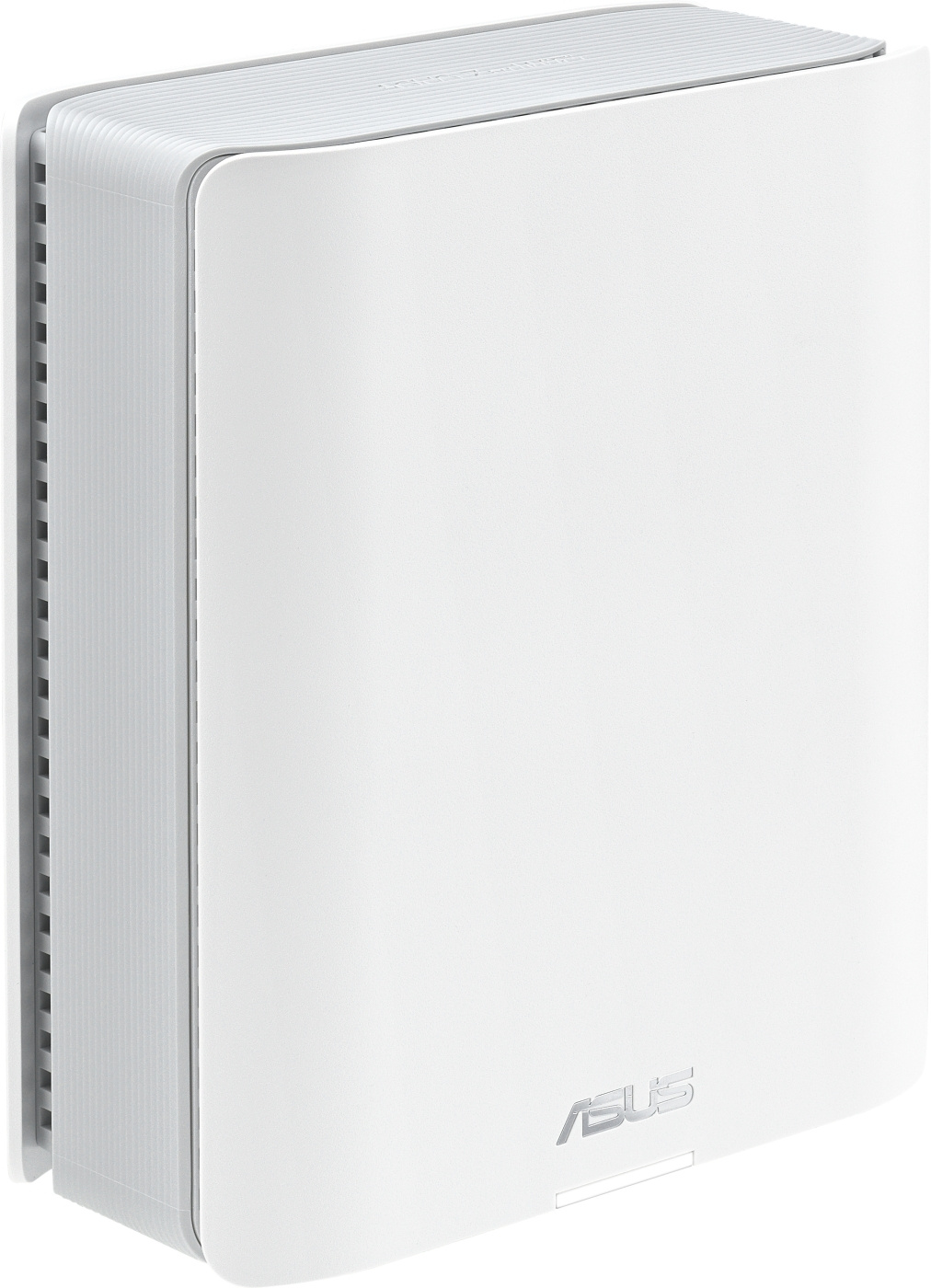

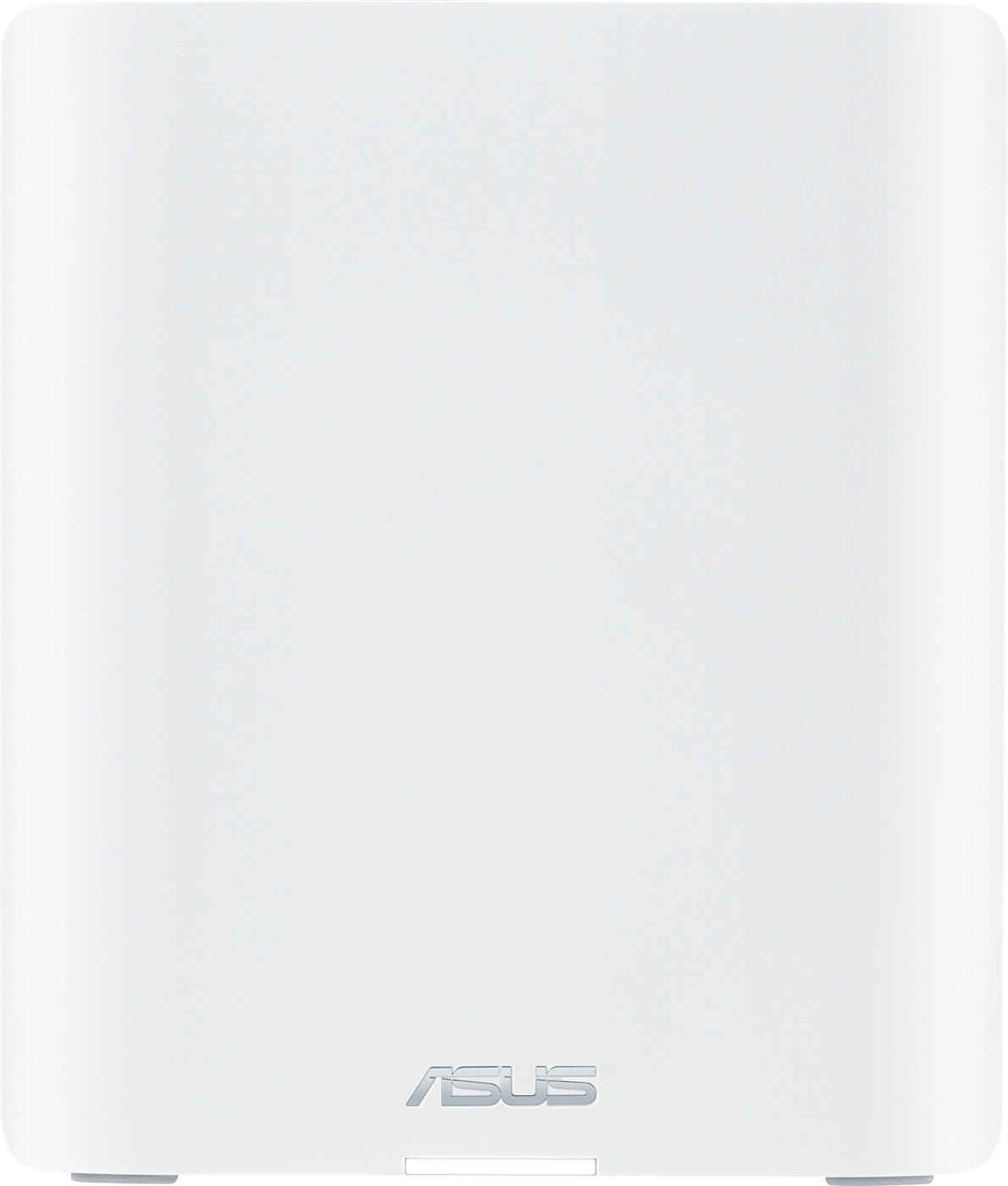

ASUS ZenWiFi BT10 – a hassle-free smart home mesh network
ASUS The ZenWiFi BT10 is an advanced tri-band Wi-Fi 7 mesh system that delivers top-tier performance and coverage for whole-home networks. It is specifically designed to provide speed, reliability, and security for demanding users. Experience the possibilities of top-tier connectivity, which makes home entertainment and cloud services even smoother. This system seamlessly supports 8K streaming, HDR gaming, creative content production, and AI applications.
Blazing-Fast WiFi 7
Tri-band ultra-fast WiFi 7 delivers speeds of up to 18 Gbps, leveraging excellent 6 GHz WiFi connectivity, Multi-Link Operation (MLO) technology, and 4K-QAM modulation.
Expanded coverage with AI technology
Smart AiMesh AI improves WiFi network coverage up to 557 square meters (2 units) with faster and more stable connections, creating an efficient and expandable network.
Eliminating dead zones
Eight internal antennas and ten powerful front-end amplification modules eliminate Wi-Fi dead zones from all directions.
High-performance 10G Ethernet ports
Boost network capacity with dual 10G WAN and LAN Ethernet ports.
Versatile WAN settings
Supports automatic WAN detection and 4G LTE and 5G mobile hotspot connectivity, ensuring a consistently reliable Internet connection.
Comprehensive security
Commercial-grade AiProtection Pro security, advanced parental controls, and comprehensive VPN features protect your entire network.
Easy SSID management
The ability to create up to three SSIDs with the Smart Home Master Network feature makes setting up IoT devices easy, offers convenient parental controls, and enables instant VPN connections.
Technical specifications:
- Model name: BT10(W-3-PK)
- WiFi standards: WiFi 7 (802.11be), WiFi 6E (802.11ax), WiFi 5 (802.11ac), WiFi 4 (802.11n)
- Product segment: BE18000 ultimate BE performance: 688+5764+11529 Mbps
- Frequency bands: 2.4 GHz, 5 GHz, 6 GHz
- Speed: Maximum speed up to 18,000 Mbps (2.4 GHz: 688 Mbps, 5 GHz: 5,764 Mbps, 6 GHz: 11,529 Mbps)
- Memory: 2 GB, 256 MB Flash
- Processor: 2.0 GHz quad-core
- Antennas: 8 internal antennas
- Max. coverage: 278,709 m²
- Transmit/Receive: 2.4 GHz 2x2, 5 GHz 4x4, 6 GHz 4x4

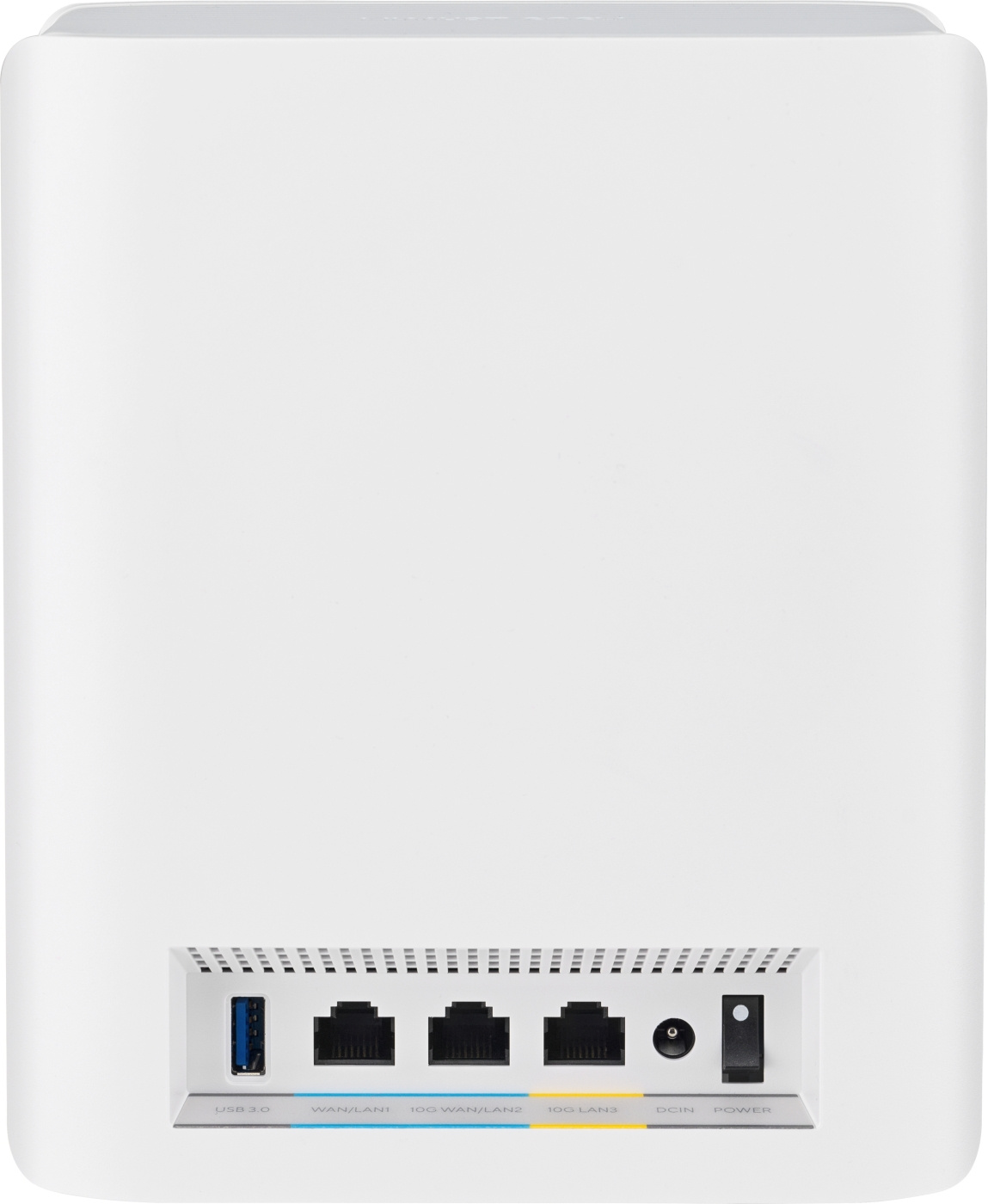

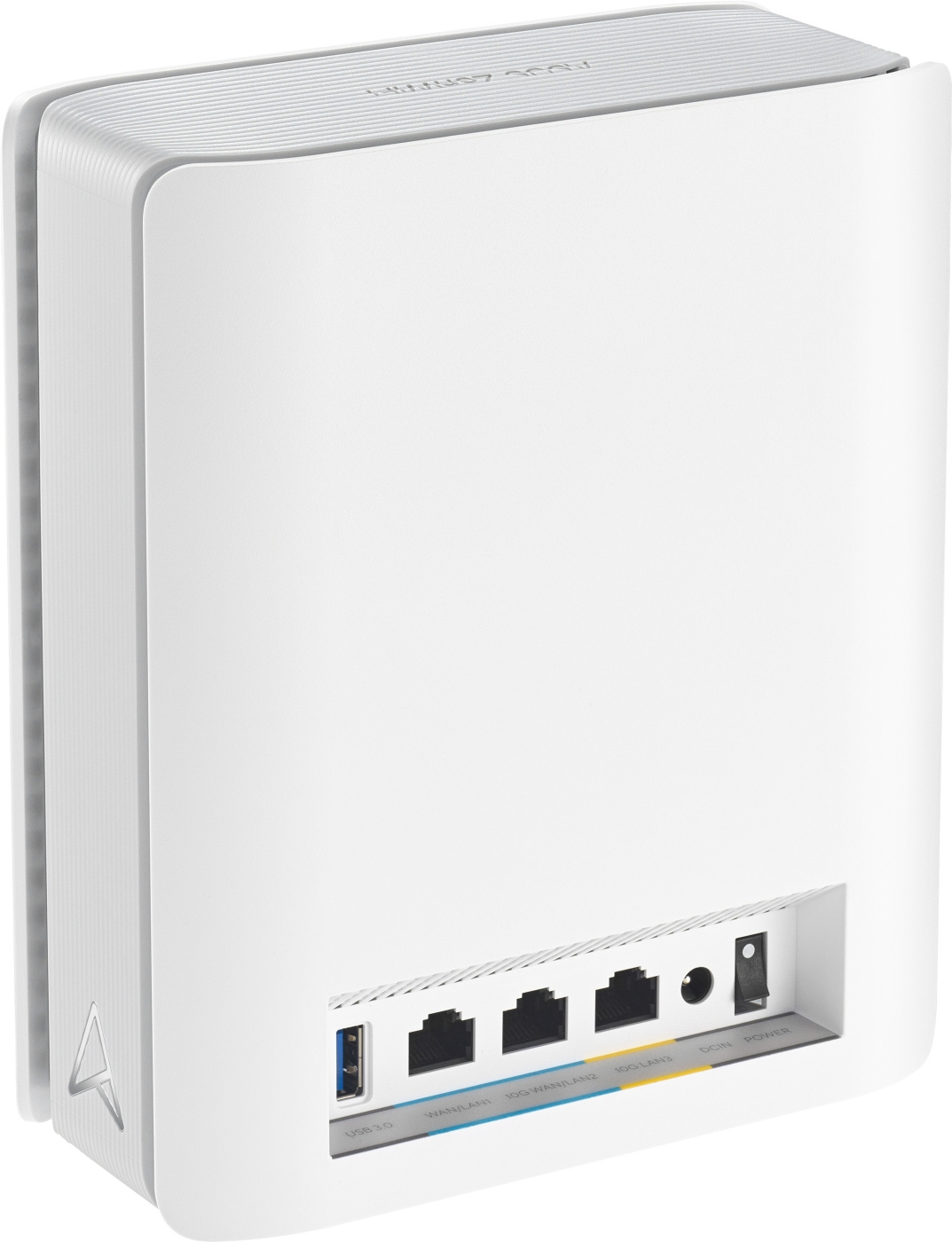

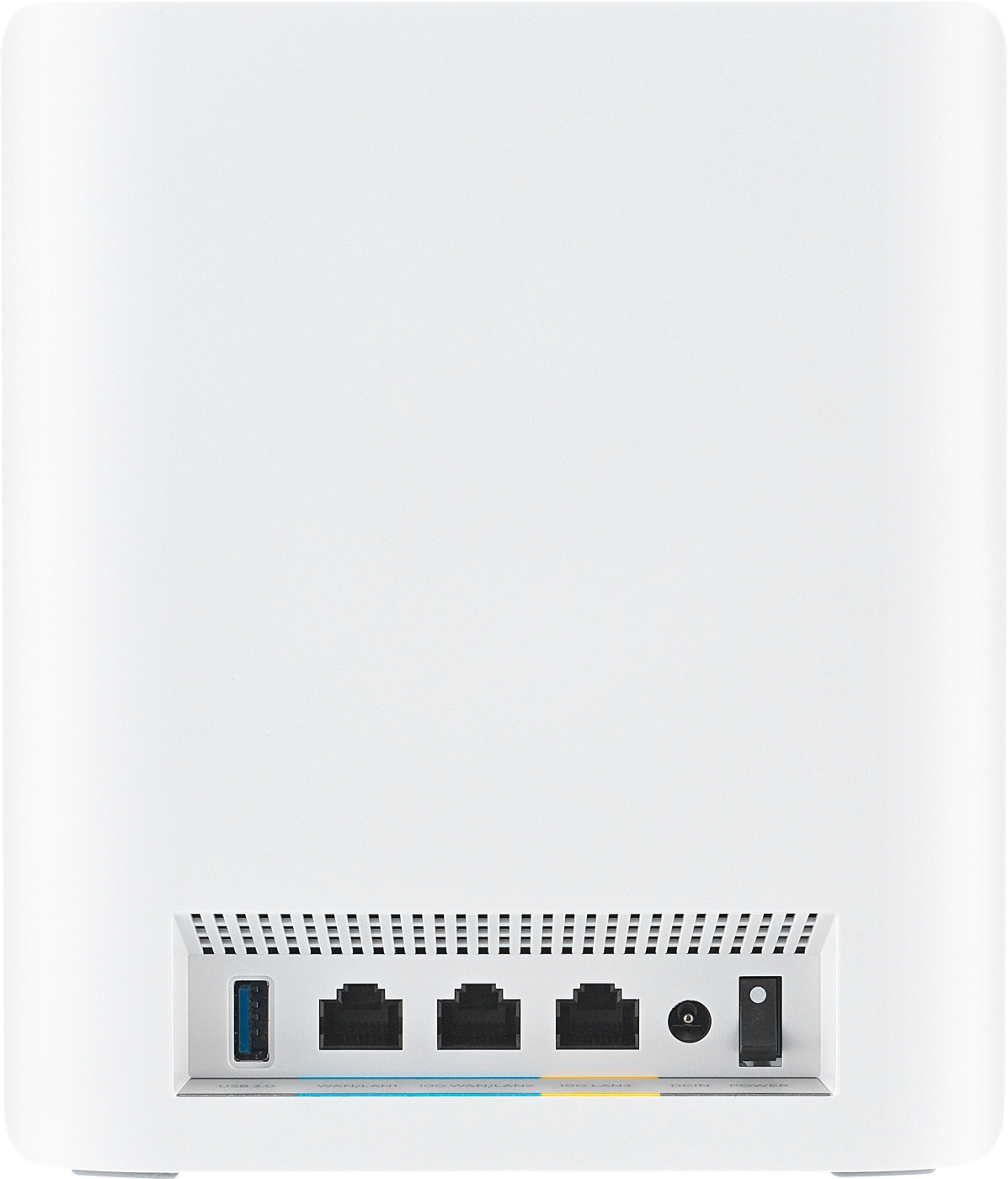

- Ports: 10 Gbps WAN/LAN x1, 10 Gbps LAN x1, 1 Gbps WAN/LAN x1, USB 3.0 x1
- Buttons: WPS, Reset, Power switch
- Speed enhancement: OFDMA, Beamforming, 4096-QAM high data rate, 20/40/80/160/320 MHz bandwidth
- Operating modes: Wireless Router Mode, AiMesh Node Mode, Access Point Mode
- AiMesh: Primary AiMesh Router, AiMesh Node
- Security: AiProtection, VPN (OpenVPN, WireGuard, L2TP), WPA3, DNS-over-TLS, Firewall
- Traffic Management: Adaptive QoS, Bandwidth Monitor, Traffic Analyzer
- Smart Home: Google Assistant support
- Power Supply: AC Input: 110V–240V (50–60Hz), DC Output: 12V, max. 3A
- Package contents: ZenWiFi BT10, network cable (RJ45), power adapter, quick start guide, and warranty information
- Dimensions: 159 x 72 x 186 mm

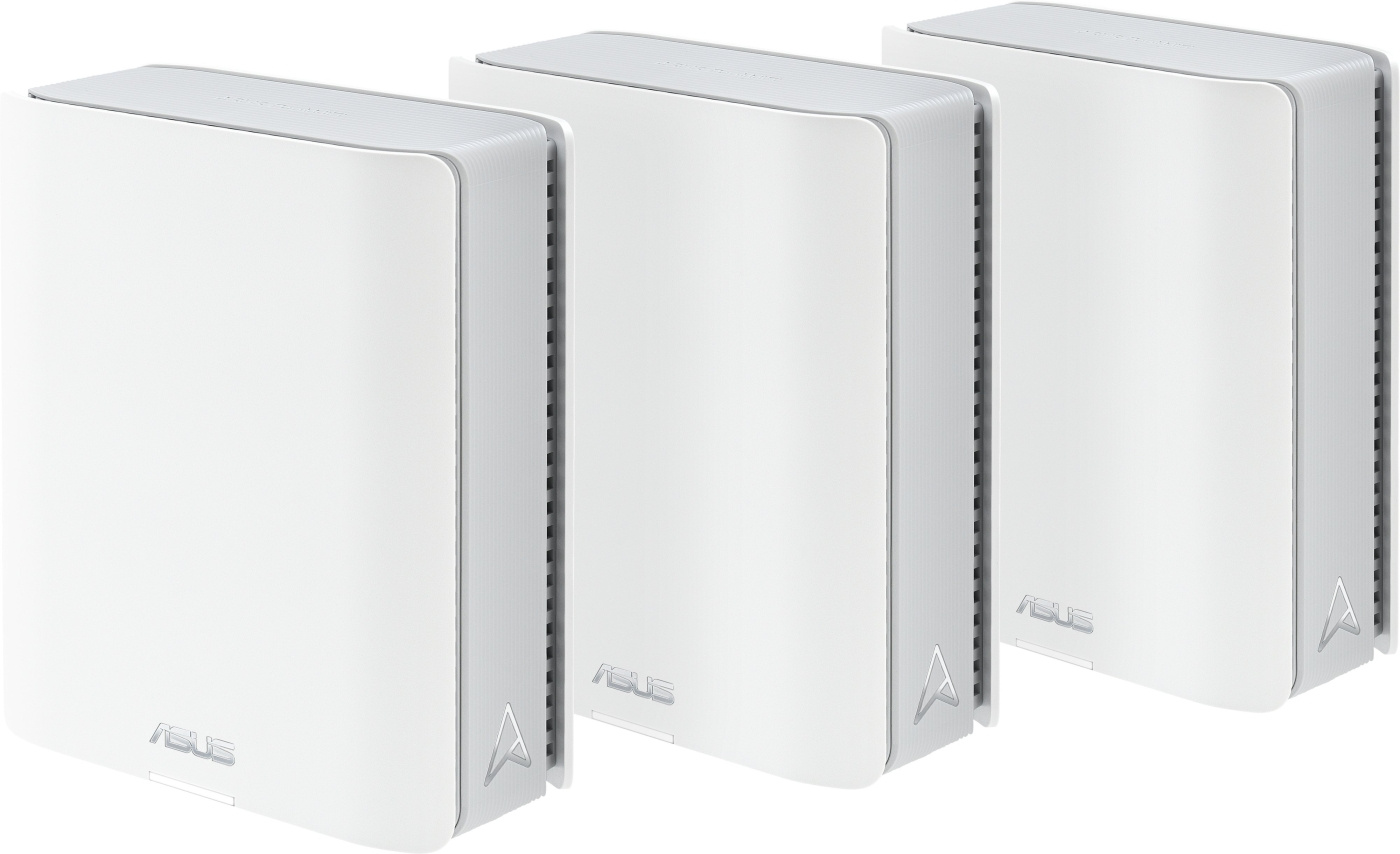

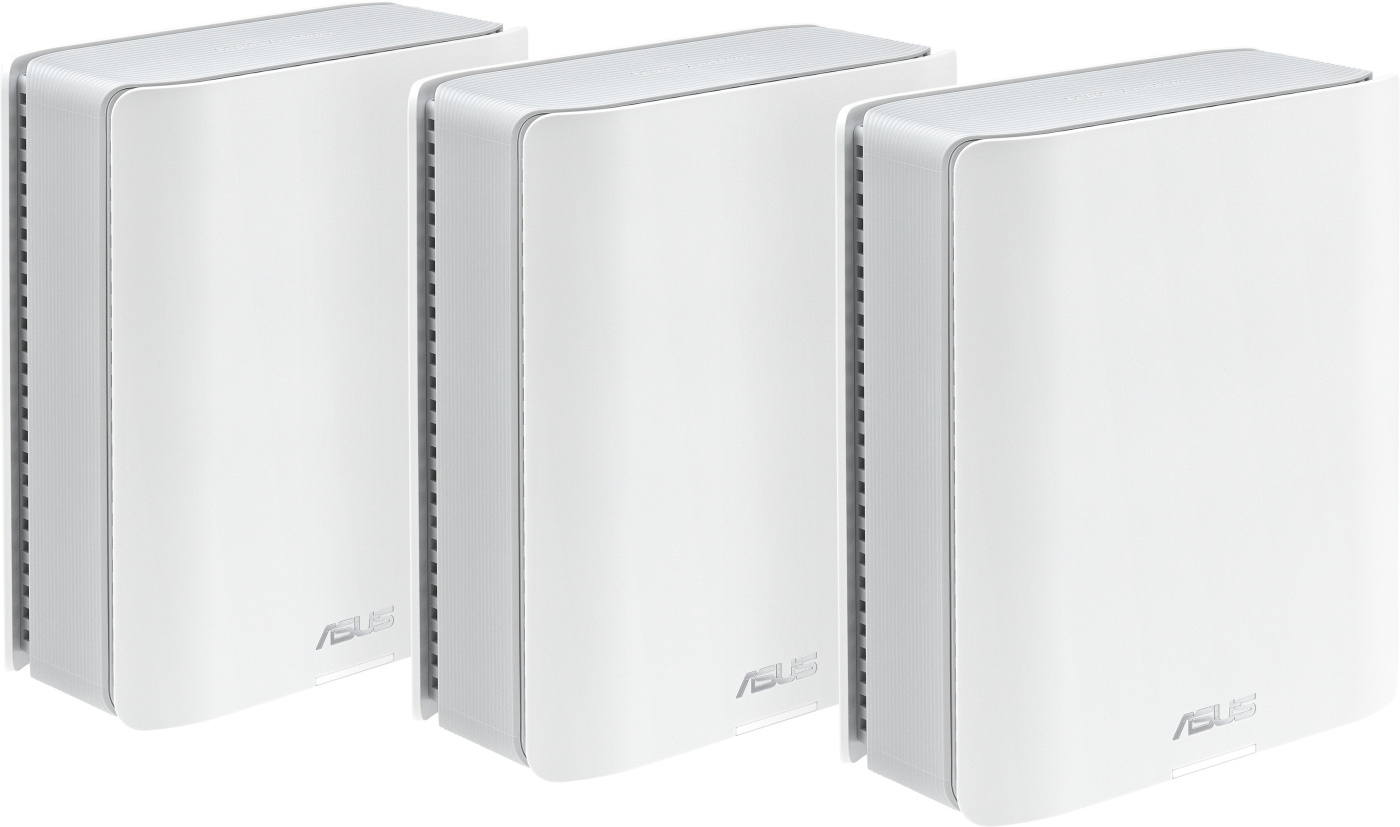

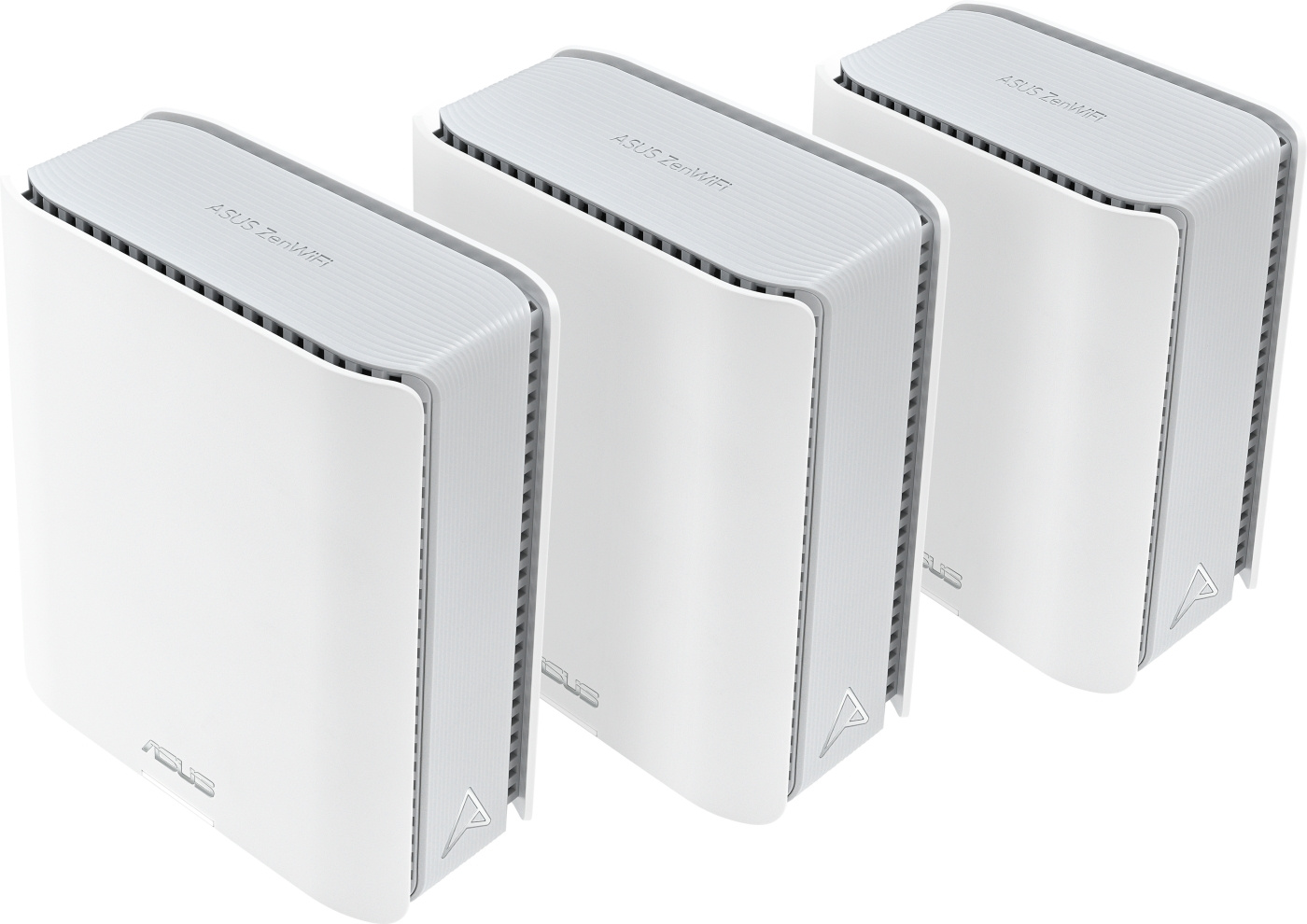

- Three-access-point system
- Tri-band WiFi 7, up to 18 Gbps
- High-performance 10G Ethernet ports
- AI-enhanced Smart AiMesh
- AiProtection Pro security
