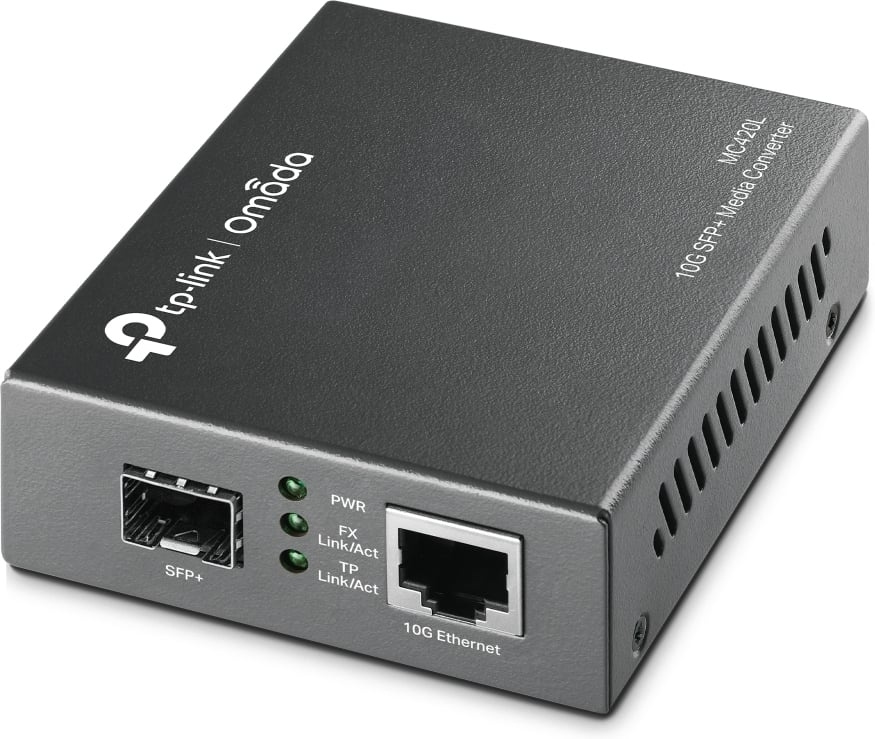

The MC420L is a media converter designed to convert 10GBASE-SR/LR fiber signals and 10GBASE-LRM fiber signals into 10GBASE-T copper signals. It easily extends the reach of an existing Gigabit network via a fiber-optic connection when connected to an SFP module.
The MC420L supports the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet standard and the IEEE 802.3an 10GBASE-T 10G Ethernet standard, and is designed for use in multimode/single-mode SFP modules. Long-range point-to-point connections are easy to build with Gigabit fiber converters, making them ideal for network connections between multiple buildings, remote monitoring, and automated factory equipment.
Key Features:
- 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation for Half-Duplex / Full-Duplex transmission mode
- Compliant with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq standards
- FX port supports hot-swappable feature
- Maximum transmission distance depends on the installed SFP module
Technical Specifications:
- Supported standards and protocols: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
- Interfaces: 1 x SFP+ port, 1 x 1G/2.5G/5G/10Gbps RJ45 port
- Ethernet cabling technology: 2.5GBASE-T, 10GBASE-T, 1000BASE-T
- Maximum data transfer rate: 10,000 Mbit/s
- Maximum transmission distance: 100 m
- Fiber structure: Multimode, single-mode
- Wavelength: Depends on the SFP module used
- LEDs: PWR, Link/Act
- Dimensions: 94.5 x 73 x 27 mm
- Maximum power consumption: 4.12W
- Package contents: TP-Link MC420L 10G Multi-Gigabit SFP+ media converter, power supply, and quick start guide
- 10,000 Mbit/s 100 m
- 2.5GBASE-T, 10GBASE-T, 1000BASE-T
- Ethernet LAN port
- Multimode, single-mode
- Number of fiber ports: 1 SFP+
This text was automatically translated, errors may be present.
8885020625554EAN:
