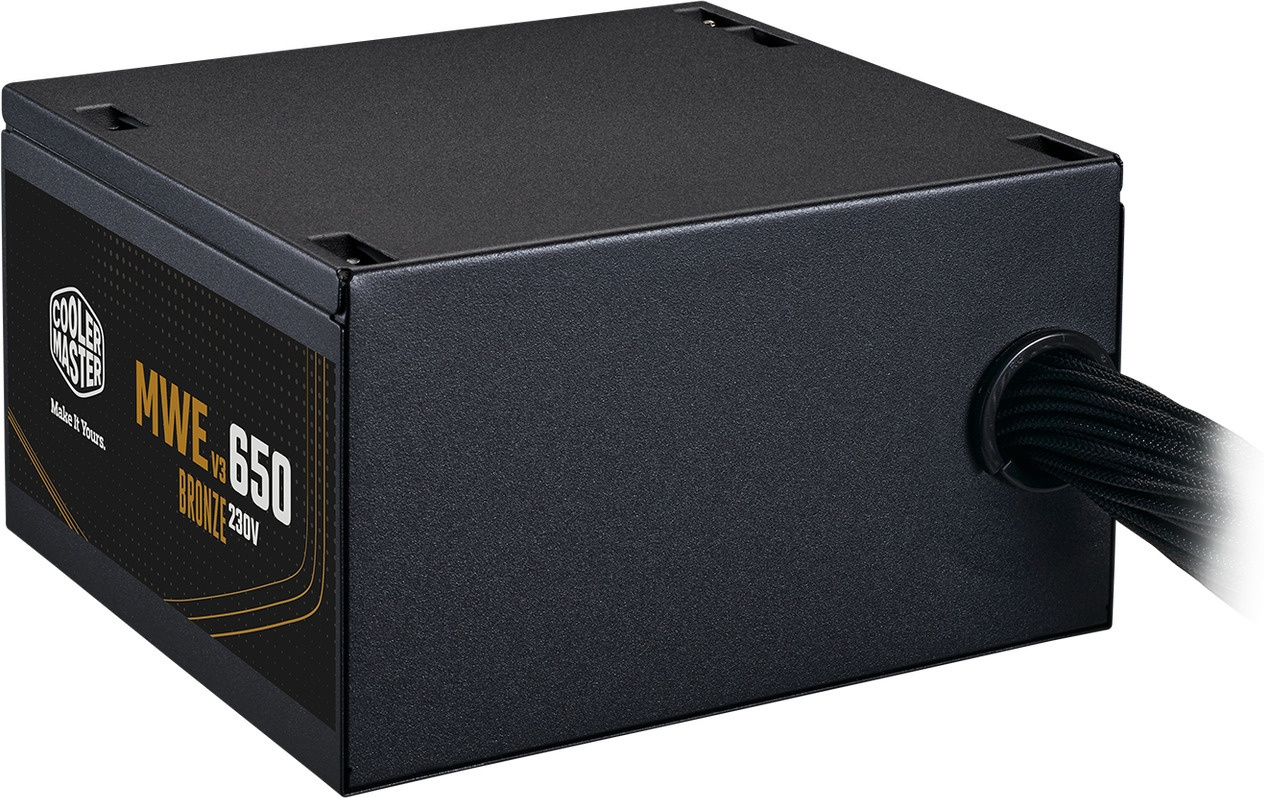

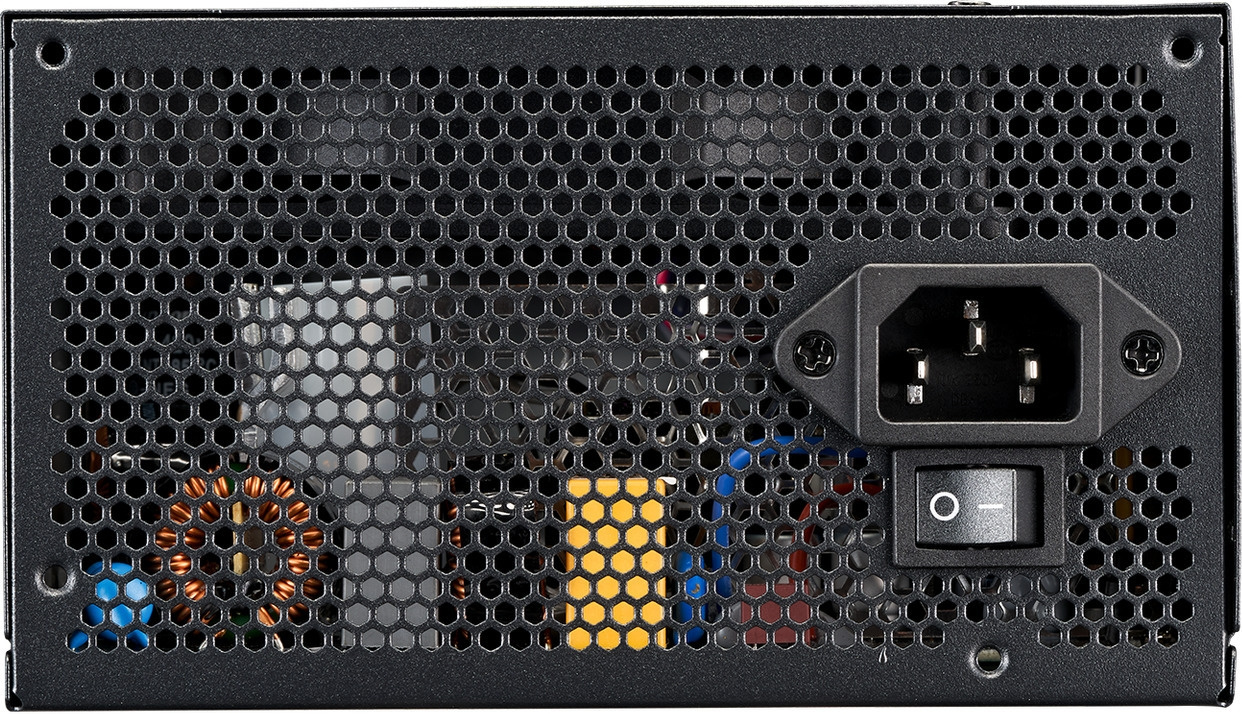

The MWE Bronze V3 is an ATX 3.1 update to the MWE Bronze V2 power supply, offering improved performance and reliability. 80 Plus Bronze efficiency, DC-to-DC + LLC circuit design, and a quiet HDB fan ensure versatile performance. The power supply features braided cables, excellent temperature resistance, and a 5-year warranty, taking your system to the next level.
ATX 3.1 Support: Compatible with the ATX 3.1 standard, which enables up to 1.5 times the peak power, making it an ideal choice for 40-series graphics cards.
80 Plus Bronze efficiency: Over 85% efficiency under typical load.
Quiet HDB fan: The hydrodynamic bearing fan provides long-lasting, efficient, and quiet cooling.
High temperature resistance: A maximum operating temperature of 40 °C allows the unit to be used for overclocking and other demanding applications.
Textured cable: The textured cable design offers a softer grip and an aesthetic appearance.
Single +12V rail: All power comes from a single +12V source, ensuring consistent power delivery to all connected cables.
DC-to-DC circuit design: DC-DC technology ensures a reliable and stable power supply to all connected components.
Two EPS connectors: Two 4-pin EPS connectors ensure compatibility with current motherboards.
Five-year warranty: The power supply comes with a 5-year limited warranty from the date of purchase.
Features:

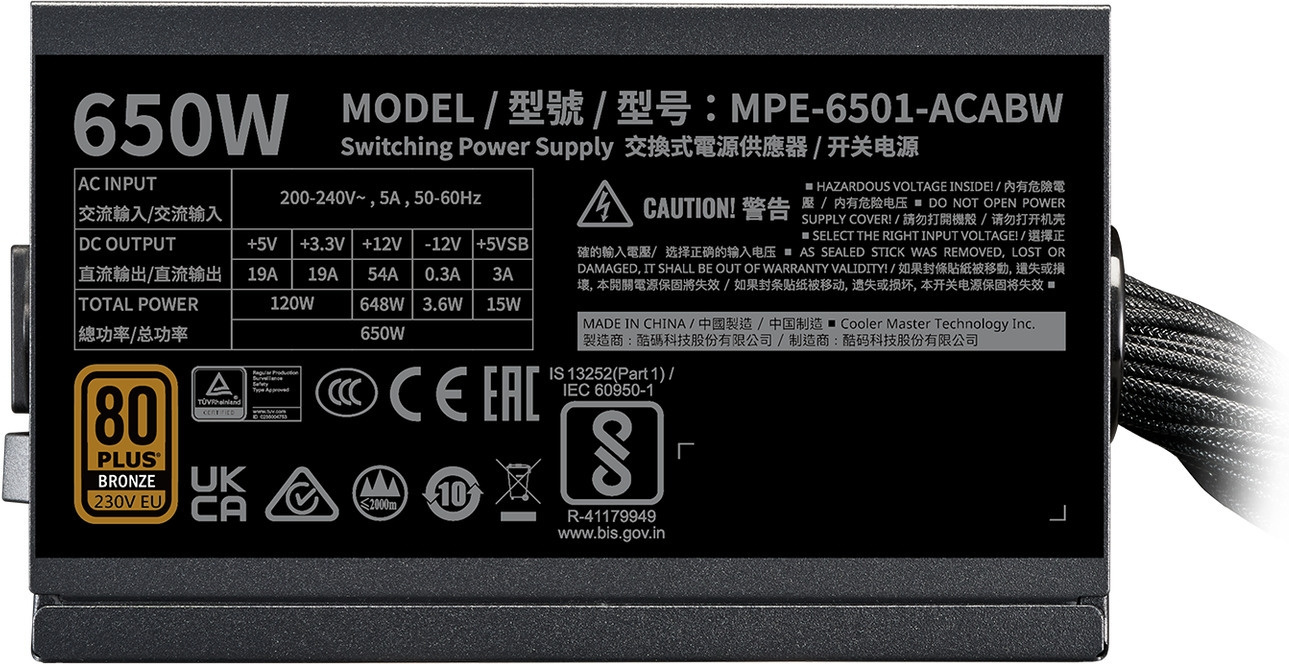

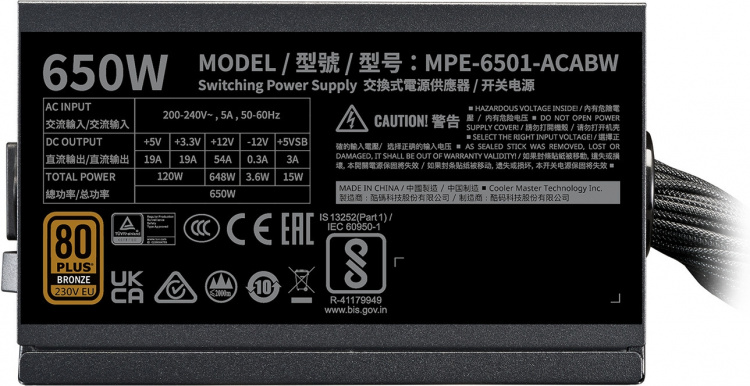

- Power: 650 W (+5V: 20 A, +3.3V: 20 A, +12V: 54 A, -12V: 0.3 A, +5Vsb: 3 A)
- 80 Plus Bronze certification
- ATX 3.1
- PCIe 5.1
- Modularity: No
- Temperature tolerance: 0 - 40°C

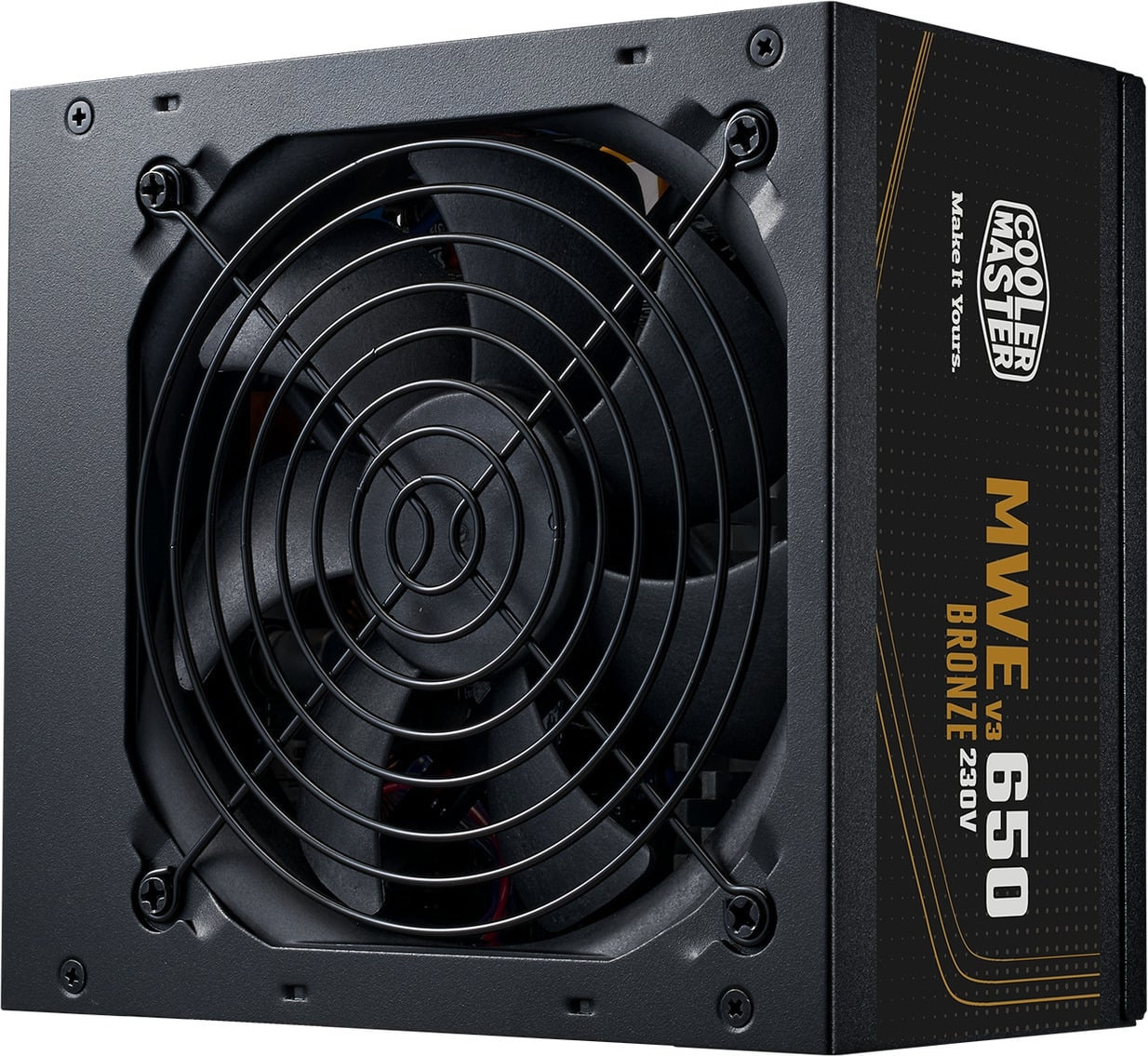

- Fan size: 120 mm
- Fan Bearing: Hydrodynamic Bearing Fan (HDB)
- ATX version: ATX 12V Ver. 3.1
- Efficiency: Over 85% at normal load
- Protection: UVP / OVP / OPP / OTP / SCP
- Dimensions: 140 x 150 x 86 mm
Connections:
- 1 x ATX 24-pin
- 2 x EPS 8-pin / 4+4-pin
- 6 x SATA
- 3 x Peripheral 4-pin
- 4 x PCIe 6+2-pin
- 650 W ATX power supply
- 80 Plus Bronze certification
- 120 mm HDB-bearing fan
- Non-modular, ATX 3.0 & PCIe 5.0
- Five-year warranty
