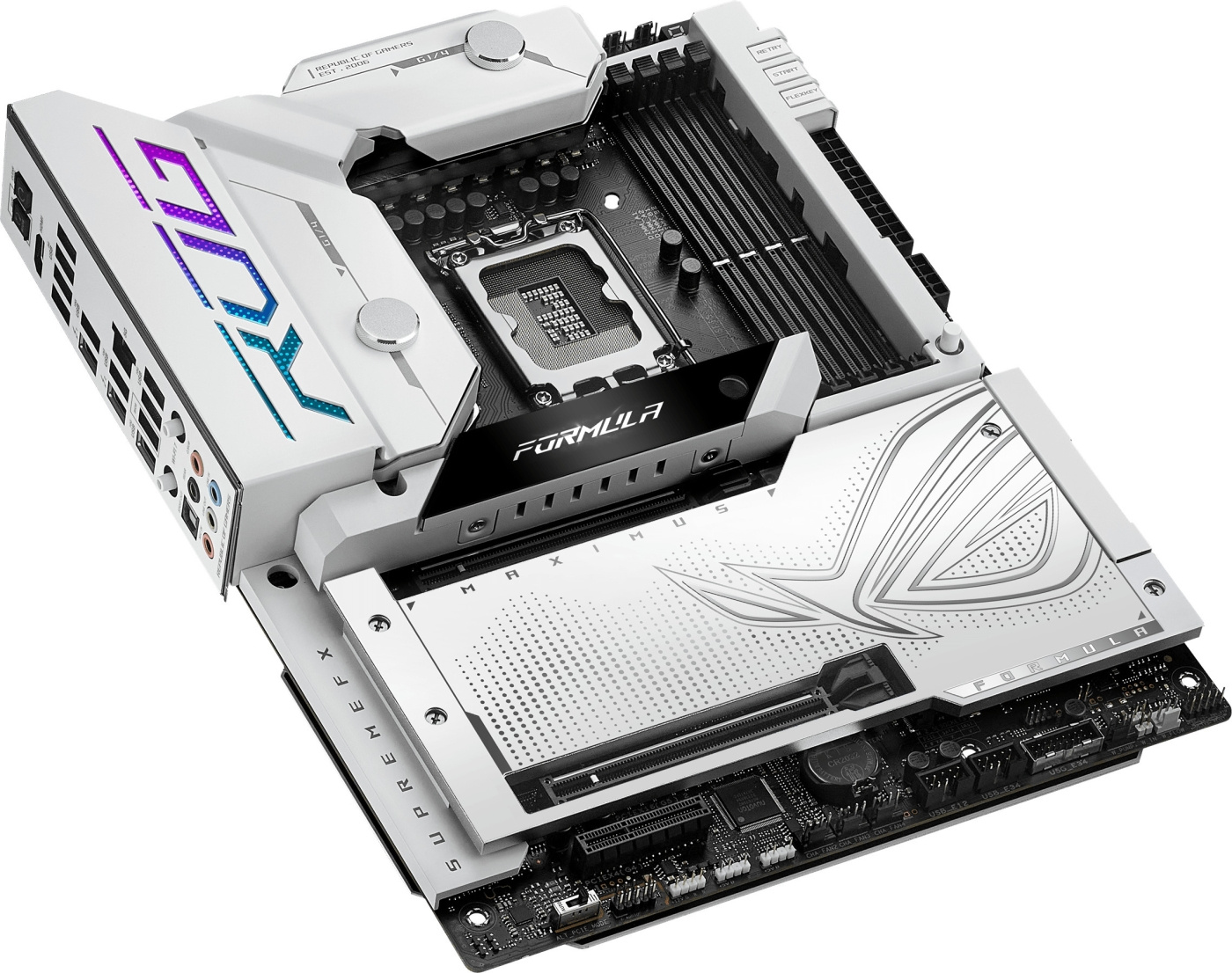

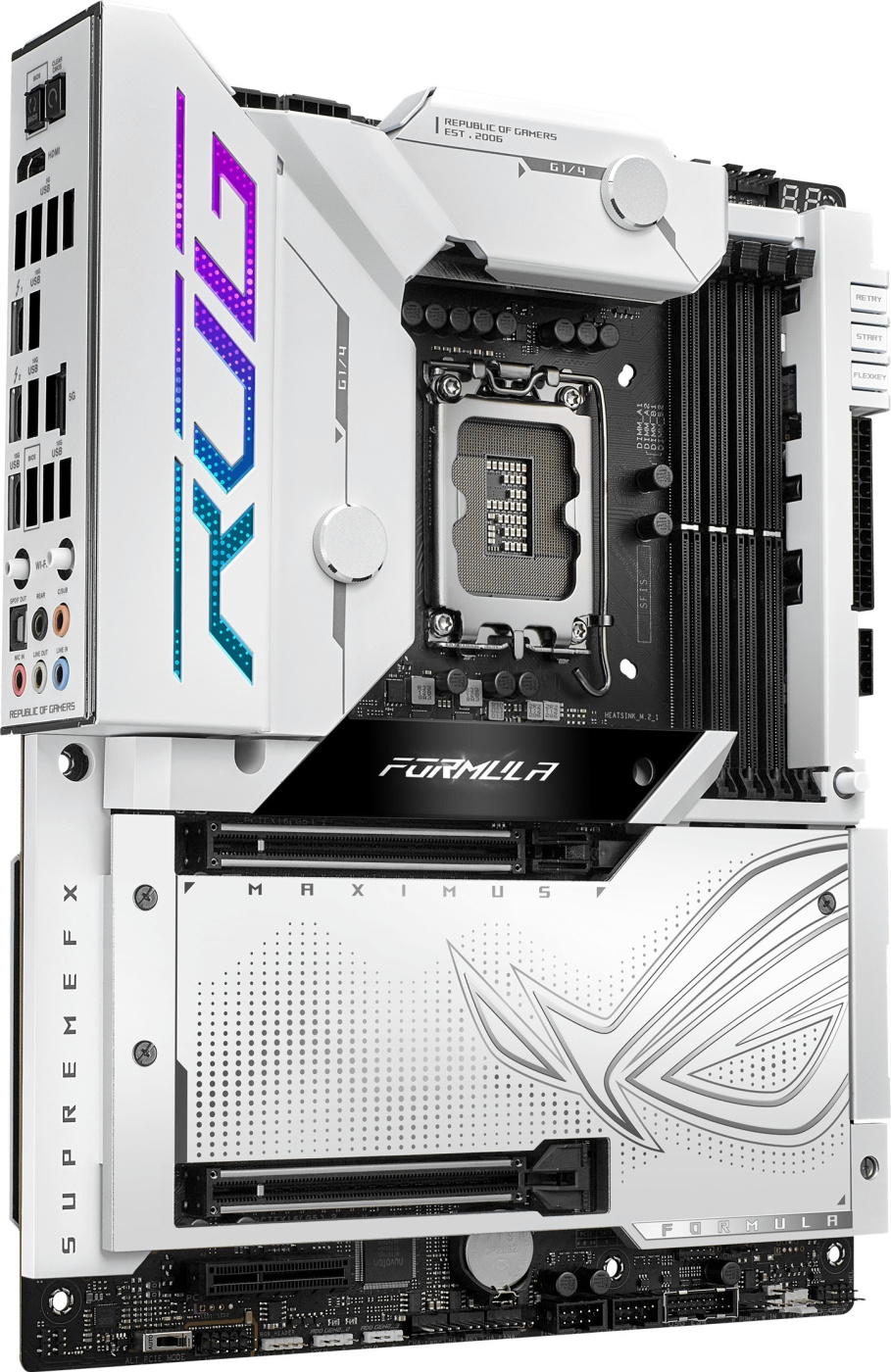

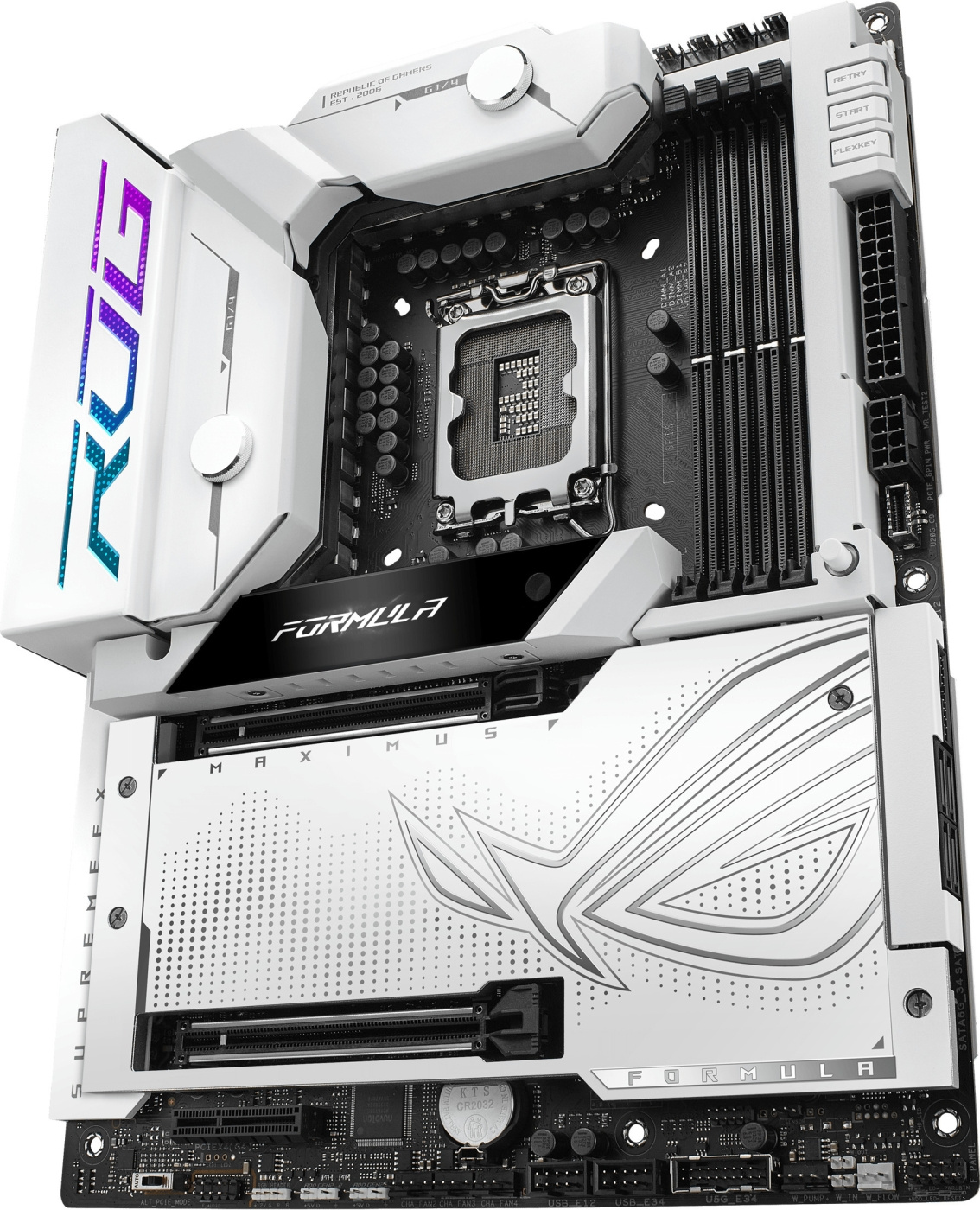

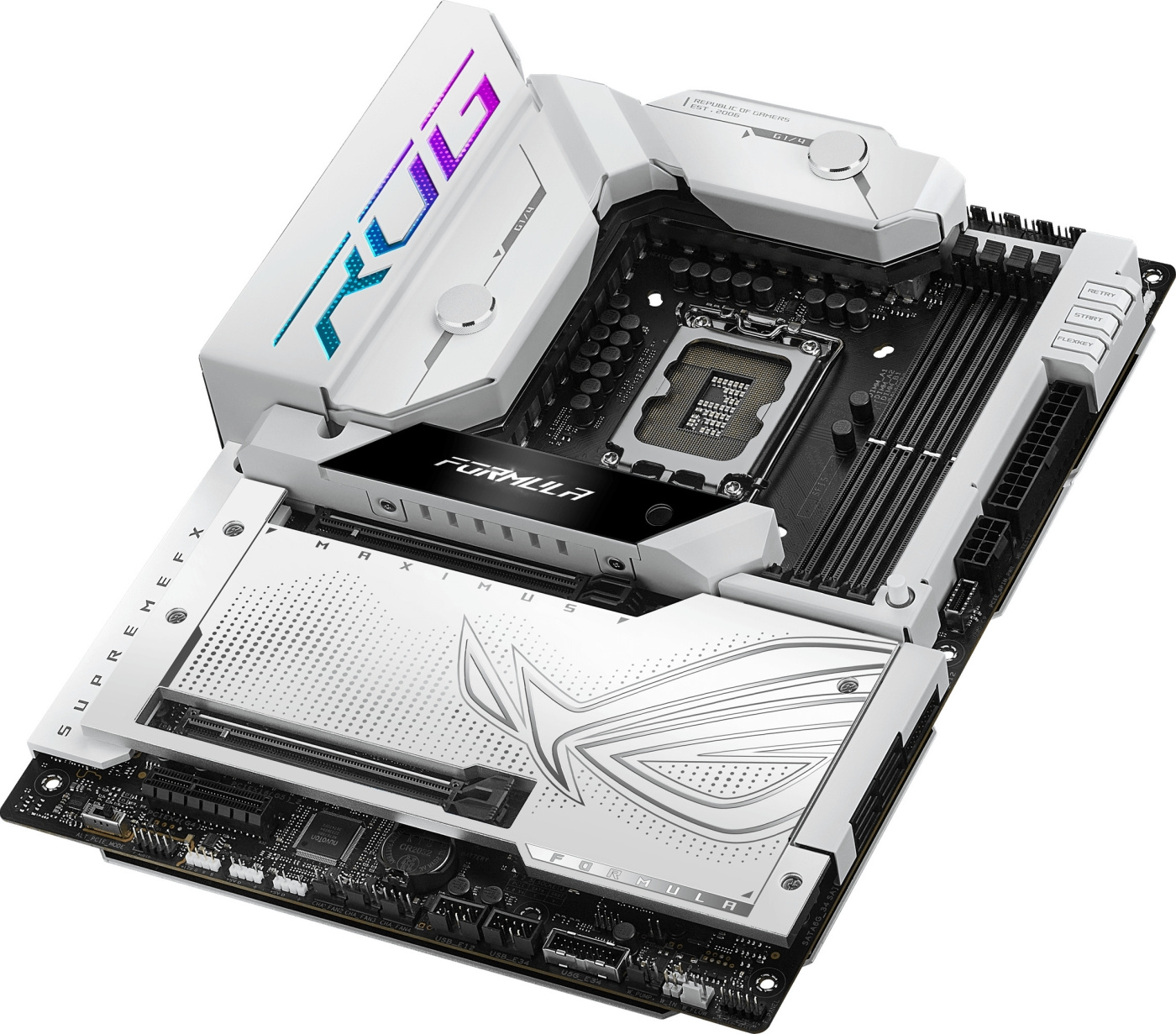

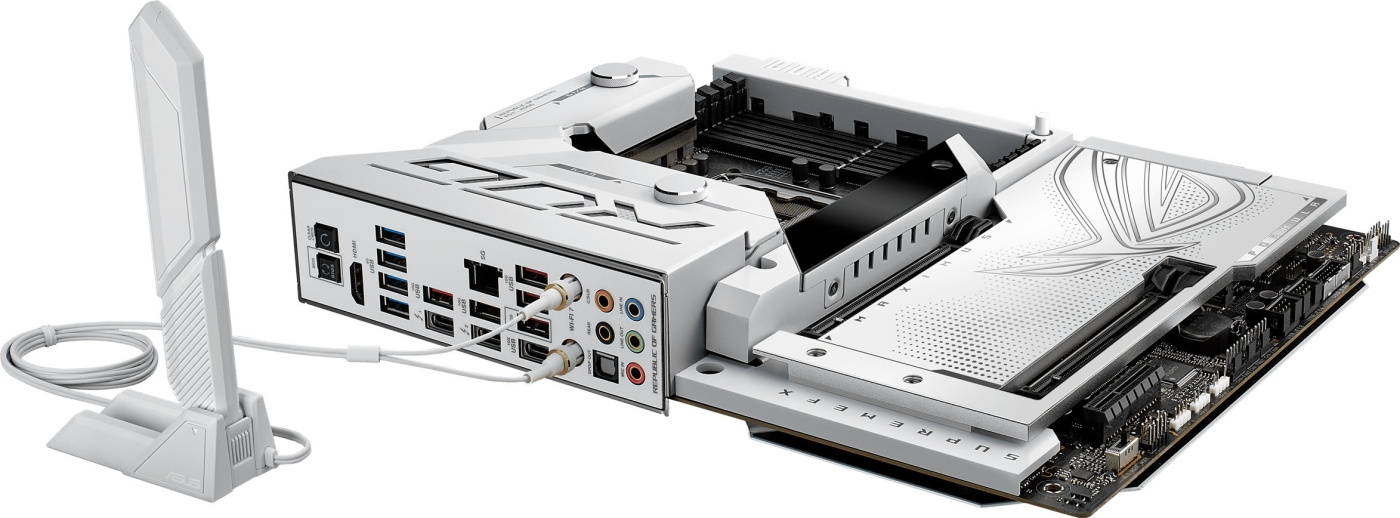

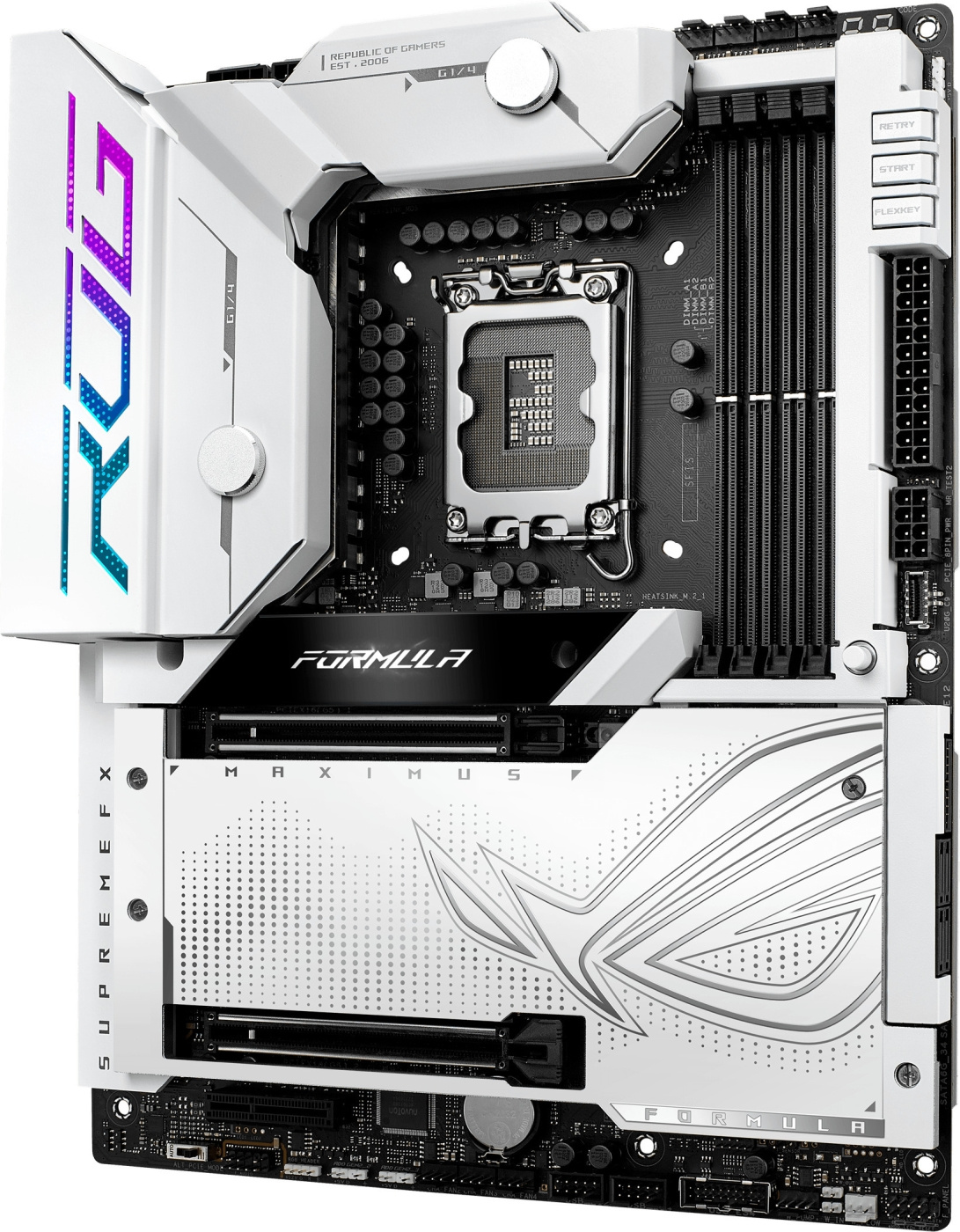

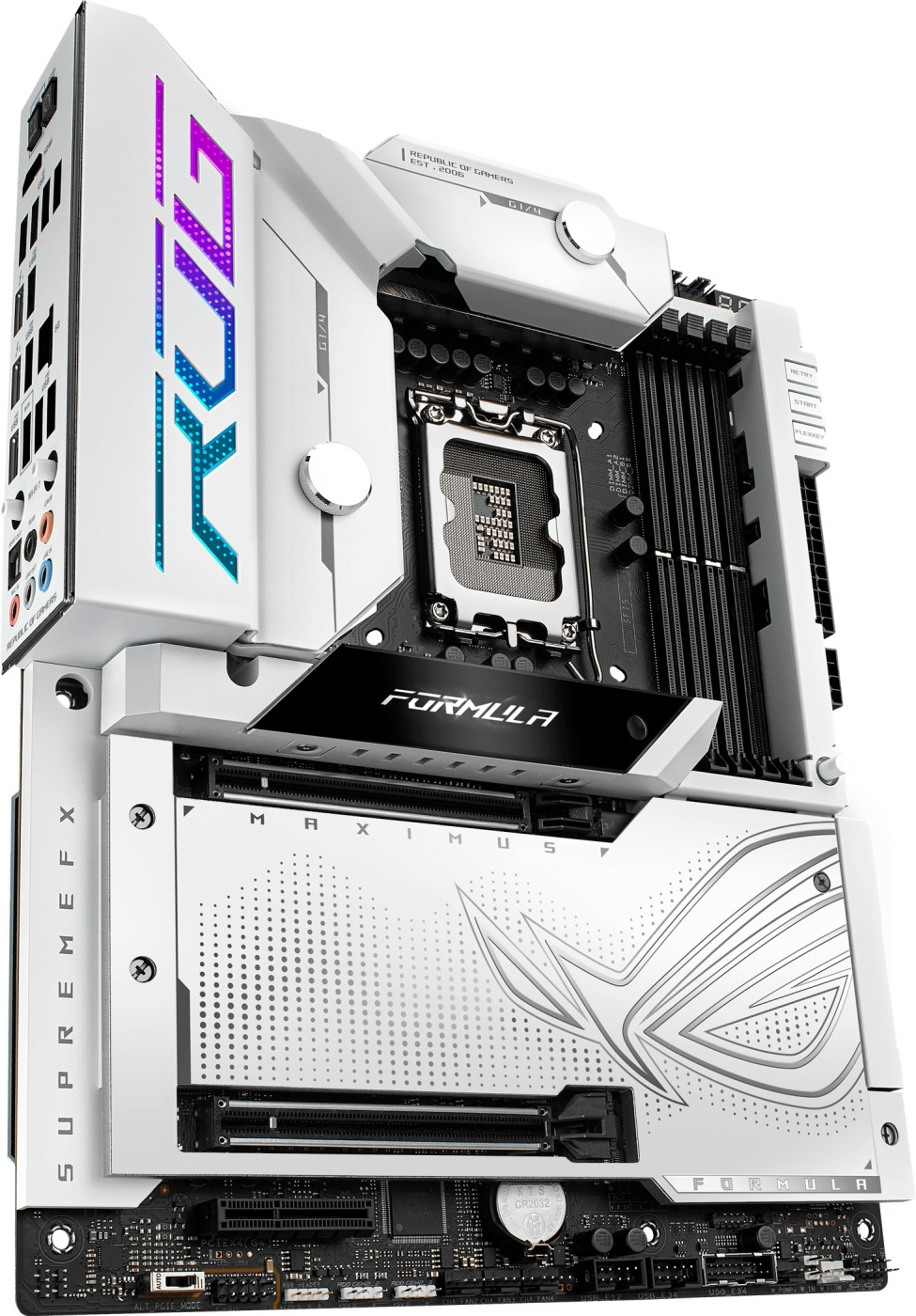

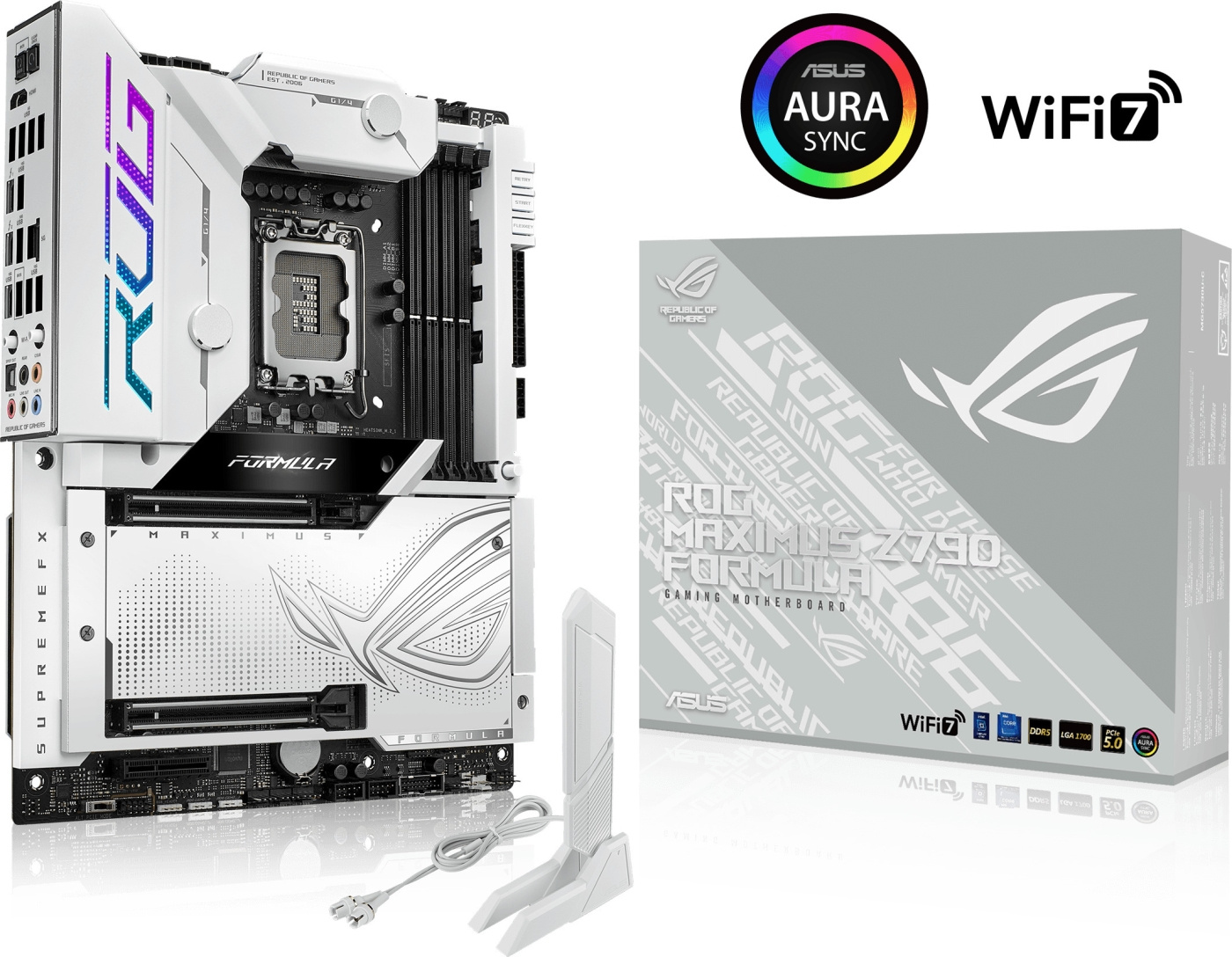

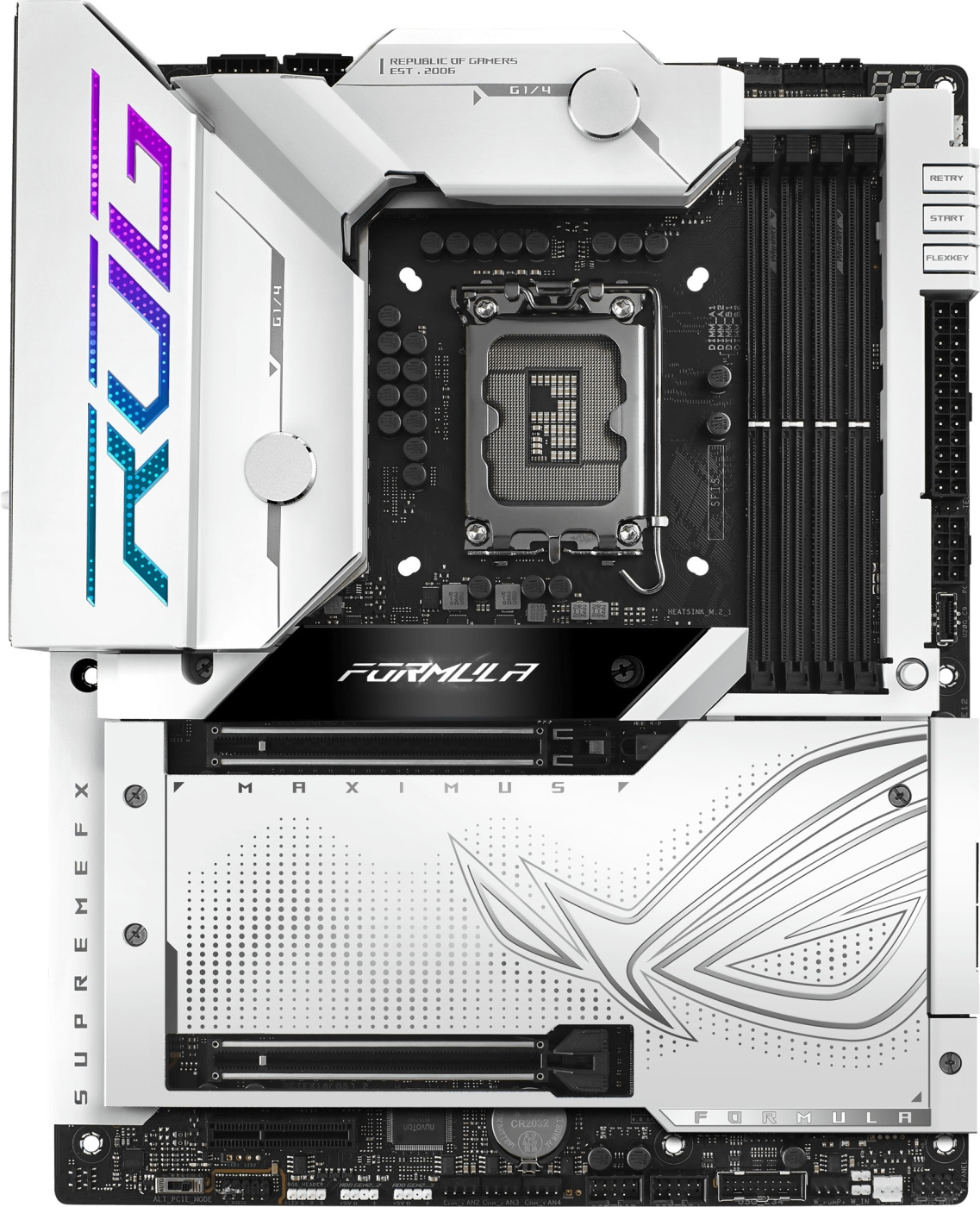

ASUS ROG Maximus Z790 Formula ATX motherboard

The ROG Maximus Z790 Formula is a high quality and stylish motherboard with ASUS' Moonlight White aesthetic. The motherboard is packed with great features like HybridChill VRM cooling system ready for Intel 14th generation processors, advanced DDR5 settings, dual PCIe 5.0 slots, support for Intel Wi-Fi 7 and customizable ARGB lighting to make your setup stand out from the crowd.

Specifications:

• Chipset: Intel Z790
• Processor core: LGA1700
• Processor support: 14th and 13th generation Intel Core, 12th generation Intel Core, Pentium Gold, Celeron series
• Motherboard size: ATX, 30.5 cm x 24.4 cm
• Memory slots (pcs): 4
• Muistityyppi: DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Maximum memory (GB): 192
• Network interfaces: Wi-Fi 7 2x2 (802.11be), 1 x Realtek 5Gb Ethernet
• Bluetooth: 5.4
• Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Expansion sites

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
• 1 x PCIe 4.0 x4 slot

Hard disk interfaces

• 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

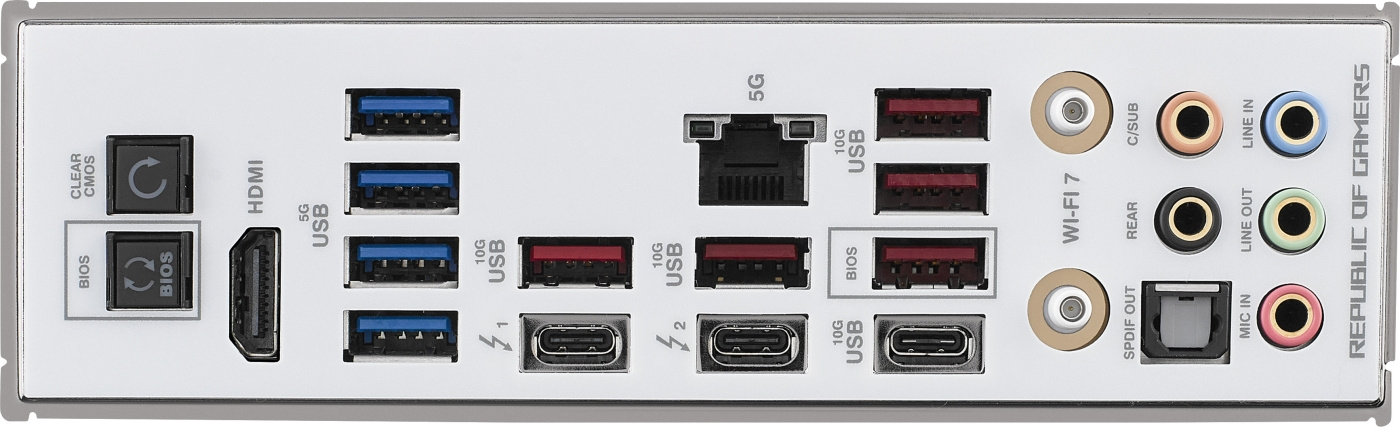

Rear panel interfaces

• 2 x Thunderbolt™ 4 USB Type-C® ports
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 5 x gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal connections

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header
• Power related
• 1 x 24-pin main power connector
• 2 x 8-pin +12V power connectors
• 1 x 8-pin PCIe power connector
• Storage related
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x Aura RGB header
• 1 x CPU over voltage jumper
• 1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin system panel header
• 1 x Thermal sensor header

• LGA 1700 ATX motherboard
• Intel Z790 chipset
• 5 x M.2 slots, 4 x SATA
• 5Gb LAN, Wi-Fi 7, BT 5.4
• For Intel 14th generation processors
