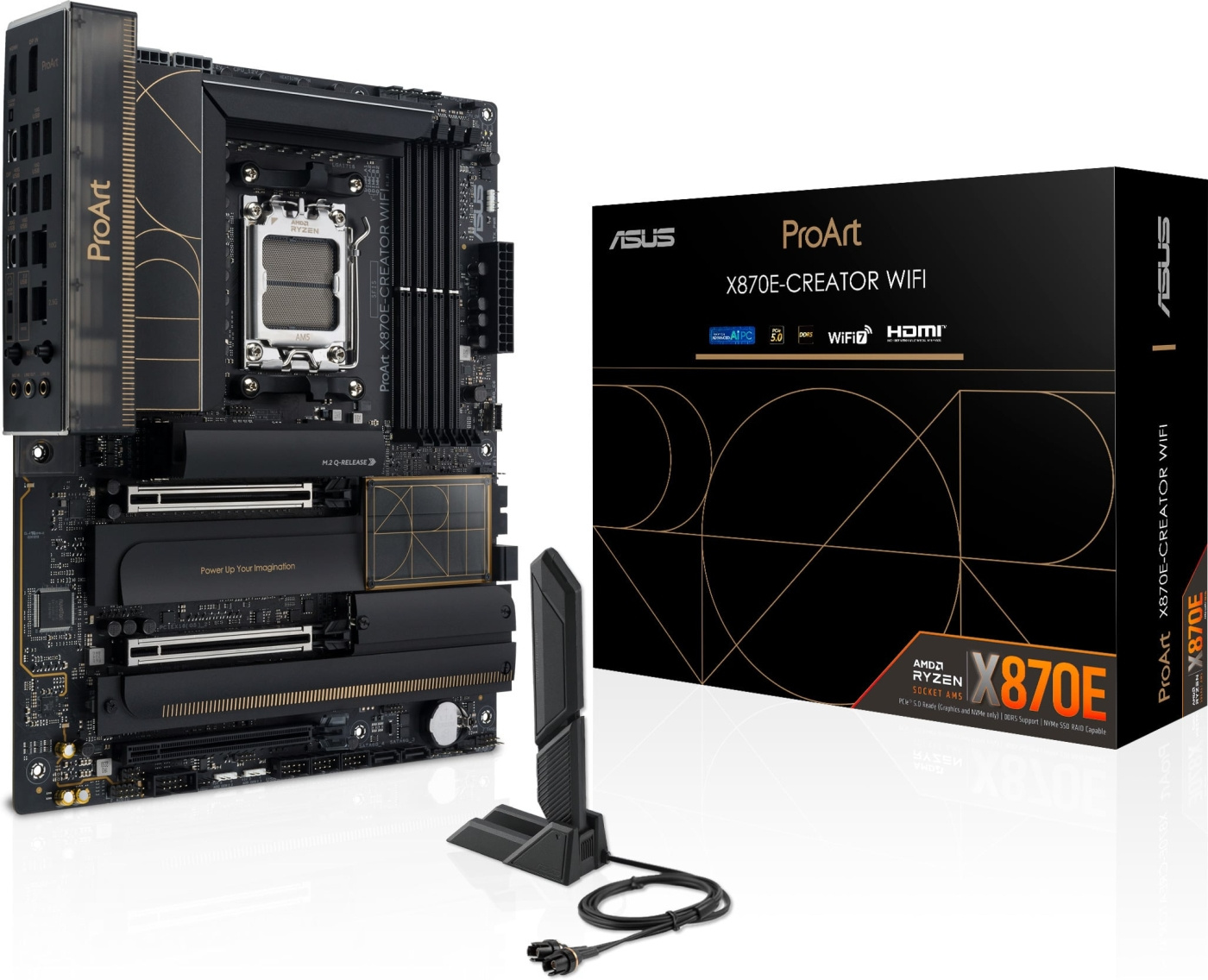

The ProArt X870E-Creator WiFi is designed to deliver top-tier performance for creative professionals of all levels, optimizing AMD Ryzen 9000-, 8000, and 7000 series processors with 16+2+2 power delivery phases, DDR5 memory slots, and PCIe 5.0 support. Lightning-fast connections, including two USB4 ports, 10G and 2.5G Ethernet, and WiFi 7, ensure top-tier connectivity.

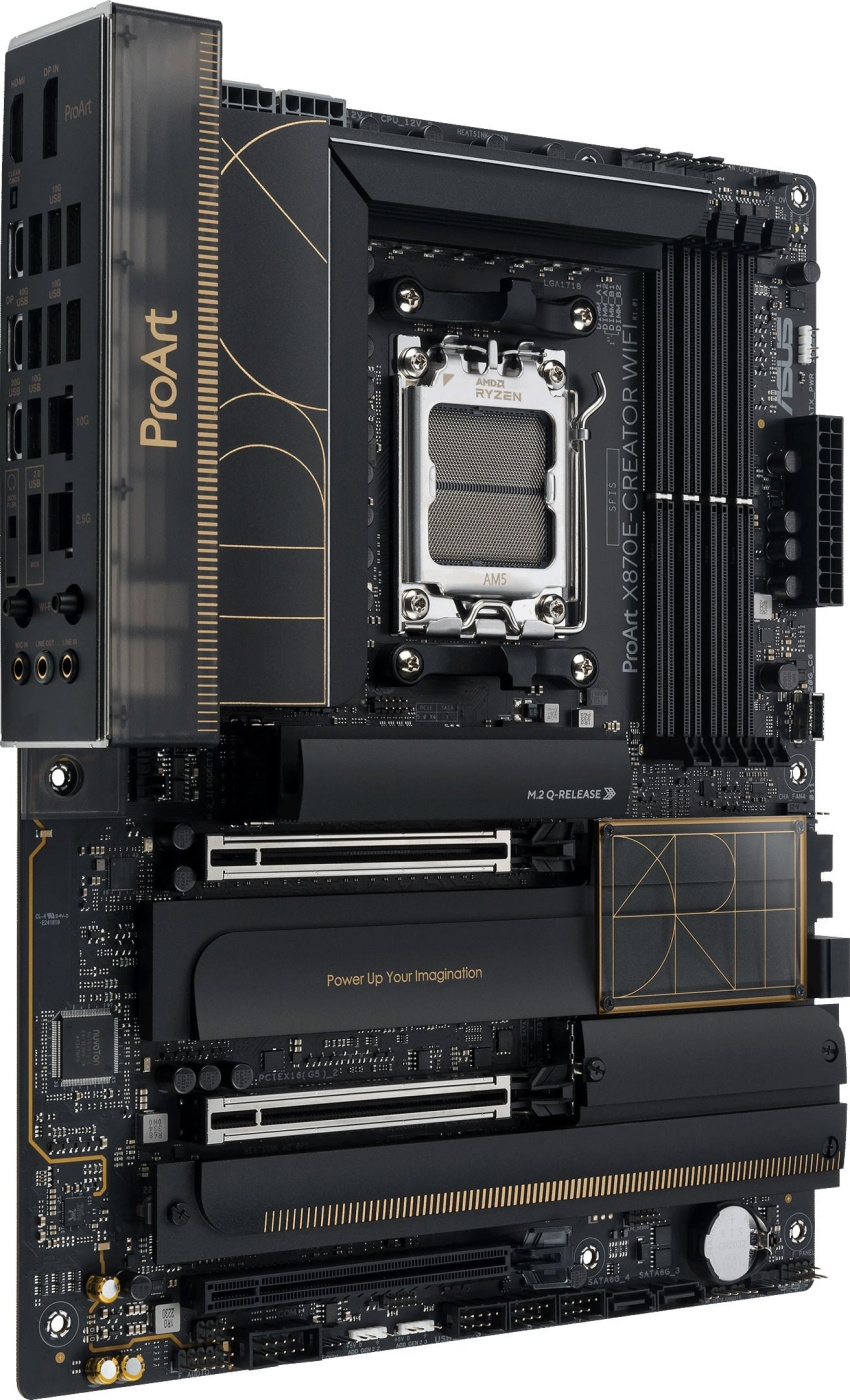

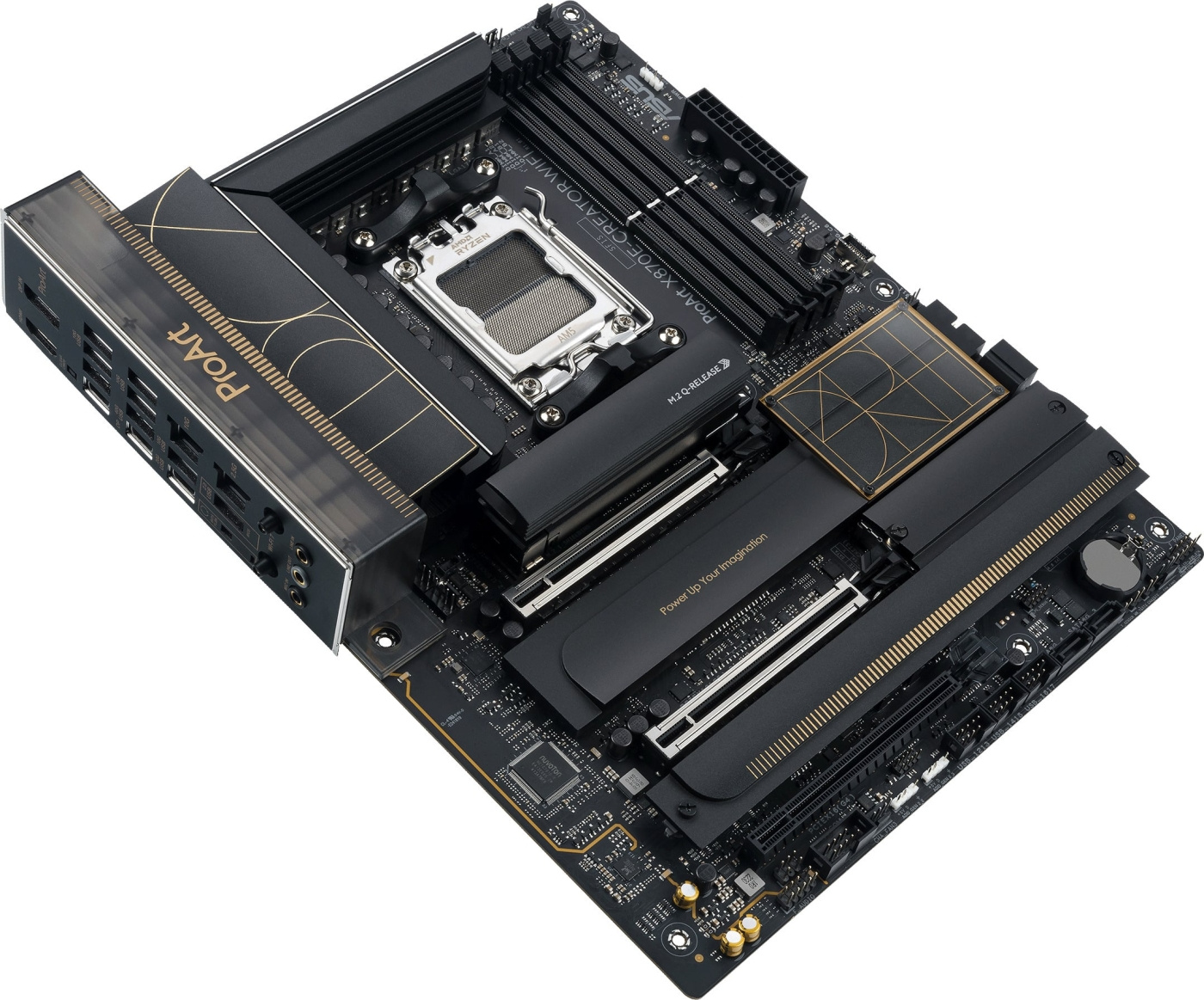

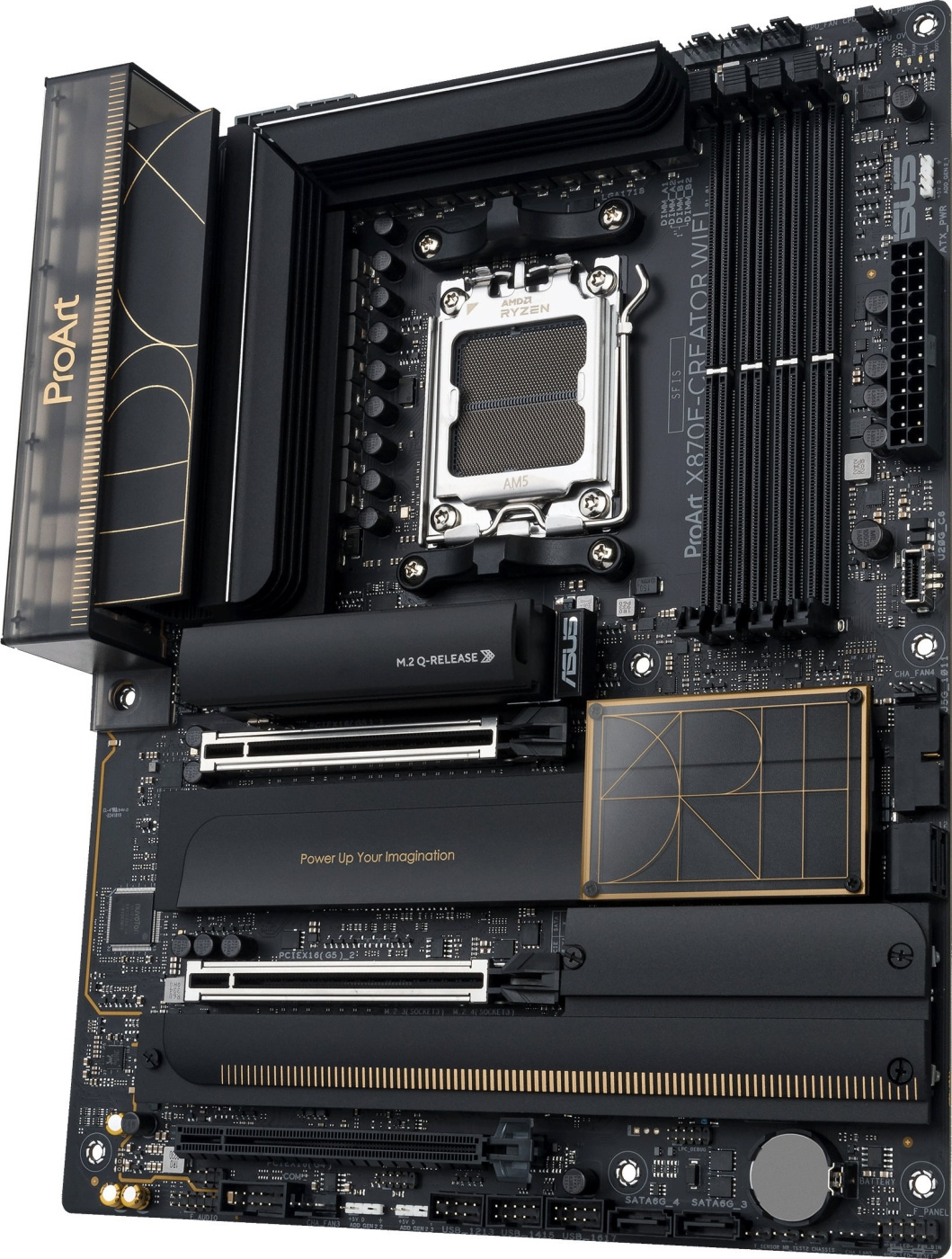

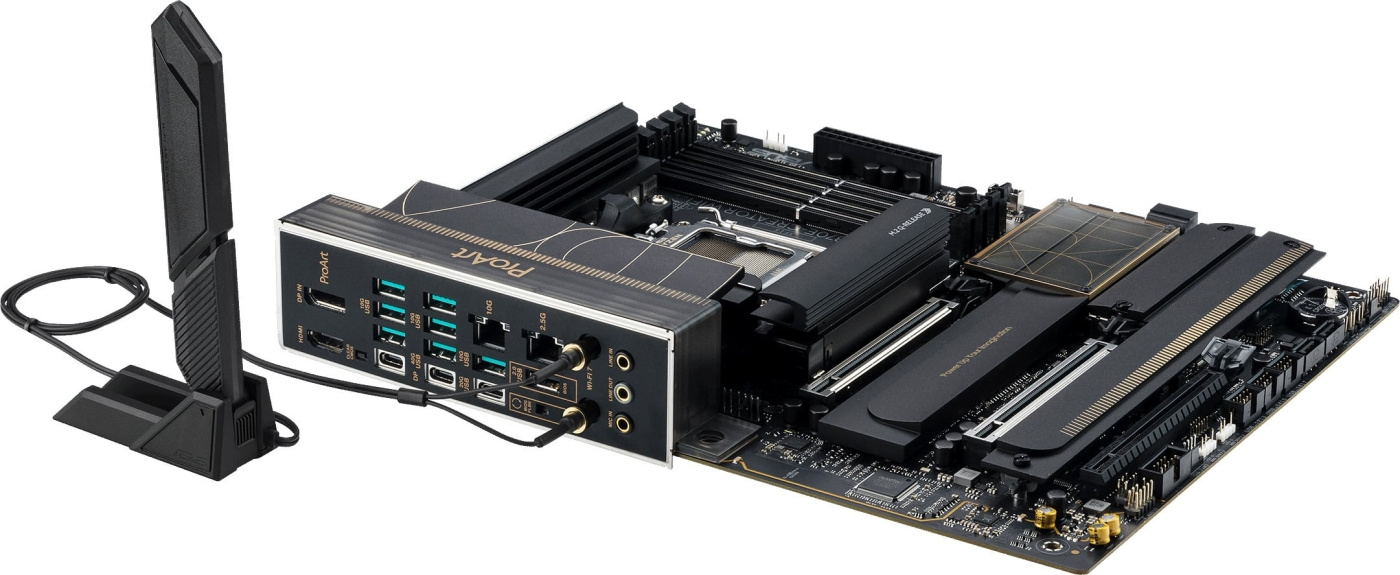

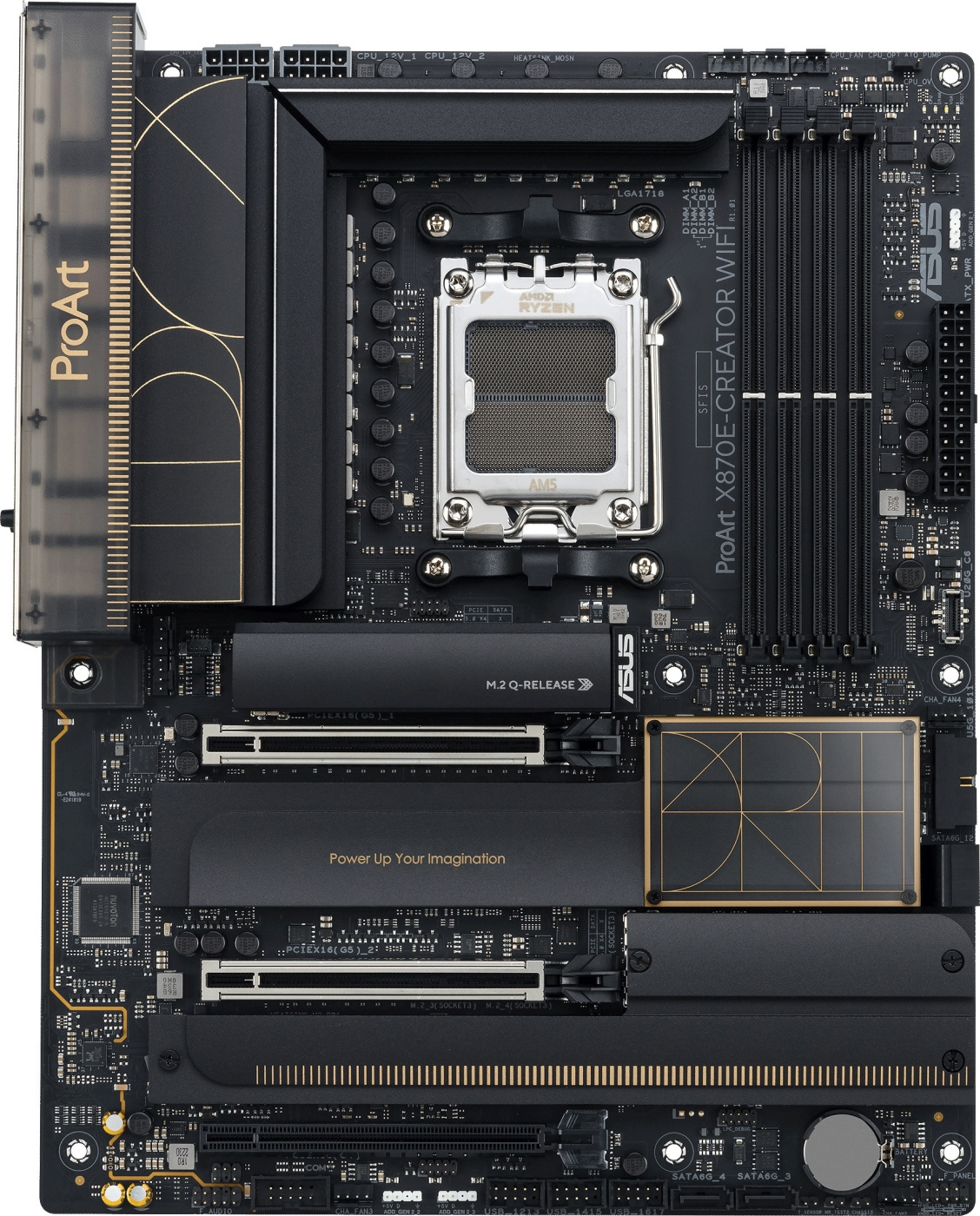

The motherboard features a professional and elegant design, combining black tones with sophisticated metallic gold accents. The translucent I/O shield offers a stylish view of the high-quality connectors.
16+2+2 power delivery phases ensure smooth and efficient power distribution, especially for overclocking.
AI Networking II and AI Overclocking make performance optimization easy, offering automatic enhancements and real-time performance fine-tuning.
AI Cooling II and one-click fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy load.
Thanks to DDR5 memory support, the motherboard can accommodate up to 192 GB of memory, and AEMP profiles help unlock the full potential of the memory.
PCIe Gen 5 support offers maximum storage speeds and hardware expansion capabilities.
Wi-Fi 7 ensures lightning-fast wireless connections.
USB4 ports offer the latest generation of data transfer speeds.
Features:
- Chipset: AMD X870E
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (number): 4
- Memory type: DDR5 (8000+MT/s(OC) with Ryzen 9000 series processors, 8000+MT/s (OC) with Ryzen 8000 series processors, 8000+MT/s (OC) with Ryzen 7000 series processors), ECC, Non-ECC, Unbuffered, Dual Channel
- Maximum memory (GB): 192
- Network interfaces: Intel 2.5Gb Ethernet, Marvell AQtion 10Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4
- Sound card: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Expansion slots:
- AMD Ryzen 9000 & 7000 series processors
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) - AMD Ryzen 8700, 8600, and 8400 series processors
: 1 x PCIe 4.0 x16 slot with Q-Release Slim (only supports PCIEX16(G5)_1 with a total bandwidth of x8; PCIEX16(G5)_2 will be disabled) - AMD Ryzen 8500 & 8300 series processors
1 x PCIe 4.0 x16 slot with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) - AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Hard drive connections:
- 4 x SATA 6Gb/s ports
- AMD Ryzen 9000 & 7000 series processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - AMD Ryzen 8000 series processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported - AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

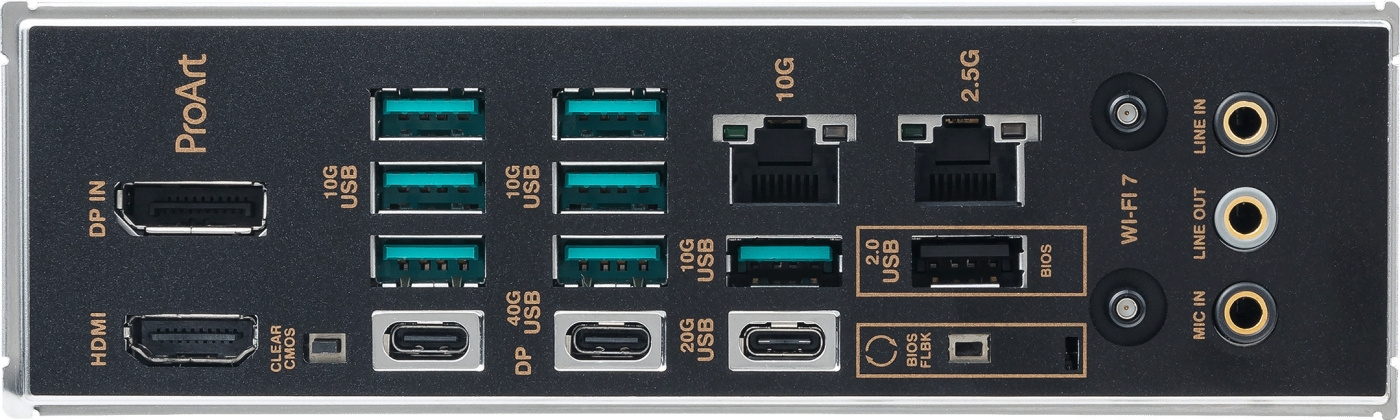

Rear panel ports:
- 2 x USB4 (40Gbps) ports (2 x USB Type-C)
- 1 x USB 20Gbps port (1 x USB Type-C)
- 7 x USB 10Gbps ports (7 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort (Input only)
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Marvell AQtion 10Gb Ethernet
- 1 x Intel 2.5Gb Ethernet
- 3 x Audio jacks
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal Connectors:
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers - Power-related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors - Storage-related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) supporting 2 additional USB 5Gbps ports
3 x USB 2.0 headers supporting 6 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
- AMD AM5 ATX motherboard
- AMD X870E chipset
- 10G & 2.5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
