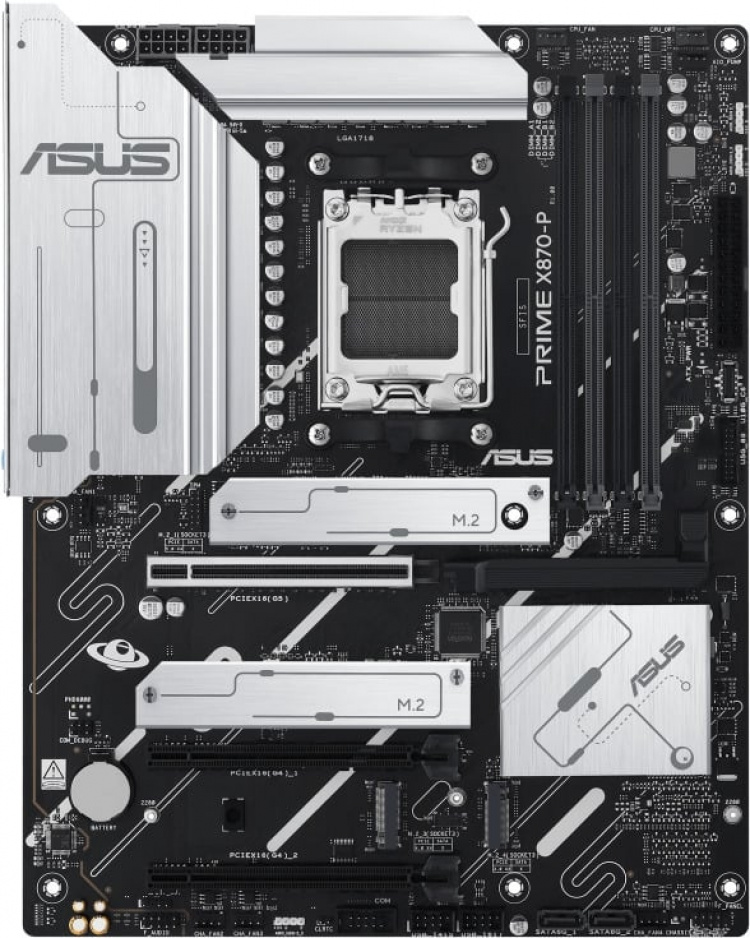

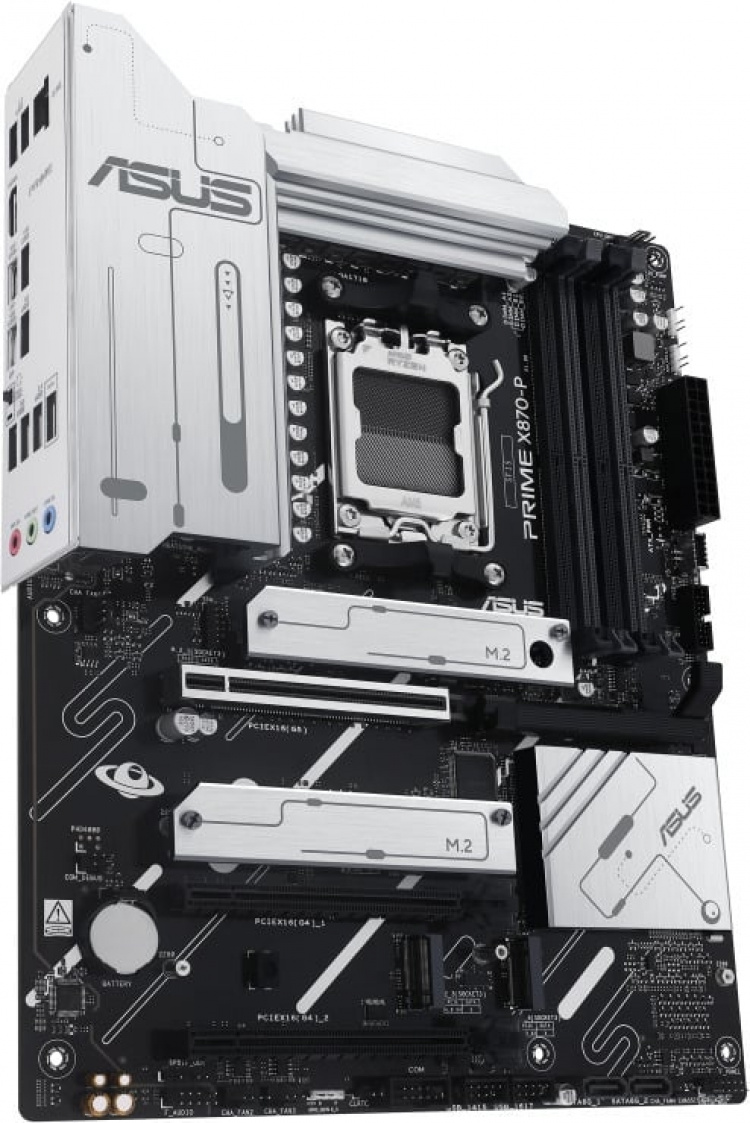

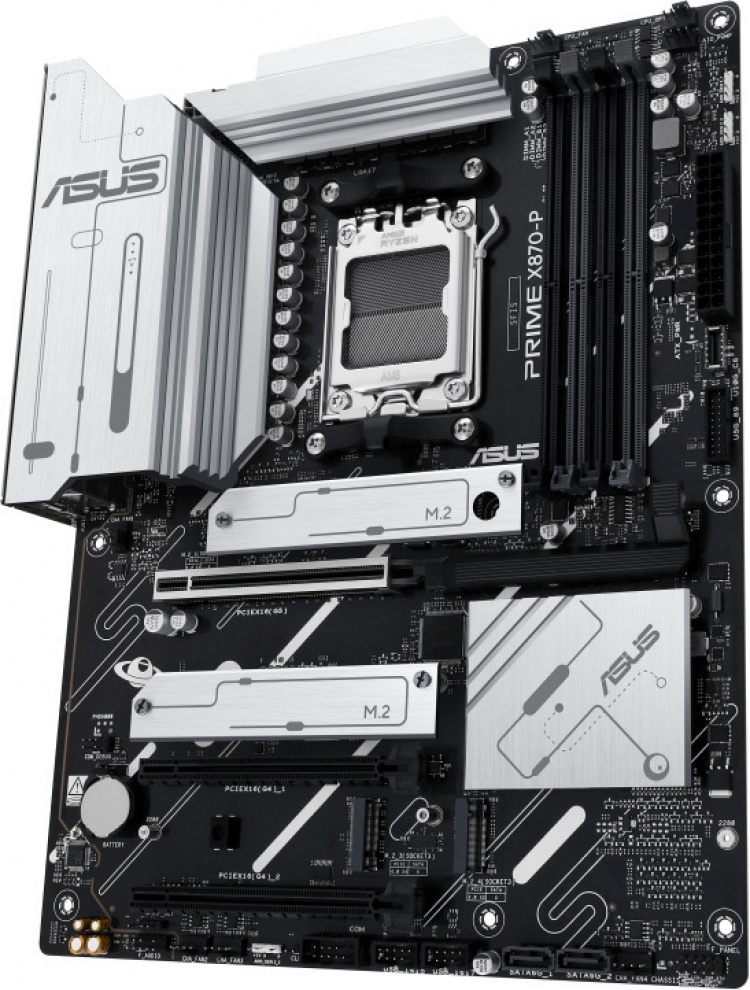

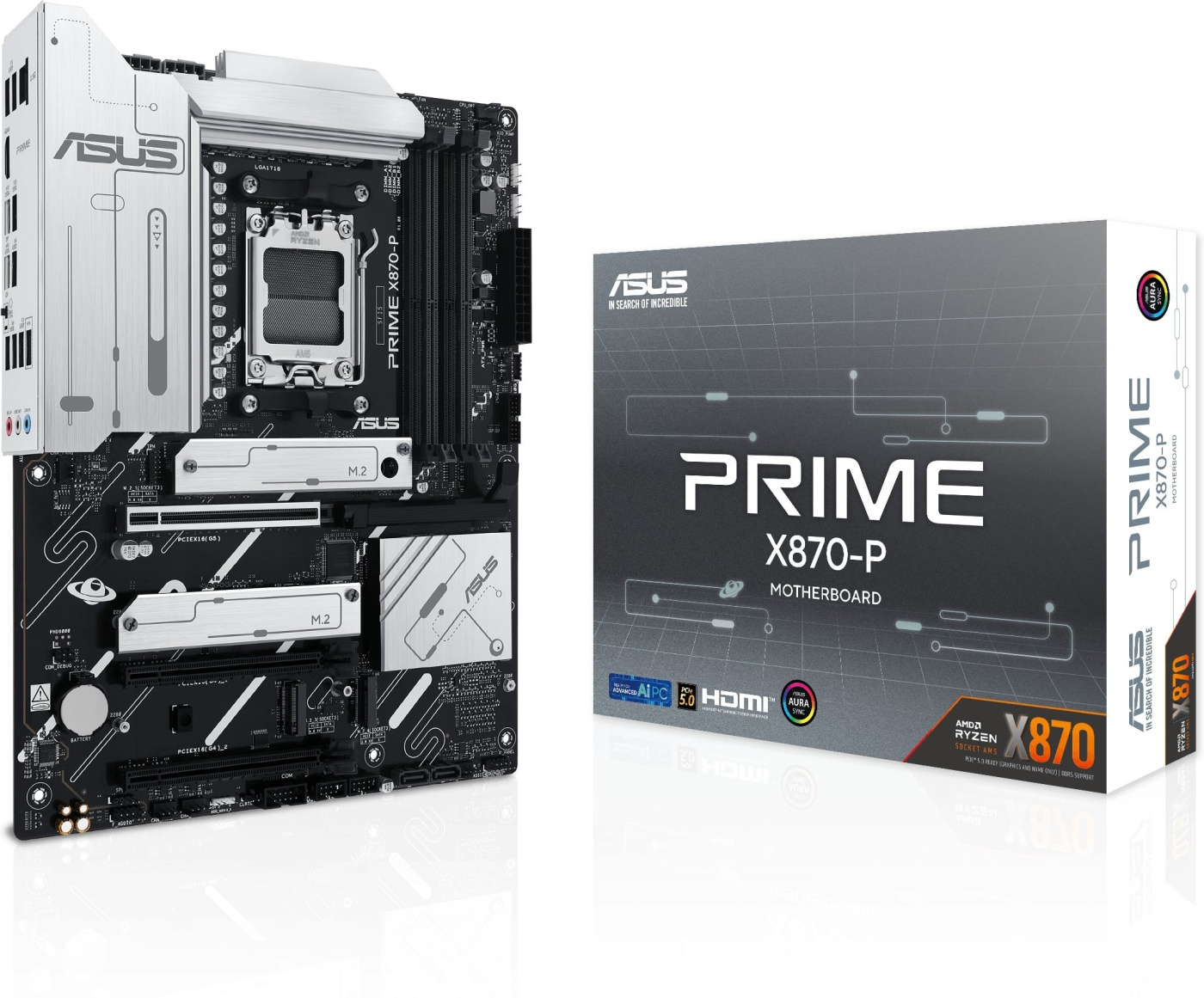

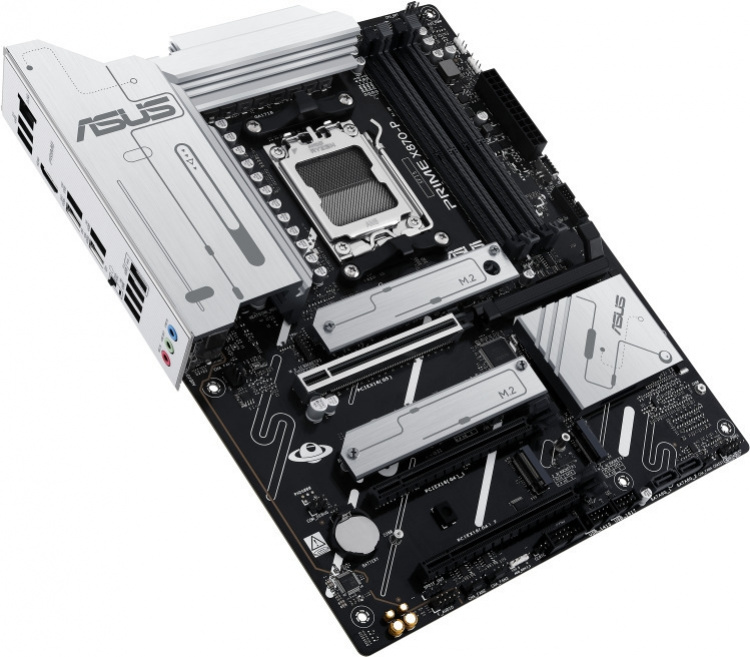

ASUS Prime series motherboards are designed to maximize the performance of AMD Ryzen 9000 series processors. The PRIME X870-P motherboard combines robust power delivery, efficient cooling, and intelligent tuning features, offering versatile performance optimization options with easy-to-use tools. The motherboard is optimized for advanced AI applications, providing the necessary power and connectivity for the most demanding AI workloads.
14+2+1 power delivery phases ensure smooth and efficient power distribution, especially for overclocking.
AI Networking II and AI Overclocking make performance optimization easy, offering automatic enhancements and real-time performance fine-tuning.
AI Cooling II and one-click fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy load.
Thanks to DDR5 memory support, the motherboard can accommodate up to 192 GB of memory, and AEMP profiles help unlock the full potential of the memory.
PCIe Gen 5 support delivers maximum storage speeds and hardware expansion capabilities.
USB4 ports offer the latest generation of data transfer speeds.
Features:
- Chipset: AMD X870
- Socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series

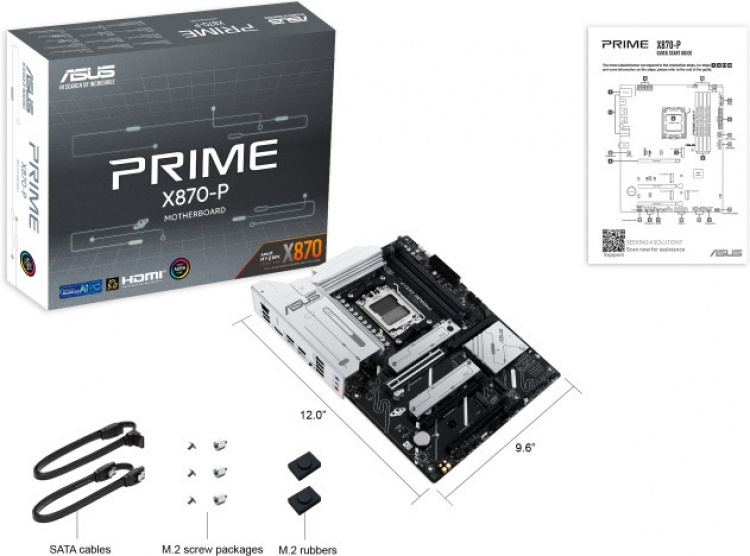

- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (number): 4
- Memory type: DDR5 (8000+ MT/s (overclocked) with Ryzen 9000, 8000, and 7000 series processors), ECC, Non-ECC, Unbuffered, Dual Channel
- Maximum memory (GB): 192
- Network connections: 1 x Realtek 2.5Gb Ethernet
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion slots:
- AMD Ryzen 9000 & 7000 series processors:
1 x PCIe 5.0 x16 slot (supports x16 mode) - AMD Ryzen 8000 series processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - AMD X870 Chipset
3 x PCIe 4.0 x16 slots (supports x4 mode)
Hard drive connections:
- 2 x SATA 6Gb/s ports
- AMD Ryzen 9000 & 7000 series processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) - AMD Ryzen 8000 series processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)

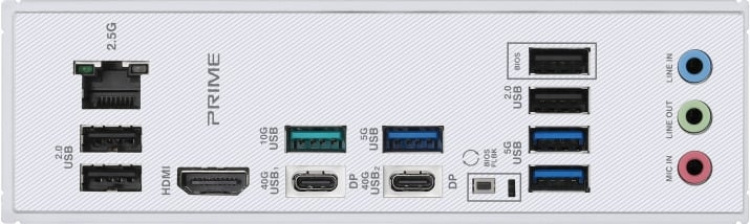

Rear panel ports:
- 2 x USB4 (40Gbps) ports (2 x USB Type-C)
- 1 x USB 10Gbps port (1 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x HDMI port
- 1 x Realtek 2.5 Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack button
Internal Connectors:
- Fan and cooling related
1 x 4-pin CPU fan header
1 x 4-pin CPU OPT fan header
1 x 4-pin AIO pump header
4 x 4-pin chassis fan headers - Power-related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors - Storage-related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports - USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
- AMD AM5 ATX motherboard
- AMD X870 chipset
- 2.5G LAN Ethernet
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
