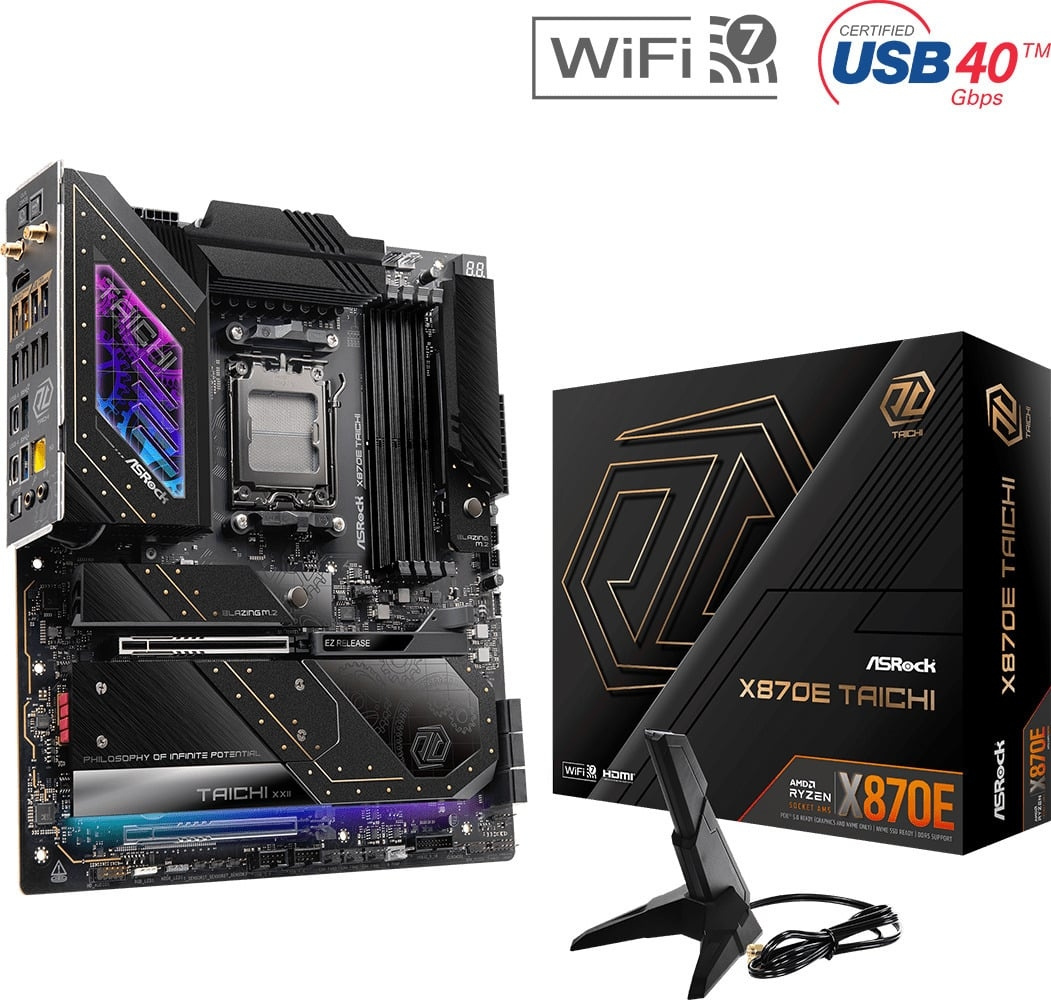

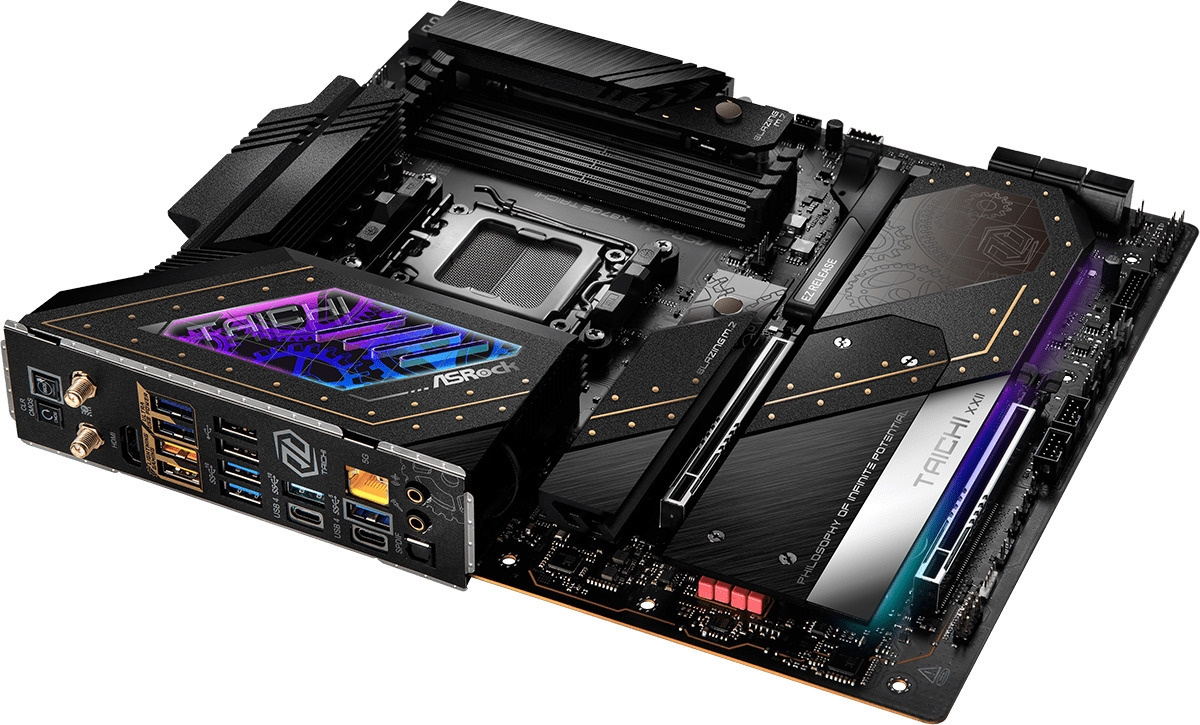

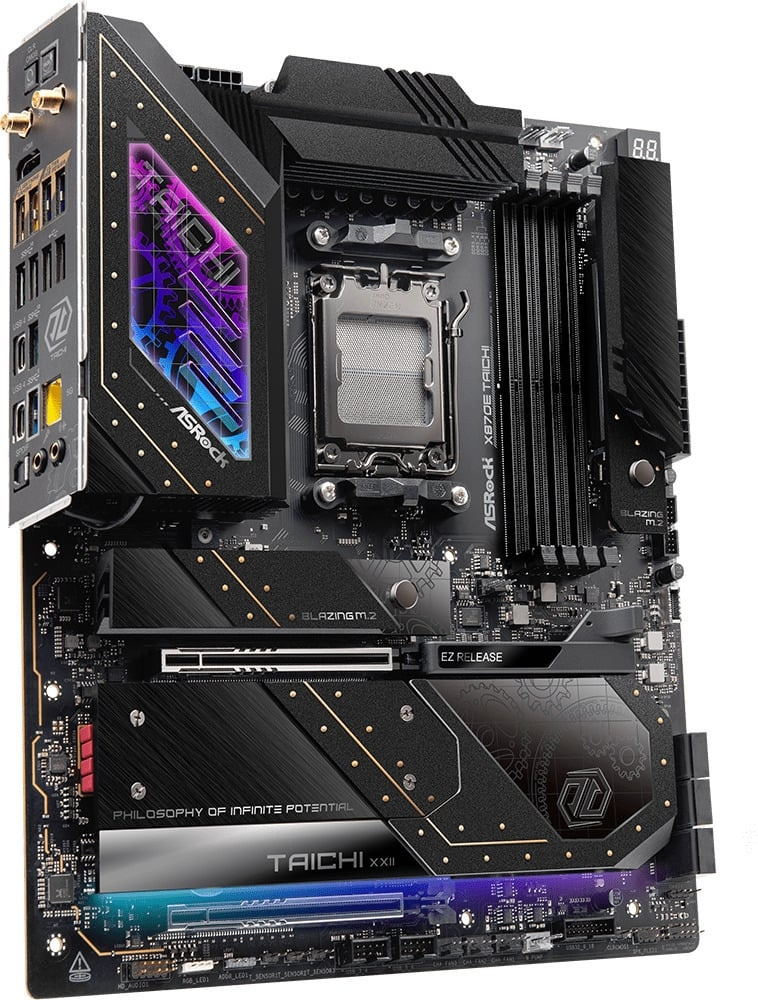

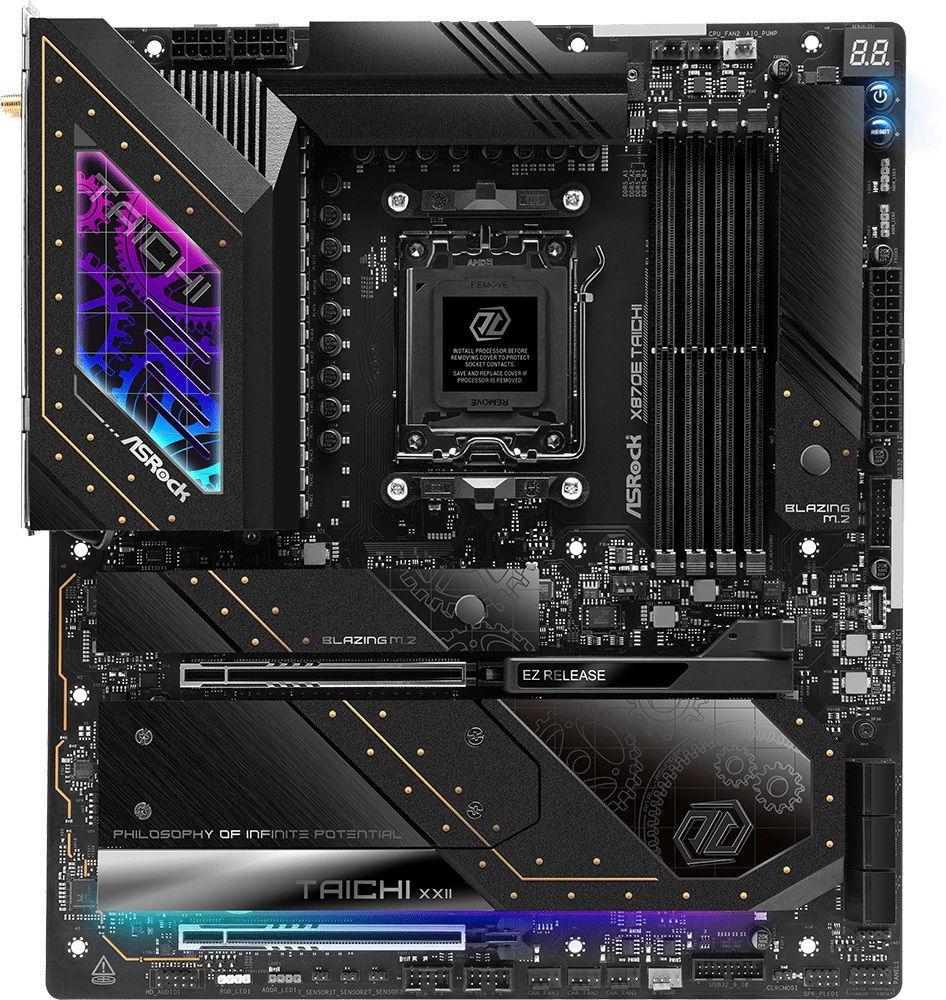

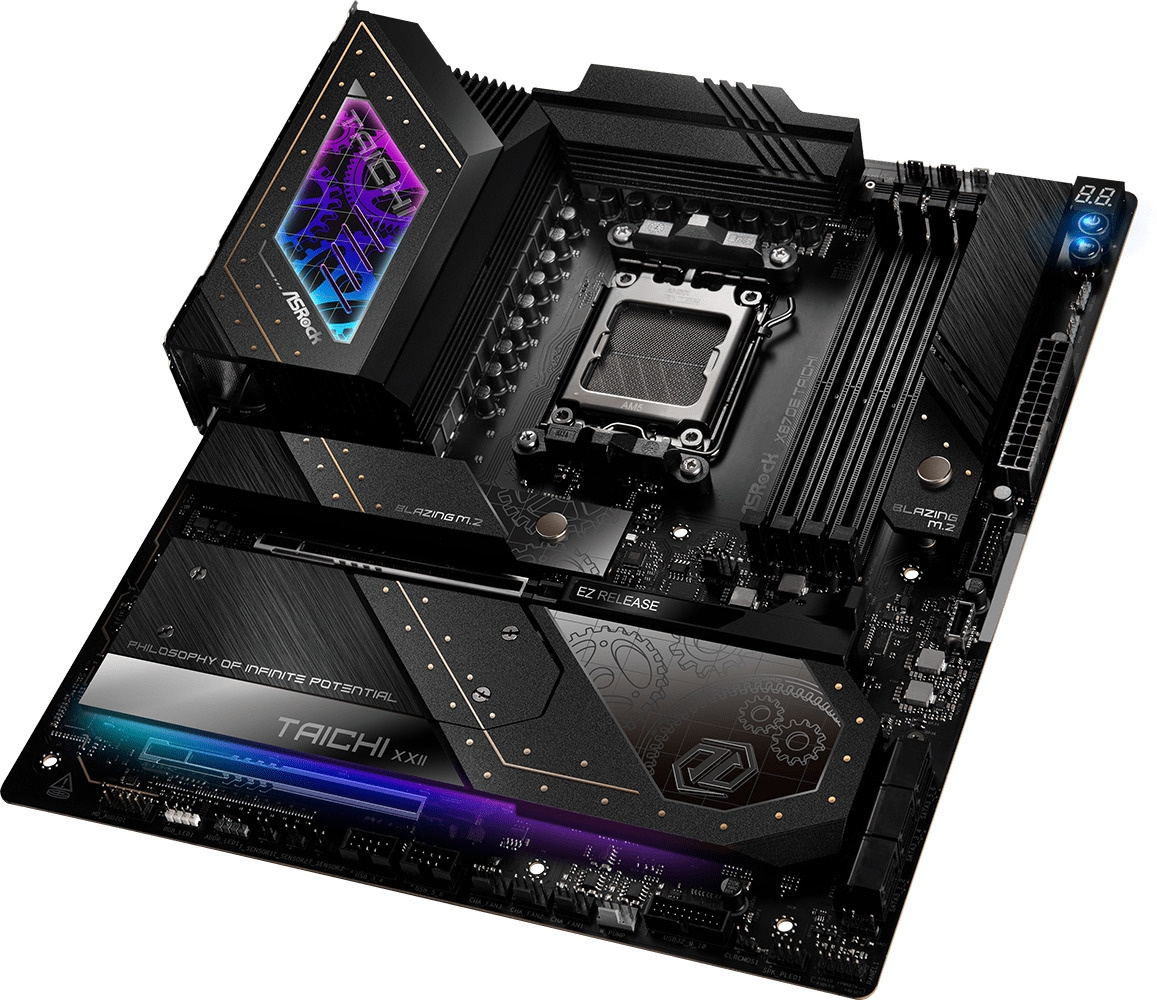

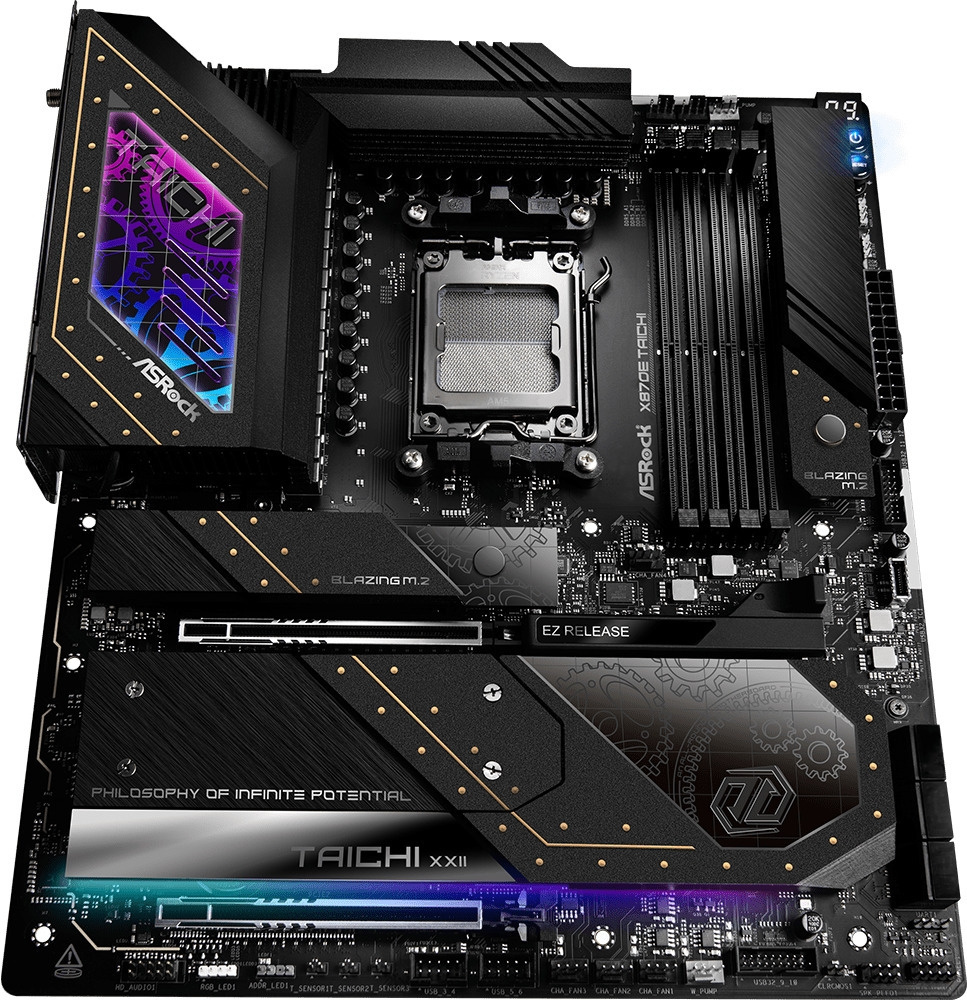

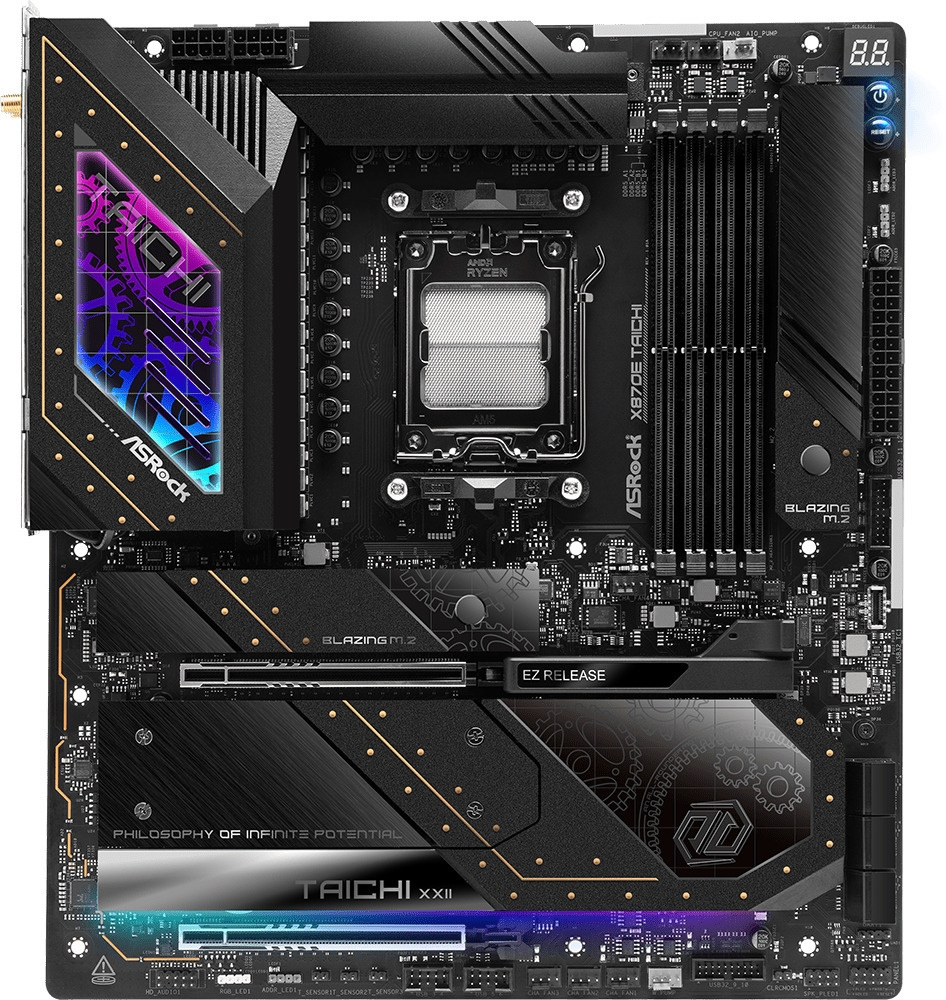

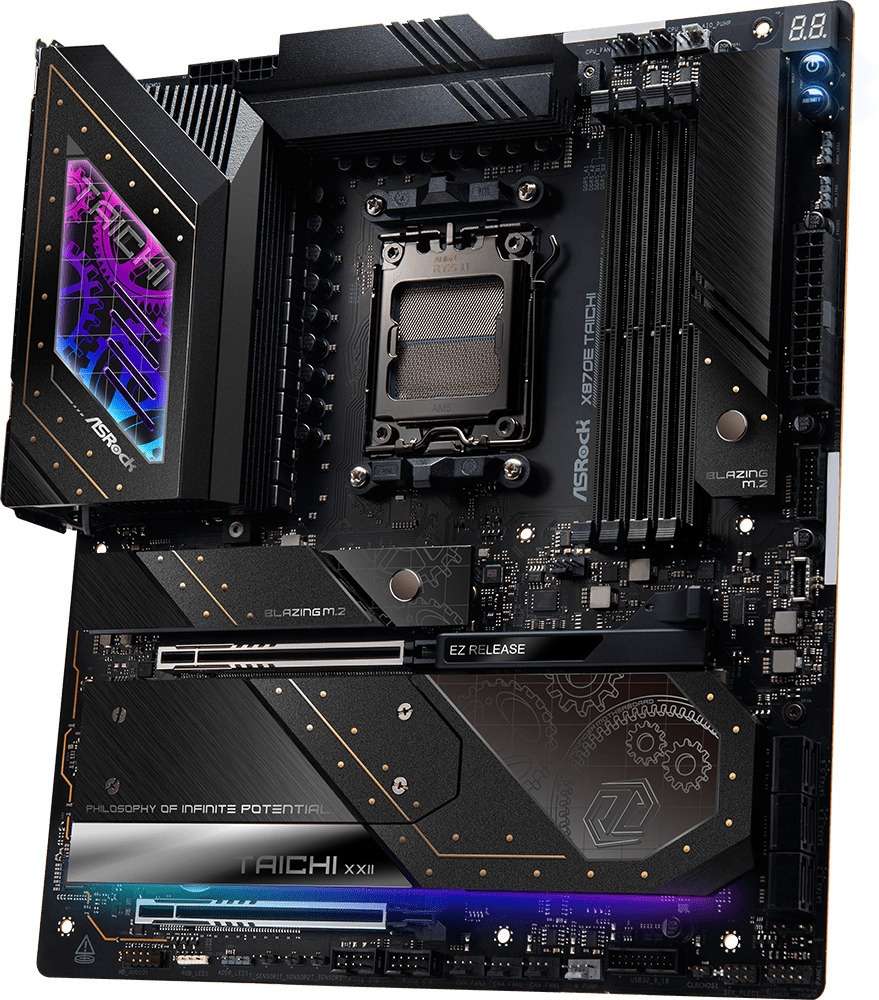

ASRock The X870E Taichi is a top-of-the-line AM5-socket E-ATX motherboard for Ryzen 7000/8000/9000 series processors.
The Taichi represents the manufacturer's flagship lineup and is aimed at users who refuse to compromise on any aspect of their high-performance build. The motherboard is crafted from the highest-quality raw materials and components, making it the perfect foundation for building an awe-inspiring gaming rig or high-performance workstation. The
X870E Taichi features an innovative design and modern materials. A motherboard that handles every task—Taichi style!
ASRock Polychrome RGB Sync
Control all LED accessories in your setup via ASRock's dedicated app. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized to create a spectacular light show. The ASRock app is Razer Chroma-compatible, and supported peripherals can also be controlled through the same program.
- Supports AMD Ryzen 9000, 8000, and 7000 series processors
- 24+2+1-phase power delivery
- 4 x DDR5 DIMM memory slots, supports up to 8200 MHz+ (OC)
- 2 x PCIe 5.0 x16
- 4 x M.2 slots, 6 x SATA
- 5G LAN, Wi-Fi 7 + Bluetooth
Features:
- Chipset: AMD X870E
- Socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: E-ATX (30.5 x 26.7 cm)
- Memory slots (qty): 4
- Memory type: DDR5 (Dual Channel), ECC/non-ECC, unbuffered, up to 8200+(OC) MHz
- Maximum memory (GB): 256
- Network connections: Realtek RTL8126 5 Gigabit LAN, Wi-Fi 7 (802.11be 2x2), Bluetooth 5.4
- Sound card: 5.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9219 DAC Rear Panel Audio, Nahimic Audio
Expansion slots
- CPU
2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), supports x16 or x8/x8 modes - Chipset
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Hard Drive Connections
- 6 x SATA 6Gb/s ports
- CPU
1 x Blazing M.2 Socket (M2_1, Key M), supports Type 2280 PCIe Gen5x4 (128 Gb/s) mode - Chipset
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

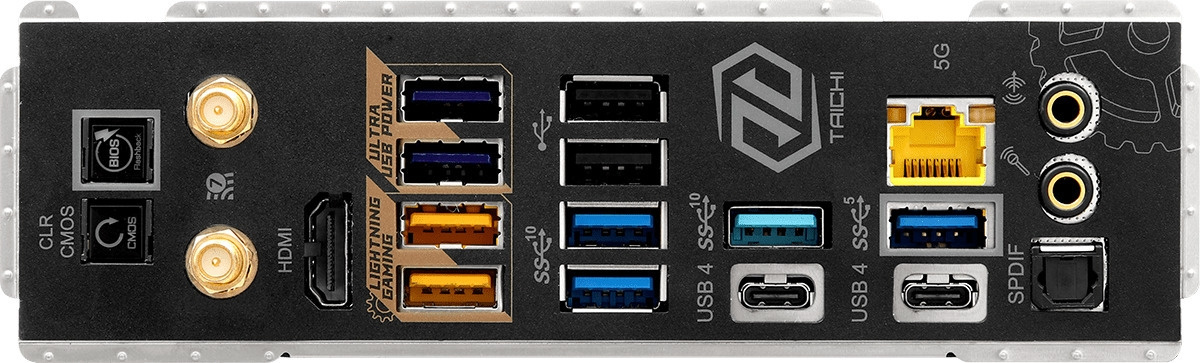

Rear Panel Connectors
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 5 x USB 3.2 Gen 2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports)
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold-Plated Audio Jack)
- 1 x Microphone Input Jack (Gold-Plated Audio Jack)
Internal Connectors
- 3 x Thermistor Cable Headers
- 1 x Power LED and Speaker Header
- 1 x RGB LED header
- 3 x Addressable LED headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24-pin ATX Power Connector (High-Density Power Connector)
- 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 headers (supports 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (supports 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
- AMD AM5 E-ATX Motherboard
- AMD X870 chipset
- 5G LAN, Wi-Fi 7, Bluetooth 5.4
- 4 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
