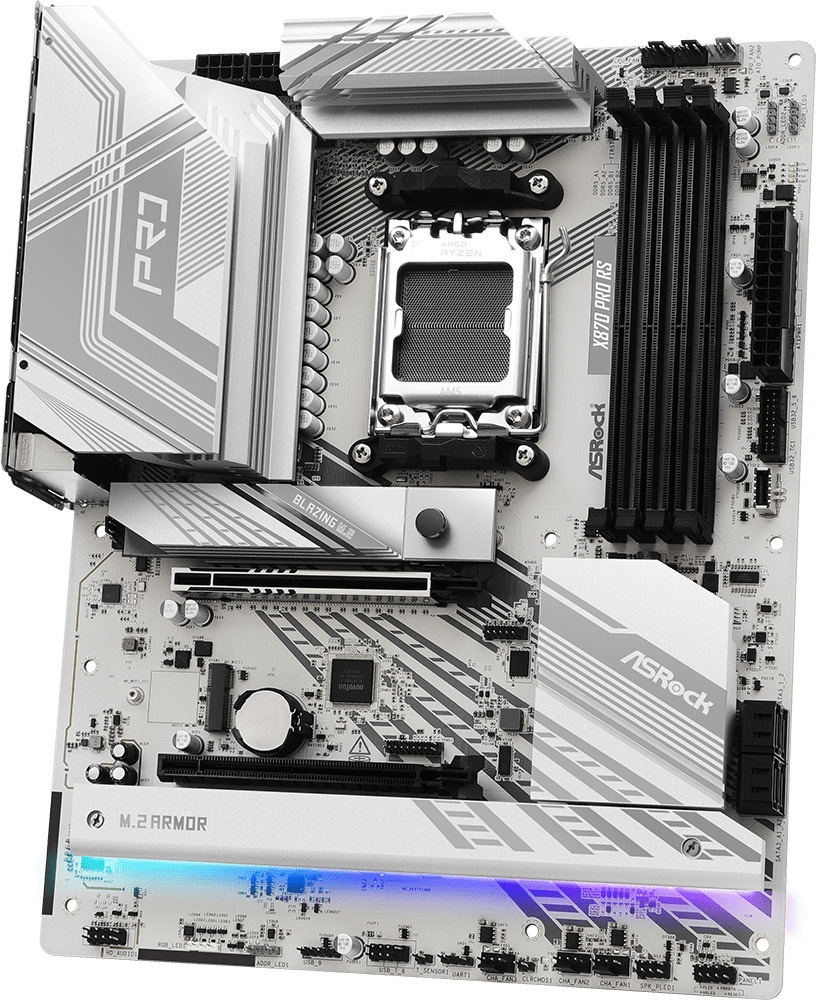

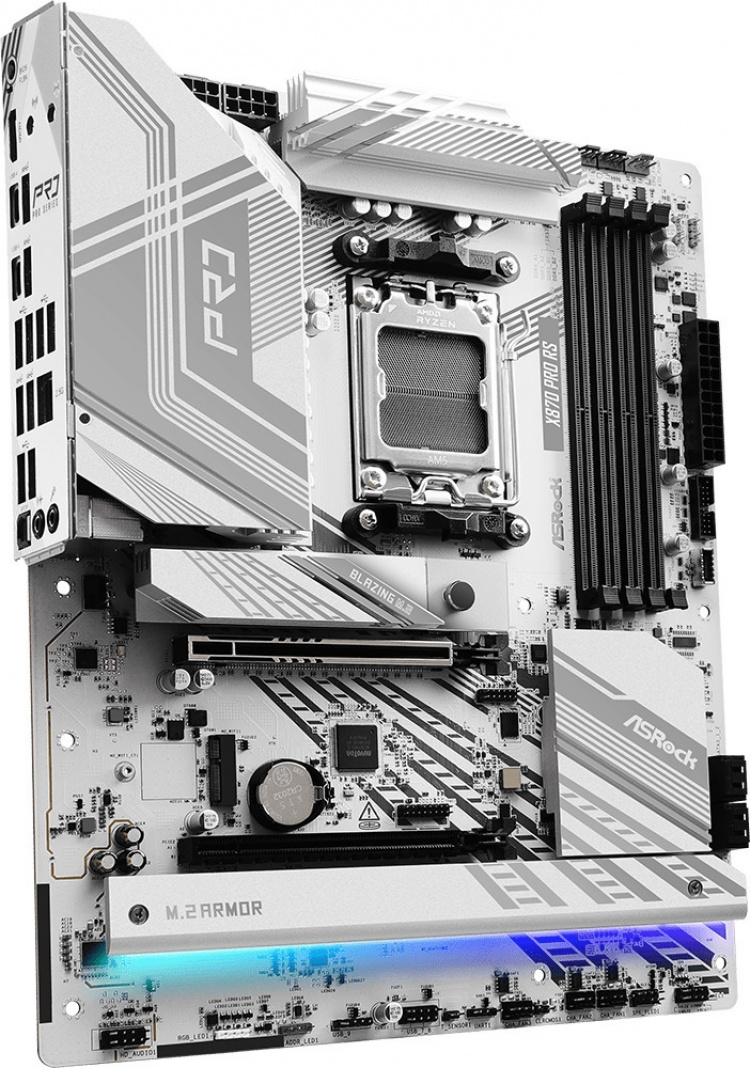

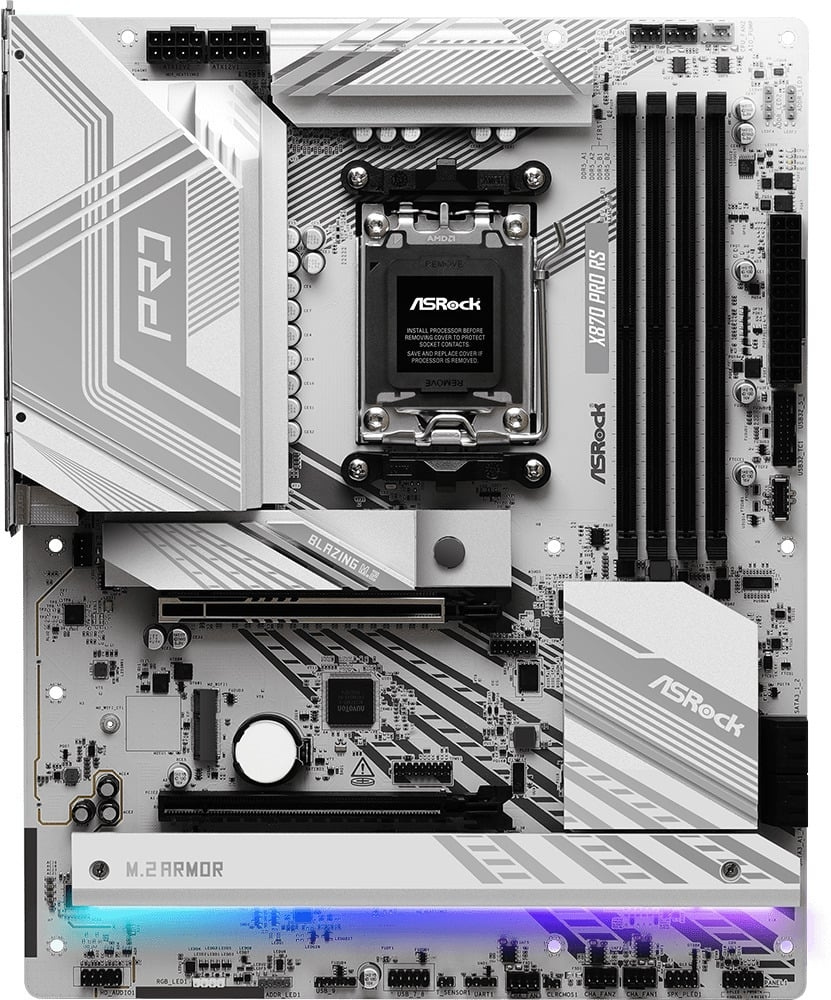

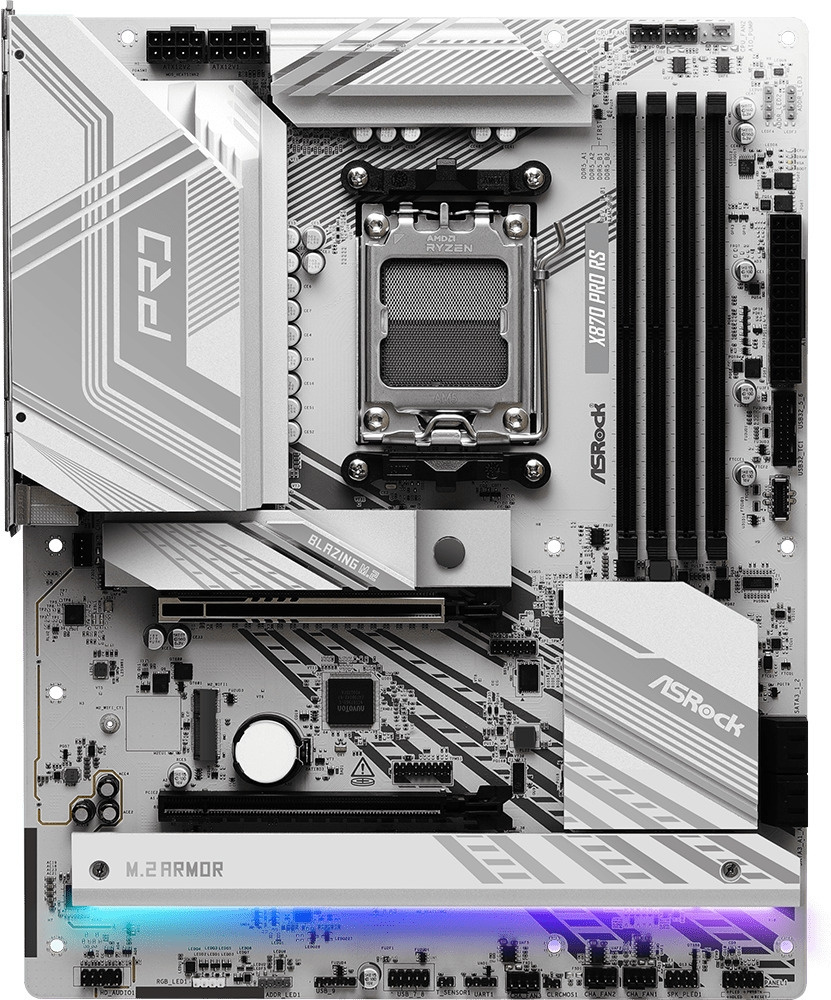

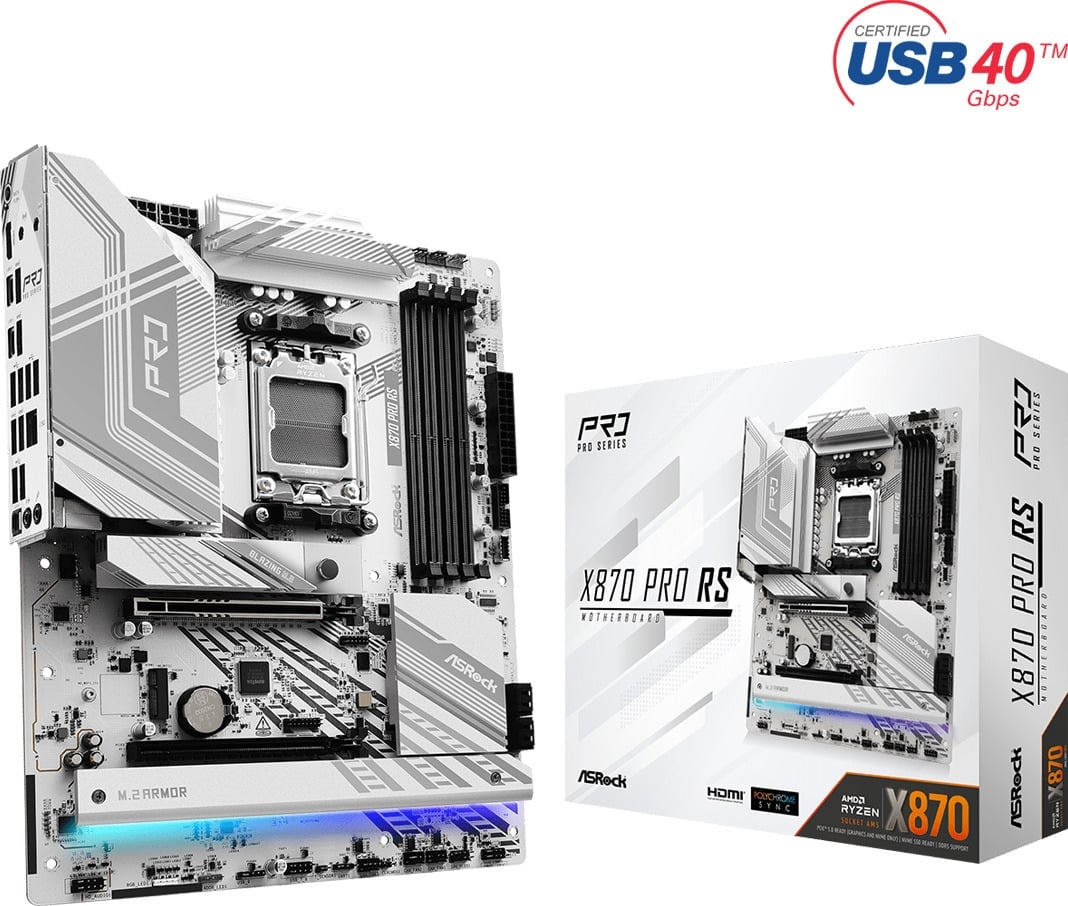

ASRock The PRO RS is a high-quality and durable AM5-socket ATX motherboard for Ryzen 7000/8000/9000 series processors.
The PRO RS is a modern, futuristic motherboard equipped with attractive technical features. It offers excellent performance, rock-solid durability, and ultra-fast connectivity, making it well-suited for modern and powerful gaming setups.
The Pro RS series is designed for everyday users and enthusiasts alike. The series offers high-quality materials and components that ensure stable and reliable performance.
ASRock Polychrome RGB Sync
Control all of your setup's LED accessories via ASRock's dedicated app. The motherboard features an RGB header and an addressable RGB header, to which LED products can be connected and synchronized to create a spectacular light show. The ASRock app is Razer Chroma-compatible, and supported peripherals can also be controlled through the same program.
- Supports AMD Ryzen 9000, 8000, and 7000 series processors
- 14+2+1-phase power delivery
- 4 x DDR5 DIMM memory slots, supports up to 8000 MHz+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- 3 x M.2 slots, 4 x SATA
- 2.5G LAN Ethernet
Features:
- Chipset: AMD X870
- Processor socket: AM5
- Processor support: AMD Ryzen 7000 / 8000 / 9000 series
- Motherboard size: ATX (30.5 x 24.4 cm)
- Memory slots (qty): 4
- Memory type: DDR5 (Dual Channel), ECC/non-ECC, unbuffered, up to 8000+(OC) MHz
- Maximum memory (GB): 256
- Network connections: Dragon RTL8125BG 2.5 Gigabit LAN
- Sound card: 7.1 CH HD Audio Content Protection (Realtek ALC1220 Audio Codec), Nahimic Audio
Expansion slots
- CPU
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode - Chipset
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Hard Drive Connectors
- 4 x SATA 6Gb/s ports
- CPU
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - Chipset
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Ultra M.2 Socket (M2_3, Key M), supports Type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

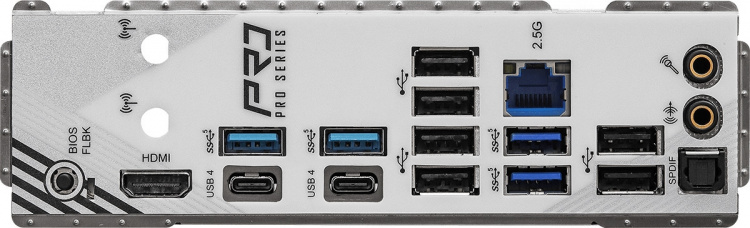

Rear Panel Connectors
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 4 x USB 3.2 Gen 1 Type-A Ports
- 6 x USB 2.0 Ports
- 1 x RJ-45 LAN port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold-Plated Audio Jack)
- 1 x Microphone Input Jack (Gold-Plated Audio Jack)
Internal Connectors
- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED header
- 3 x Addressable LED headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24-pin ATX Power Connector
- 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 headers (supports 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
- AMD AM5 ATX Motherboard
- AMD X870 chipset
- 2.5G LAN Ethernet
- 3 x M.2 slots, 4 x DDR5
- Supports AMD Ryzen 9000 series
