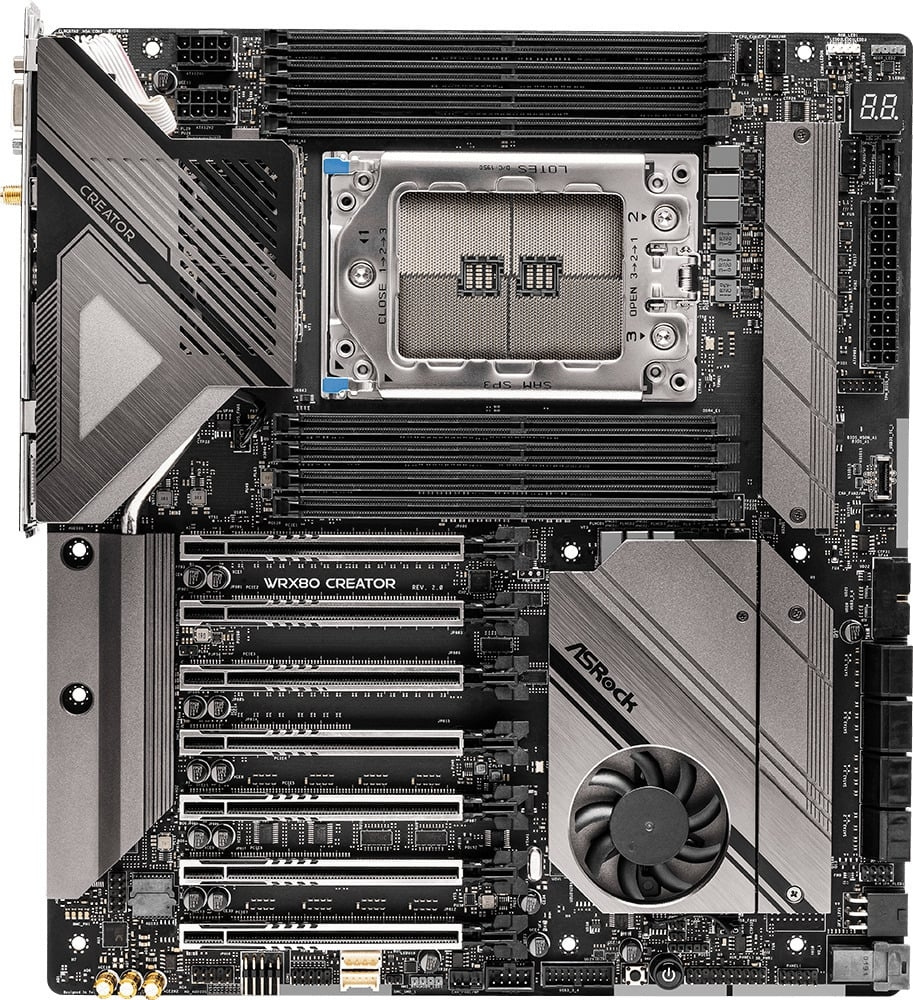

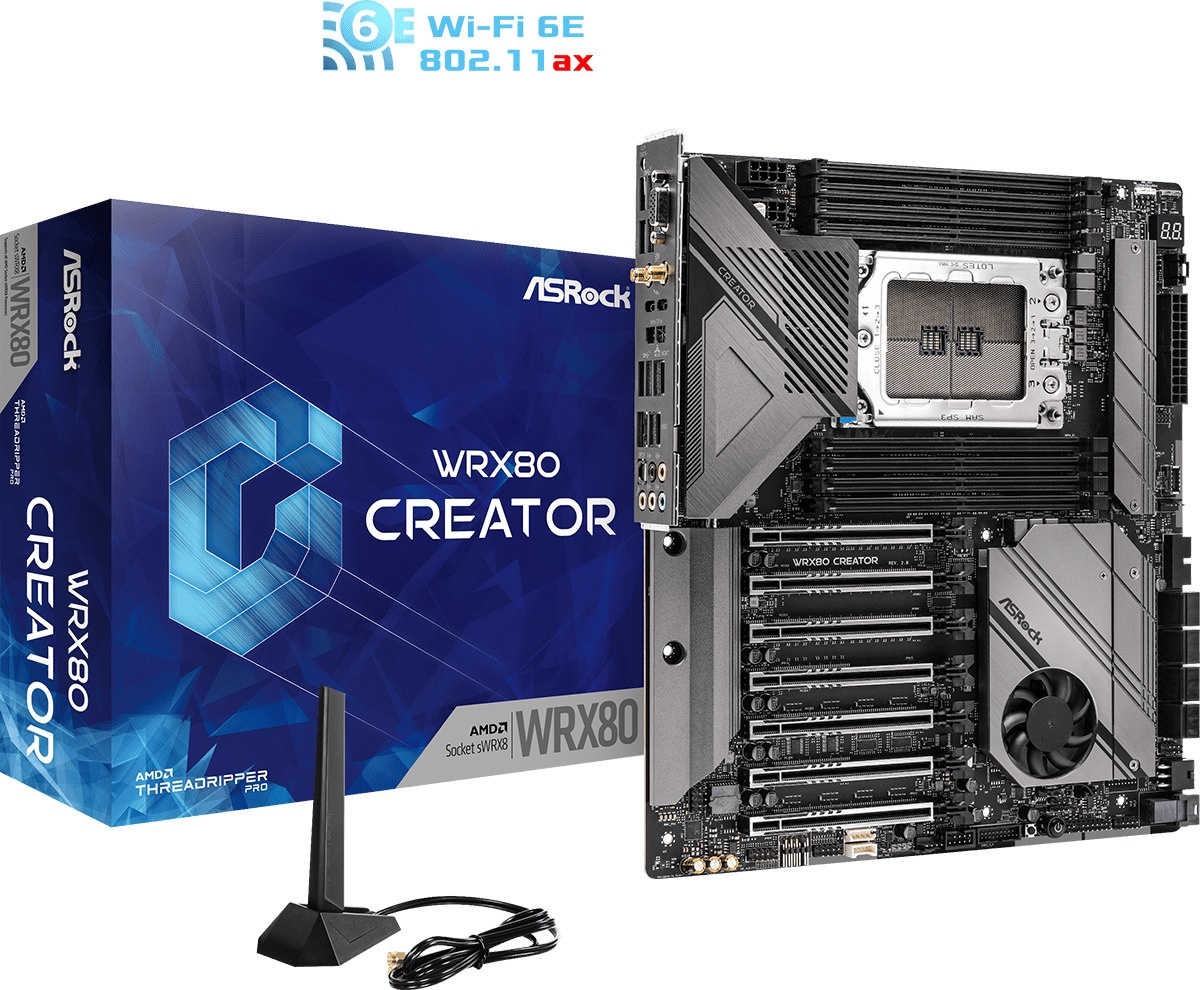

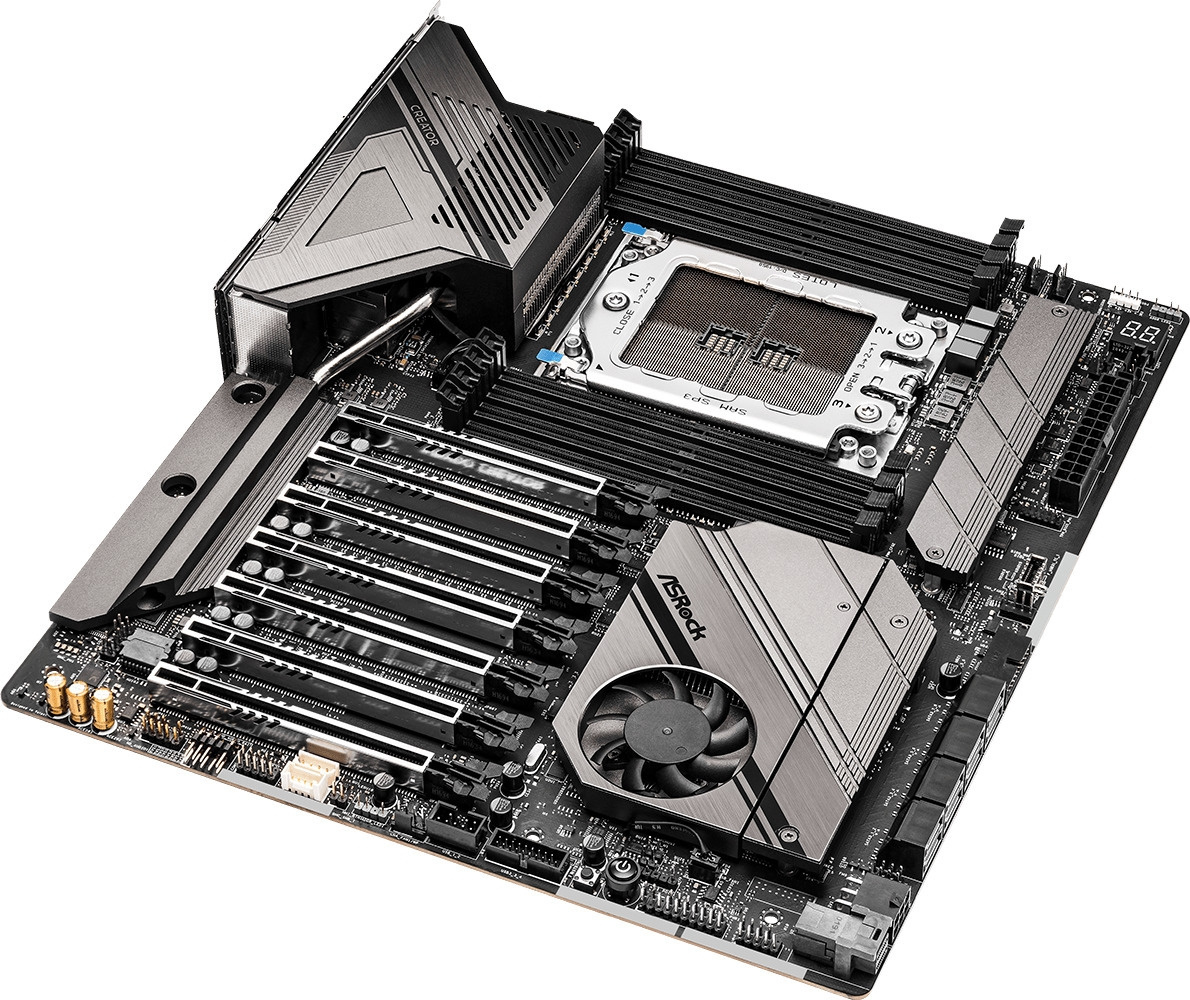

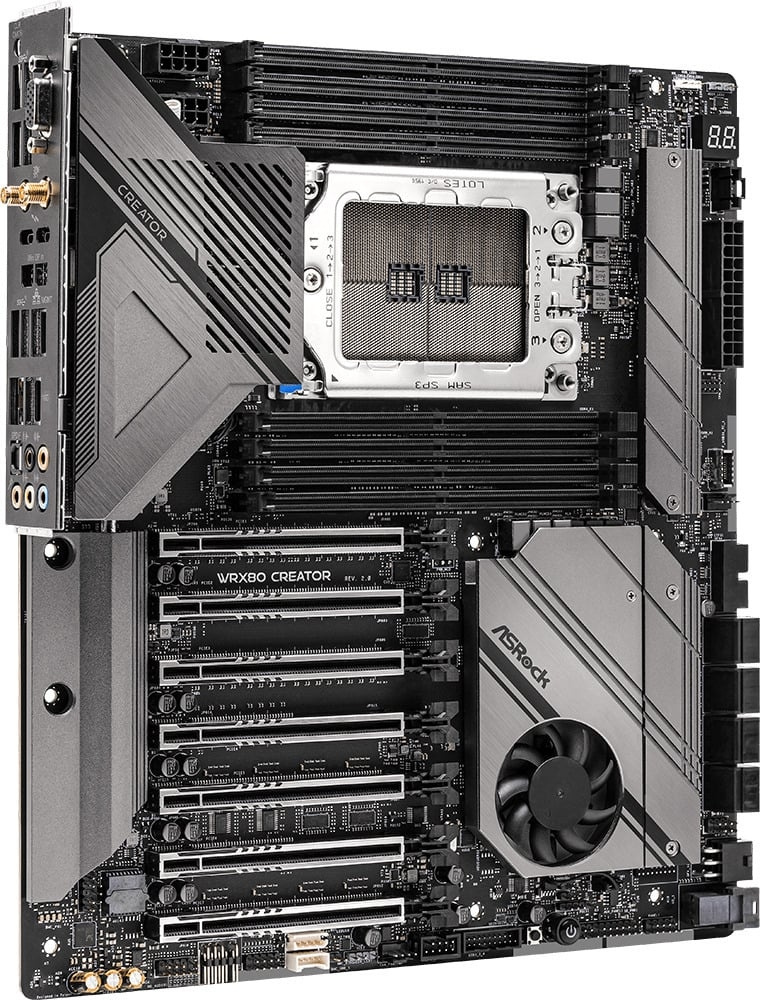

ASRock WRX80 Creator R2.0 E-ATX motherboard

ASRock WRX80 Creator R2.0 E-ATX motherboard delivers professional-grade performance and reliability for AMD Ryzen Threadripper PRO 3000WX / 5000WX series processors. The server-level 14-layer PC Board prevents motherboard flexing and improves reliability without compromise.

PCIe Gen 4 Surface Mount Technology improves signal flow and maximizes stability at high speeds, delivering maximum benefit from PCIe 4.0. Five high-speed PCIe Gen4 x16 slots are available.

Two 10 Gigabit network interfaces and 802.11ax WiFi 6E bring blazing fast network connectivity to you, while high-speed Thunderbolt 4 interfaces bring lightning-fast speeds to your peripherals.

Features:

• Chipset: AMD WRX80
• CPU core: sWRX8
• Processor support: AMD Threadripper PRO 5000WX and 3000WX
• Motherboard size: E-ATX, 30.5 cm x 27.2 cm
• Memory slots (pcs): 8
• Memory type: DDR4
• Maximum memory (GB): 2048
• Network interfaces: 2 x 10 Gigabit LAN (Marvell AQC113CS), 802.11ax Wi-Fi 6E, Bluetooth
• Sound card: 7.1 CH HD Audio (Realtek ALC4050H + ALC1220)

Expansion sites

• 7 x PCIe 4.0 (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Hard disk interfaces

• 8 x SATA 6Gb/s ports
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x U.2 Connector

Rear panel interfaces

• 2 x Antenna Ports
• 1 x D-Sub Port
• 1 x Optical SPDIF Out Port

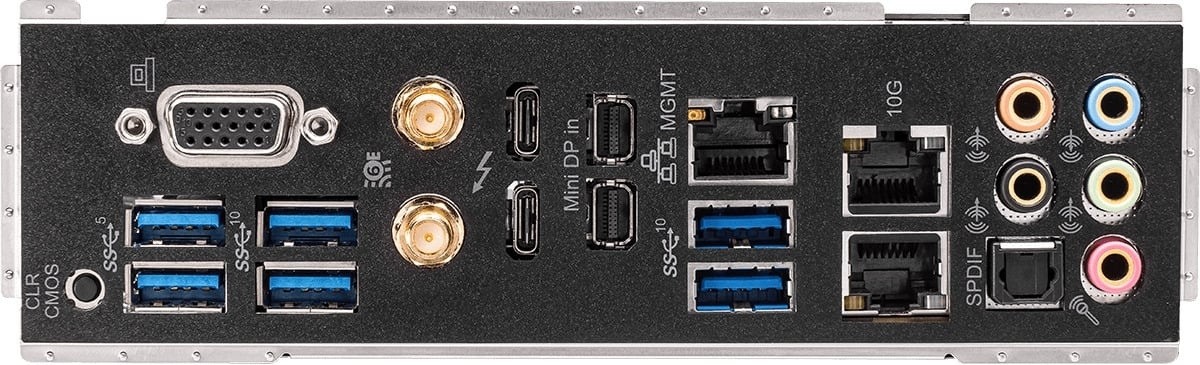

• 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol)
• 2 x Mini DisplayPort Input Ports (For Thunderbolt)
• 4 x USB 3.2 Gen2 Ports (10 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• 1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
• 1 x Clear CMOS Button
• HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Internal connections

• 1 x SPI TPM Header
• 1 x COM Port Header
• 1 x Intelligent Platform Management Bus Header
• 1 x PSU SMBus Header
• 1 x BMC SMBus Header
• 1 x Auxiliary Panel Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15m Gold Audio Connector)
• 1 x Right Angle Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Supports 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
• 1 x Non Maskable Interrupt Button Header
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button

• AMD sWRX8 E-ATX motherboard
• AMD WRX80 chipset
• 7 x PCIe 4.0, 8 x SATA3
• 2 x Thunderbolt 4
• For AMD Threadripper PRO processors
