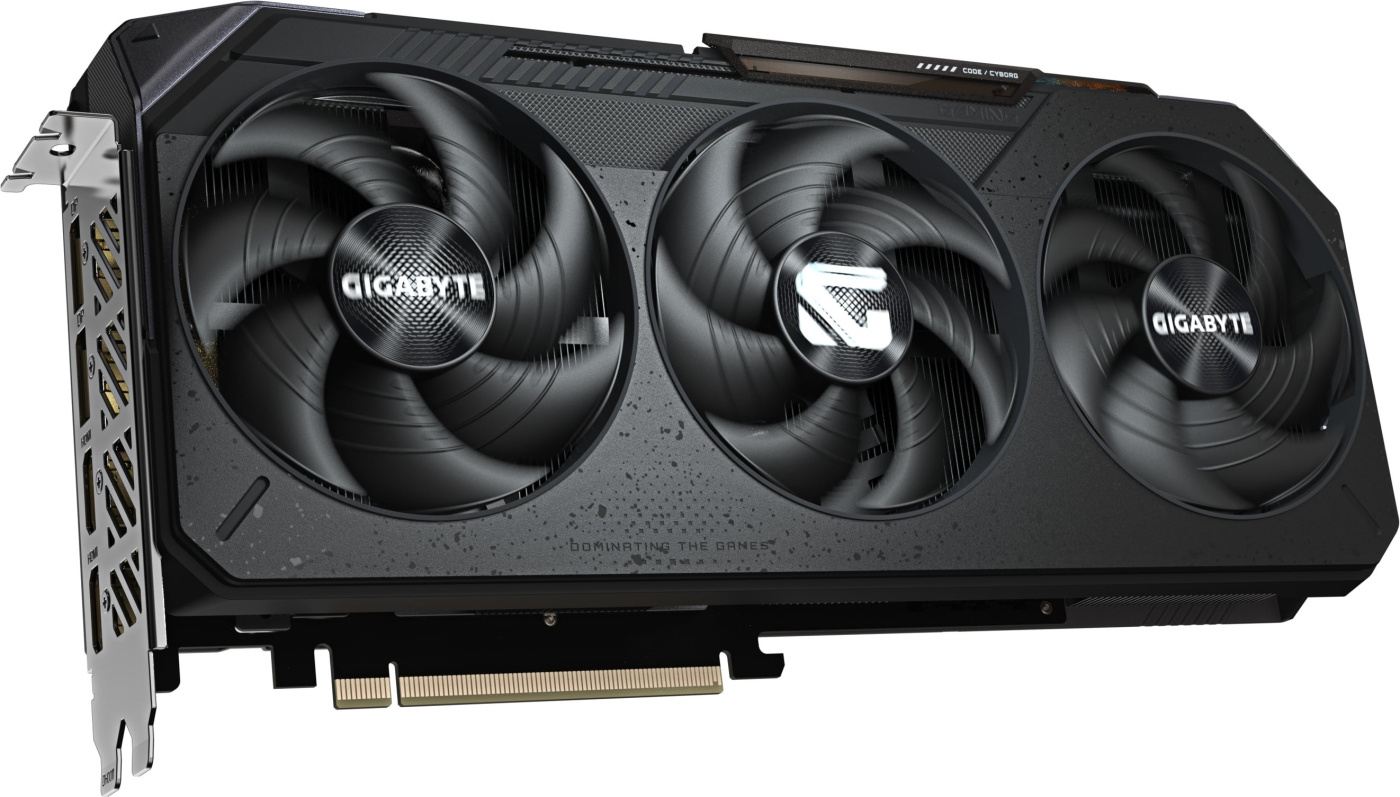

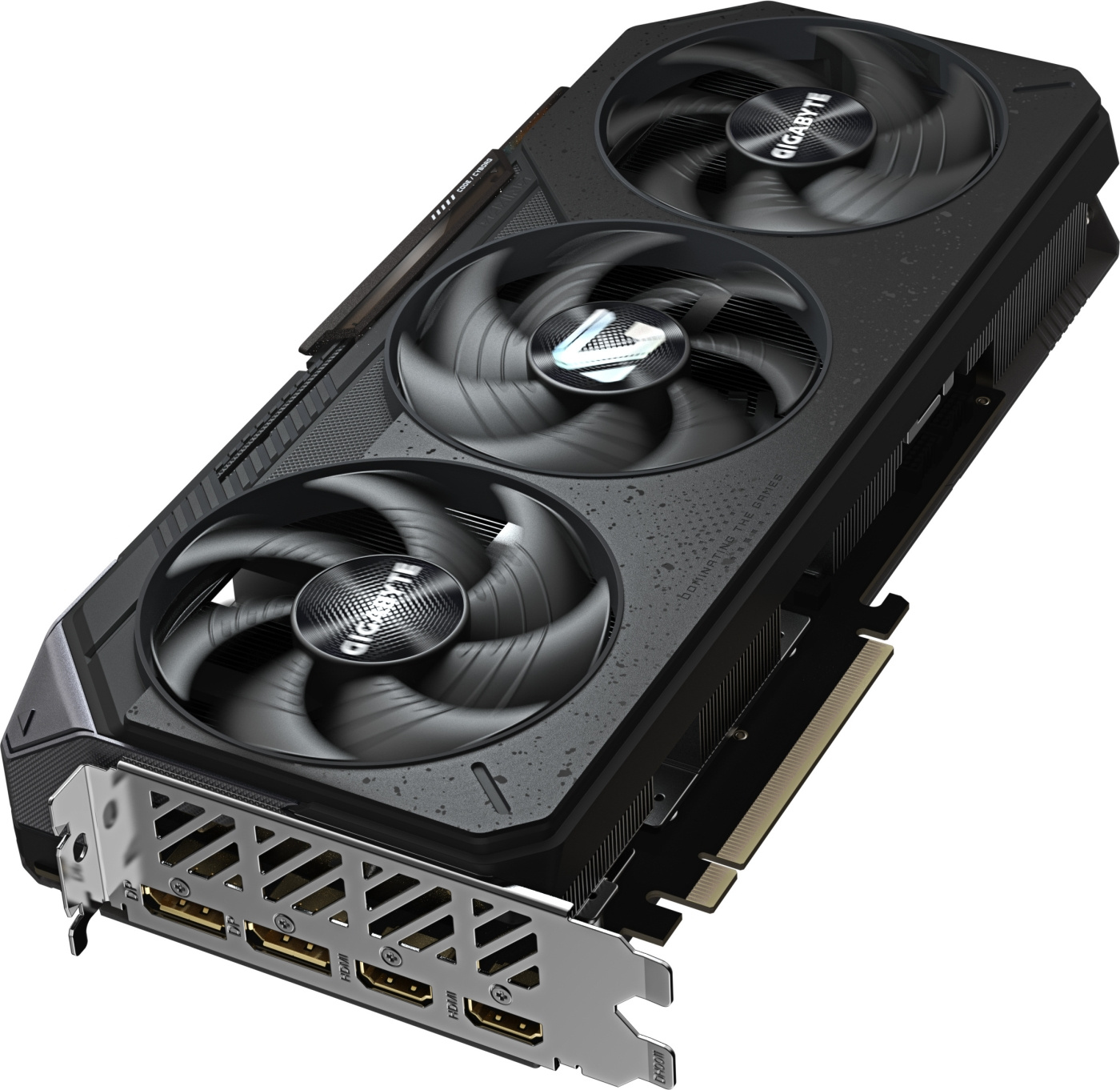

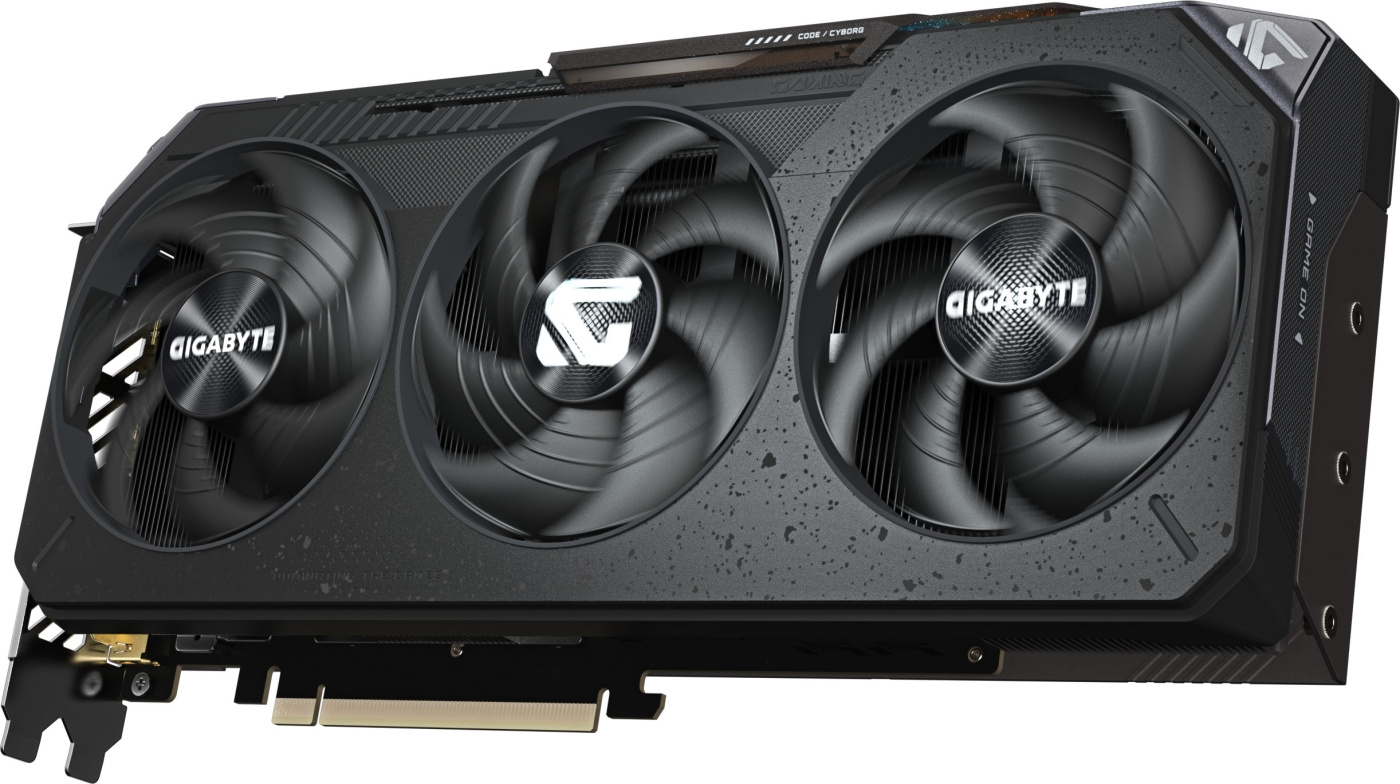

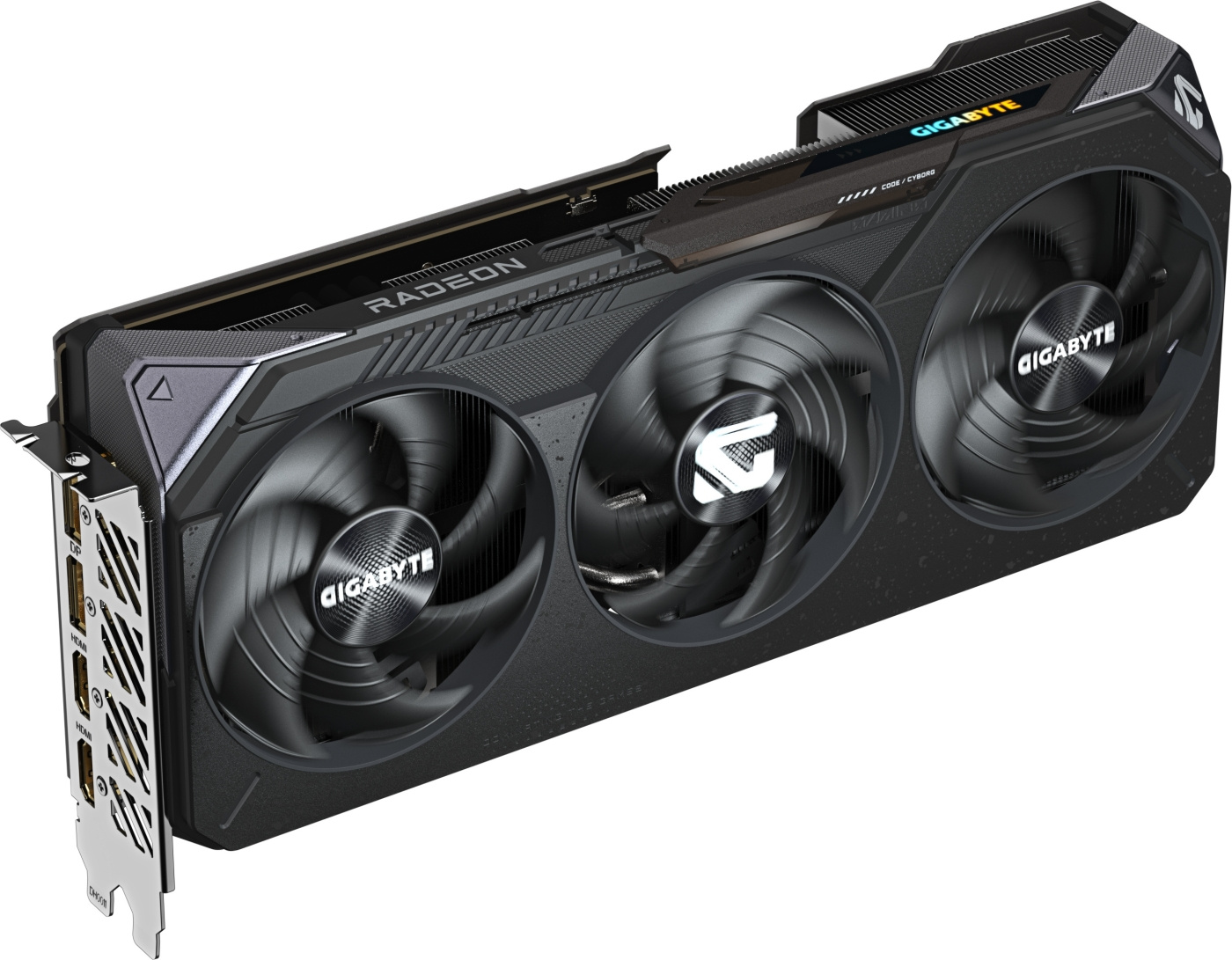

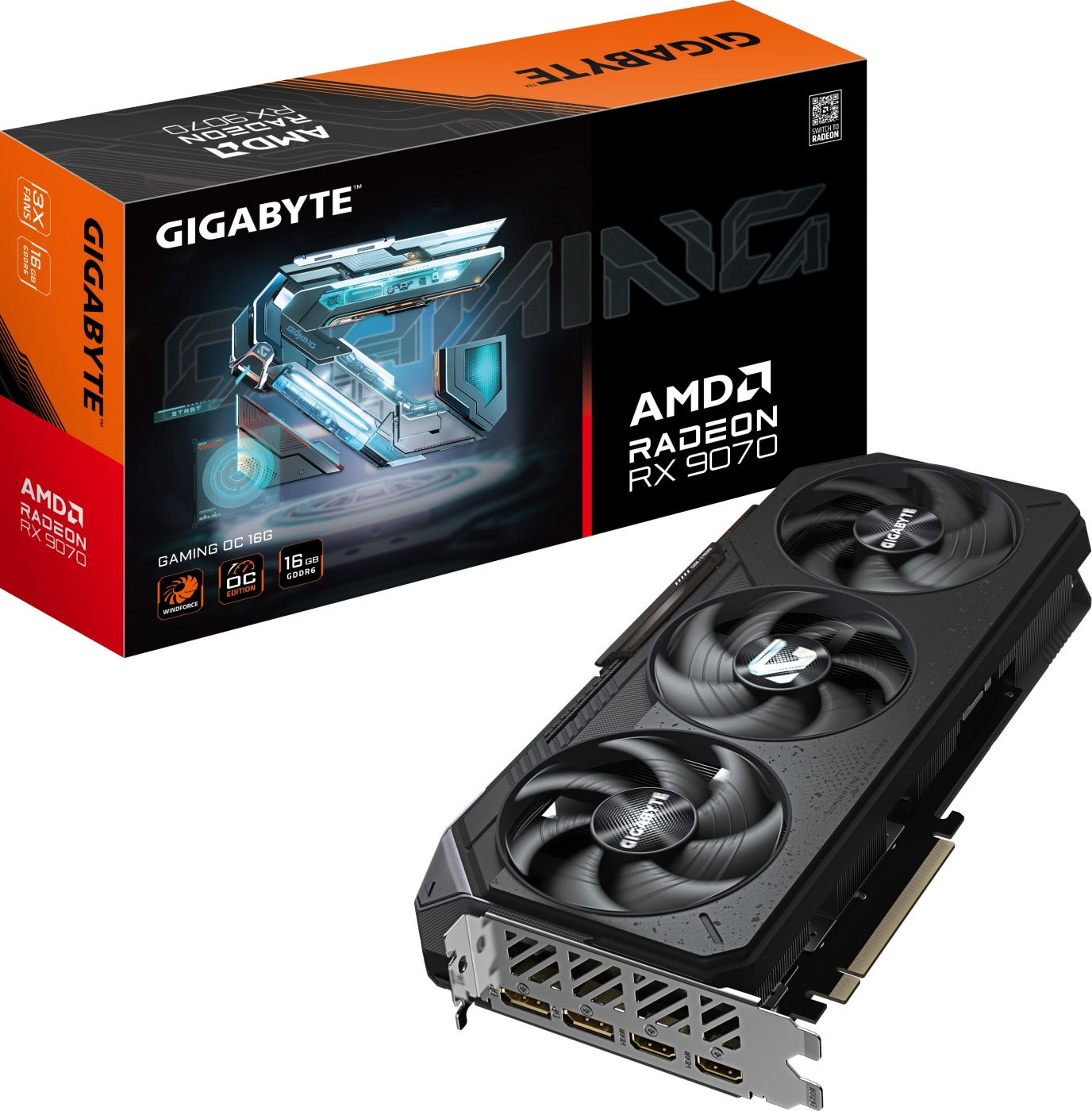

Radeon RX 9070 GAMING OC 16G - Powerful performance for demanding gamers
Top-tier graphics for gaming and creative work
The Radeon RX 9070 GAMING OC is designed to deliver top-tier performance for demanding games and content creation. With 16GB of GDDR6 memory and AMD's RDNA 4 architecture, it delivers high frame rates and a smooth gaming experience at all resolutions. AI-based optimizations and the latest graphics technologies ensure that games and applications will run smoothly even in the future.
Powerful cooling with WINDFORCE technology
You can play long sessions without worry, as the WINDFORCE cooling system ensures optimal thermal management. Innovative Hawk fans, copper heat pipes, a large copper plate, and server-grade thermal paste ensure efficient heat dissipation and quiet operation. 3D active fans and the screen cooling feature keep the card cool even under heavy load.
Future-ready technology with AI-powered features
The AMD Radeon RX 9070 GAMING OC leverages artificial intelligence to enhance performance and image quality. AMD HYPR-RX6 technology combines multiple performance-enhancing features, such as Radeon Super Resolution, Fluid Motion Frames, Anti-Lag, and Boost. PCIe 5.0 support and AMD Smart Access Memory enable peak performance when paired with AMD Ryzen 9000 series processors.
Durable and stylish design

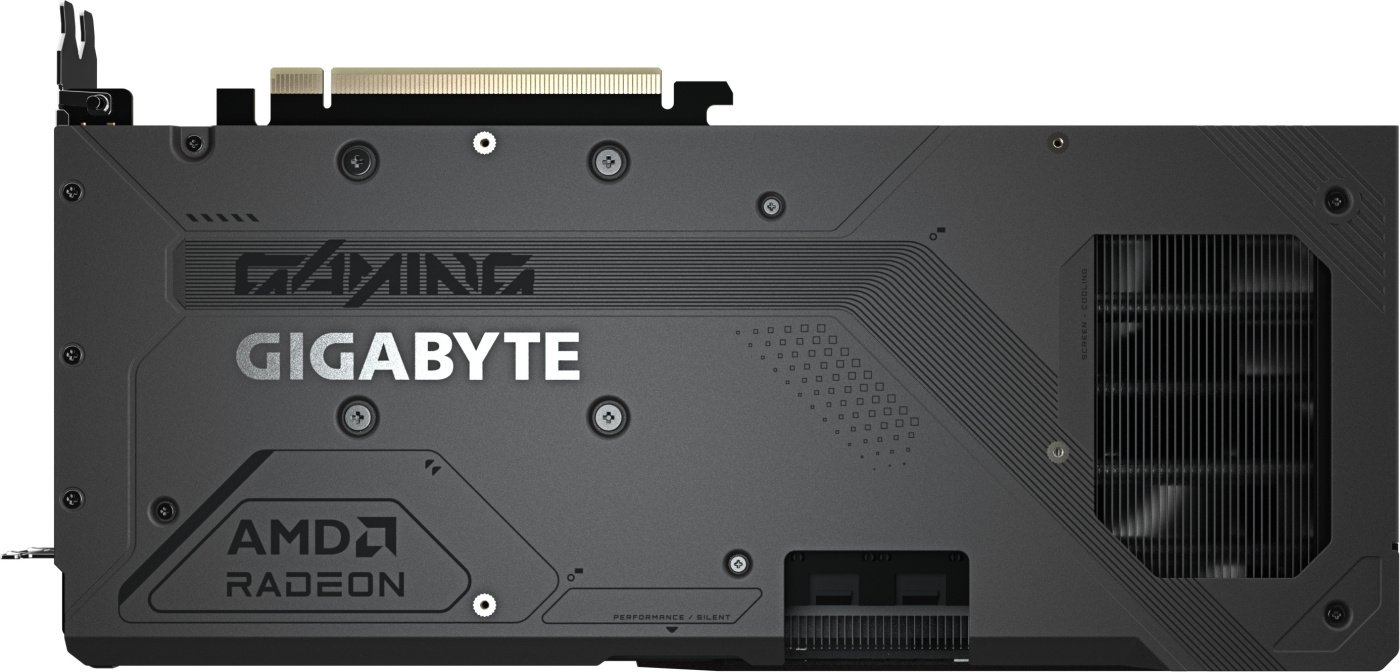

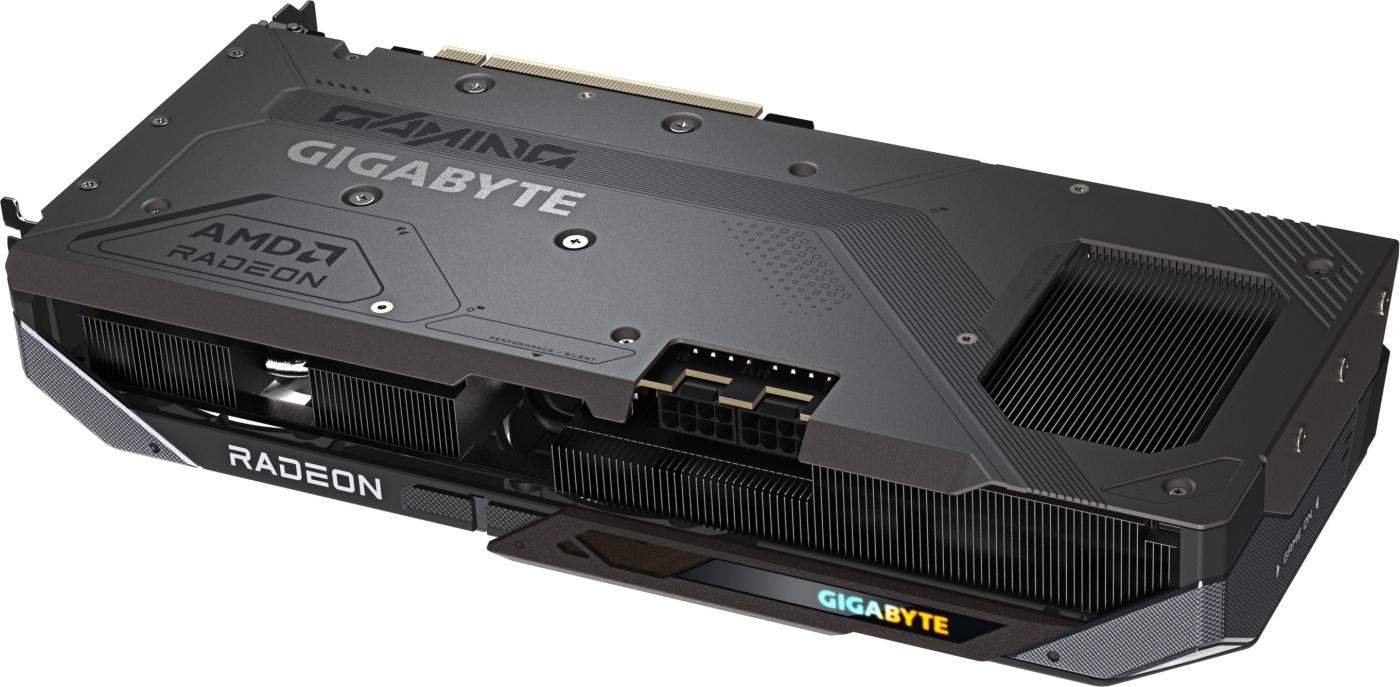

The GAMING OC series design is inspired by mechanical war machines, combining a futuristic, armor-like design with mechanical details. A reinforced metal backplate protects the card and enhances its durability. Thanks to the Dual BIOS feature, you can choose Performance mode for maximum performance or Silent mode for a quieter experience. RGB lighting offers 16.7 million color options and the ability to sync lighting with other devices via theGigabyteControl Center.
Key features:
- WINDFORCE cooling system
- Hawk fans
- Server-grade thermal gel
- RGB lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
Technical specifications:
- Graphics processor: AMD Radeon RX 9070
- Clock speeds: Game: 2210, Boost: 2700
- Memory: 16 GB GDDR6, 256-bit bus
- Memory clock speed: 20 Gbps
- Memory type: 512 MB x32 GDDR6
- Stream processors: 3584 (56 CUs)
- Connectors: 3 x DisplayPort 2.1a, 1 x HDMI 2.1b
- Bus type: PCIe 5.0
- Maximum digital resolution: 7680 x 4320
- Dimensions: 288 x 132 x 50 mm
- OpenGL: 4.6
- PCB size: 220 x 123
- Card form factor: ATX 2.5 slot
- DirectX: DirectX 12 API
- Recommended power supply: 750W
- Power connectors: 2 x 8-pin
- AMD Radeon RX 9070
- 16 GB GDDR6, 256-bit bus
- 1 x HDMI 2.1b, 3 x DisplayPort 2.1a
- Powerful WINDFORCE cooling system
- RGB lighting
