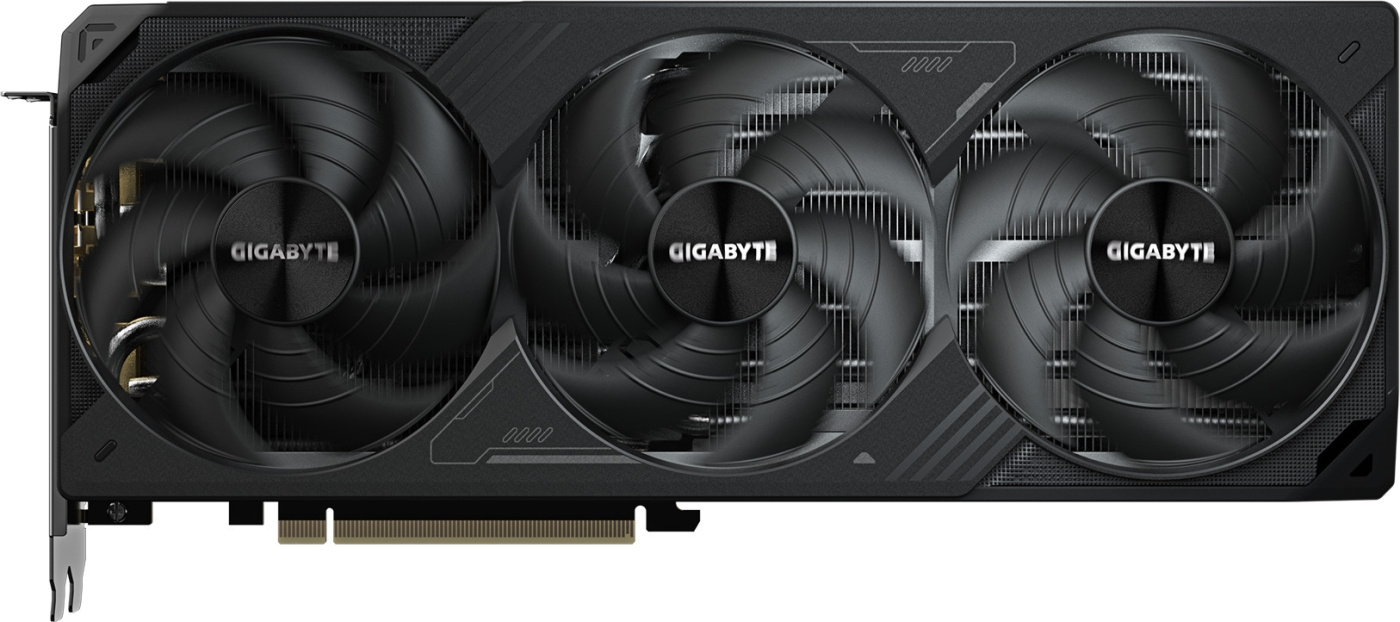

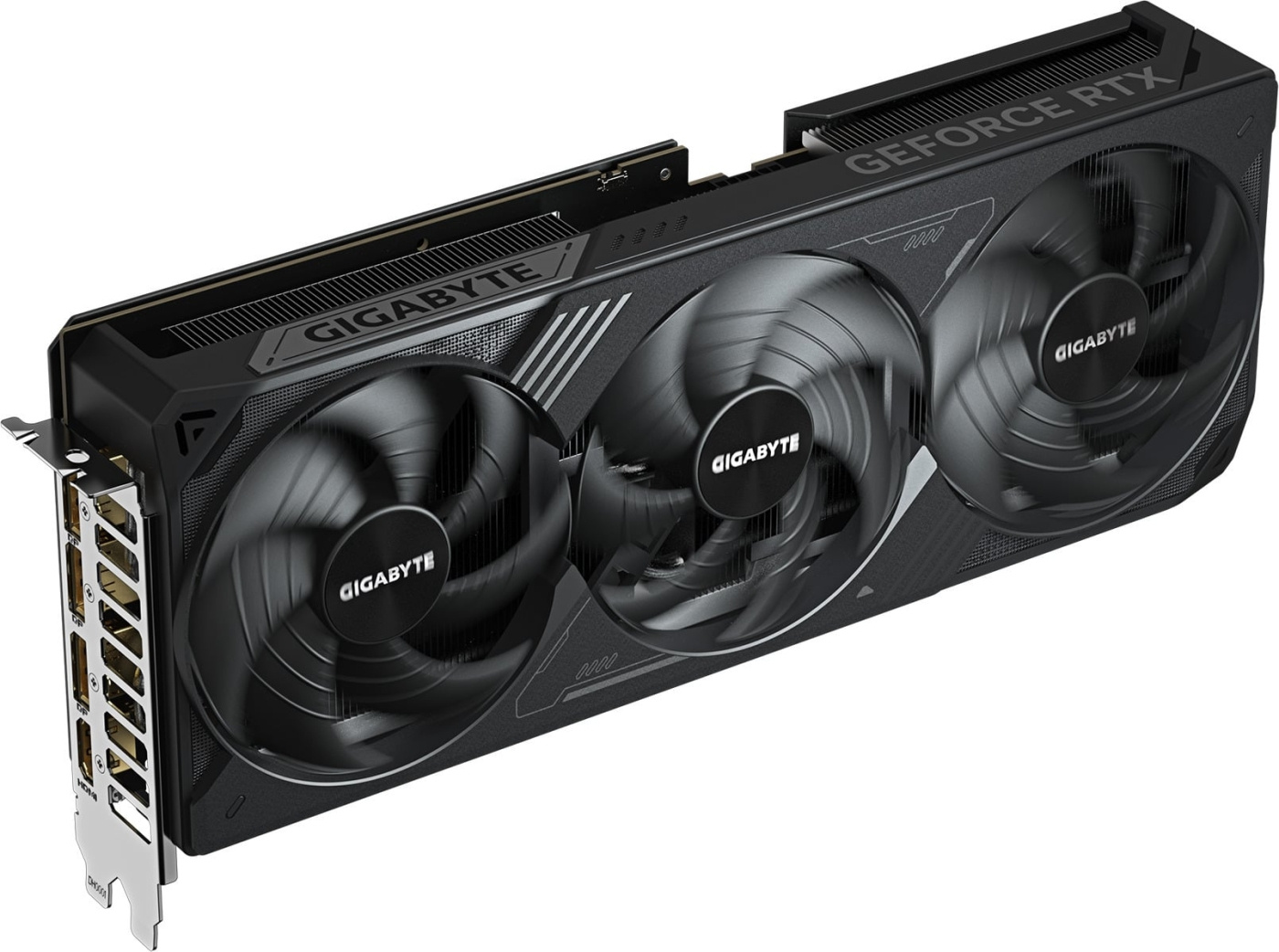

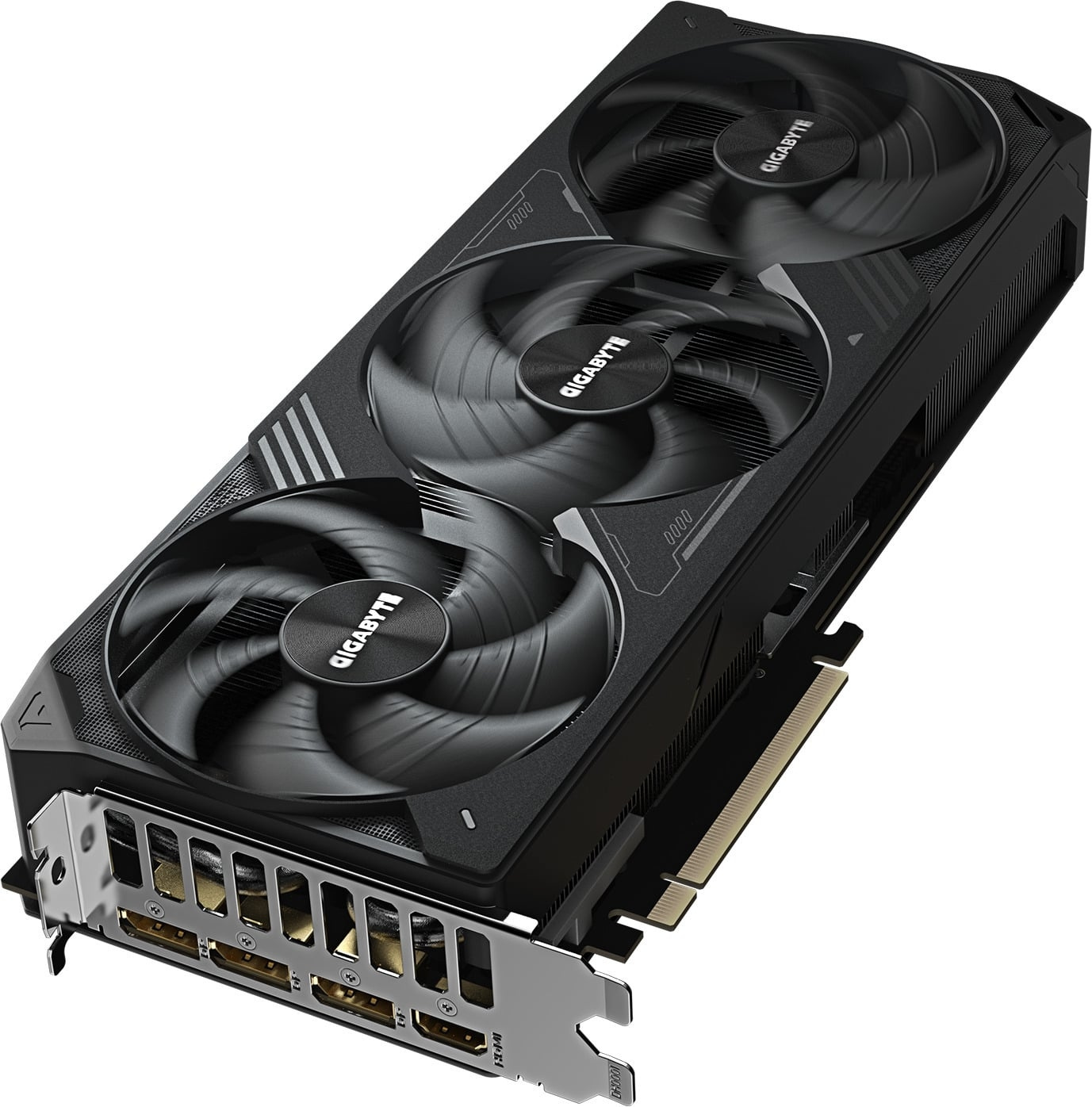

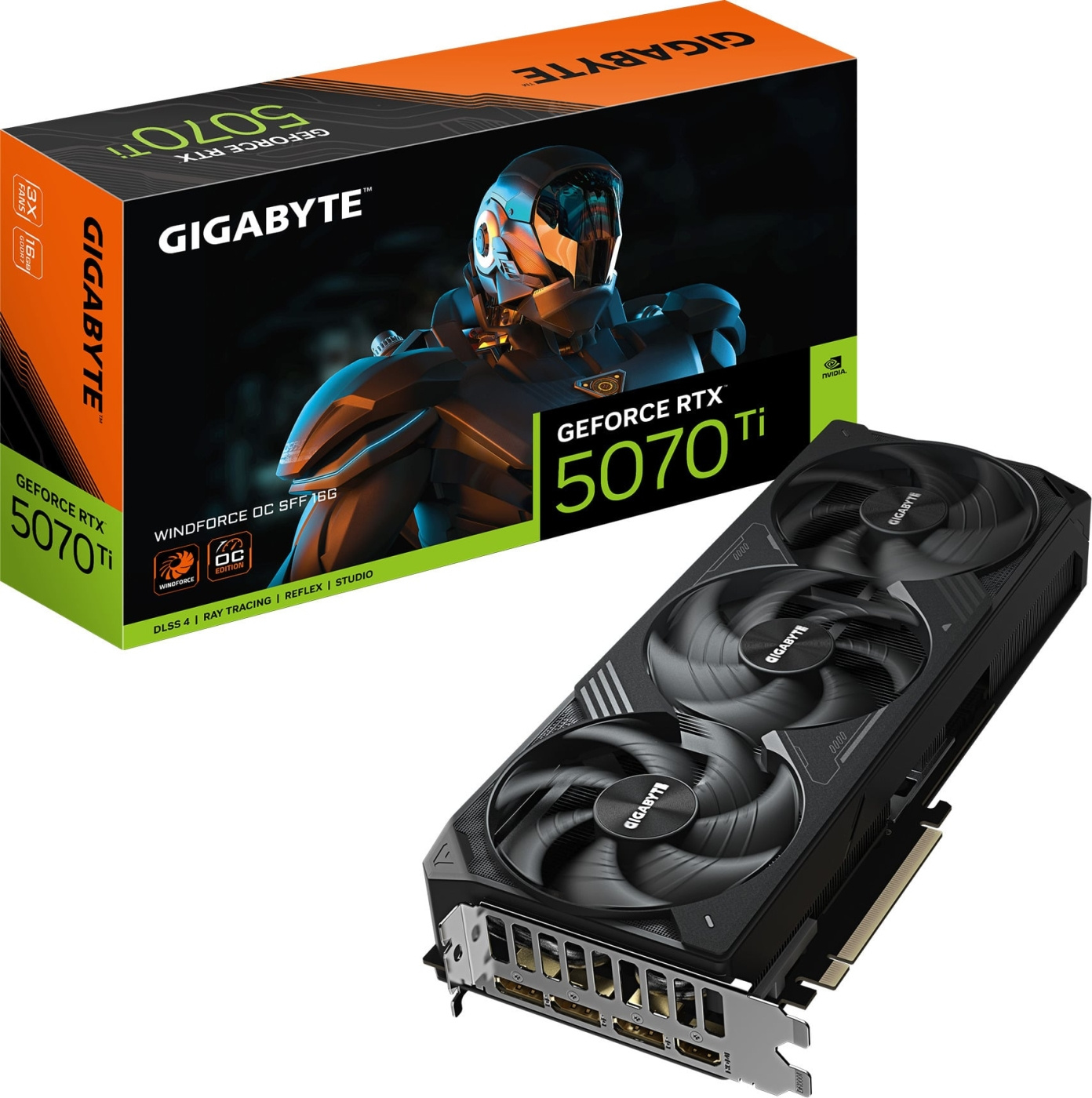

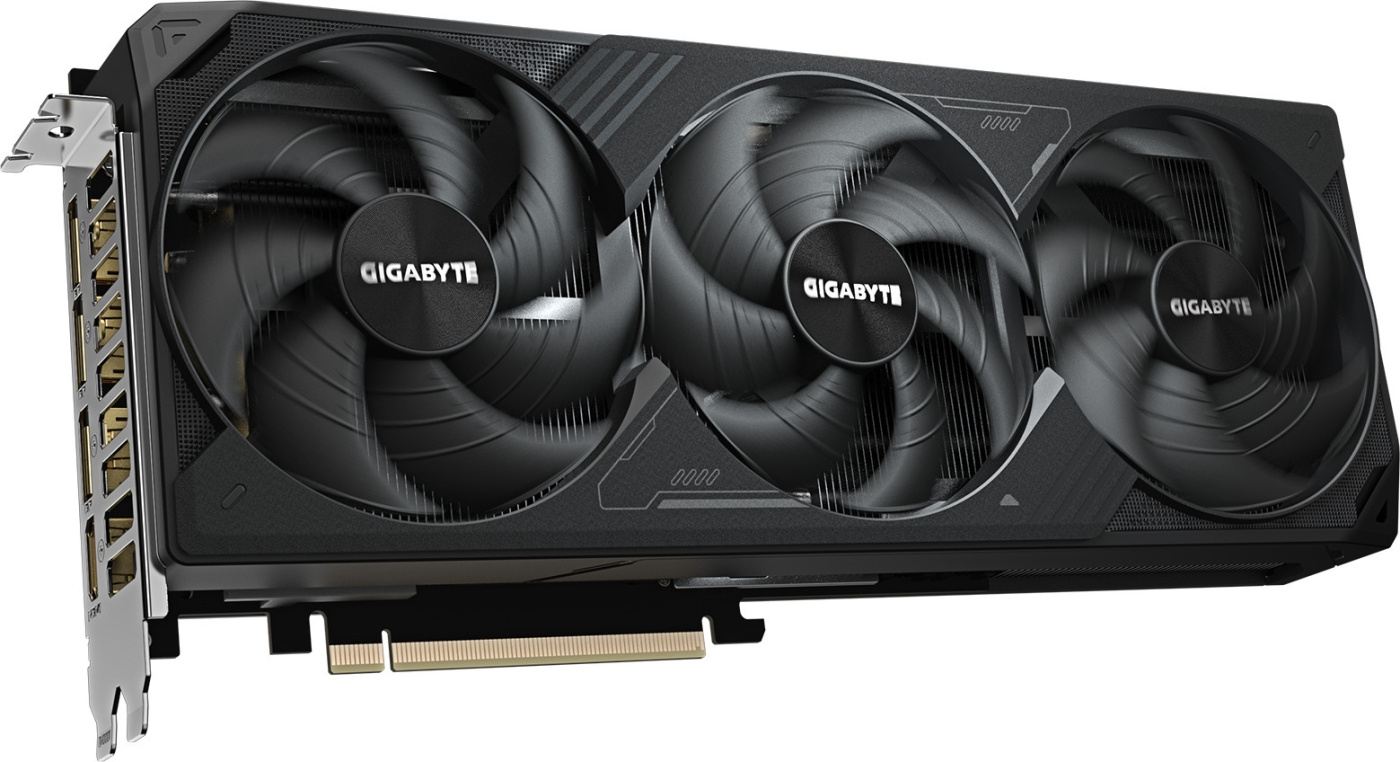

Gigabyte The GeForce RTX 5070 Ti WINDFORCE OC SFF 16 GB is a powerful graphics card designed to deliver top-tier performance for both gamers and creative professionals. This graphics card utilizes NVIDIA's Blackwell architecture and DLSS 4 technology, enabling realistic graphics and fast performance. The card is equipped with 16 GB of GDDR7 memory and a 256-bit memory bus, ensuring smooth and efficient operation even in demanding applications.
Cooling System and Design
The GeForce RTX 5070 Ti WINDFORCE OC SFF 16 GB is equipped with the WINDFORCE cooling system, which keeps the card's temperatures low during intensive use. The card's Hawk fan and server-grade thermal gel ensure effective thermal management. Additionally, the card's reinforced construction and versatile VGA support ensure long-term durability and reliability.
Performance and Features
This graphics card delivers top-tier performance with the latest fifth-generation Tensor cores and fourth-generation ray-tracing cores. NVIDIA Reflex 2 technology improves game response times, and DLSS 4's Multi Frame Generation feature takes frame rates and image quality to a new level. The card also supports NVIDIA G-SYNC technology, which ensures a smooth, tear-free gaming experience.
Technical specifications:
- Chip: GeForce RTX 5070 Ti
- Number of CUDA cores: 8960
- Clock speed: TBD
- Memory: 16 GB, 256-bit GDDR7
- Memory speed: 28 Gbps
- Bus: PCI-E 5.0
- Connectors: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
- Maximum resolution: 7680 x 4320
- Maximum number of displays: 4
- OpenGL: 4.6
- DirectX 12 API
- Dimensions: 304 x 126 x 50 mm
- Power connectors: 1 x 16-pin
- Recommended power supply: 750W
- GeForce RTX 5070 Ti
- 16 GB GDDR7
- 3 x DisplayPort, 1 x HDMI
- WINDFORCE cooling
- NVIDIA SFF-ready
