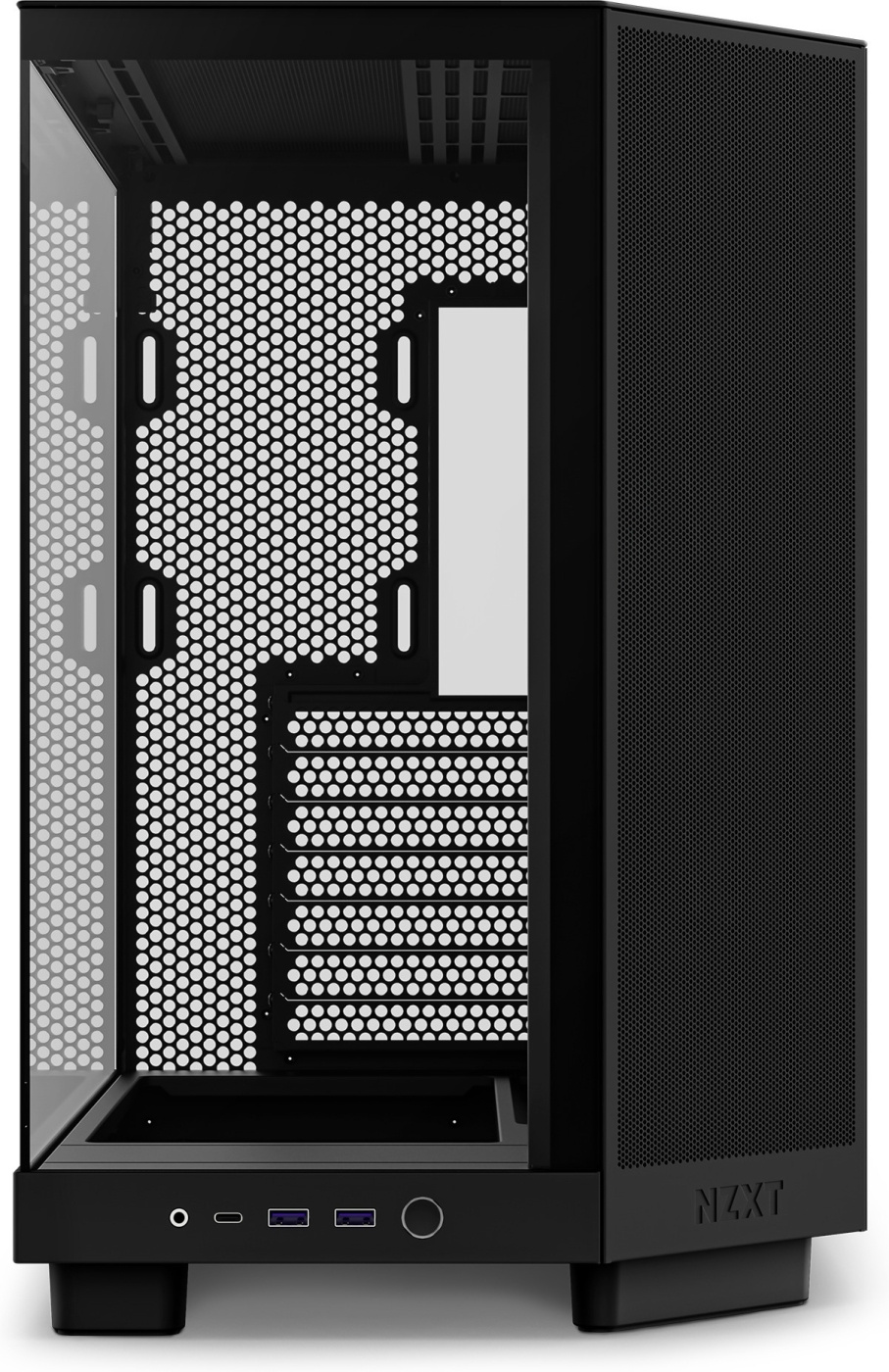

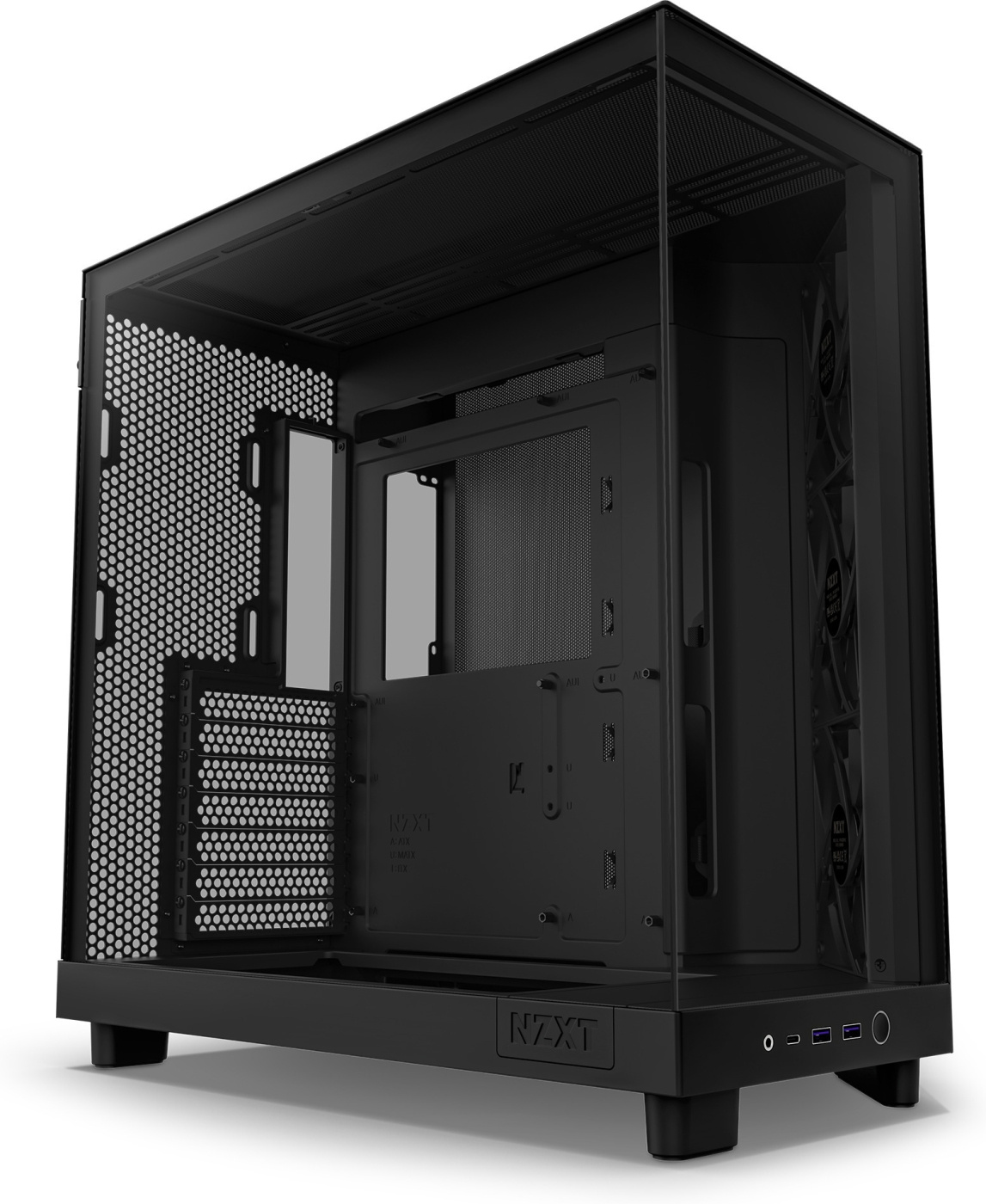

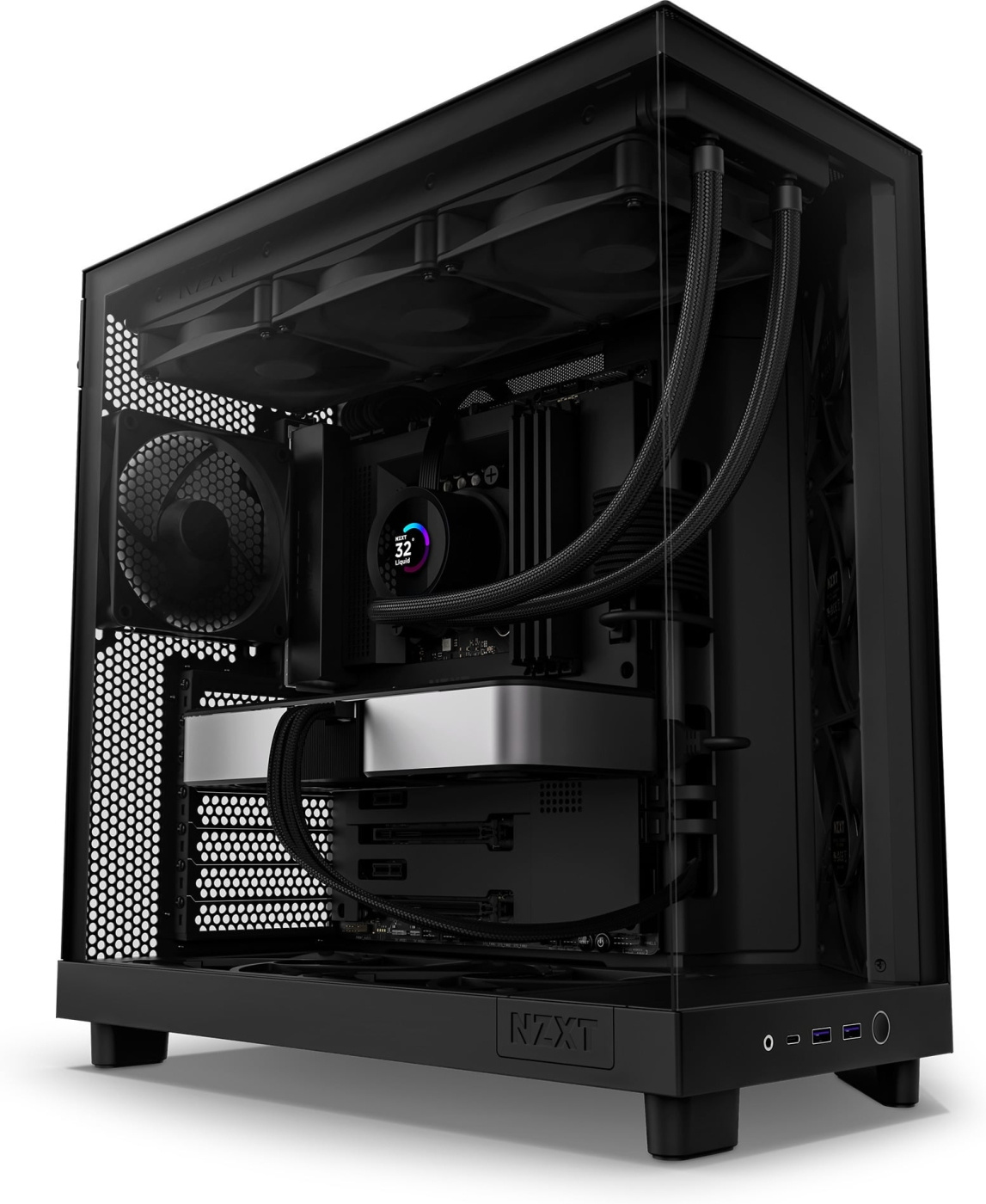

The H6 Flow model delivers top-tier performance in an innovative and compact dual-chamber case. The case design prioritizes GPU cooling while freeing up space for improved airflow. The large panoramic window reveals the interior of the build and its components.
The H6 Flow also includes three pre-installed F120Q fans.

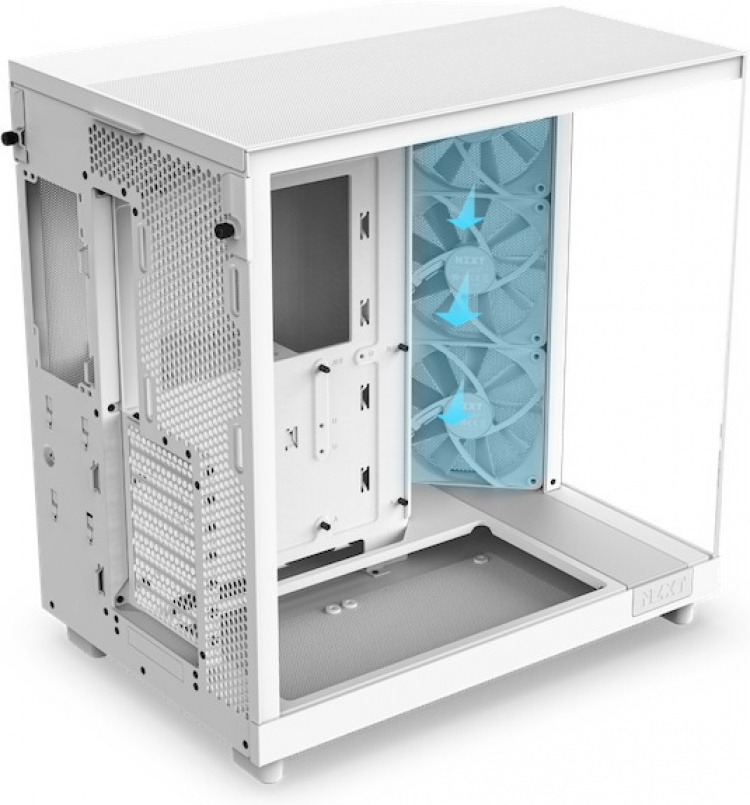

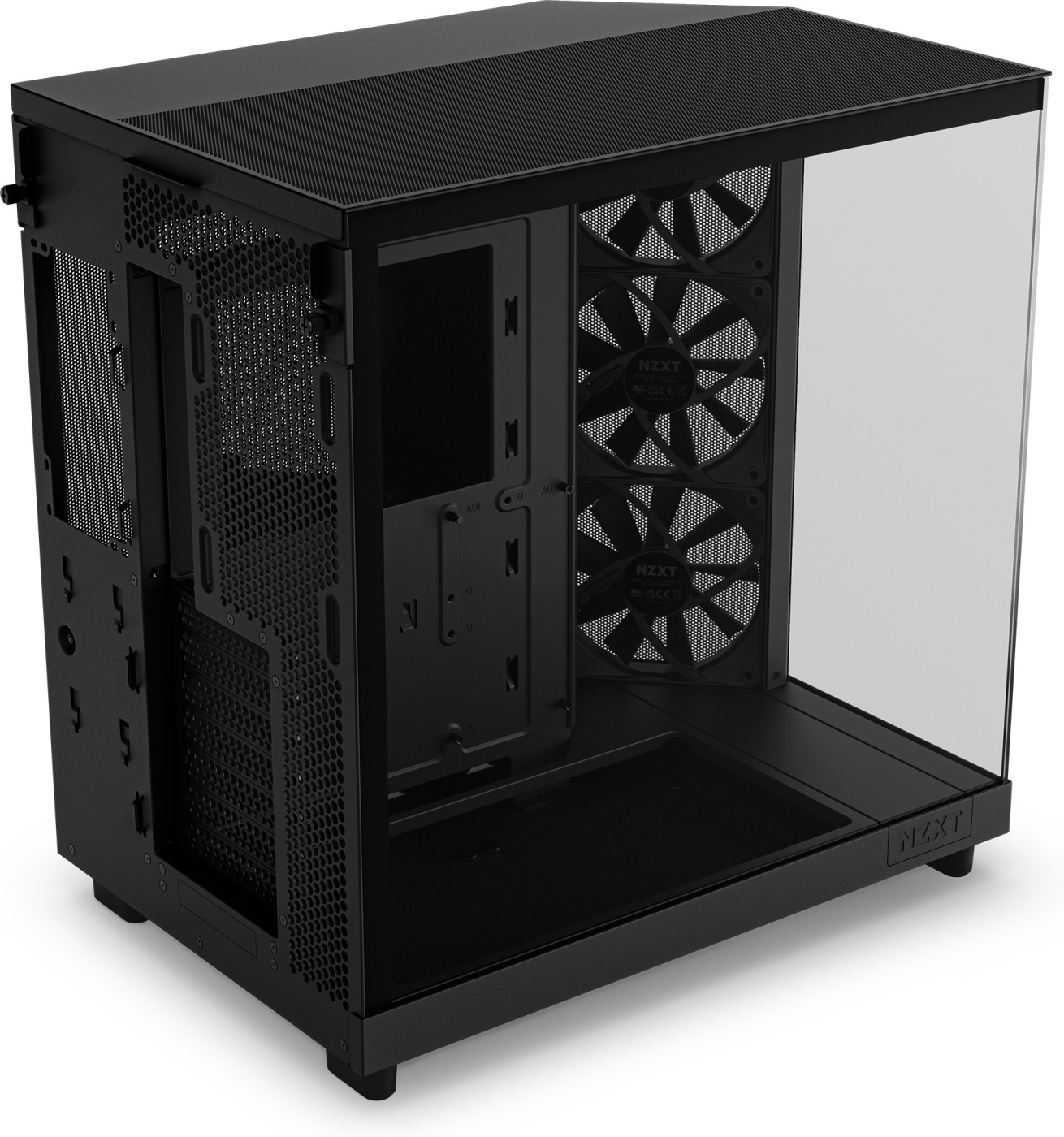

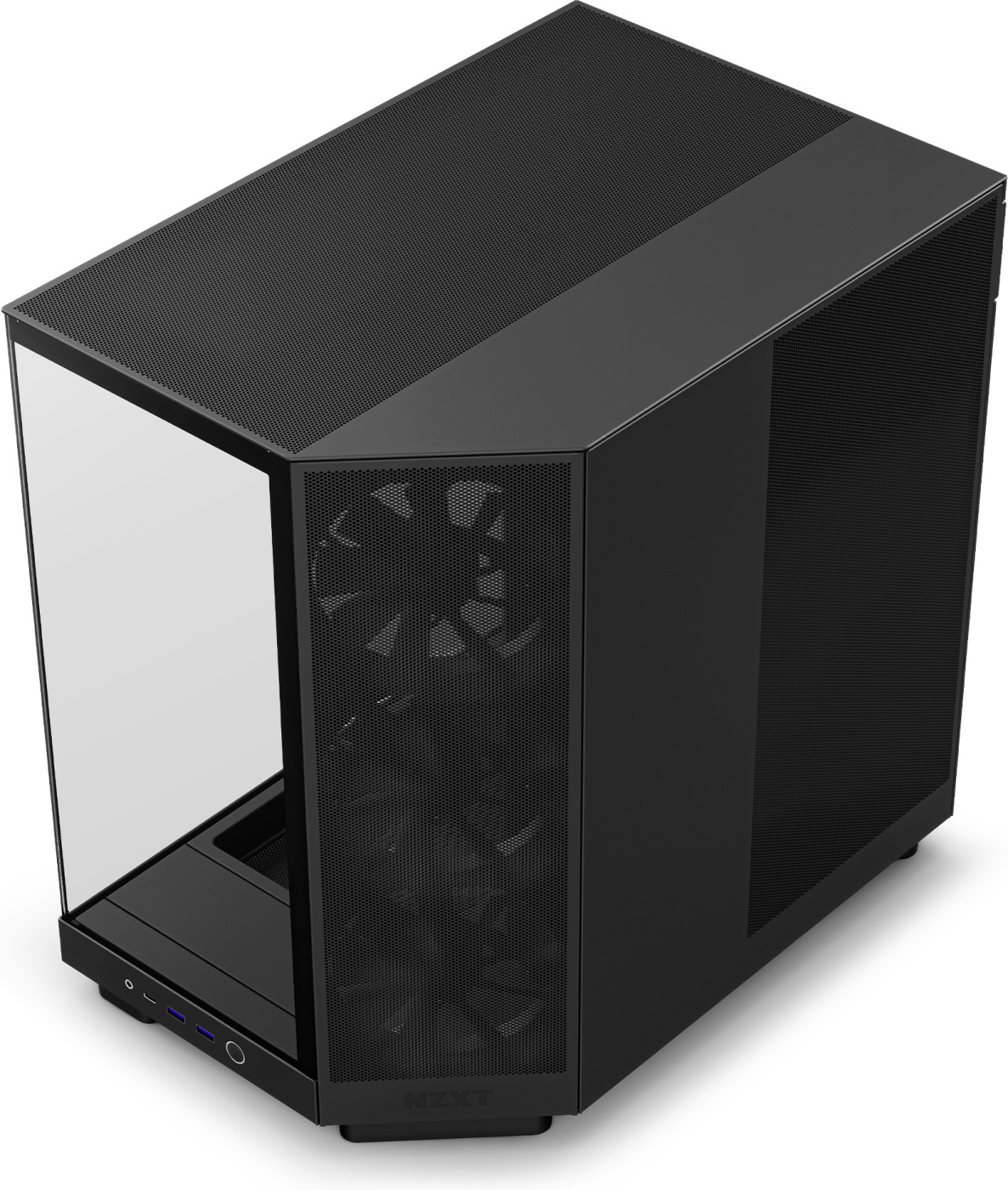

Angled airflow control Three 120 mm
fans are mounted in the angled front corner, directed at heat-sensitive components.

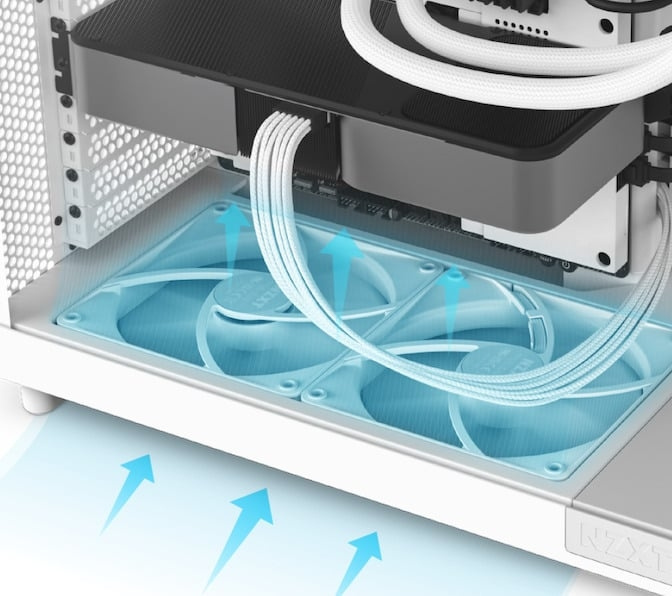

Targeted GPU cooling Two 140 mm fans are
recessed beneath the GPU for bottom air intake.
Optimal airflow

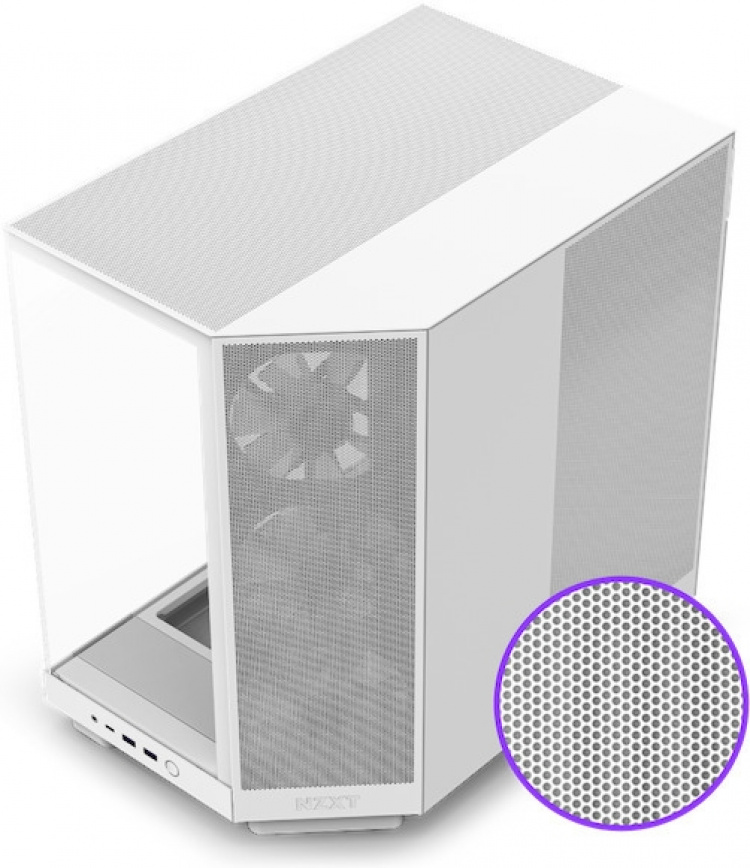

Extremely fine perforations in the top and side panels, along with a more open design at the rear, maximize airflow.
- Panoramic windows and compact dual-chamber design

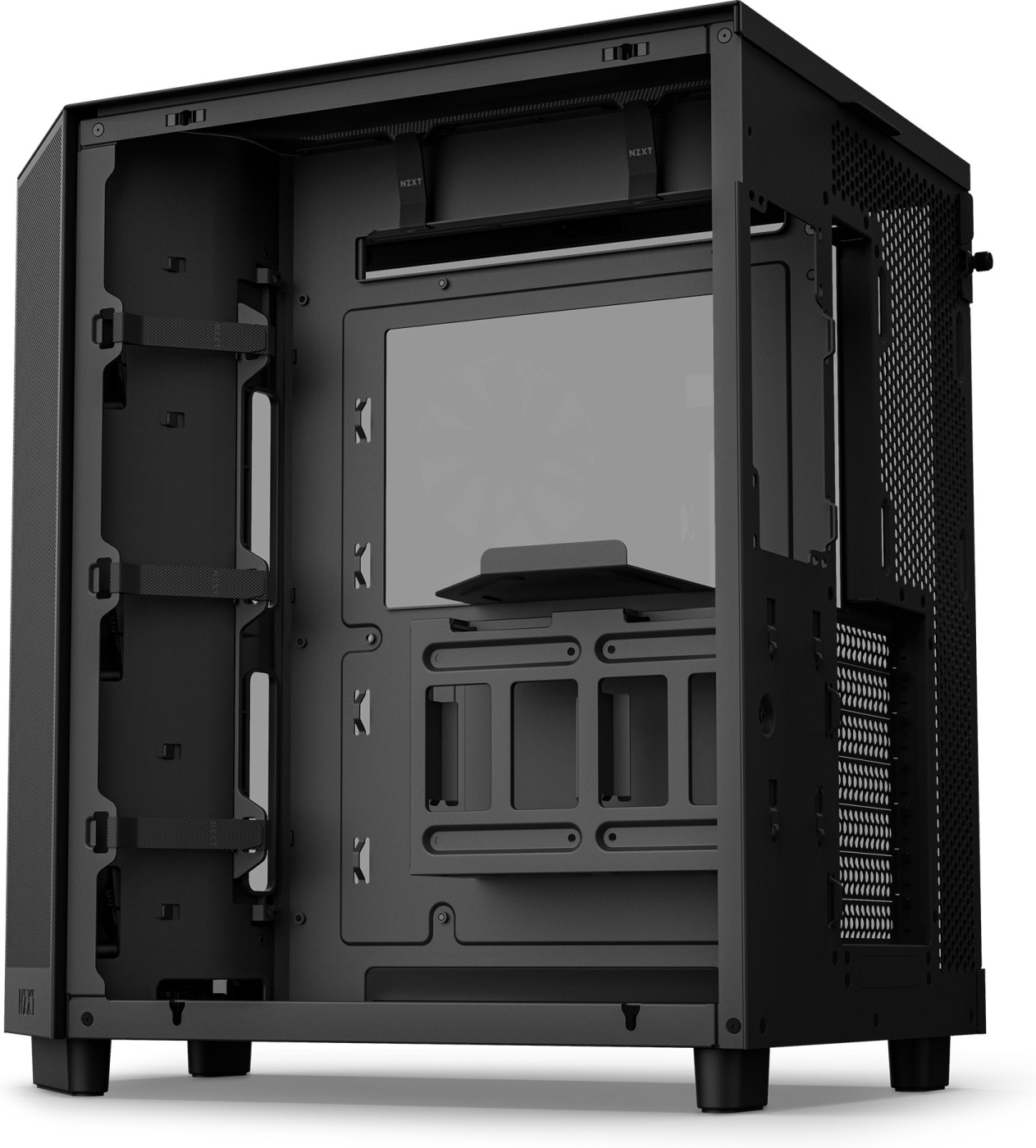

- Intuitive cable management system with wide channels, hooks, and straps

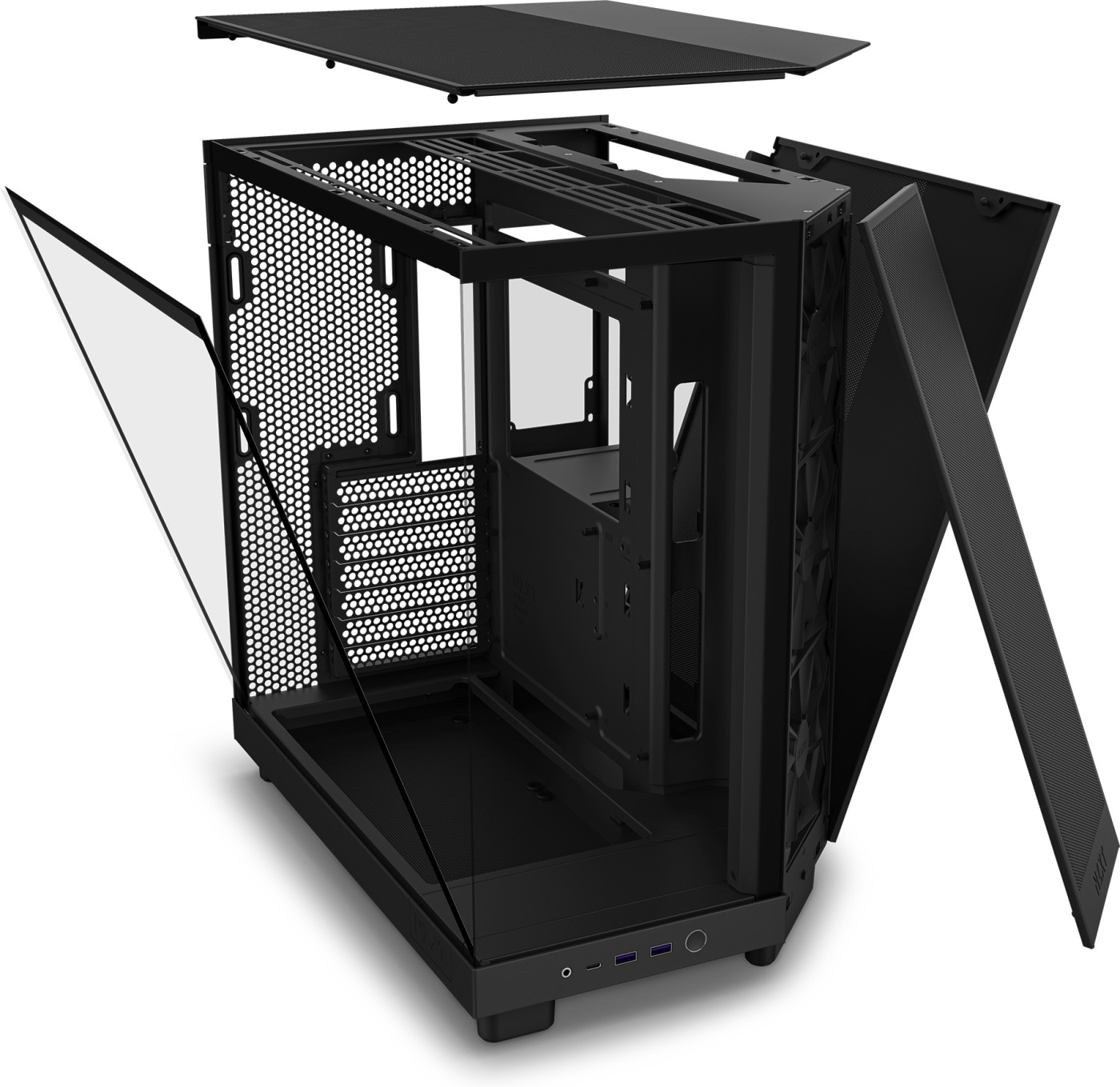

- Front and side panels are accessible without tools
- Space for a 360 mm radiator on the top
- Support for a 365 mm long graphics card
Features:
- Case type: Mid Tower, ATX
- Material: SGCC steel, tempered glass
- Internal 2.5" bays: 2
- Internal 3.5" bays: 1
- Internal 5.25" bays: -
- Front panel: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x headset audio jack, power
- Additional expansion slots: 7
- Maximum CPU cooler height: 163 mm
- Maximum GPU length: 365 mm
- Maximum power supply length: 200 mm
- Cable management: 91 mm space
- Dimensions: 435 x 287 x 415 mm
- Weight: 9.4 kg
- Motherboard support: ATX, Micro-ATX, Mini-ITX
- Includes 3 x pre-installed 120 mm F Series Quiet fans, mounting hardware, user manual
Fan slots:
- Front: 3 x 120 mm (installed)
- Top: 3 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm
- Bottom: 2 x 140 mm
Liquid cooler support:
- Roof: up to 360 mm
- Rear: up to 120 mm
- ATX case
- Panoramic view inside the case
- Dual-chamber design
- Optimized for airflow
- Includes 3 pre-installed fans
This text was automatically translated, errors may be present.
5056547204055EAN:
