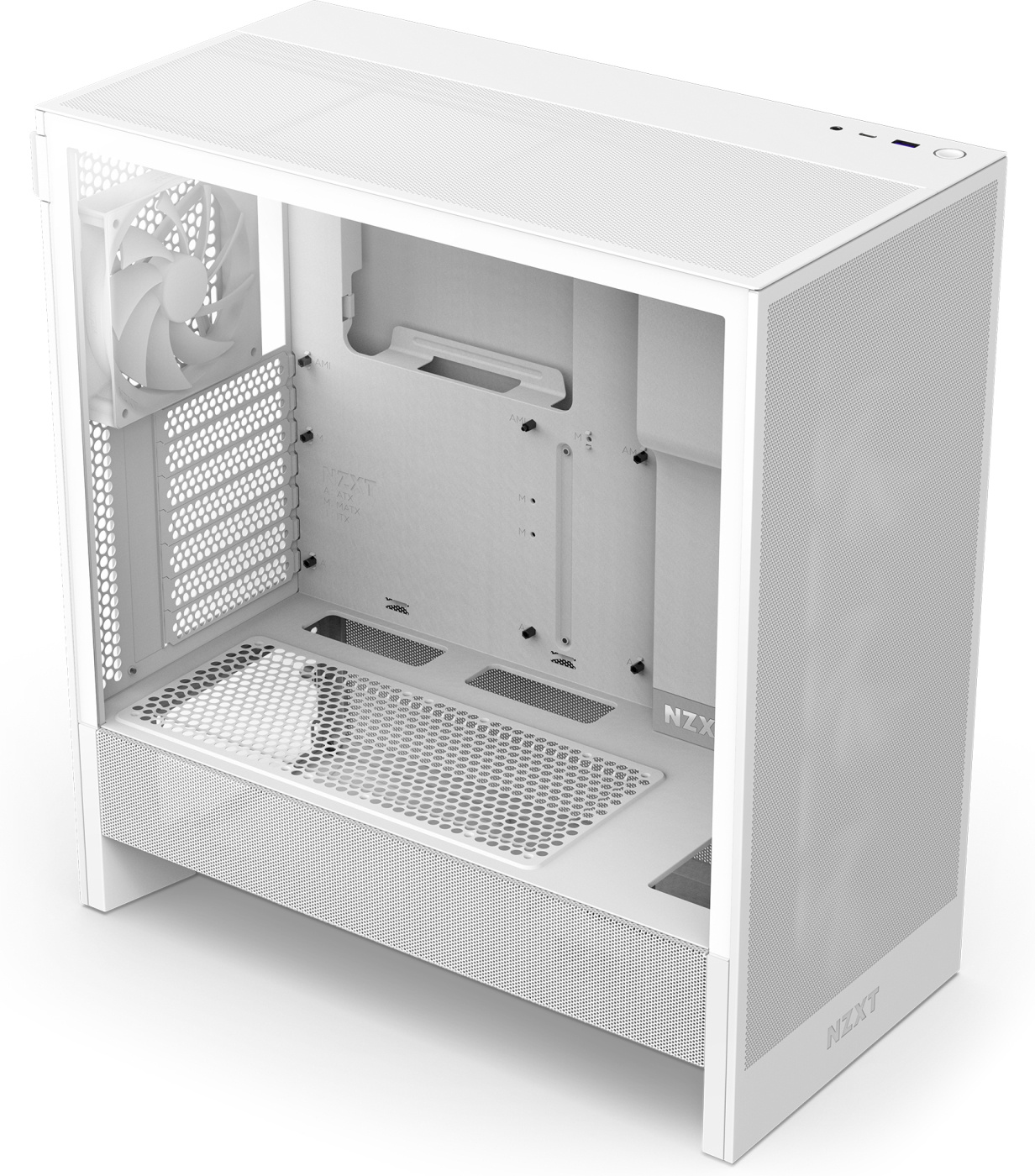

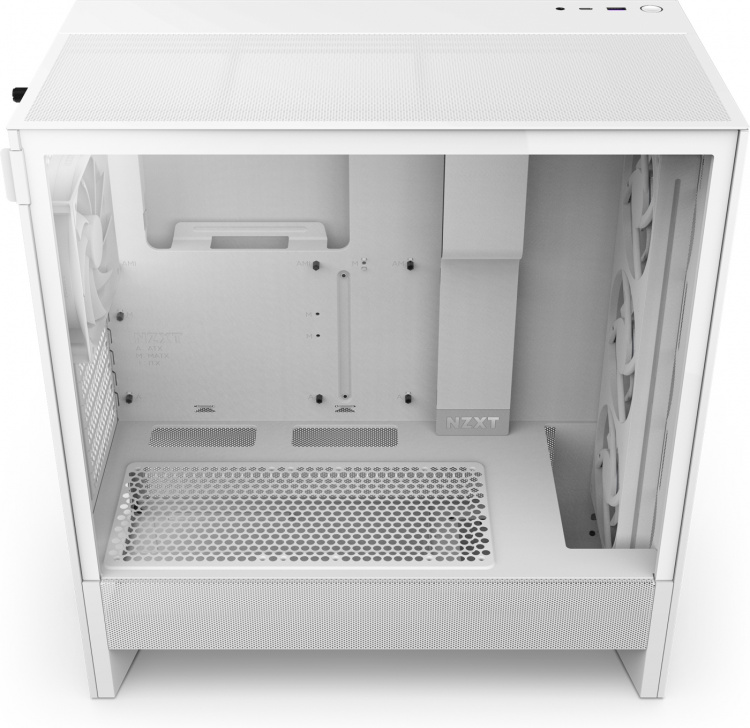

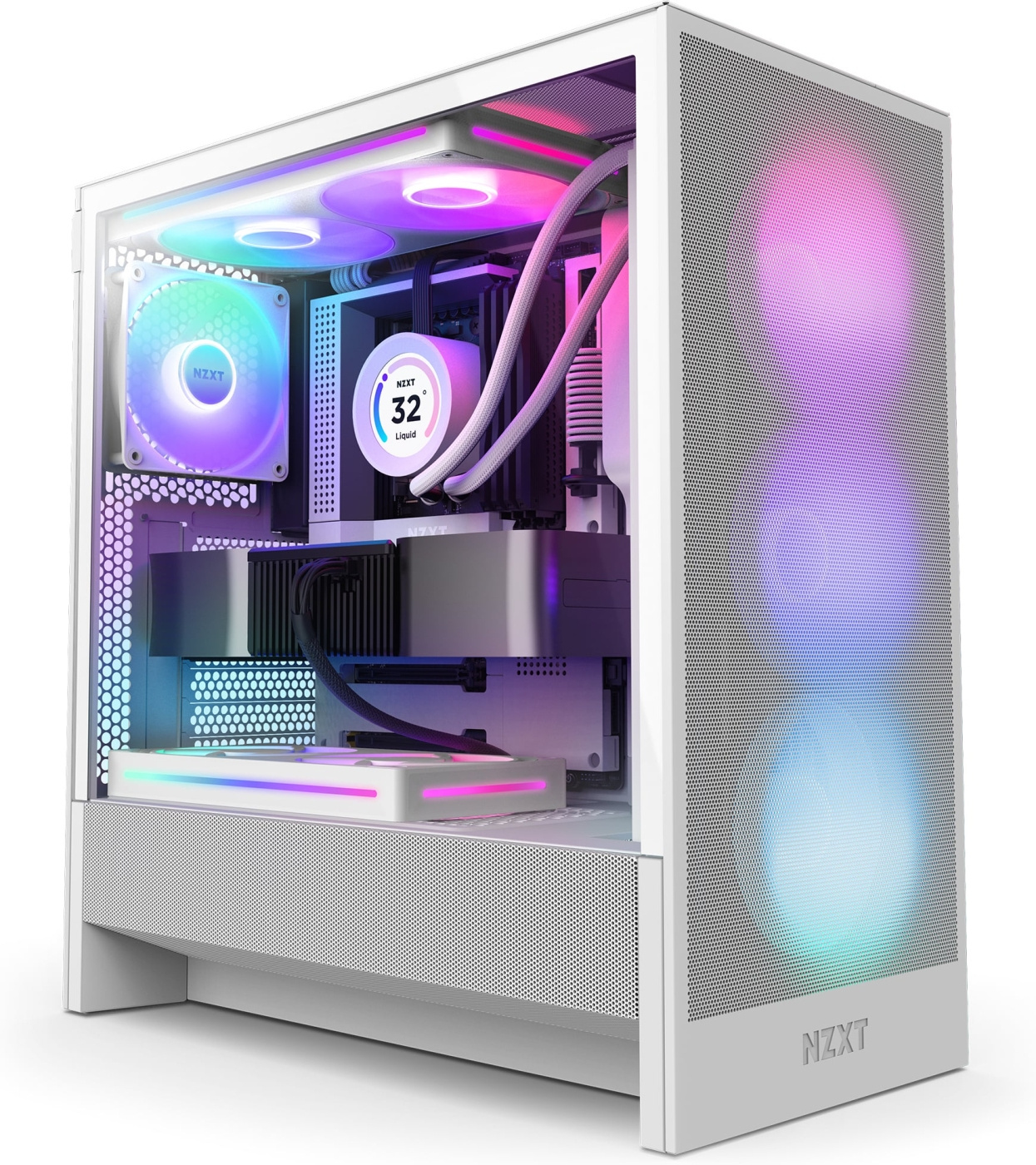

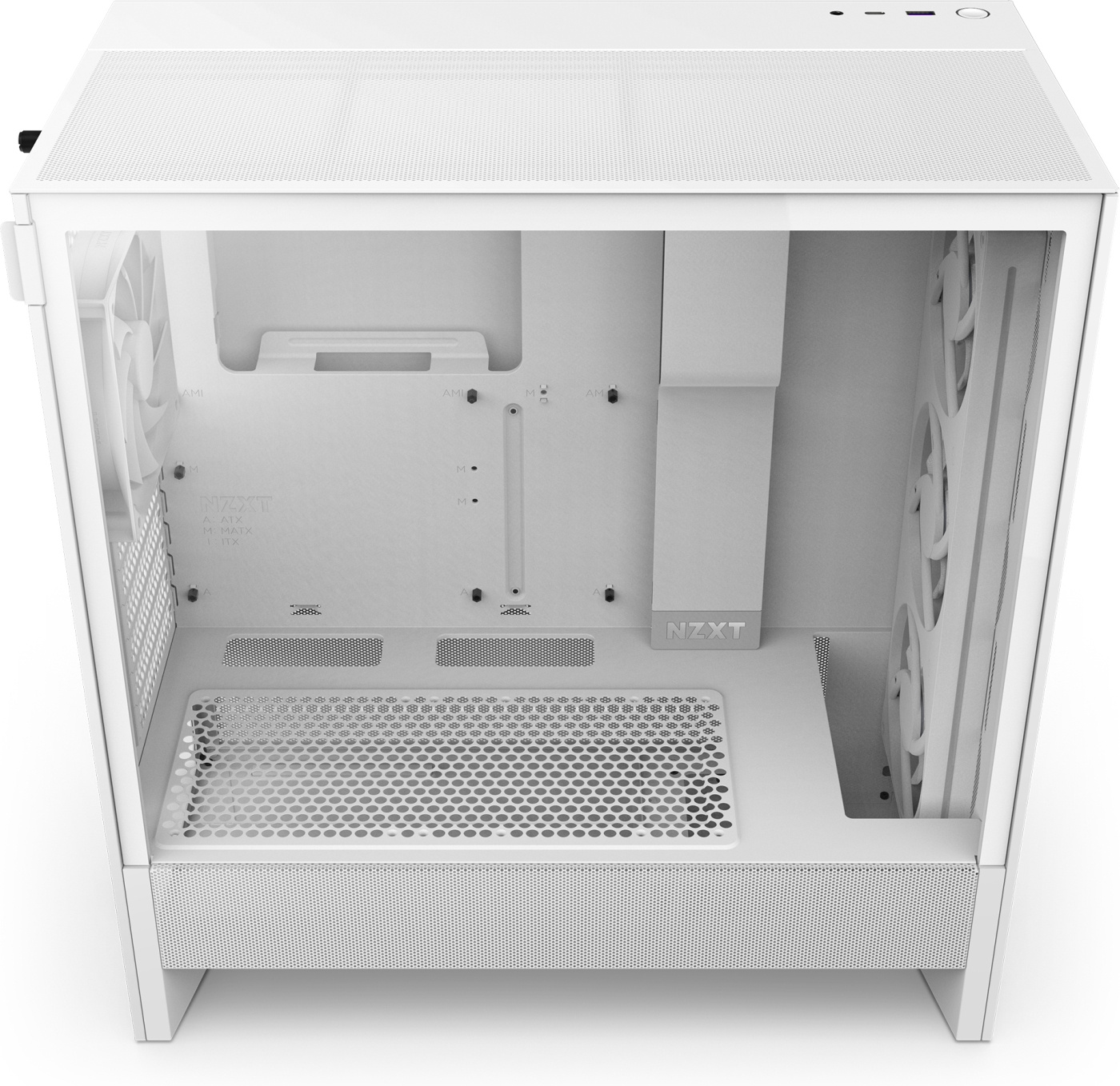

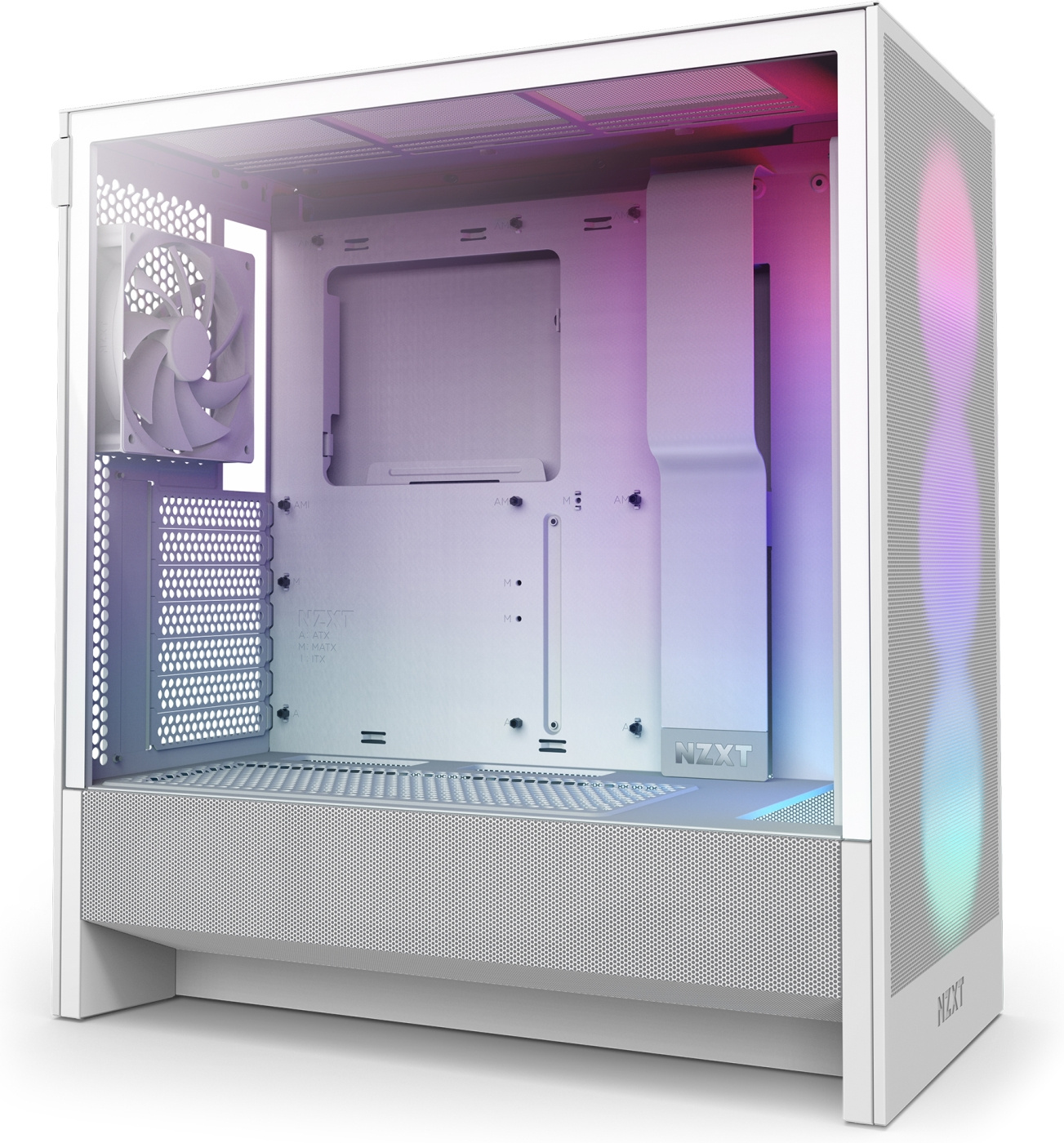

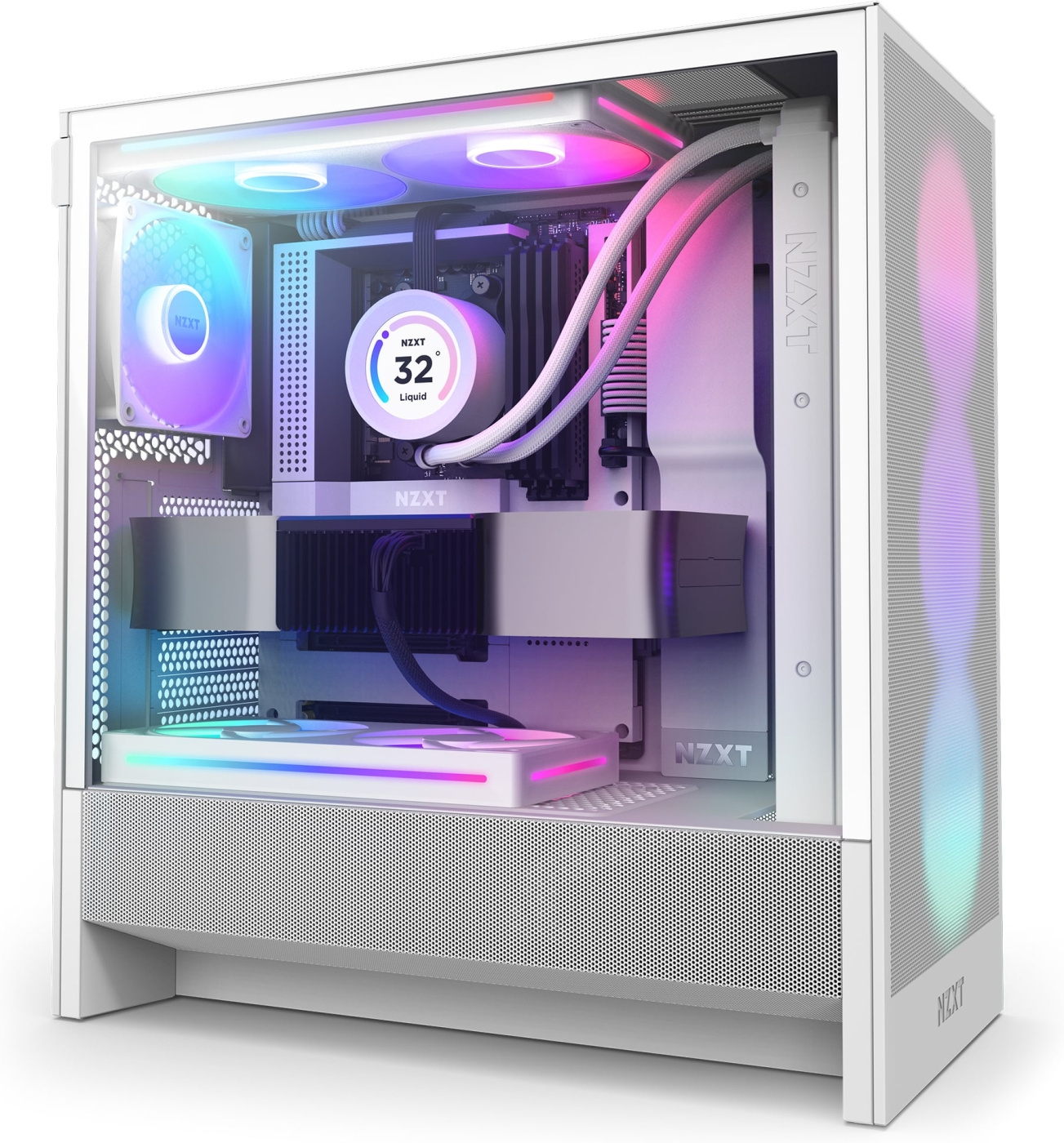

The H5 Flow RGB (2024) case enhances airflow and GPU cooling with a perforated PSU shroud, mesh side panels, an upgraded 360mm radiator, and support for a 410mm-long GPU —all in a compact mid-tower form factor.

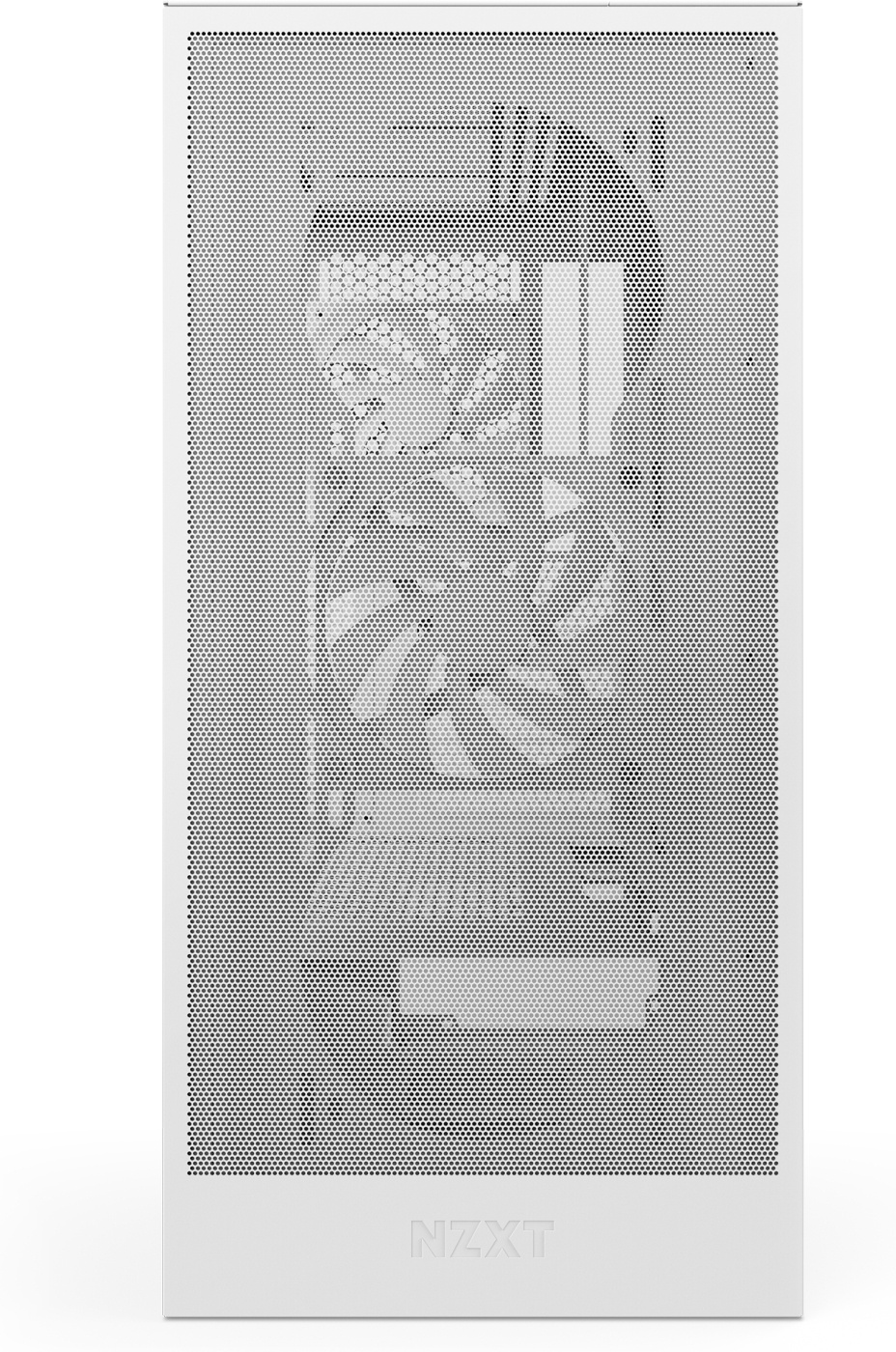

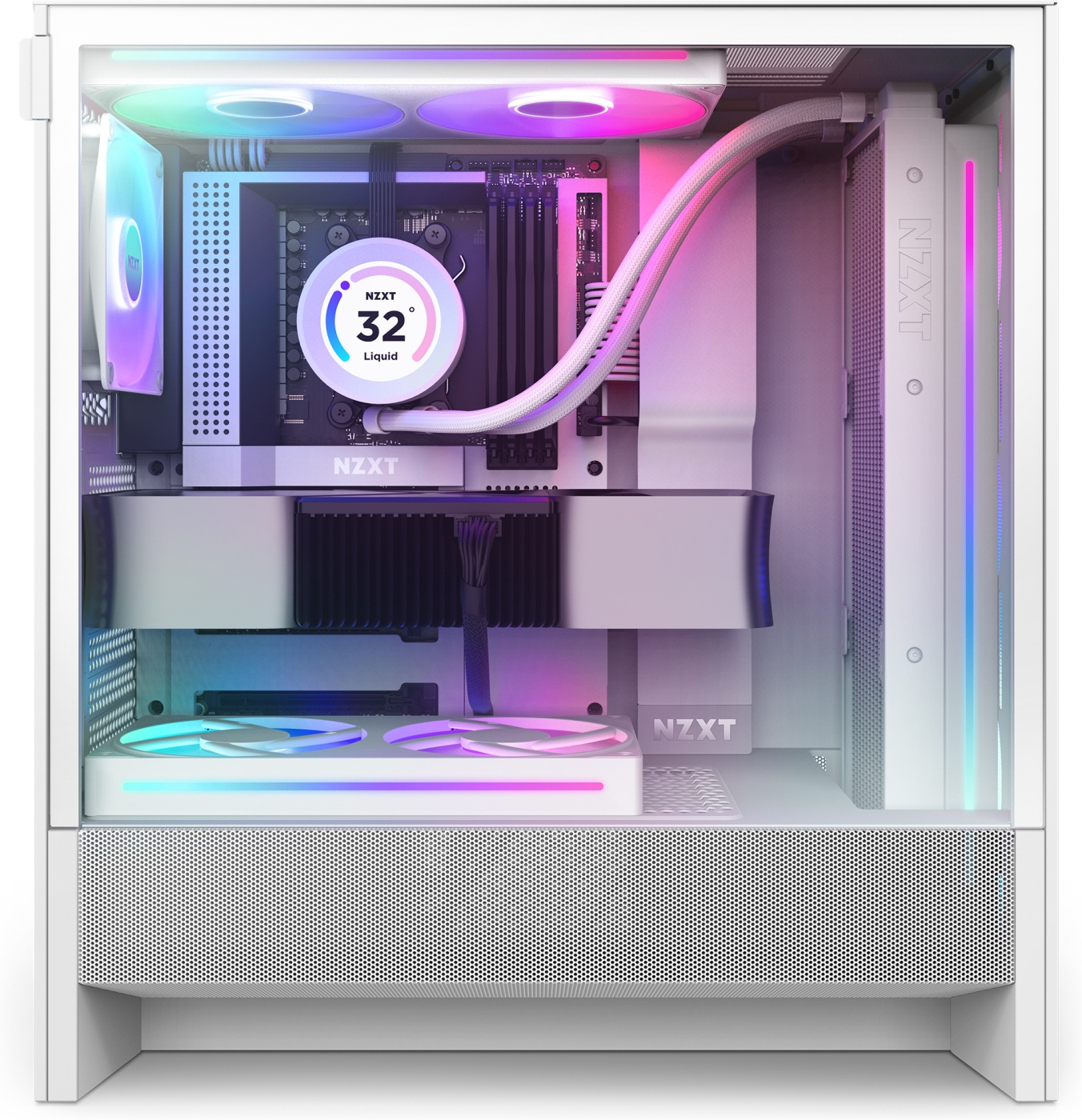

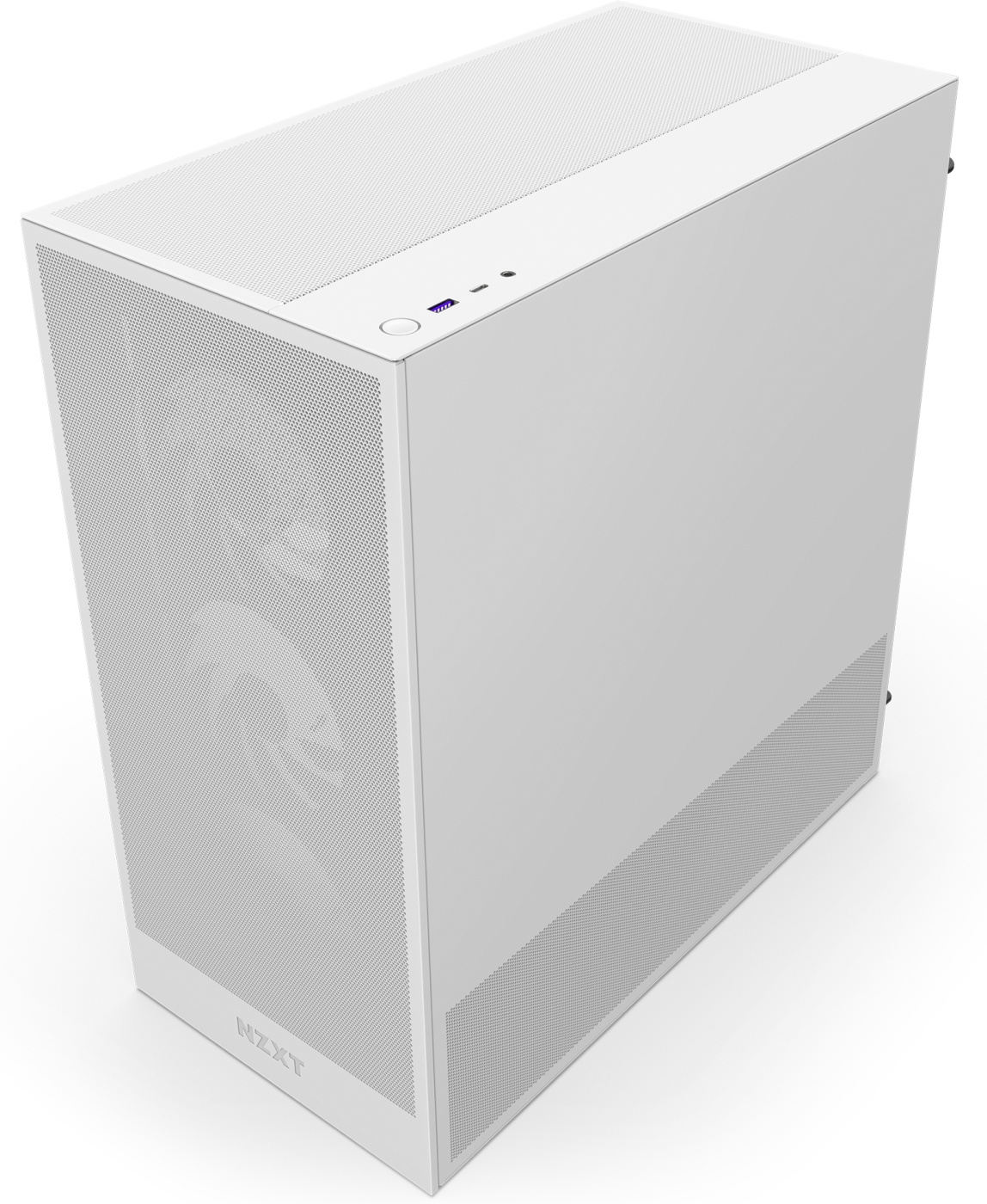

The power supply shroud is perforated on the sides and bottom, allowing for optimal air intake from two 120 mm fans (not included). It supports a 360 mm radiator at the front and a 240 mm radiator at the top, offering effective options for liquid cooling. A fine mesh on the top, front, and side panels maximizes airflow and effectively filters dust.

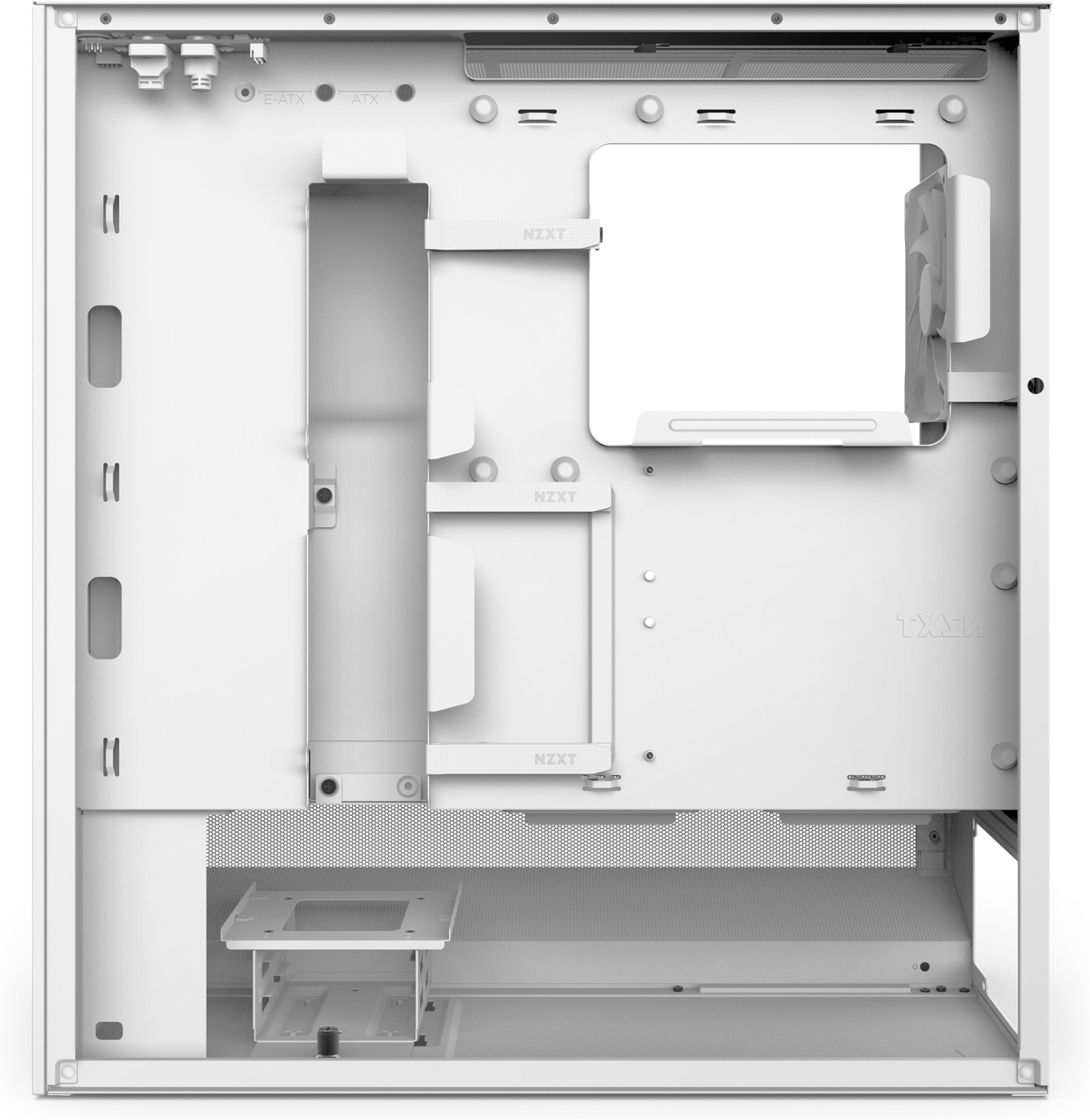

Cable routing and management is effortless thanks to wide channels, hooks, and straps. The front, side, and top panels can be easily opened without tools, and the thick steel chassis ensures long-term durability. Also included is an F360 RGB Core (CV) single-frame fan set and one F120Q (CV) fan,
which deliver excellent performance.
Features:
- Case Type: Mid Tower, ATX
- Material: SGCC steel, tempered glass
- 2.5" bays: 2
- 3.5" bays: 1
- 5.25" bays: -
- Front panel: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x headset audio jack, power
- Expansion slots: 7
- Maximum CPU cooler height: 170 mm
- Maximum GPU length: 410 mm
- Maximum front cooler thickness: 45 mm
- Maximum power supply length: 200 mm
- Cable management: 28.7 mm space
- Dimensions: 465 x 225 x 430 mm
- Weight: 7.28 kg
- Motherboard support: Mini-ITX, Micro-ATX, ATX, EATX (up to 277 mm)
- Includes 3 pre-installed F360 RGB Core (Case Version) fans and 1 F120Q (Case Version) fan
Fan slots:
- Front: 3 x 120 mm / 2 x 140 mm (3 x 120 mm installed)
- Top: 2 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm (installed)
- Bottom: 2 x 120 mm
Liquid cooler support:
- Front: up to 360 mm
- Top: up to 240 mm (280 mm with low-profile memory modules)
- ATX case
- Tempered glass side panel
- Includes four pre-installed fans
- Improved airflow
- Updated RGB design
